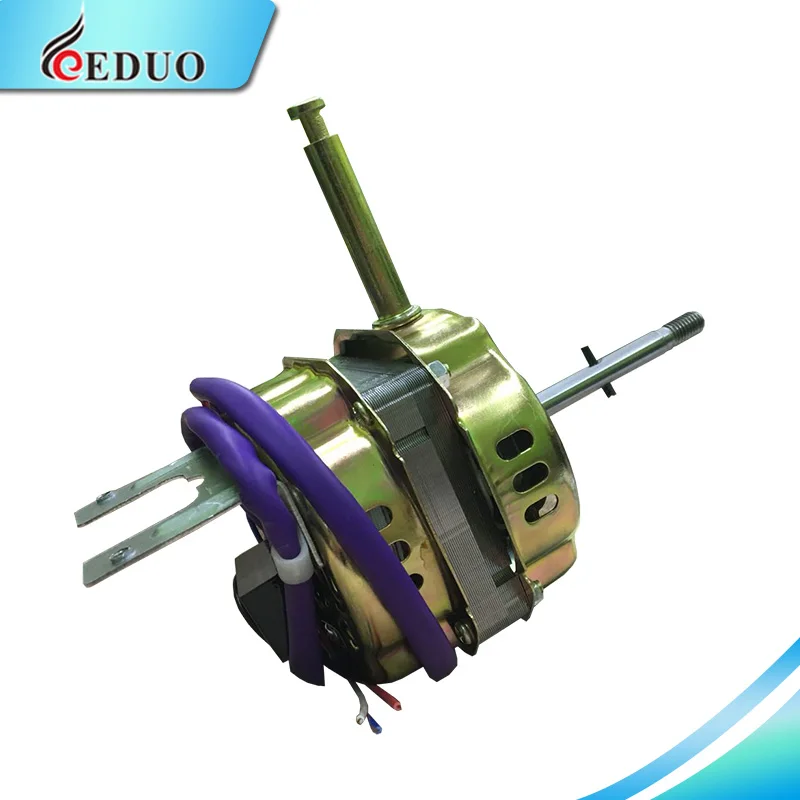

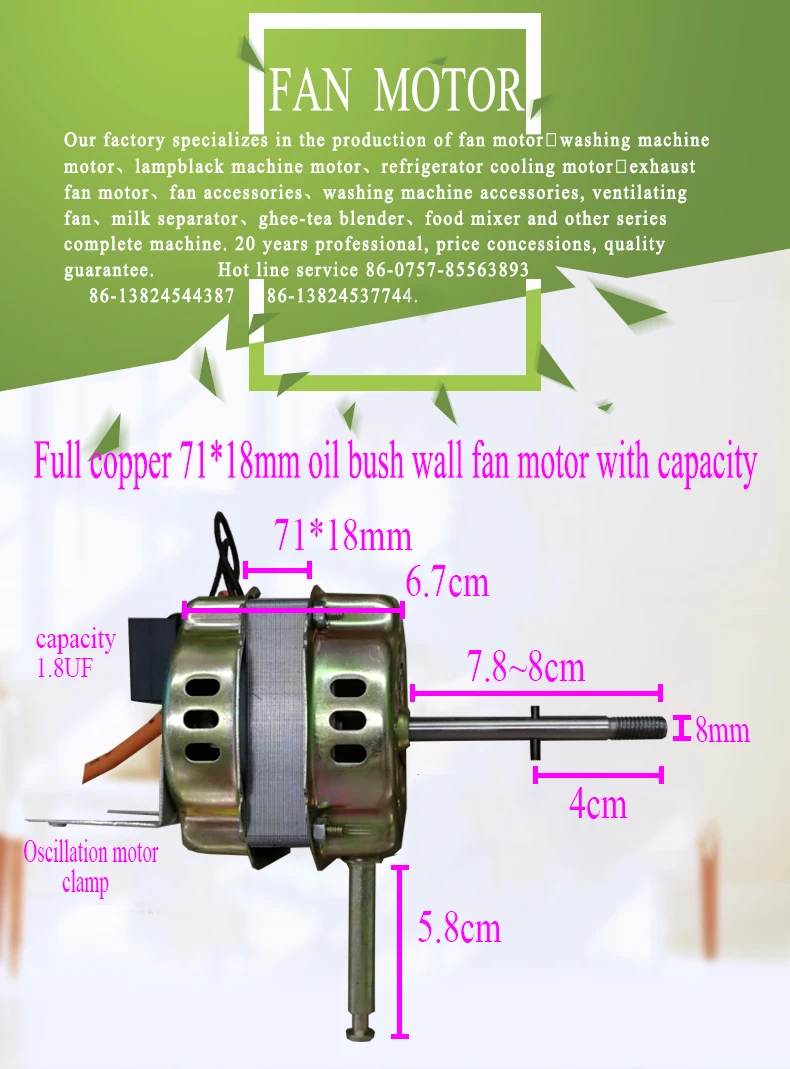

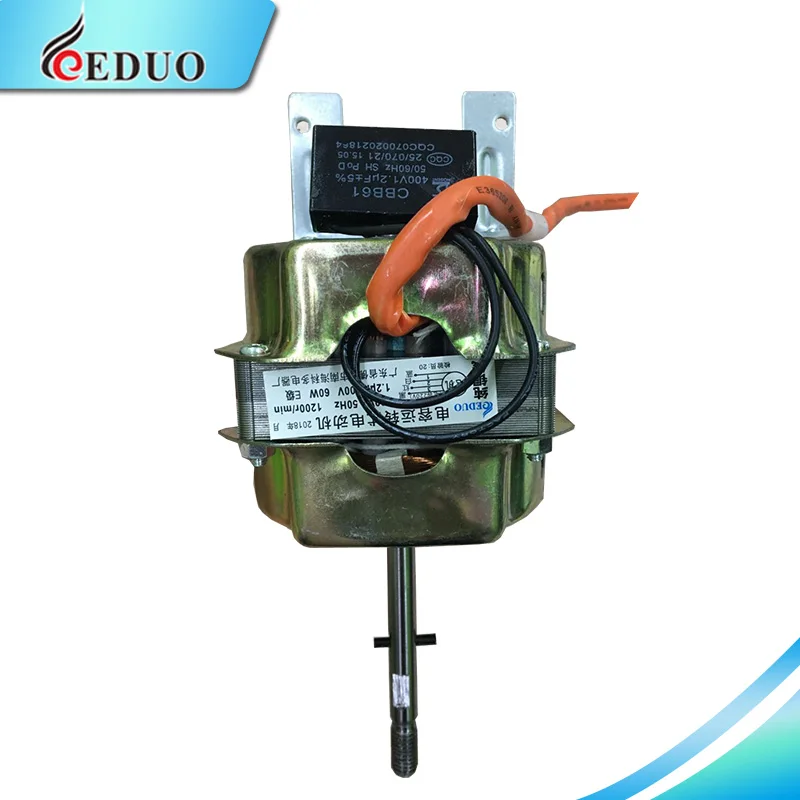

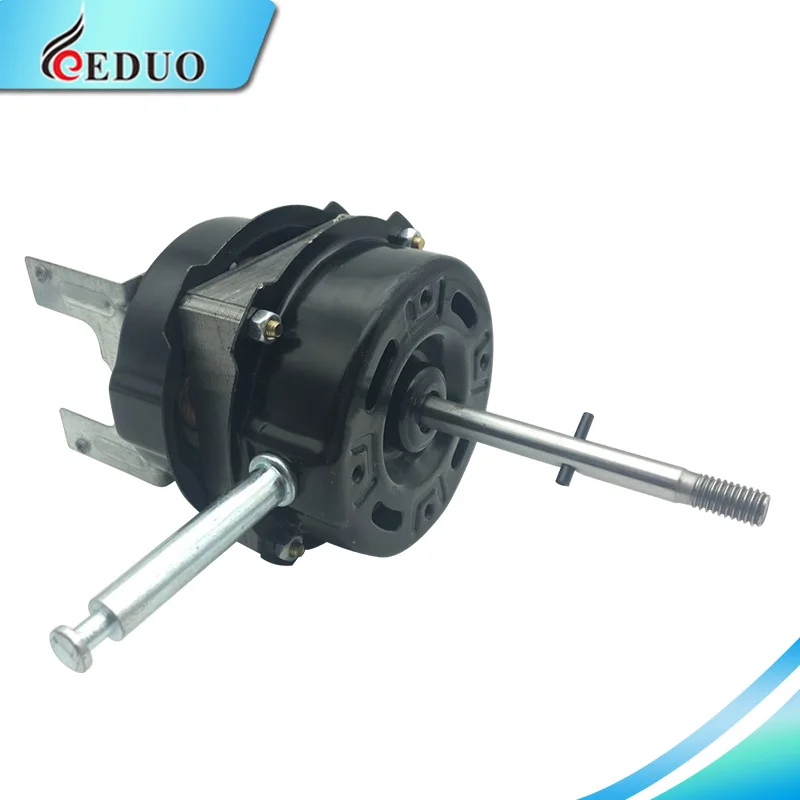

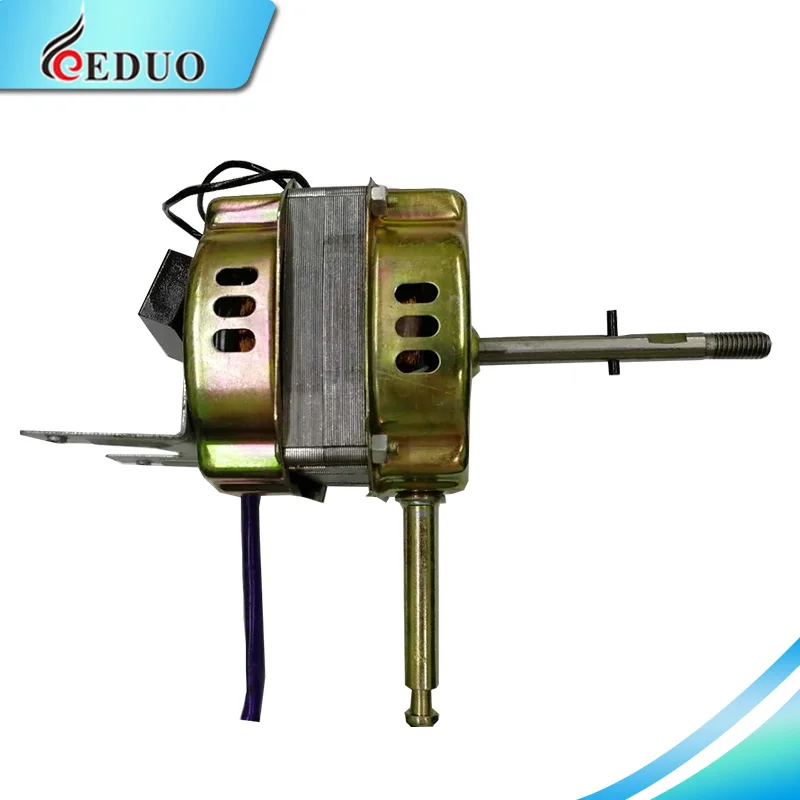

High quality copper 71*18mm wall fan motor 220V 60W with capacity for 16 inch electric fan mtor table motor
- Category: Fan Parts >>>
- Supplier: Foshan Nanhai Keduo Electrical Plants
Share on (62498388244):
Product Overview
Description
Payment terms
T/T 30% deposit, and balance 70% before shipment
Product Description
Technical Parameters
Stator (MM) | Input power (W) | Rmp (r/min) | Copper with capacity (µF/400V) | Copper motor N.W.(KG) | Aluminum with capacity (µF/400V) | Aluminum motor N.W.(KG) |
71*14 | 45 | 1200 | 1.7 | 0.8 | ----- | ----- |
71*16 | 45 | 1200 | 2.0 | 0.85 | 1.8 | 0.9 |
71*18 | 45 | 1200 | 1.8 | 0.9 | 2.0 | 0.95 |
71*20 | 45 | 1200 | 2.3 | 0.95 | 2.2 | 1.0 |
71*22 | 45 | 1200 | 2.2 | 1.05 | 2.2 | 1.1 |
71*24 | 45 | 1200 | 1.8 | 1.15 | ----- | ----- |
Remark: Fan motors need to be tested according to the blade, we support special-made.
Packaging details
Fit to exported standard, safe and strong, in cartons.
Qty:1*20
G.W.:17.5kg/18.5kg/19.6kg
Package size:Oil bush 54*25*18cm
ball bearing 54*26*18cm
Advantages: use the upper and lower layers to put 10 pcs, moderate quantity, thick cartons, adequate protection for motor.
