Security industrial OEM FC520AG HD Media Converter

Product Overview

Description

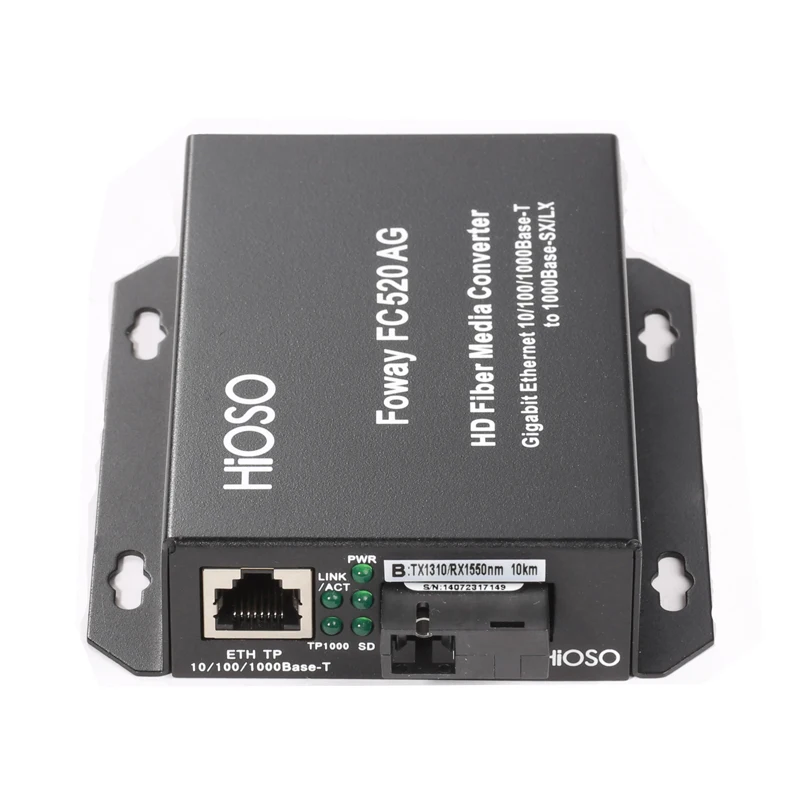

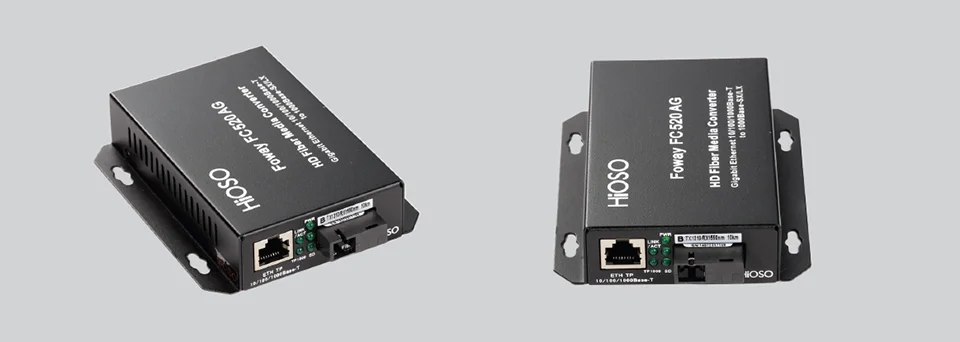

FC520AG HD Fiber Media Converter



Overview

    FC520AG is 1000M HD Video Fiber Media Converter, which is specially designed for Network HD IP camera and Network access control system. It supports long-distance stable HD Network video signals transmission through fiber cables. FC520AG can work with FTC-17 Media Converter rack in the central machine room.

FC520AG provides HD Network port, which can connect with HD IP camera or Network access control system.



Feature

· Adopt special switch chipset design for HD Network video transmission;

· Support 3.2G bandwidth high-speed storing, forwarding and access;

· Support 1000Base-FX fiber transmission standard, compatible with other devices which supports 1000Base-FX standard;

· Support full-duplex and half duplex transmission modes and capable of automatic negotiation;

· Support VLAN tag long packets transmission;

· Support flow control, QOS and STP

· Support max distance 120KM transmission;

· FTC-17 Rack supports dual power supply redundancy backup and hot swap;

· Support 1M built-in high-speed cache capacity and 2K built-in MAC address buffer space

· Support lightning protection for electrical ports, low consumption and low heat, support long-term stable work.



Technical Specification





Parameter	Specifications
Access mode	10/100/1000Mbps
Standard	IEEE802.3 10Base-T Ethernet,IEEE802.3u,1000Base-TX/FX Fast Ethernet, IEEE802.3x Flow control,IEEE802.1q VLAN,IEEE802.1p QoS,IEEE802.1d Spanning Tree
Wavelength	850nm/1310nm/1550nm
Transmission distance	Dual-fiber single-mode: 25/40/60/80/100/120Km;
Port	1 RJ45 port, connected to STP/UTP category-5 twisted pair Single mode - SC fiber port (fiber size: 9/125μm)
Conversion mode	Medium conversion, storing and forwarding mode
MAC address table	I K
Buffer space	1Mbit
Flow control	Full duplex state: flow control; half duplex state: back pressure mode
Delay	1us
Bit error rate	<1/1000000000
MTBF	100,000 hours
LED	POWER (power), FX LINK/ACT (fiber connection/action) FDX (FX full duplex mode), FX1000 (Fiber, with a transmission rate of 1000M) TP LINK/ACT (twisted pairs connection/action) TP1000 (twisted pairs, with a transmission rate of 1000M)
Power	DC12V
Power consumption	2.5W
Operating temperature	-10~55℃
Operating humidity	5%~90%
Storage temperature	-40~80℃
Storage humidity	5%~90% (non-condensing)
Dimensions	26mm(Height)*96mm(Width)*113mm(Depth) (external power)
