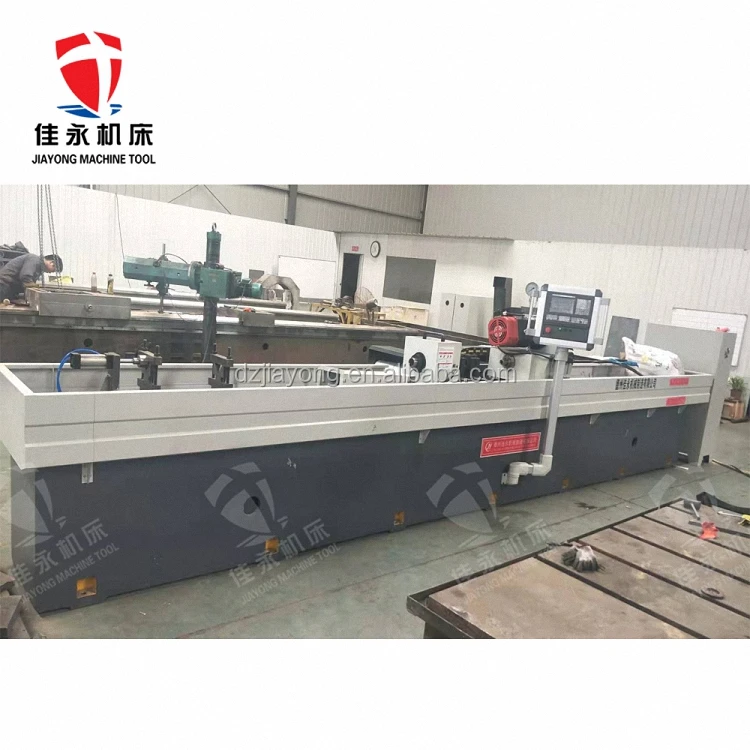

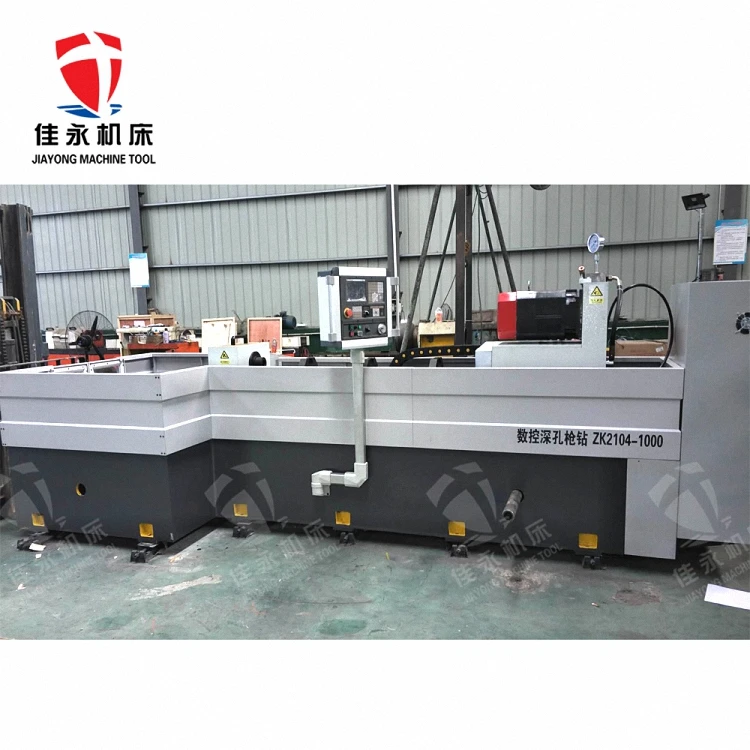

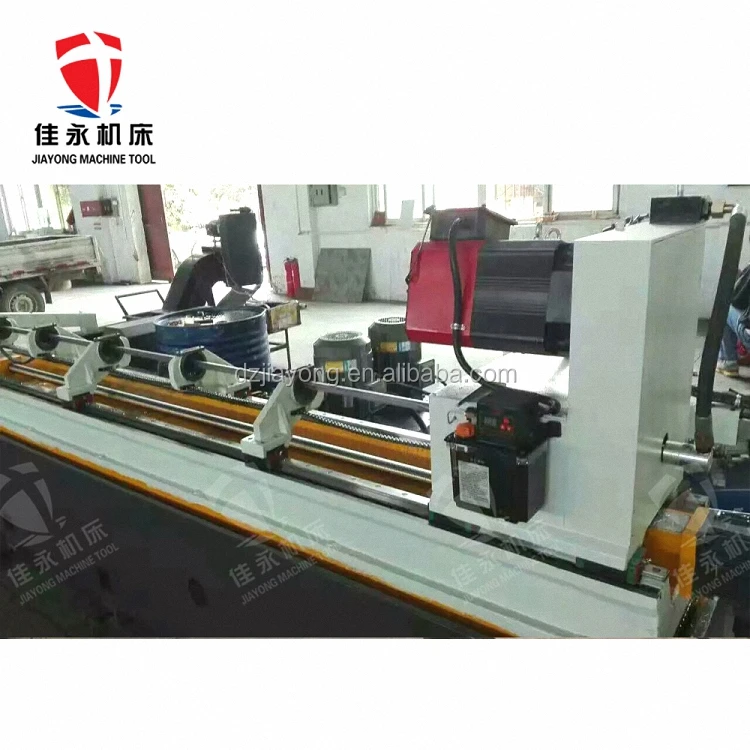

Single spindle metal drilling machine cnc machine gun drilling with factory prices
- Category: >>>
- Supplier: Dezhou Jiayong Machinery Manufacturing Co. Ltd.
Share on (62498525201):
Product Overview
Description
Machine introduction
Single spindle metal drilling machine cnc machine gun drilling with factory prices is a high-precision, high-automation and high-efficiency special deep-hole drilling machine. The equipment adopts external chip
removal drilling (gun drilling), and it can replace the processing accuracy and surface roughness generally required by drilling,
expanding and reaming operations through one continuous drilling. Jiayong CNC single-axis deep hole gun drilling machine is
controlled by digital control system, which not only has single-action function, but also has automatic cycle function. Therefore,
this equipment is not only suitable for the processing of small batches of workpieces, but also especially suitable for the
production and processing requirements of large batches of workpieces. It can drill through holes, blind holes or stepped holes,
and can also process eccentric holes and oblique oil holes with special tooling.
removal drilling (gun drilling), and it can replace the processing accuracy and surface roughness generally required by drilling,
expanding and reaming operations through one continuous drilling. Jiayong CNC single-axis deep hole gun drilling machine is
controlled by digital control system, which not only has single-action function, but also has automatic cycle function. Therefore,
this equipment is not only suitable for the processing of small batches of workpieces, but also especially suitable for the
production and processing requirements of large batches of workpieces. It can drill through holes, blind holes or stepped holes,
and can also process eccentric holes and oblique oil holes with special tooling.
Product Fetures
1. High processing accuracy (≤0.02), high finish (≤Ra0.8-1.6)。
2. 20 times more efficient than traditional machine tools.
3. The machine tool is automatically controlled by NC program, which is suitable for large-scale workpiece processing and production.
4. The clamping work piece is simple, using a two-cone disc top-tight structure, high positioning accuracy, coaxiality ≤ 0.02,or V-shaped iron clamping
2. 20 times more efficient than traditional machine tools.
3. The machine tool is automatically controlled by NC program, which is suitable for large-scale workpiece processing and production.
4. The clamping work piece is simple, using a two-cone disc top-tight structure, high positioning accuracy, coaxiality ≤ 0.02,or V-shaped iron clamping
Machine Parameter
Project Name | Parameter | ||
Working range | Drilling diameter range | Φ3-Φ30mm | |
Workpiece length | 500-2500mm | ||
Spindle parameters of drill box | The height of center | 200mm （can be customerized） | |
Taper hole at the front end of spindle | Φ40mm 1：20 | ||
Spindle speed range | 30-4000r/min（ steplesss ） | ||
Boring bar torque | ≥35N.m | ||
Feeding parameters | Feed speed range | 5-1000mm/min（stepless） | |
Pallet move quickly | 2m/min | ||
Feed torque of boring bar | ≥10N.m | ||
Positioning length | 0-2500mm | ||
Machining precision | Cylindricity of workpiece machining | ≤0.016/500mm | |
Roundness of workpiece machining | ≤0.01/100mm | ||
Motor capacity | Motor power of drilling bar | 5.5KW AC servo motor | |
Cooling pump motor power | 5.5KW AC servo motor | ||
Feeding motor | 1.5KW | ||
CNC systerms | SIEMNS KND or customer choose | ||
Machine usage workpiece
