Fully automatic heavy duty flying knife cutting bottom sealing bag making machine price
Brief Introduction:Wide width bottom seal model CW-1400FB machine specially designed for heavy duty LDPE and HDPE Liner bags.
The technology used here is quite different from the regular smaller width bottom seal machine.
The sealing of the film is done by a wire seal system which gives a very strong seal. The cutting is done through a mechanically driven rotary flying knife.
The setting of the cutting knife is much simpler compared to the Shear (scissor type) knife used on regular bottom seal machine.
FEATURES: Using the design with flying knife by servo motor. The sealing design is heated by two-sided heating wires, to achieve a strong sealing line. Providing multi producing lines for non-printing bag.
OPTIONAL: 1. punching unit; K sealing etc. 2. Double printing line production 3. Post gusset device 4. Hot slitting unit 5. Hydraulic unwind device
Details Images:

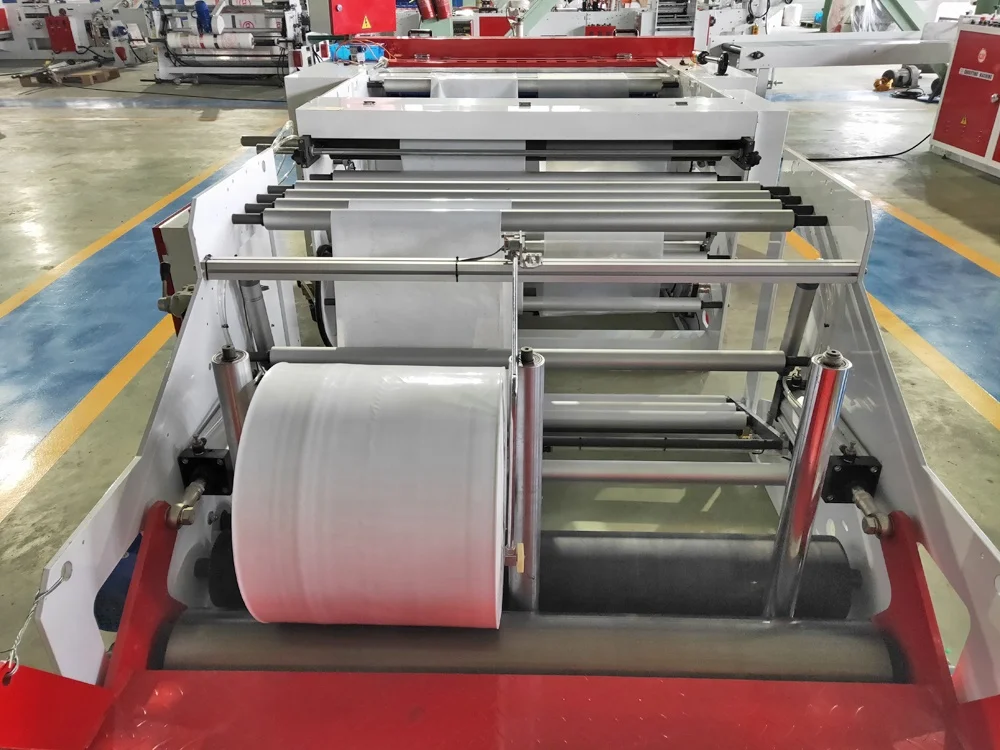

Unwind friction type
Positive friction type unwind,
capable of loading one wide reel or multi reel for production
Without tension Feeding
complete production procedure without any tension to stretch the sealing line

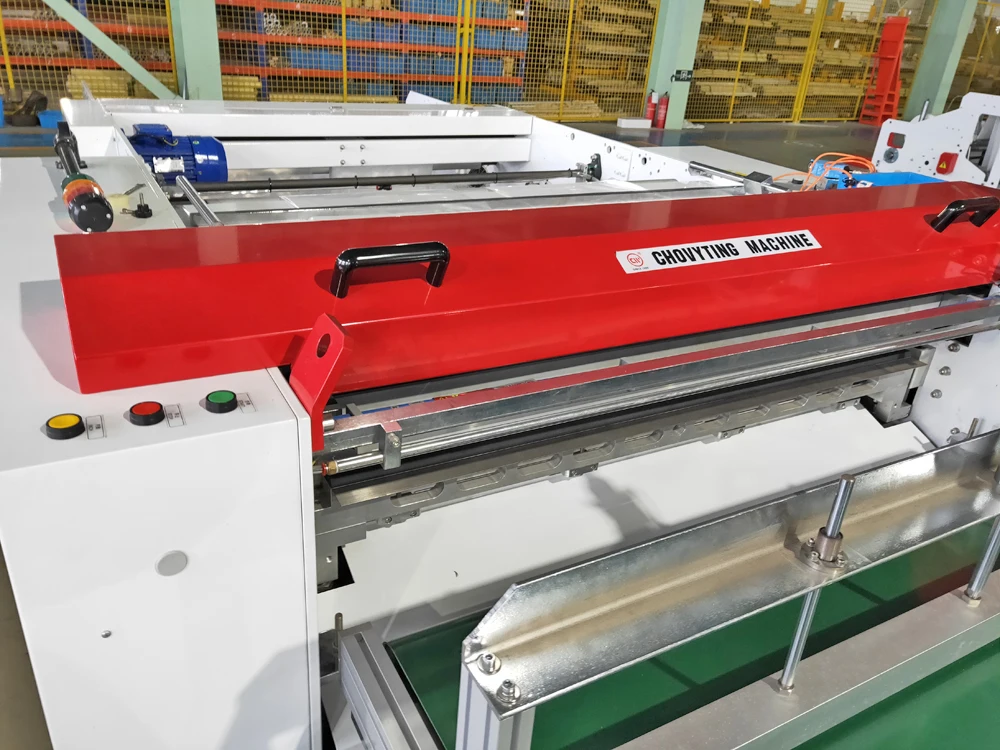

Fly knife cutting system
the bag is cutting bag fly knife
blades easy to change
Technical Parameter :
Model
CW-1400FB
Bag type
Bottom sealing bag
Unwind width
1300mm tube film/ 600*2 mm tube film
Bag length
200-3000mm
Film thickness
(0.04mm-0.15mm)*4
Production speed
80pcs/min
Line speed
60m/min
Total power
9kw
Machine dimension
6000X2200X1300mm
Machine weight
2100kg
Air compressor
6HP
