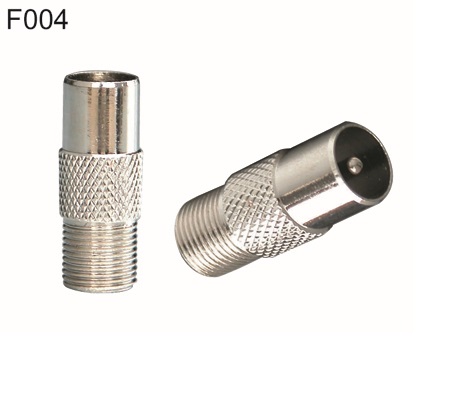

F female to PAL male
US $0.05
Worldpeak 4,3 10 DIN мини Дин мужской разъем под прямым углом/локоть зажимной соединитель для LMR200 кабель
- Category: D-Sub Connectors >>>
- Supplier: Zhenjiang Worldpeak Communication Co. Ltd.
Share on (62498719315):
Product Overview
Description
Product Description

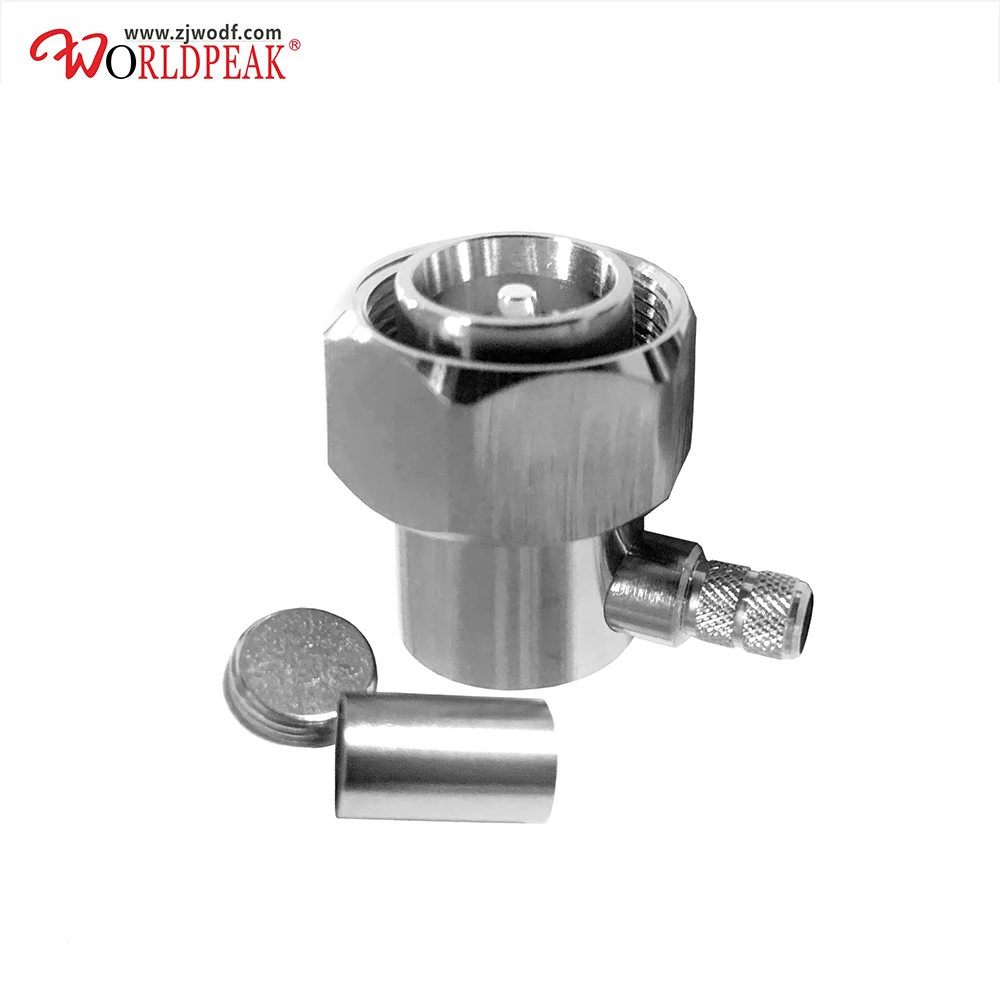

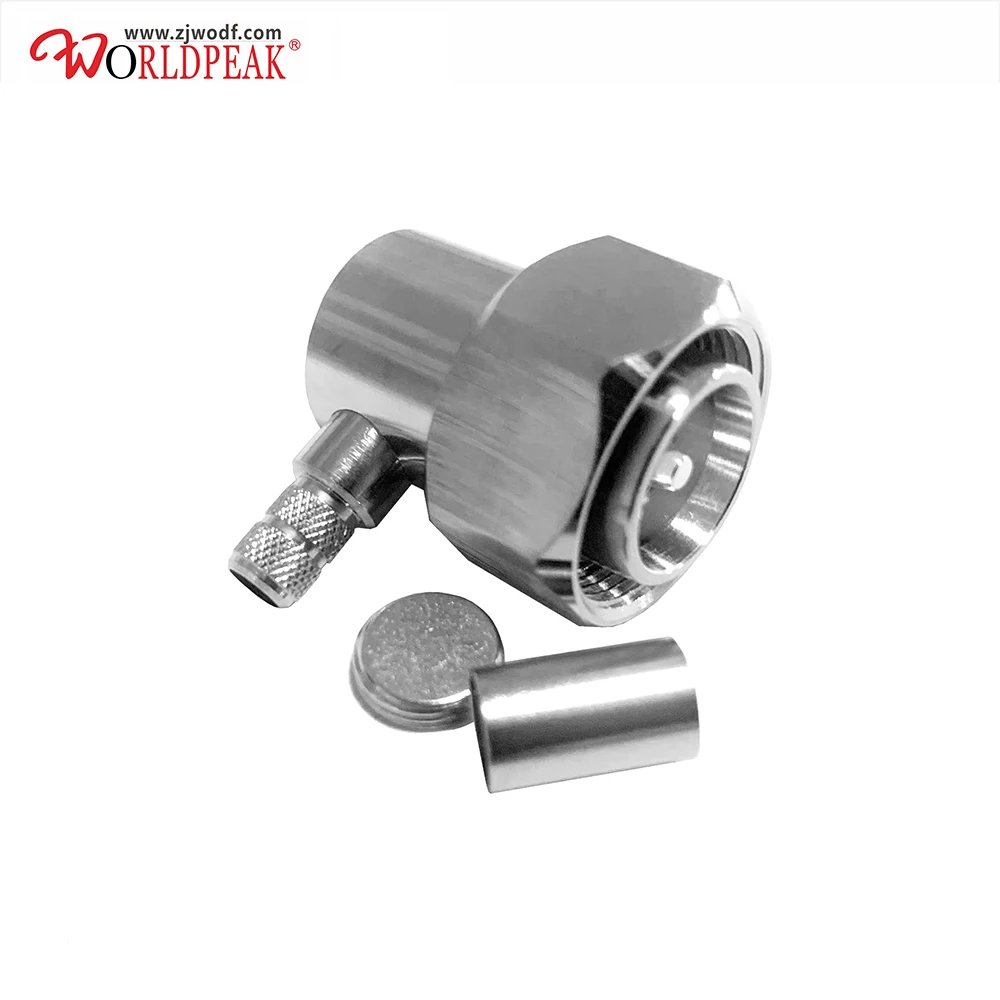

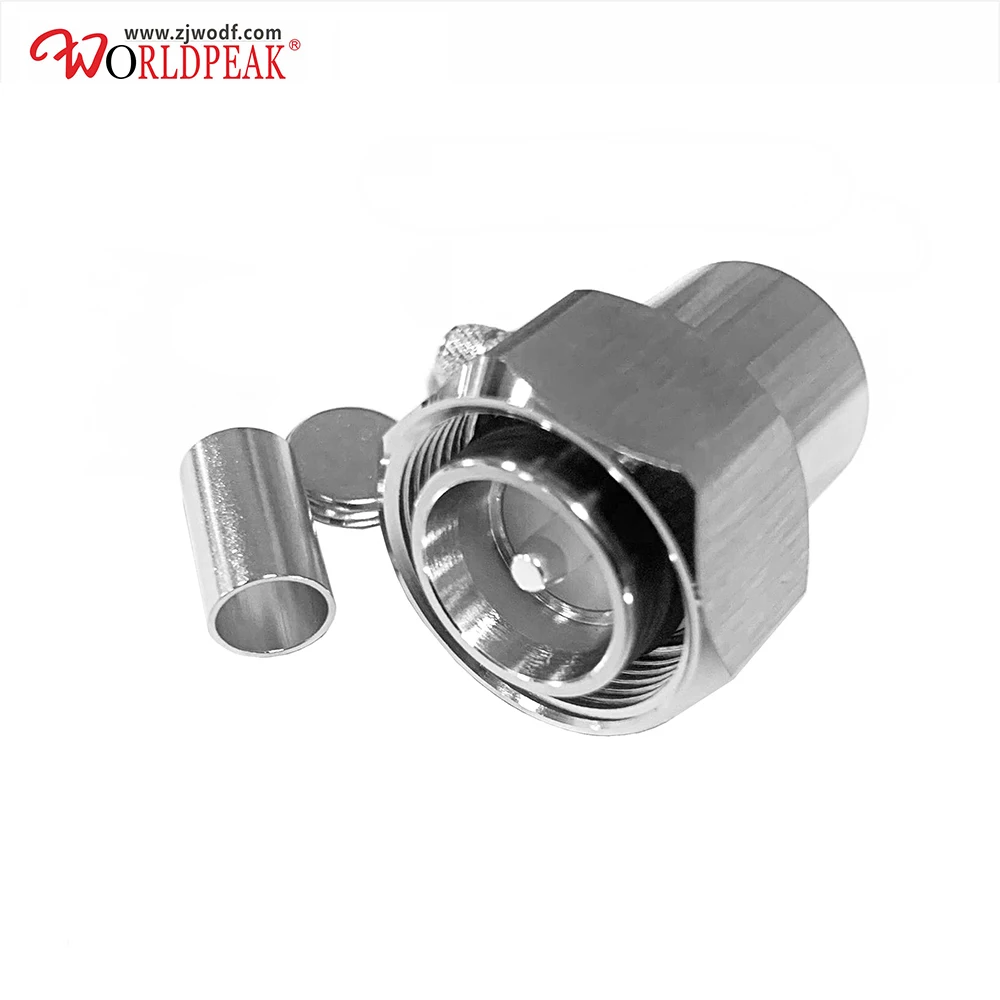

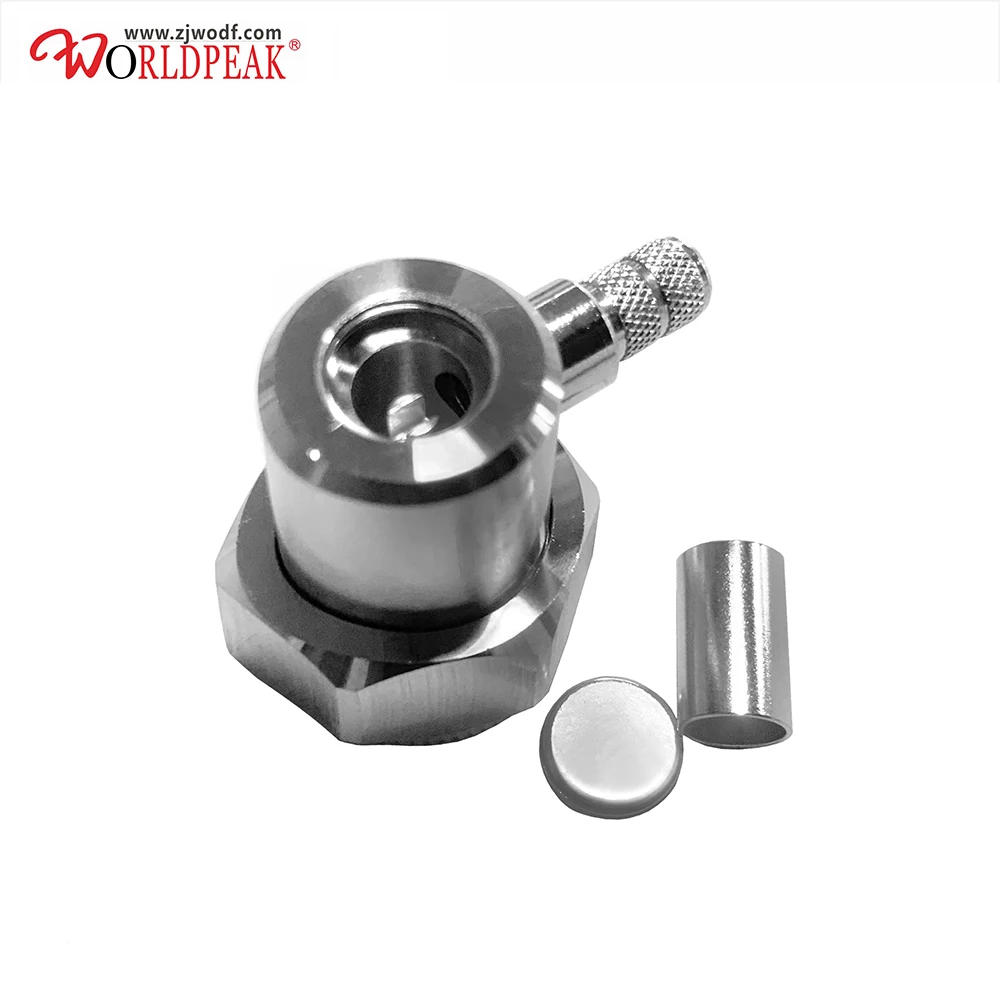

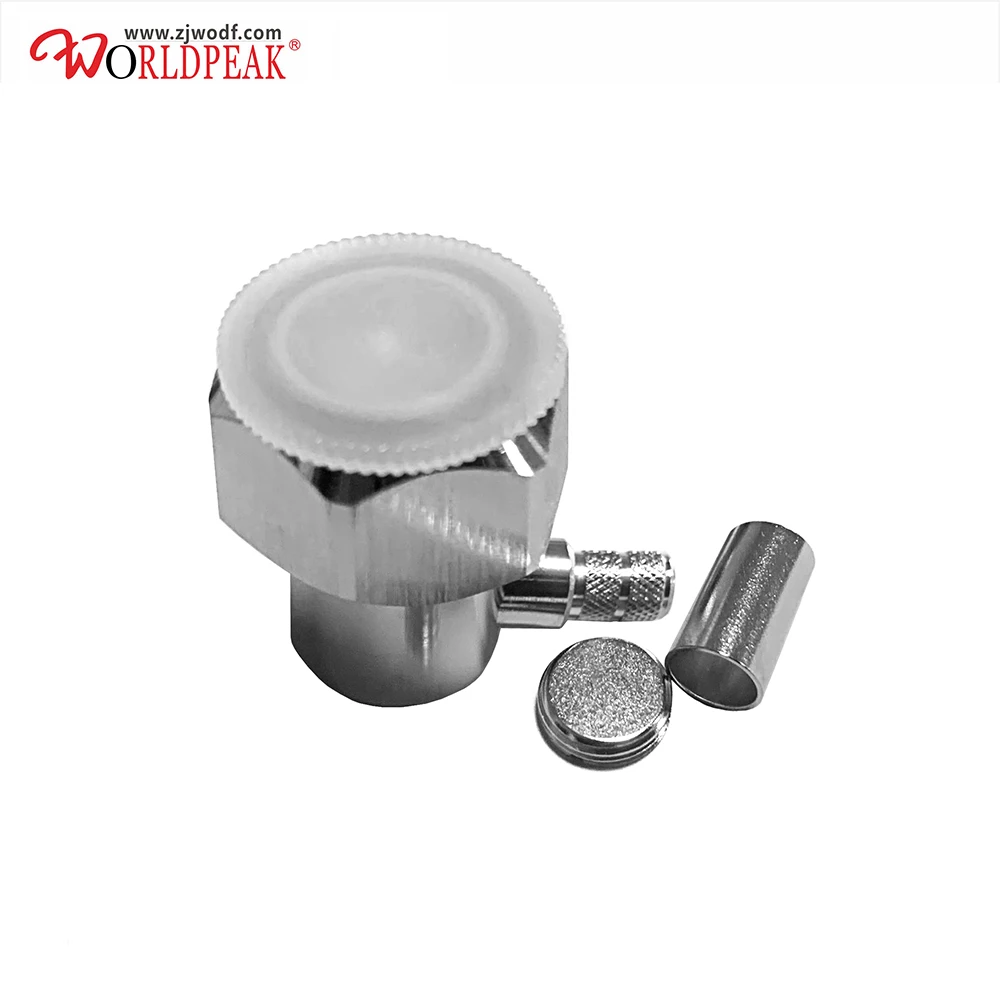

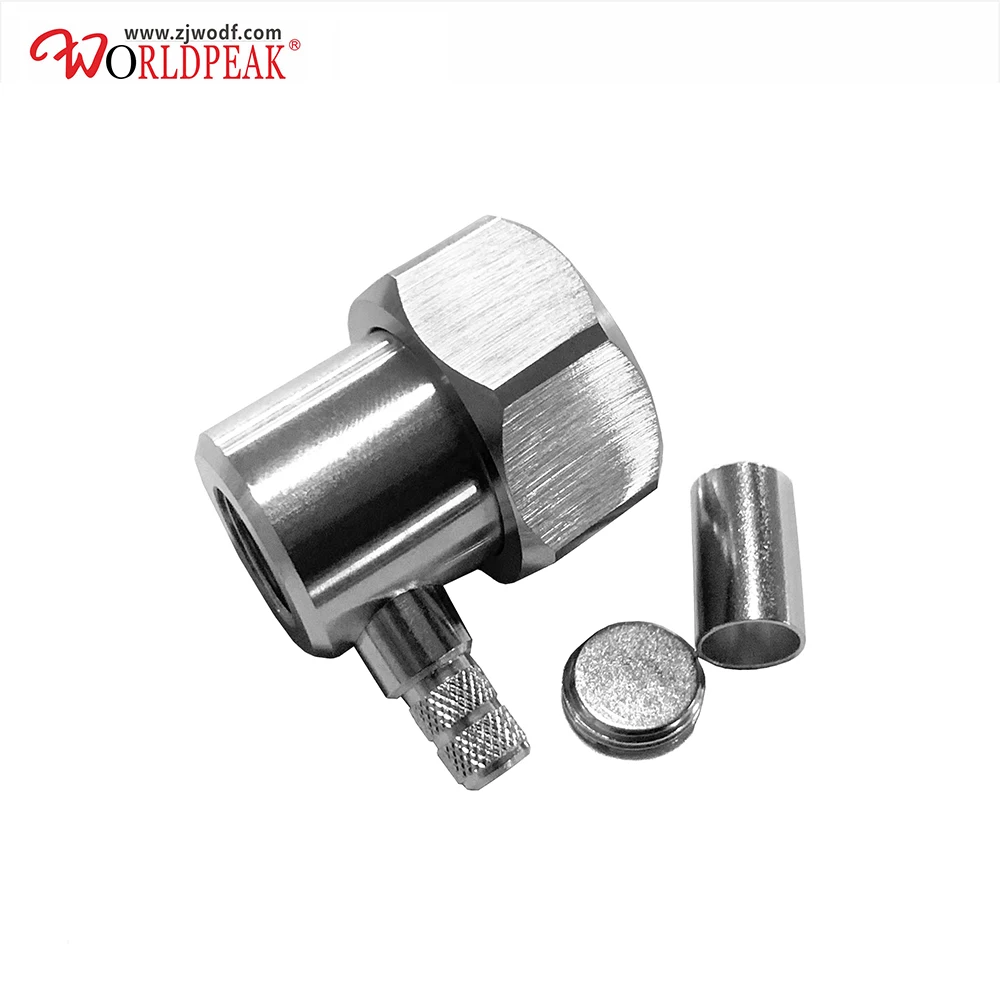

Worldpeak 4.3-10 DIN Mini DIN Male Connector Right Angle/Elbow Clamp Connector for LMR200 Cable
☀ We are Worldpeak. We focus on rf coaxial cable and cable connectors for a long time.
☀ DIN is an acronym for the Deutsches Institut für Normung, the standards organization that harmonised the standard for the connector. (previously the 7-16 had been developed as a military 'special' and made by Spinner and others.) The 7/16 is a reference to the 7 mm inside diameter of the female inner contact and the corresponding 16 mm ID of the outer contact. The external thread is 29mm, 1.5mm pitch.
☀ 7/16 DIN connectors are used in antenna systems where there are multiple transmitters using the same antenna or where a base station antenna is co-located with a large number of other transmitting antennas
☀ DIN is an acronym for the Deutsches Institut für Normung, the standards organization that harmonised the standard for the connector. (previously the 7-16 had been developed as a military 'special' and made by Spinner and others.) The 7/16 is a reference to the 7 mm inside diameter of the female inner contact and the corresponding 16 mm ID of the outer contact. The external thread is 29mm, 1.5mm pitch.
☀ 7/16 DIN connectors are used in antenna systems where there are multiple transmitters using the same antenna or where a base station antenna is co-located with a large number of other transmitting antennas
☀ We can provide various din connectors for different coaxial cables, such as RG316, RG58, LMR240, LMR400 ect.
☀ We can also produced coaxial cable assembly used din connectors, if you need, you can contact our sales and tell the length of the cable, we can customized for you.
☀ Any questions, click to contact our sales.
4.3-10 din
Worldpeak 4.3-10 DIN Mini DIN Male Connector Right Angle/Elbow Clamp Connector for LMR200 Cable | ||
Temperature Range | -55~+155°C (PE Cable -40~+85°C) | |
Impedance | 50Ω | |
Vibration | 100m/S2 (10~500Hz) | |
Frequency Range | DC-7.5GHz | |
Insertion Loss | ≤ 0.15dB/6GHz | |
Withstanding Voltage | 4000V r.m.s at sea level | |
Working Voltage | 2700Vr.m.s at sea level | |
Average power | 3Kw max | |
Insulation Resistance | ≥ 10000 MΩ | |
Center conductor retention force | ≥ 6N | |
Durability | ≥ 500(cycles) | |
Contact resistance: | CenterContact ≤ 0.4mΩ Outer Contact ≤ 1.5mΩ | |
Voltage Standing Wave Ratio: | Straight≤ 1.20/6GHz Right angle≤ 1.35/6GHz | |
Piece part | Material | plating |
Body | Brass | Nickel plated |
Center conductor | Phosphor bronze | Gole or silver plated |
O-ring sealing | 6146 silastic | |
Insulator | PTFE | |
Temperature Range | -40°C~+85°C |
Note: We can provide other materials and plating specifications according to customers'requirements.
clamp connector
Related Products
About the Worldpeak
Zhenjiang WORLDPEAK electronic products co.,ltd is located Jingkou Road,zhenjiang City jiangsu Province China.
Specializing in the design,research,production and sales of a variety of RF coaxial connectors and rf coaxial cable,our company has advanced technique,perfect and full testing means and 100-bed CNC maching equipment.
The company passed ISO9001:2000 quality management system certification in 2001,and started to use the software of ERP management to organize the production control since 2006.
The main products are RF coaxial connectors,cable assemblies,totally more than 20 series , about 2000 varieties,N,BNC,TNC,SMA,SMB,L9,MCX,7/16DIN, CC4,MMCX/FME/QMA and so on.
Our production process is in accordance with international standards,the products meet the IEC and MIL technical standards throngh performance testing of authorities,widely used in the field of communications.
Our tenet is "Qualtiy is the first,customer is king",we export our goods to many countries and enjoy a high reputation both at home and abroad.
Our products have been exporting to East Europ, Weatern Europ ,Mid east, Africa, Southeast Asia.
mini din 4.3-10 din male connector right angle clamp lmr200 cable clamp connector
We are the Worldpeak, Our company has professional team, advanced equipment and enough stock. We can promise you professional support, nice service and fast delivery, We also support OEM&ODM, We can meet all your request. So choose us is your brightest decision.
4.3-10 din
Factory aim: Let the quality become the sole measure of company strength.We are using the latest production technology, standardized management, strict censorship, standard packing, in order to meet the maximum needs of customers as the goal.
Packing & Delivery
Delivery:
Our cooperation and professional international logistics company, quick safe, cheap, let the customer trust.
About the Payment
We can do it
We can do it:
•Worldpeak 4.3-10 DIN Mini DIN Male Connector Right Angle/Elbow Clamp Connector for LMR200 Cable factory sell directly
• Long-term,strong and steady supplying ability
• Delivery time: 1-2 working days
• Do as your requirements on package,brand or other designs
• Strong sales promotion policy
• Ex-factory price and competitive price
• We can provide you a good survice
• Replying you asap.(will reply you 10-20 mins on the basis of getting your require.)
Customization advantages Reliable performance Perfect production management system
(ISO9001,ISO14001) we have experience about RF components more than 20 years
Experienced R&D staff. All Goods will be tested before shipping OEM/ODM service available.
4.3-10 din
FAQ
Q:what's your company MOQ?
A: In generally, if use customer brand, we will ask at least 500~800pcs, this we can negotiate.
Q: What's your delivery time?
A: This please ask our stock in first, products can send out once receive your deposit.If use customer brands, we will take a 3-5days to prepare materials and mass production.
Q: Can your company accept customize?
A: Welcome OEM & ODM.
Q: How do you solve after sale service?
A: This please ask us for technical support if you have workers know how to repair.If do not have engineers, please send back the items, we can repair the items for you.
Q: Can you send a sample for us to develop?
A: Yes, we can. Sample can send out once you ask for it, but will ask a sample fee. Sample fee will return back in future order.
Contact
We Recommend

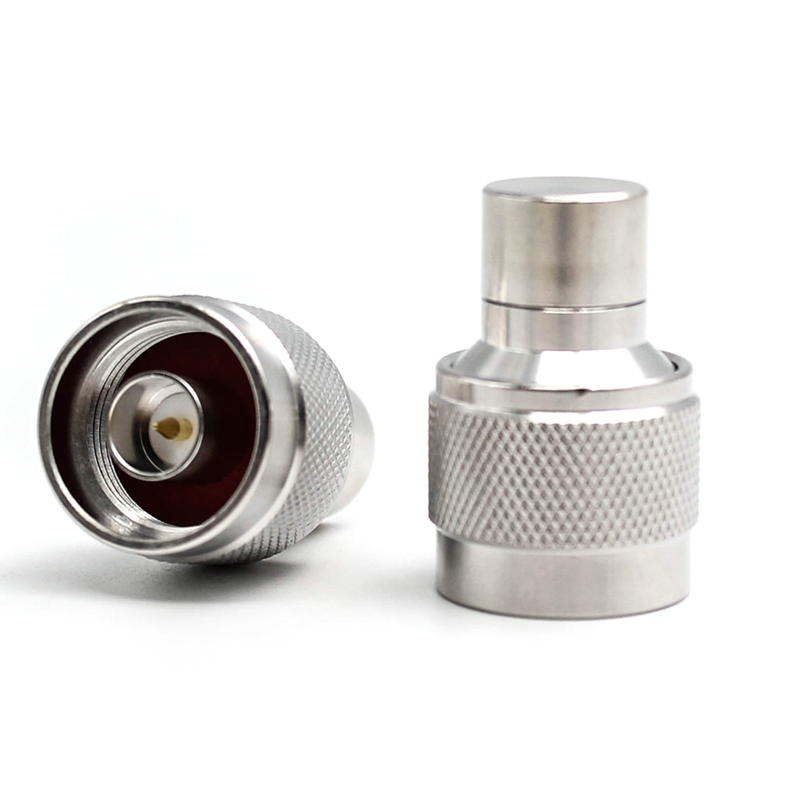

TRL Series RF Load N Male Termination 2 WATT 6Ghz
US $2.03-$3.13

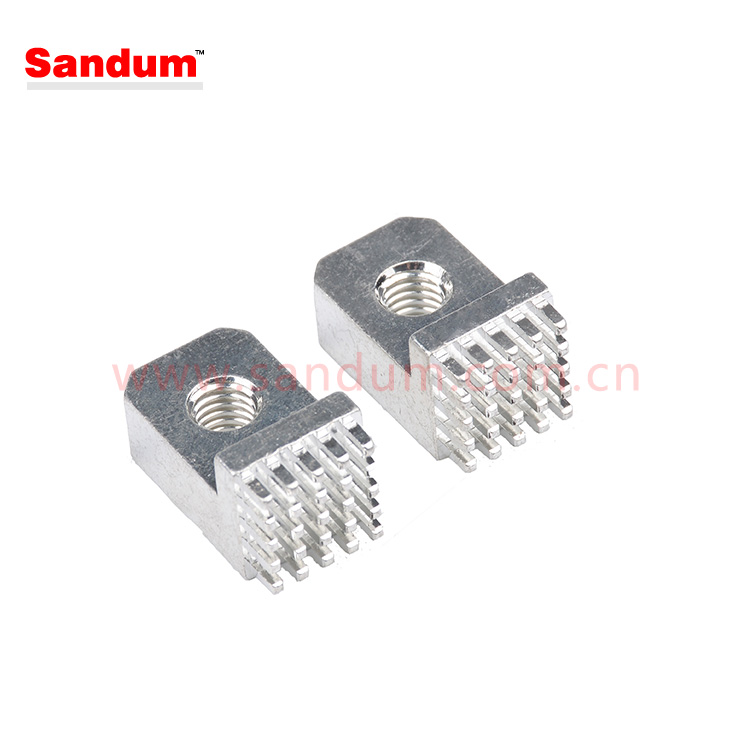

M3 M4 M5 M6 M8 M10 REDCUBE Terminals
