Product Overview
Description
Why Choose Us
we are a company which equipped with the use of rock drilling steel and an integrated production system, including smelting, rolling, forging drilling rod, etc. what’s more, our company has professional quality inspection, research and development and marketing groups, and besides the quality guarantee, our company uses reasonable operation philosophy to make the whole company developing and growing stronger. Our company adheres to the “taking talented person at first, market-oriented, service-aiming” operating philosophy, and takes integrity, responsibility and innovation as our constant pursuit and target.
Product Advantage
Product name

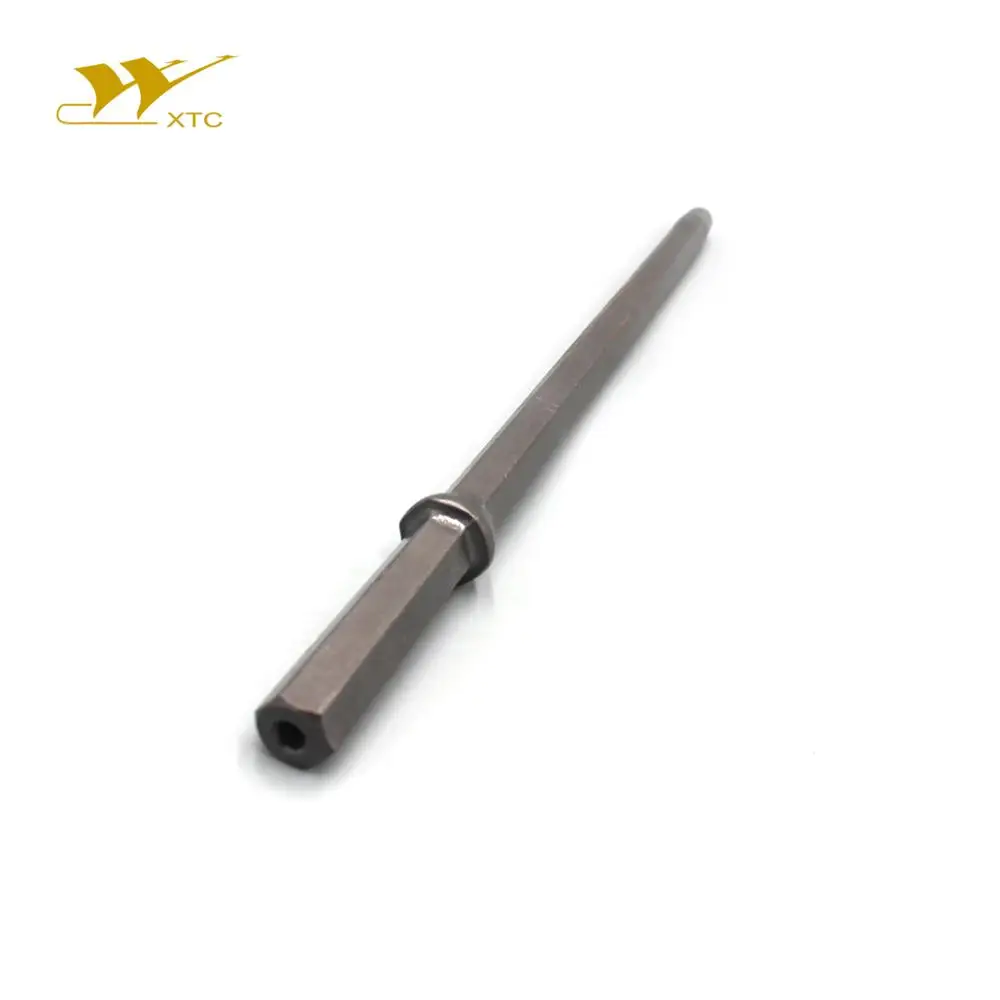

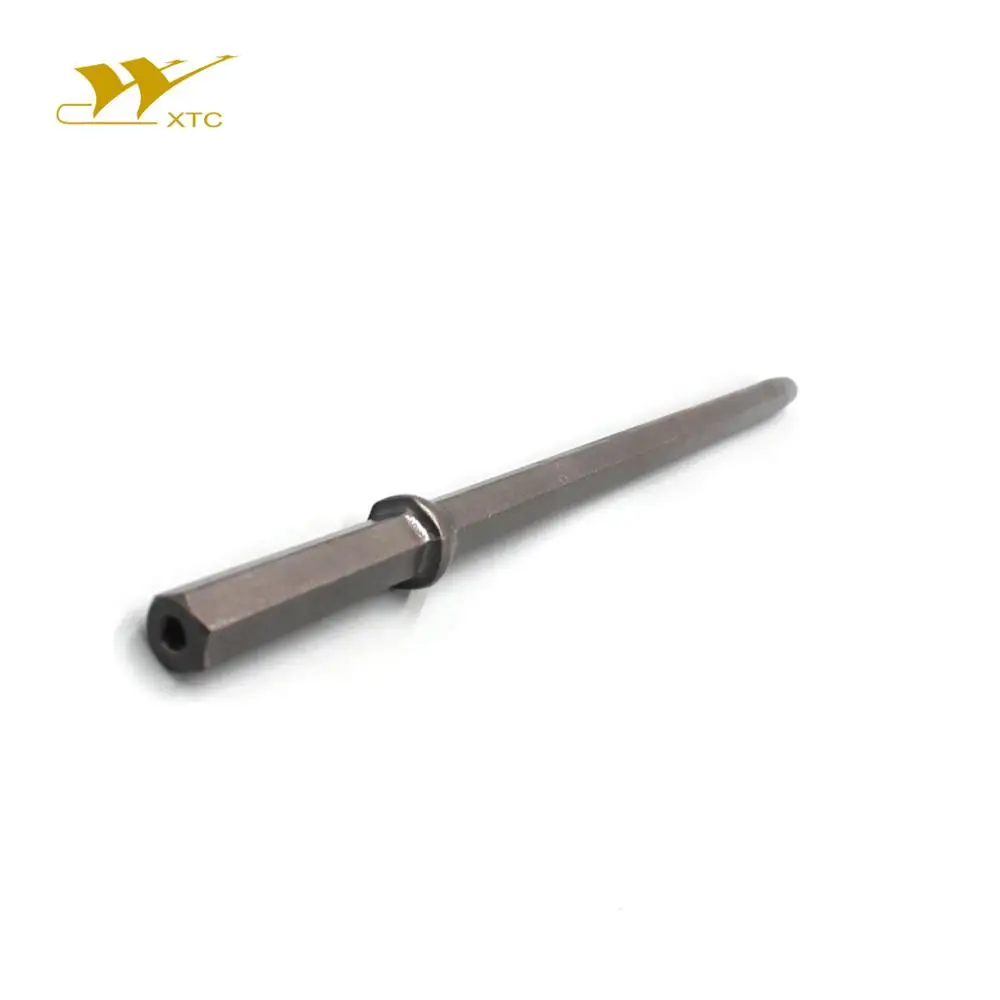

H22 Rock Bits Hole Drilling Tapered Tools of Drill Rods Tapered Drill Rods
Tapered Drill Rods
H22 Rock Bits Hole Drilling Tapered Tools of Drill Rods Tapered Drill Rods
Our raw material is from 320*480 large-section continuous casting billet, then rolling into 150*150 square billet by drilling holes and inserting seamless pipe, and made of 55SiMnMo. The whole production involves multiple processes, including steel rolling, forging, quenching and tempering, etc. According to the different choices of customers, our company has different quality products, such as extra-excellent, excellent, ordinary drilling rod, etc. Customers can choose suitable drilling rod according to different hardness of rock and types of jack hammer. Extra- excellent drilling rod QSAAA and GTIII can be applied to solid rock, III level or above and f≥12 rocks according to Protodikonov’s Hardness Coefficient of Rock. Excellent drilling rod QSAA and G30 is suitable for IV level or above and f≥12 rocks, ordinary drilling rod suitable for IV level or below and f≤8 rocks.
Drill Rod | Length(mm) | Foot | Piece | Weight approx(kg) |
H22 Tapered Drill Rod Shank length:108mm Degree:7° Pinhole Dia. of Core hole Dia: ≥5.5mm | 1000 | 3’3’’ | 100 | 315 |
1200 | 3’9’’ | 100 | 370 | |
1400 | 4’6’’ | 100 | 435 | |
1500 | 4’9’’ | 100 | 465 | |
1600 | 5’2’’ | 100 | 495 | |
1800 | 5’9’’ | 100 | 555 | |
Note: according to customer’s requirement, we ZK95CrMo, ZK23CrNi3Mo, ZK40SiMnCrNiMo, ZK35SiMnMoV | 2000 | 6’6’’ | 100 | 620 |
2200 | 7’2’’ | 100 | 680 | |
2400 | 7’9’’ | 100 | 740 | |
2500 | 8’2’’ | 100 | 770 | |
2600 | 8’5’’ | 100 | 800 | |
2800 | 9’2’’ | 100 | 860 | |
3000 | 9’8’’ | 100 | 920 | |
3300 | 10’8’’ | 100 | 1010 | |
3500 | 11’5’’ | 100 | 1070 | |
4000 | 13’1’’ | 100 | 1220 | |
4500 | 14’8’’ | 100 | 1370 | |
5000 | 16’’4’’ | 100 | 1520 | |
5500 | 18’1’’ | 50 | 835 | |
6000 | 19’7’’ | 50 | 915 |

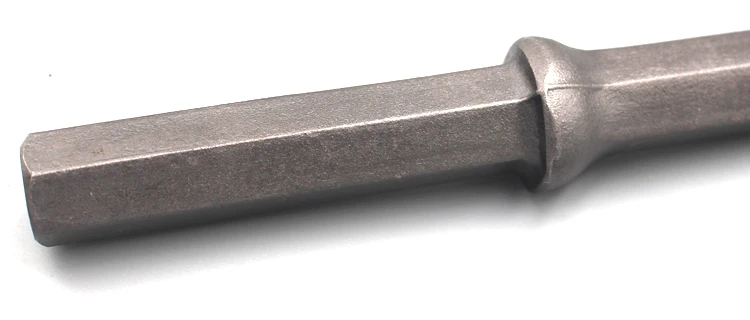

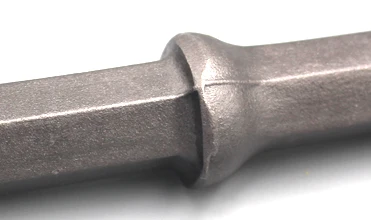

Product Details

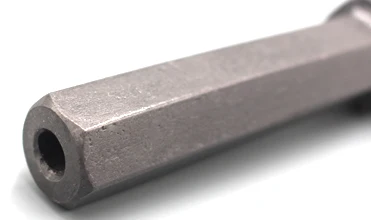

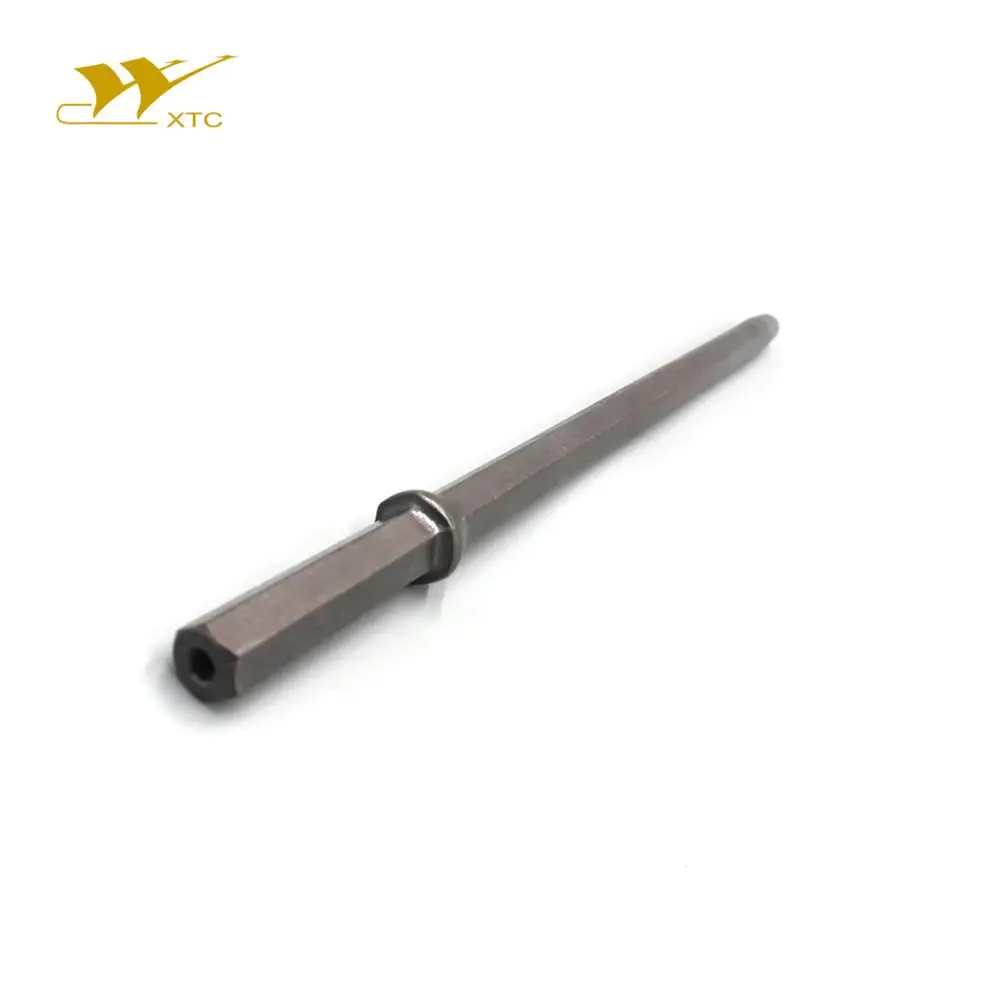

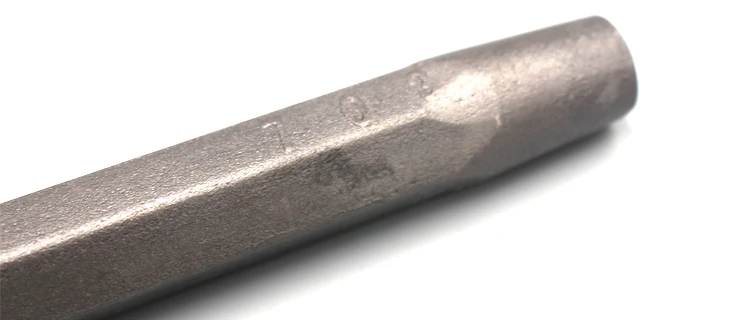

H22 Rock Bits Hole Drilling Tapered Tools of Drill Rods Tapered Drill Rods
1.Raw material is from 320*480 large-section continuous casting billet, then rolling into 150*150 square billet by drilling holes
and inserting seamless pipe, and made of 55SiMnMo;
2.Long life service and high performance;
3.Factory salse with high quality and factory price.

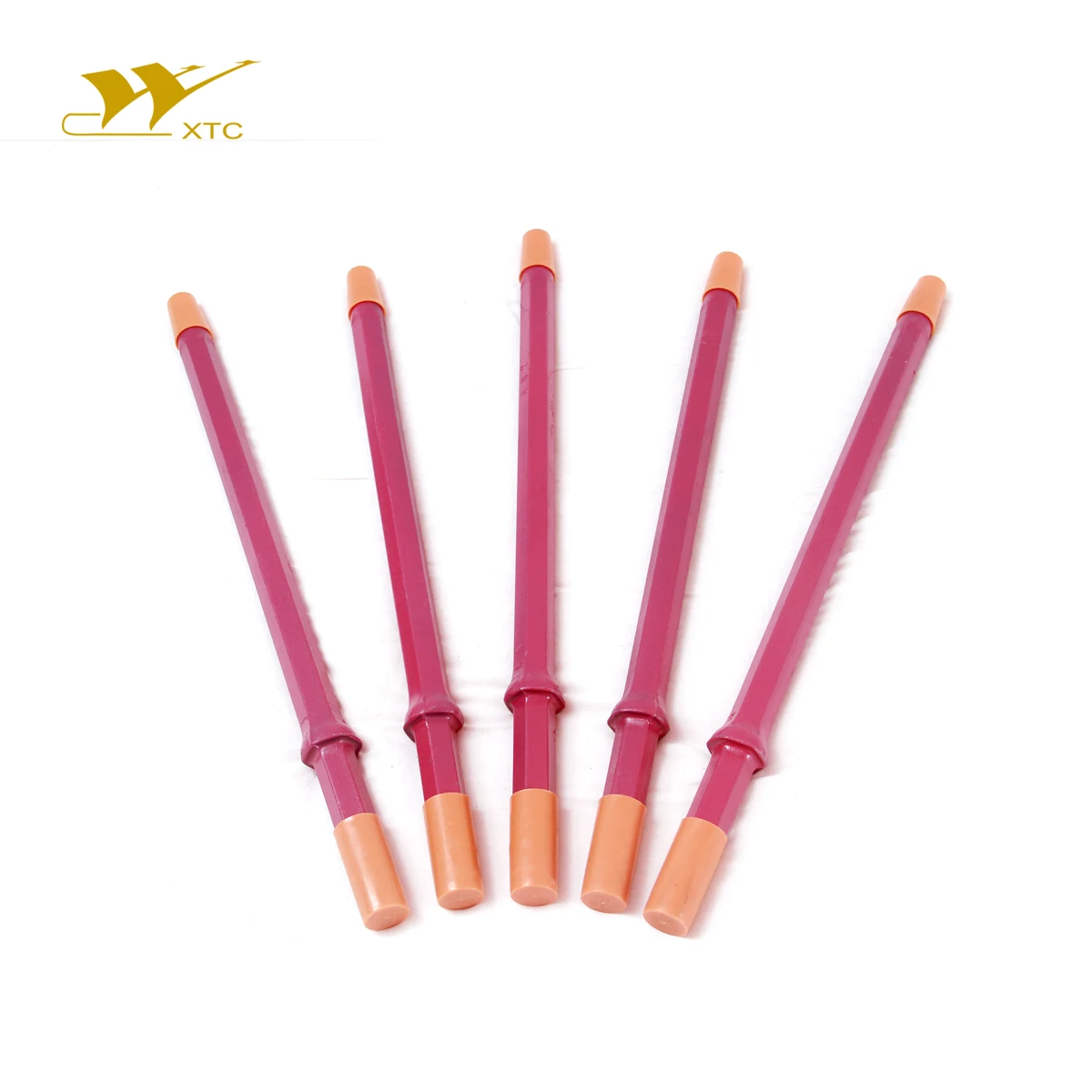

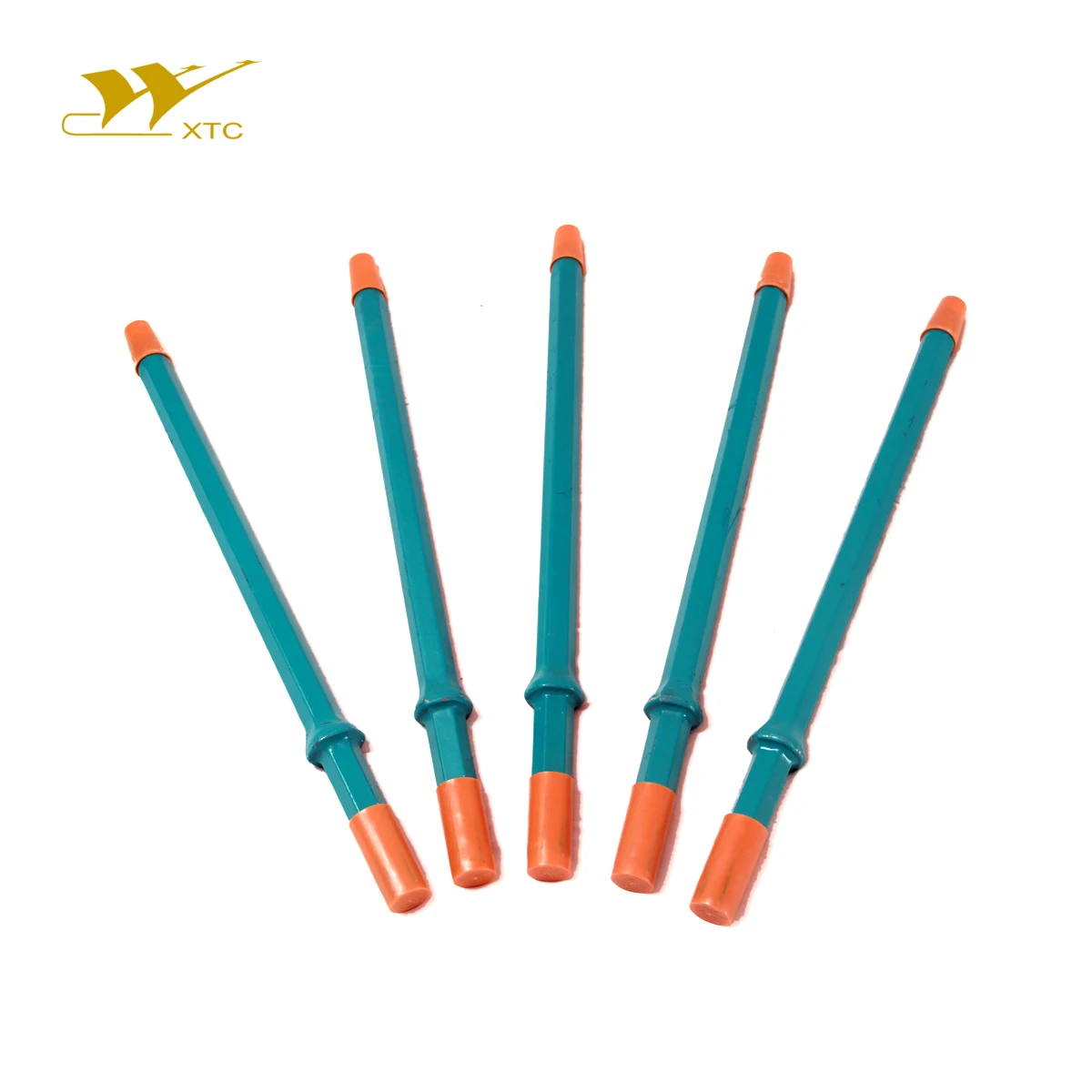

H22 Rock Bits Hole Drilling Tapered Tools of Drill Rods Tapered Drill Rods
Widely used in mining, the construction of highway,railway and tunneling projects, the construction of national large hydropower and nuclear power plant projects, etc..

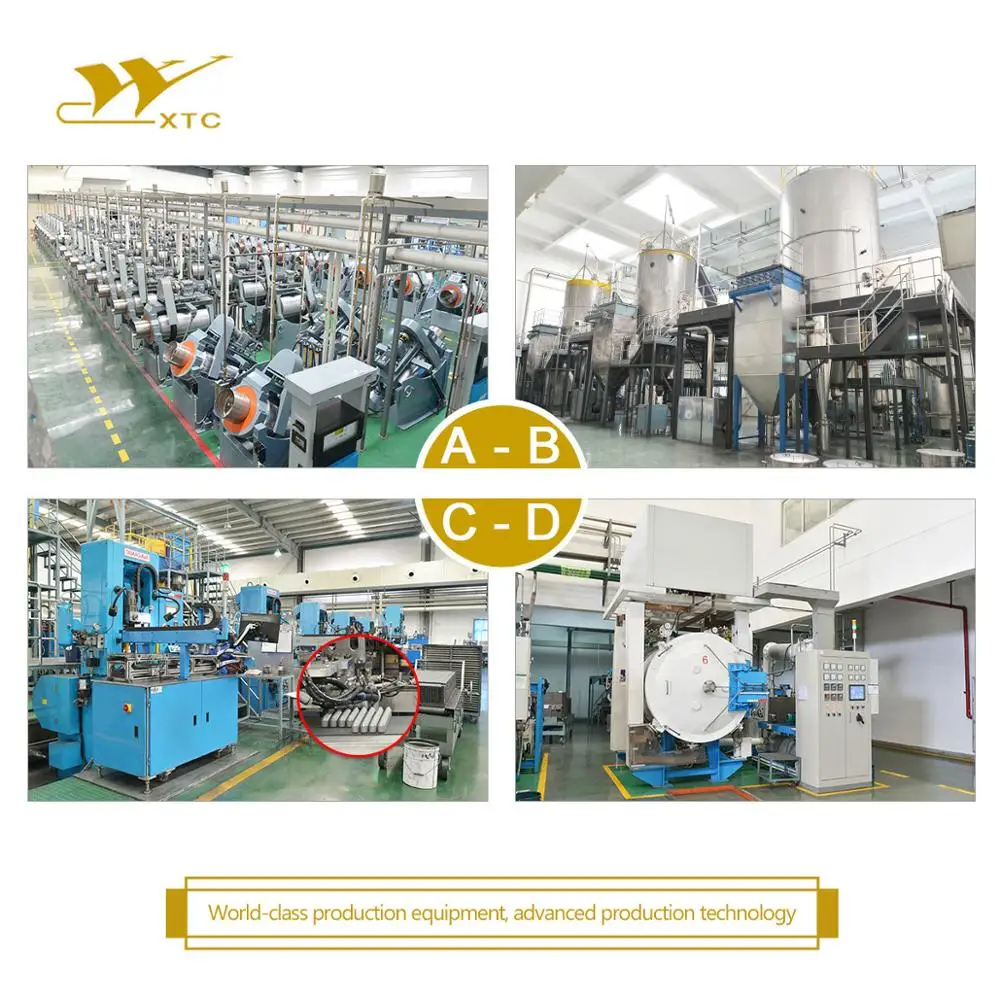

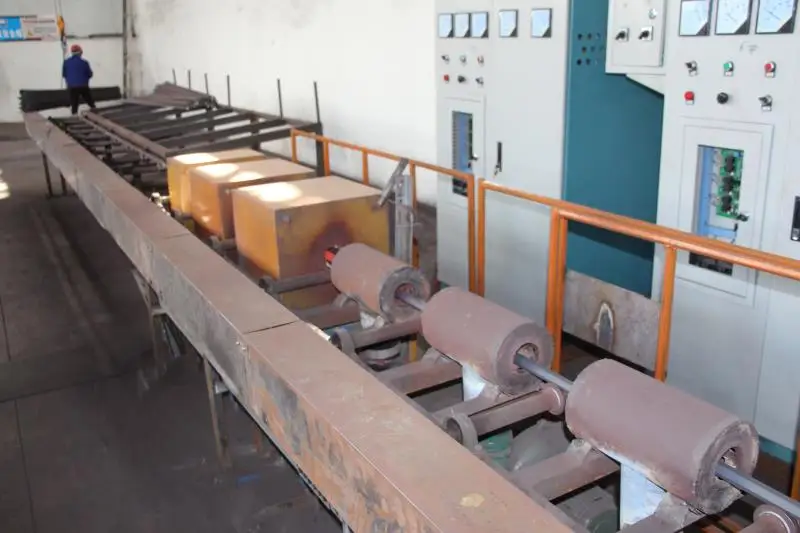

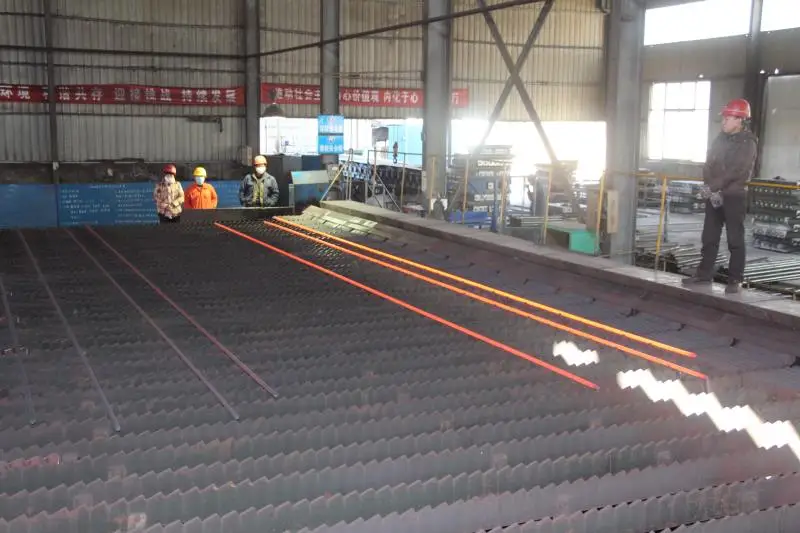

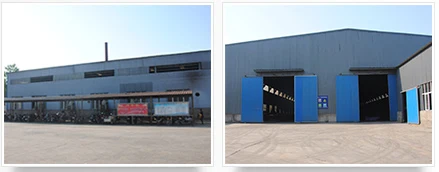

Workshop
Our company is an enterprise of production and trade.In the production of drill steel and drill tools. There are many domestic renowned esperts for technical consultants within this industry. Have engineering and technical personnel more than 30 people.They formed the strong science and technology R&D team,and responsible for the producd technology research and development and innovation.

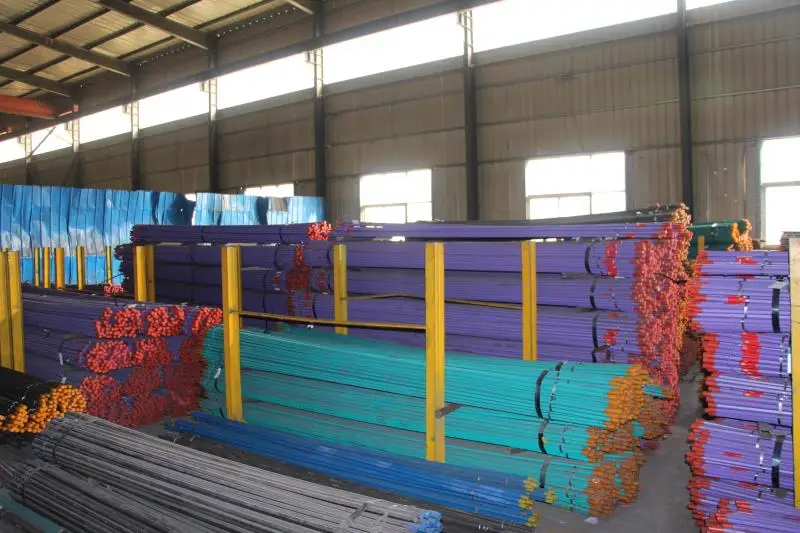

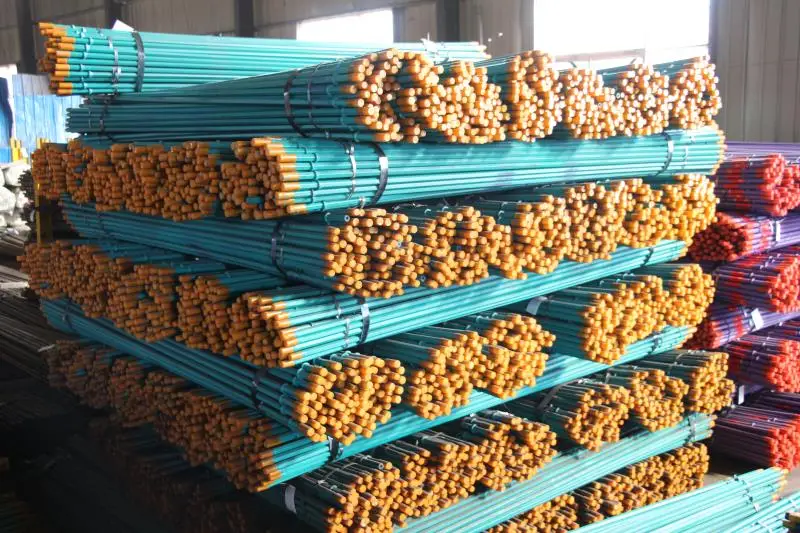

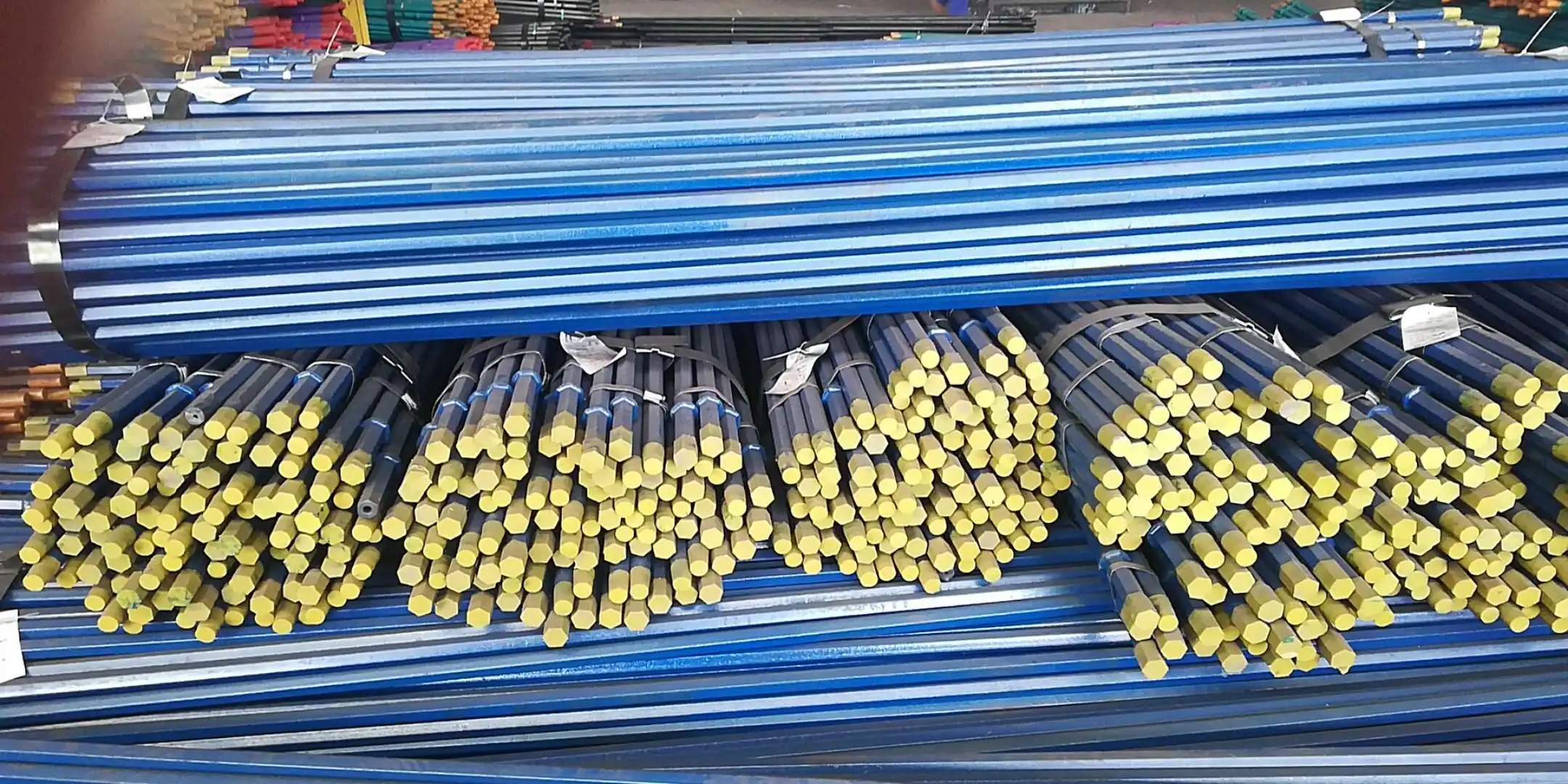

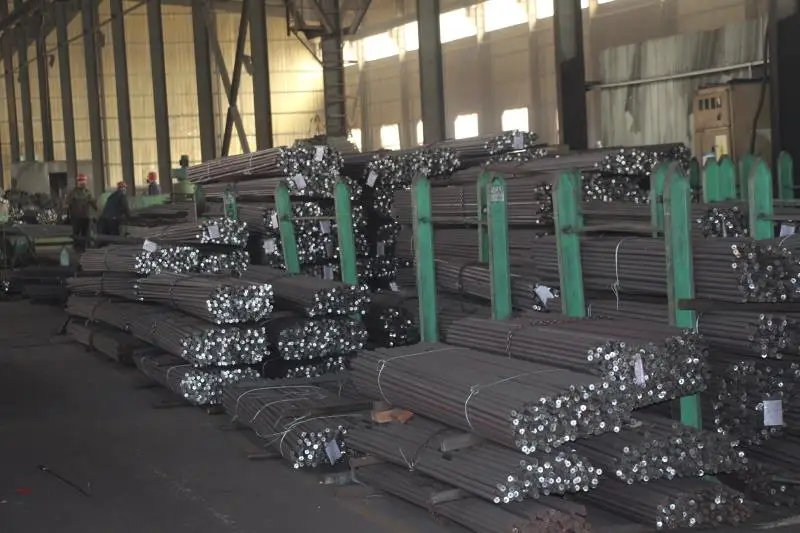

Warehouse
About Us
we are a company which equipped with the use of rock drilling steel and an integrated production system, including smelting, rolling, forging drilling rod, etc. what’s more, our company has professional quality inspection, research and development and marketing groups, and besides the quality guarantee, our company uses reasonable operation philosophy to make the whole company developing and growing stronger. Our company adheres to the “taking talented person at first, market-oriented, service-aiming” operating philosophy, and takes integrity, responsibility and innovation as our constant pursuit and target.
The Quality control team has 30 members, more than 30 sets existing inspection equipments, mainly responsible for the analysis and detection of all raw materials, finished products and some semi-finished products in the company, undertaking more than 800 analysis and testing items such as physics, chemistry, materials, mechanics, appearance and dimensions , etc. The involved products include powder, Cemented carbide products, thermal spray powder, and construction tools.

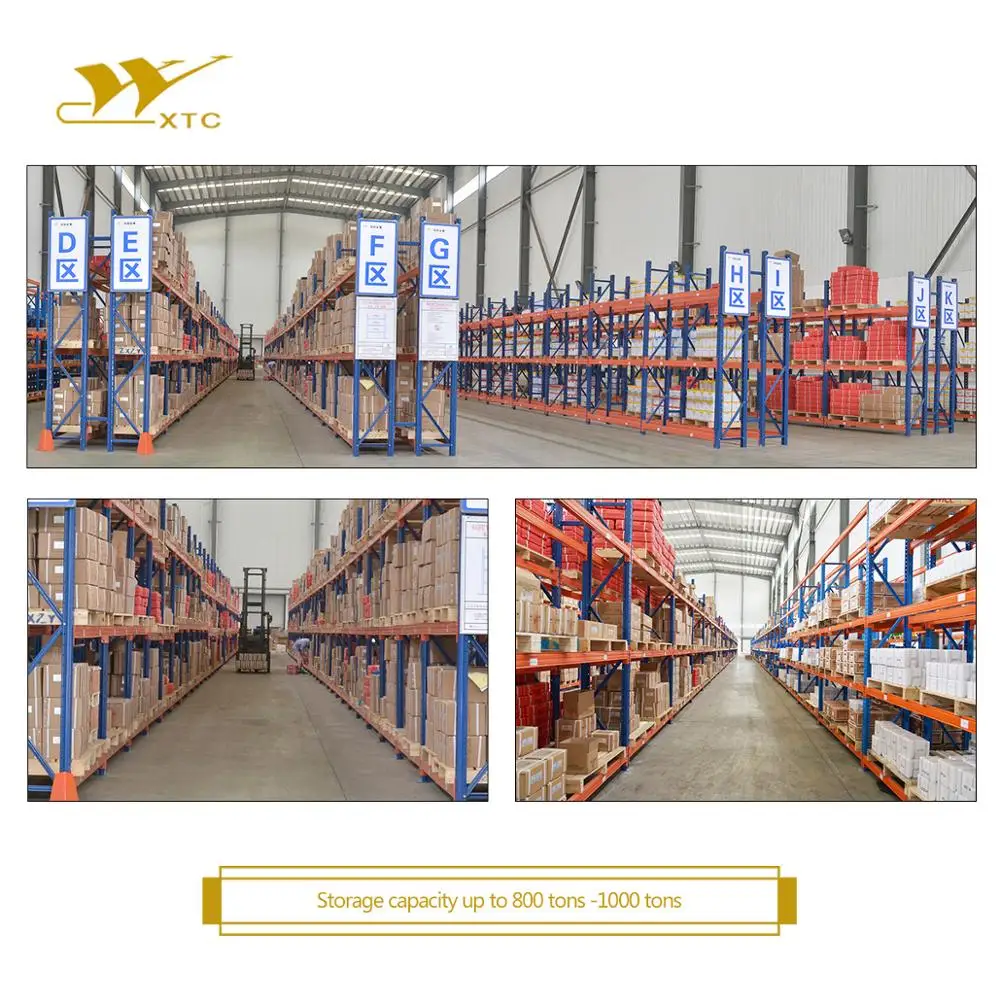

Steel raw materials are purchased from large-scale state-owned company, quality assurance, storage capacity up to 800 tons -1000 tons, guaranteed enough production. Using ERP system to manage the inventory, the placement of the finished products adopts sub-area classification, huge handling capacity.
Certificate
FAQ
Q: Are you manufacturer or trade company ?
A: LUOYANG GOLDEN EGRET GEOTOOLS CO., LTD. is a high-tech company integrating R&D, production and sales.
Q: Which certifications do you have?
A: ISO9001, ISO14001.
Q: Could you produce the abnormal items?
A: Yes, we accept the OEM & ODM orders, as well as the customized items.
Q: Does your company provide the samples?
A: Yes, we will provide samples as you request to test the quality.
A: LUOYANG GOLDEN EGRET GEOTOOLS CO., LTD. is a high-tech company integrating R&D, production and sales.
Q: Which certifications do you have?
A: ISO9001, ISO14001.
Q: Could you produce the abnormal items?
A: Yes, we accept the OEM & ODM orders, as well as the customized items.
Q: Does your company provide the samples?
A: Yes, we will provide samples as you request to test the quality.
