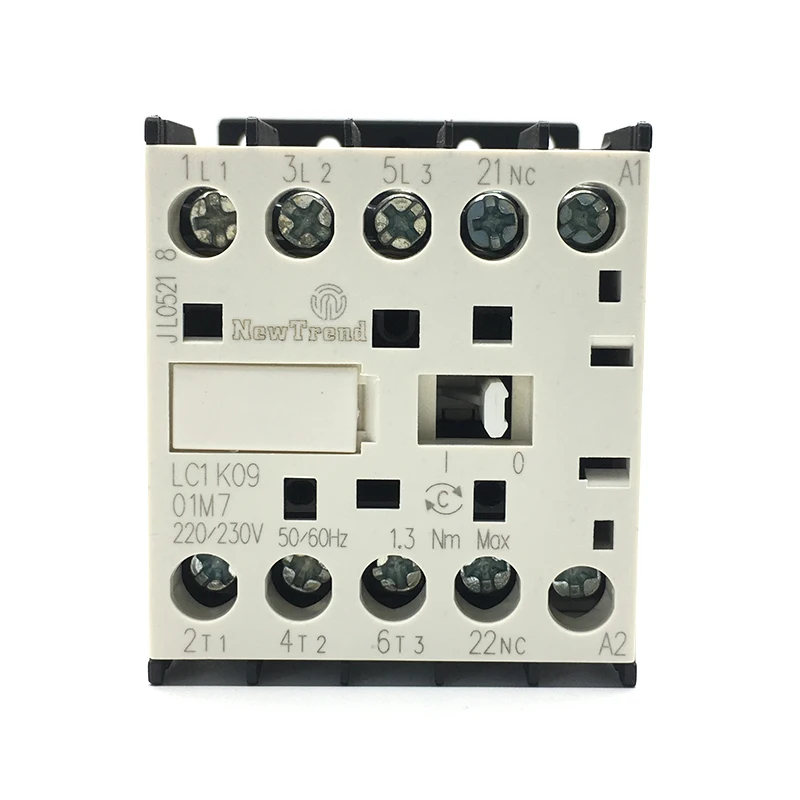

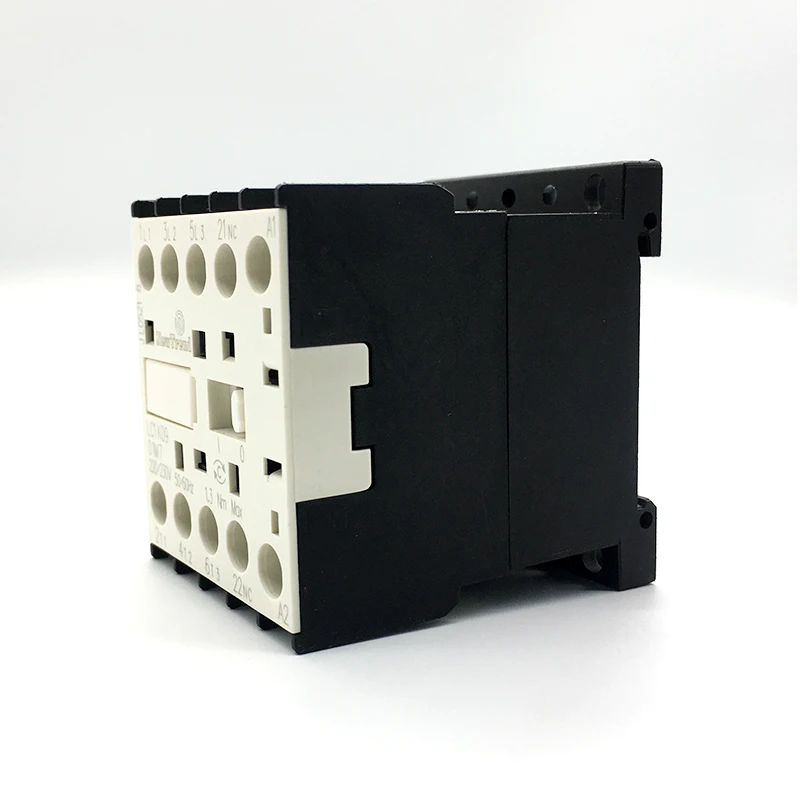

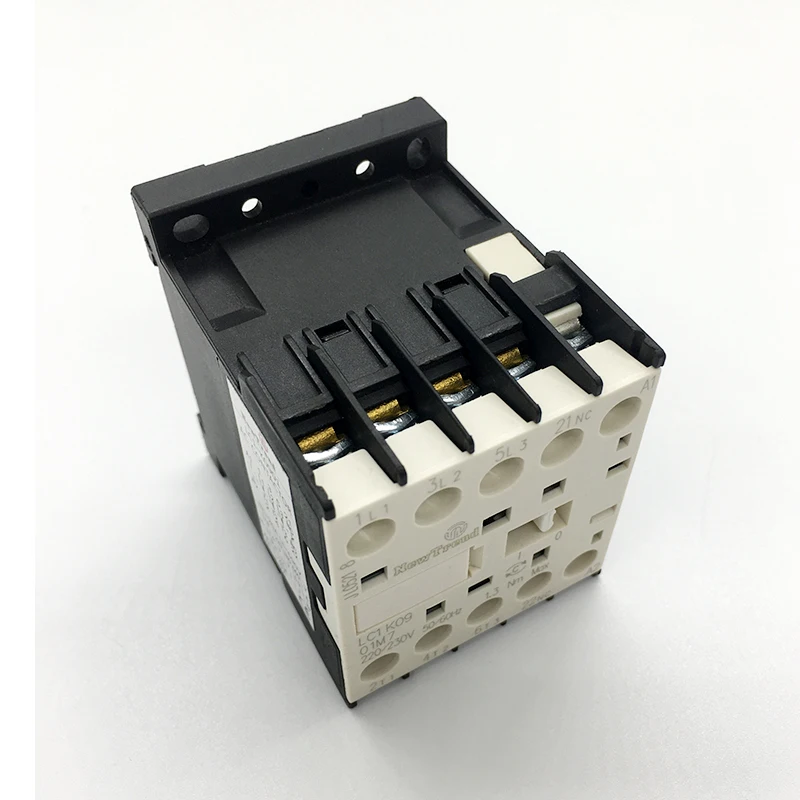

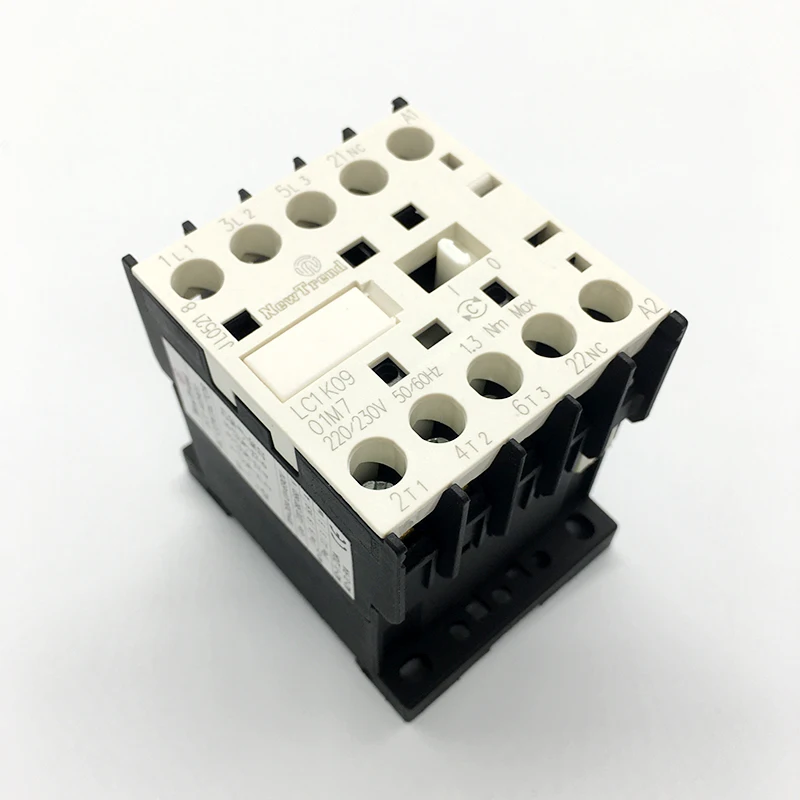

220Vac 230Vac 6A LC1K0610M7 LC1K0601M7 9A LC1K0910M7 LC1K0901M7 12A LC1K1210M7 LC1K1201M7 220V 230V 6A 9A 12A 16A LC1K Contactor

Product Overview

Description

220Vac 230Vac 6A LC1K0610M7 LC1K0601M7 9A LC1K0910M7 LC1K0901M7 12A LC1K1210M7 LC1K1201M7 220V 230V 6A 9A 12A 16A LC1K Contactor



LC1K and LP1K series is a complete range of compact mini style contactors and reversing contactors with common options available for ratings 6A, 9A, 12A, and 16 A. The offer includes a variety of different terminal connection choices and a wide range of coil voltage options. Compliance with standards: IEC 60947, VDE 0660, BS 5424, CE, etc.

• Available control circuits: AC, DC


• Applications: 2.2 kW, 4.5 kW, 5.5 kW in AC3 and AC4


• Terminal connection types include:
  - Screw clamp
  - Faston connectors
  - Spring terminals
  - Pins for printed circuit boards


• 1 NO or 1NC contact embedded


• Available for 1 way motors, 2 way motors (reversing Contactors) and Star Delta pre- wired version


• Includes full range of control relays in the same design


• Possibility to extend the amount of auxiliary contacts thanks to additional auxiliary contact blocks


• Possibility to protect the motor thanks to additional thermal relays LR2K

Model Number	LC1K06	LC1K09	LC1K12	LC1K16	LP1K06	LP1K09	LP1K12	LP1K16
Rated operational current (AC-3, 380V)	6A	9A	12A	16A	6A	9A	12A	16A
Rated operational current (AC-3, 660V)	5A	7.5A	10A	12A	5A	7.5A	10A	12A
Coil voltage (Control circuit voltage)	AC 12V 24V 48V 110V 220V 230V 240V 380V 415V				DC 12V 24V 48V 100V 110V 220V 230V 240V 250V
Rated operational voltage	380V, 660V
Rated insulation voltage	690V
Main and auxiliary contacts	3P+NO, 3P+NC, 2NO+2NC
Motor power (AC-3, 220/240V)	1.5KW	2.2KW	3KW	3KW	1.5KW	2.2KW	3KW	3KW
Motor power (AC-3, 380/415V)	2.2KW	4KW	5.5KW	7.5KW	2.2KW	4KW	5.5KW	7.5KW
Motor power (AC-3, 440V)	3KW	4KW	5.5KW	7.5KW	3KW	4KW	5.5KW	7.5KW
Motor power (AC-3, 500/660/690V)	3KW	4KW	4KW	4KW	3KW	4KW	4KW	4KW
Mouting type	DIN Rail / PCB Solder Pin / Plate
Coil Pull-In Voltage	0.85-1.1 Us
Coil Drop-Out Voltage	0.2-0.75 Us				≤0.2 Us
Coil power	Pull-In 40VA, Maintain 4VA
Coil power consumption	1.2W
Coil Pull-In time	6-18 ms
Coil Drop-Out time	5-12 ms
Electrical life	500 thousand times
Mechanical life	100 thousand times
Ambient air temperature	-5…40 °C
Operating altitude	2000 m without derating in temperature





Standard control coil voltage CODE:

LC1K (AC voltage coil)

Volts (50/60Hz)

12

20

24

36

42

48

110

115

120

127

200/ 208

220/ 230

230

230/ 240

256

277

380/ 400

Code

J7

Z7

B7

C7

D7

E7

F7

FE7

G7

FC7

L7

M7

P7

U7

W7

UE7

Q7

Volts (50/60Hz)

400

400/ 415

440

480

500

575

600

660/ 690

Code

V7

N7

R7

T7

S7

SC7

X7

Y7

LP1K (DC voltage coil)

Volts

12

20

24

36

48

60

72

100

110

125

155

174

200

220

230

240

250

Code

JD

ZD

BD

CD

ED

ND

SD

KD

FD

GD

PD

QD

LD

MD

MPD

MUD

UD



Example of complete model number:

LP1K09105BD:
	LP1K means DC coil contactor, LC1K means AC coil contactor
	09 means AC-3 9A rated current
	10 means NO auxiliary contact, 01 means NC auxiliary contact
	5 means PCB Solder Pin type, without 5 means regular DIN Rail type
	BD means the coil voltage code



Dimension for DIN Rail mounting:



Dimension for Plate mounting:



Dimension for PCB Solder Pin mounting:
