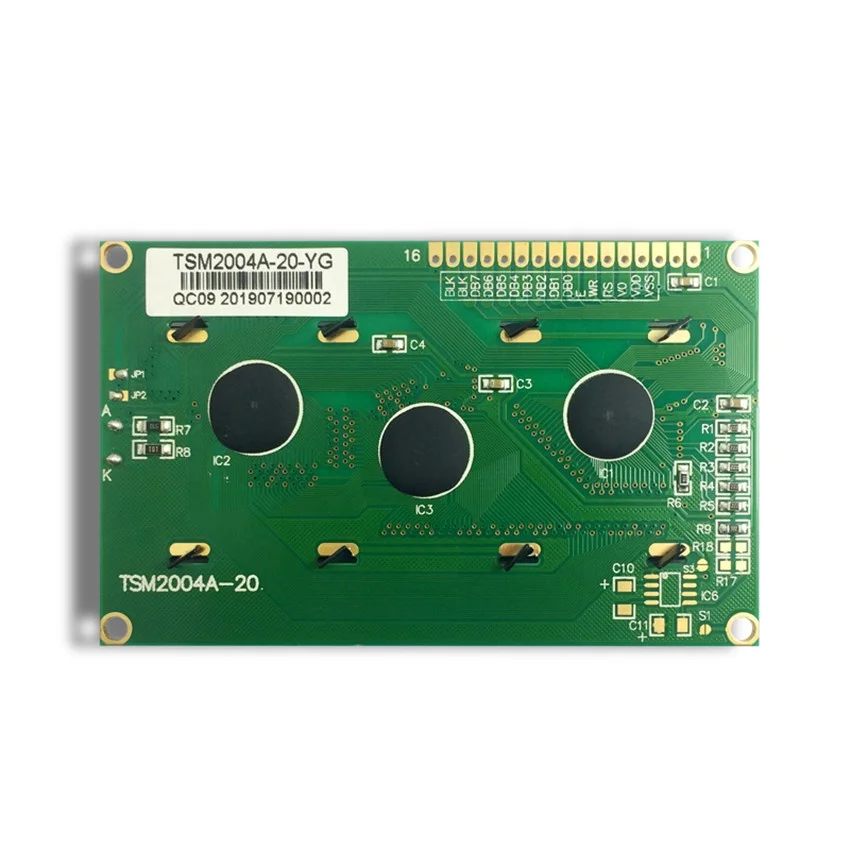

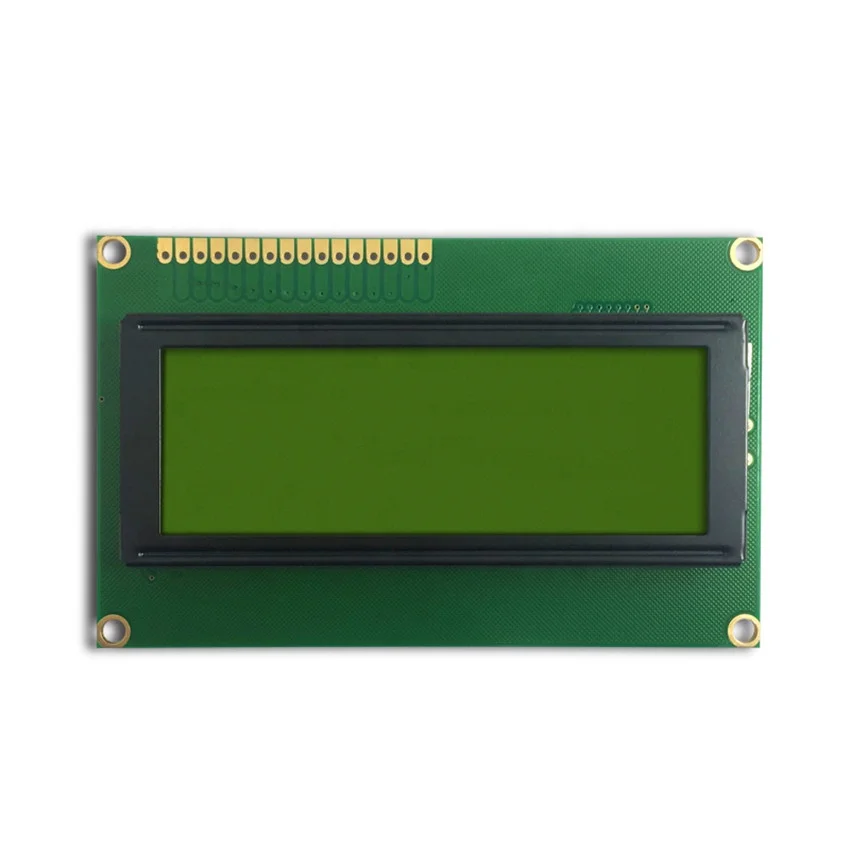

Factory supply 20x4 character Lcd Yellow green Backlight STN Monochrome Displays

Product Overview

Description

 Factory supply 20x4 character Lcd Yellow-green Backlight STN Monochrome Displays



Product Description



LCD type	20 character x4 lines
Part No.	TSM2004A-20-YG
Character Format	5x8 dots
Display Mode	STN Transmissive,Positive,YG
Active Area	70.4*20.8mm
Outline Size	98.0*60.0*14.2mm
Character Size	2.95*4.75
Dot Size	0.55*0.55
Dot Pitch	0.6*0.6
Viewing angle	6 O'clock
Drive Mode	1/16 DUTY,1/5BIAS
LED Backlight color	YG LED(edge backlight type)
Operation temperature	-20C to +70C
Storage temperature	-30C to +80C

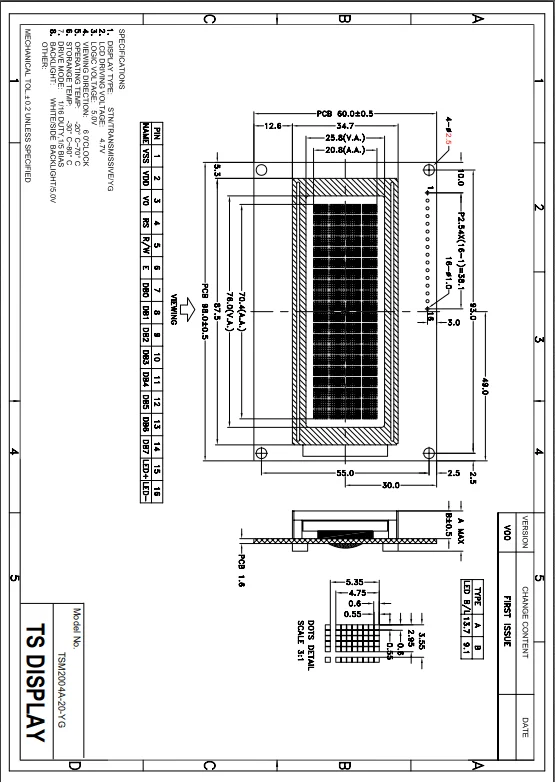

Drawing



♥ we have developed thousands of products for Industrial, home appliance, consumer electronics, medical equipment and other applications. Besides, we provide the customized service, which customized the outlook and functions  products according to your demands.







Application

Packing & Shipping

About TSD



♥ SHENZHEN TEAM SOURCE DISPLAY TECHNOLOGY CO., LTD.(TSD)

was established in 2004. Our head office located in Shenzhen, China. Factory is in FengGang, DongGuan, which has a modern production workshop, modern technology and equipment.

We worked on the full range of the LCD products and LCD solutions development. Offering customers unique, innovative and cost effective market leading modules,  in span of more than 10 years, we  follow a customers-oriented and customers-first approach in all of our dealings. Our professional experiences and services will support your requirements.
