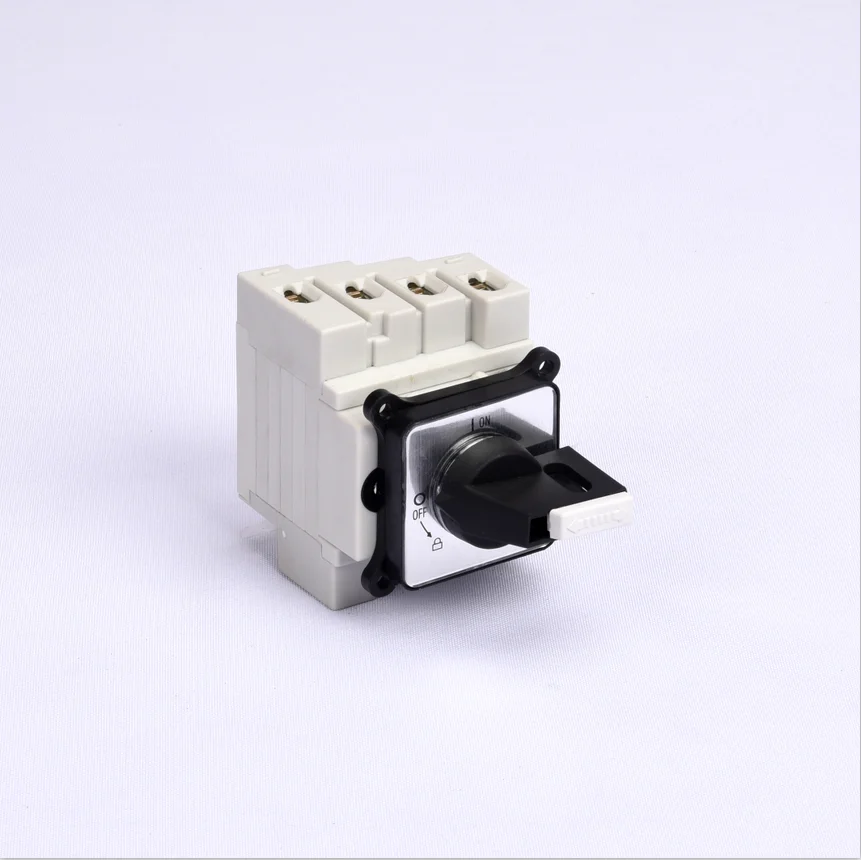

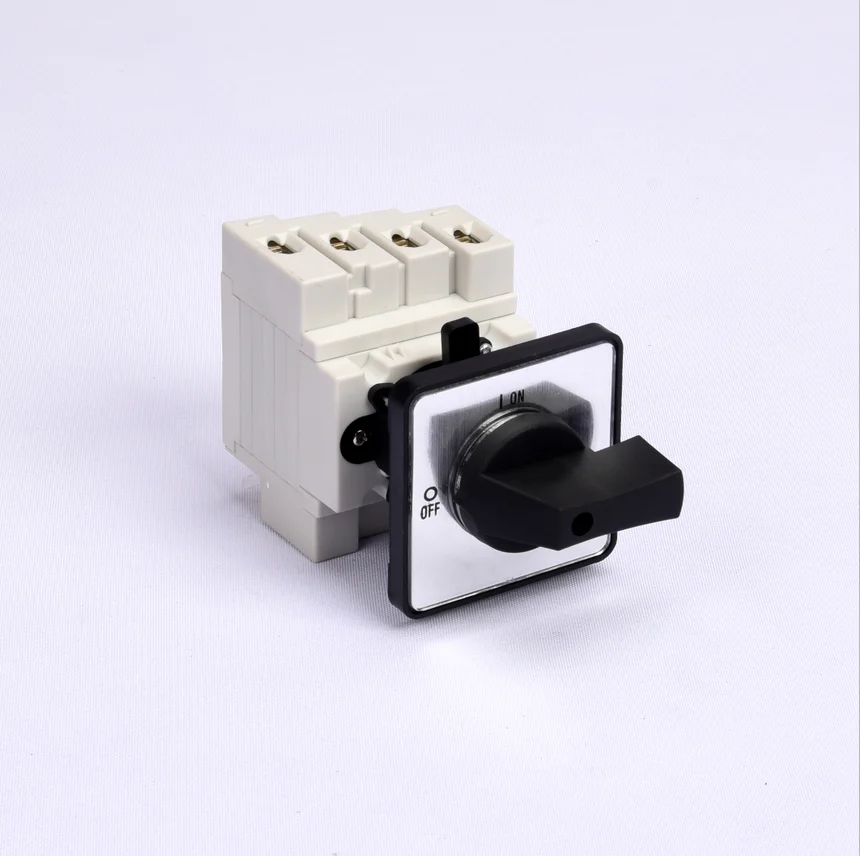

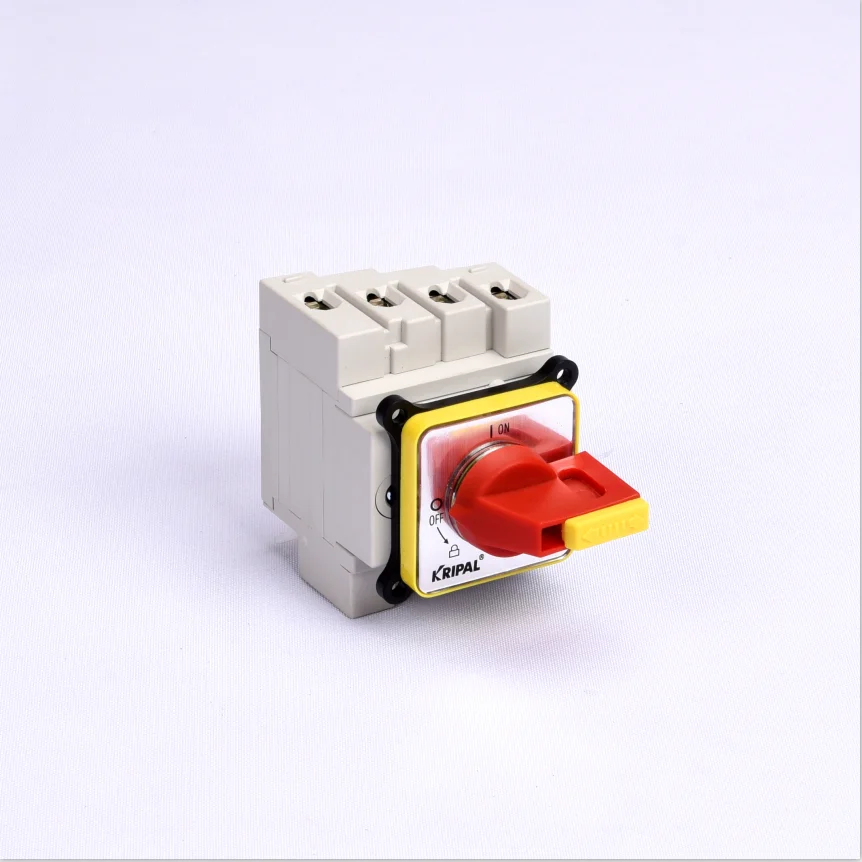

The Top 32A 1500V DC isolator disconnector 2POLE for Solar PV

Product Overview

Description

Place of Origin:

Zhejiang, China

Brand Name:

KRIPAL

Model Number:

UKPD32

Max. Current:

32A

Max. Voltage:

1500VDC

Product name:

DC isolator switch

Certificate:

CE ISO9001

Rated current:

32A

Rated voltage:

600-1500V D.c

Pole:

2p/4p

Another name:

dc isolator

IP Degree:

IP66

Rated insulation voltage:

1500V

Rated impulse withstand voltage:

8000V

Name:

DC isolator switch









































Always the first DC isolator manufacturer follows the new requirements.



1000V True DC for solar PV application



IP66 1000V 32A true DC isolator switch UKPD32, shall be installed between the solar arrays and solar inverter.

For isolation the PV array during system installation or any maintenance.



Recommend as a standard isolator to solar installers.

Find more info from the grid connected solar PV systems install and supervise guidelines.





Model	UKPD32
Poles	2P 4P
Standard	IEC60947.3,AS60947.3:2018
Utilization Category	DC-PV2 / DC-21B
Rated Operational Voltage (Ue)	500V,600V,800V,1000V
Mechanical Cycle	15000
Electrical Cycle	1000
Protection Degree	IP66 enclosure/IP20 switch body
Polarity	No Polarity
Certificate	TUV / CB

Specification:



* 1000Vdc 32A

* IP66 for vertical and horizontal installation.

* UV resistance and flame retardant material.
