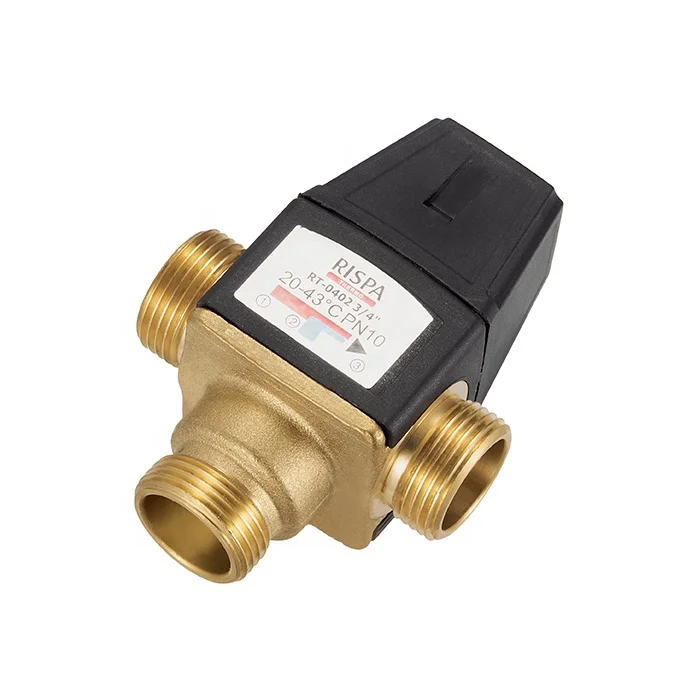

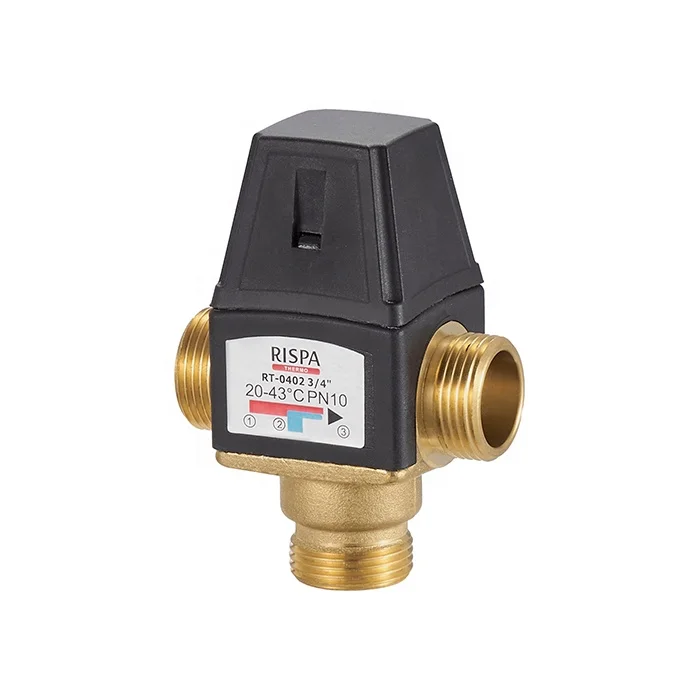

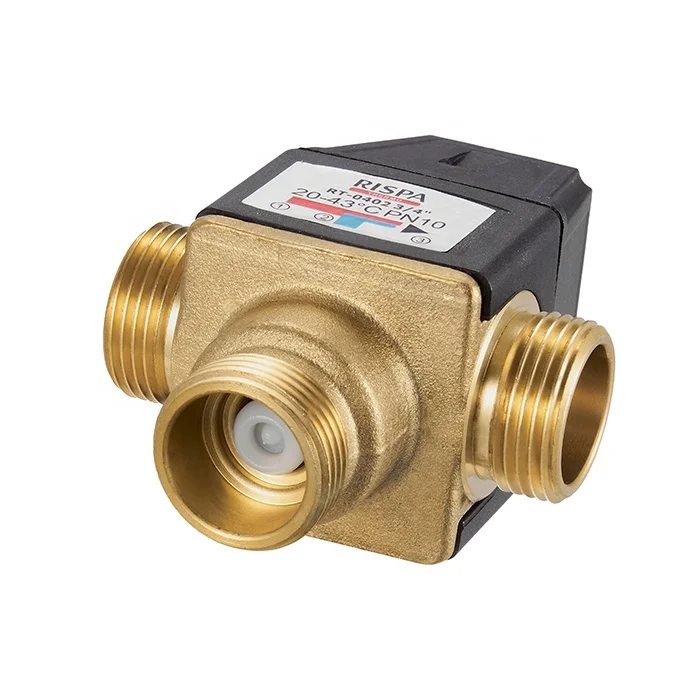

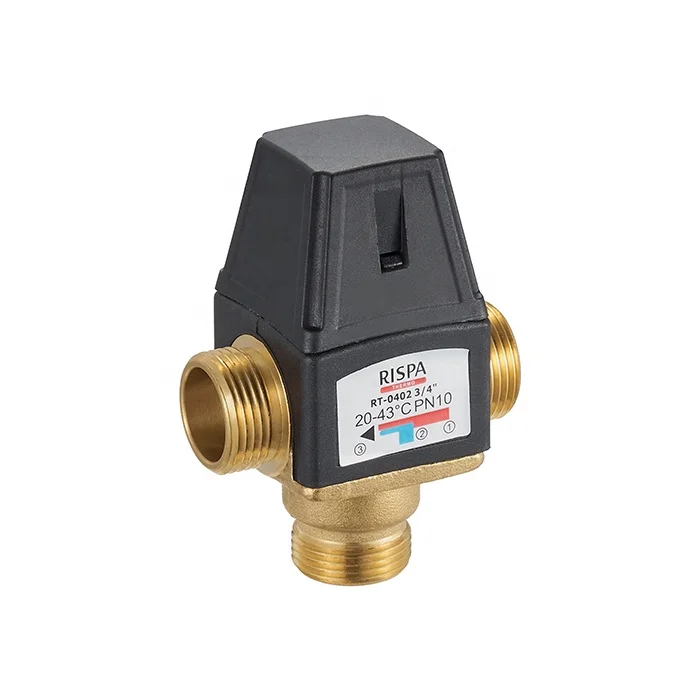

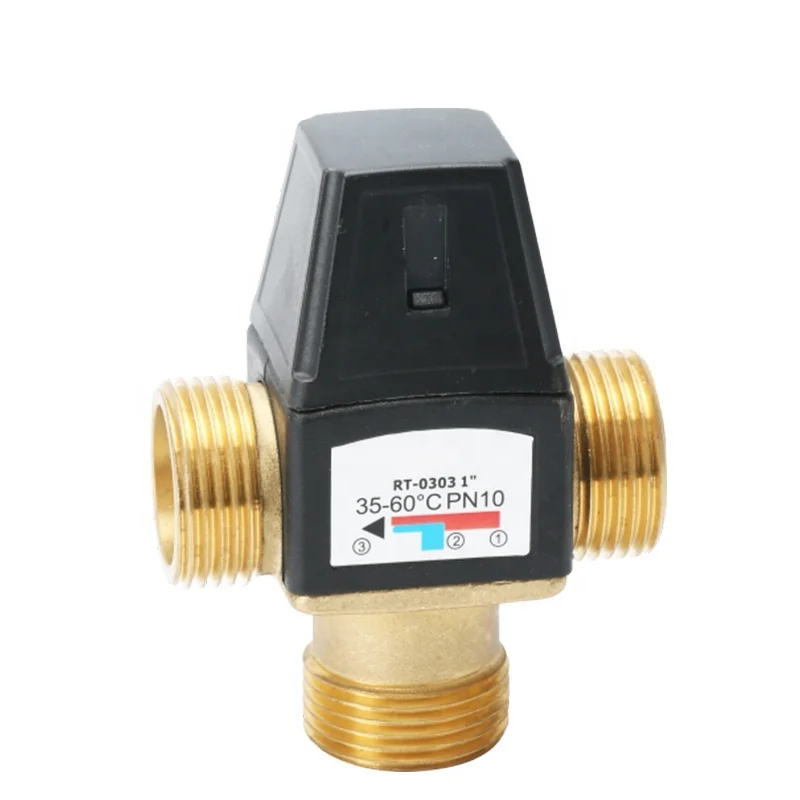

Brass Thermostatic Shower Mixer Valve Solar Electrical Hot Water 3 Way Thermostatic Mixing Valve BJ45005

Product Overview

Description







 BASIC INFORMATION



Descriptions	Brass Thermostatic Mixing Valve
Model No.	BJ45005
Material	Brass
Processing	Forging, CNC Machining
Surface Treatment	Brass Color
Size	3/4''/1''
Working Medium	Hot/Cold water
Cold Water Inlet Temprature	4°C-29 °C
Hot Water Inlet Temprature	40 °C -90 °C
Mixed Outlet Water Temperature	30°C -55 °C
Working Pressure	0.03-1Mpa
Control Precision	±2 °C





  FEATURES & ADVANTAGES

>>  Rapid failsafe on either hot or cold supply failure

>>  Imported sensor element, delivers stable mixed water temperature

>>  Extended mix temperature range : 30℃-55℃

>>  Forging process, 100% no leakage

>>  High precision machining, professional engineered designed and produced, to give out excellent performance.



 INSTALLATIONS

1. All installations should be carried out by a Licensed Professional.

2.Install in accordance with markings on valve body. i.e. hot water inlet-marked H, cold water inlet-marked C.

3. After temperature setting, if inlets temperature or pressure fluctuates, outlet temperature variation is within +/-2 C.

4. The external check valves at inlets prevent cross-flow of hot&cold water when inlets pressure is not the same.

5. If the ratio between two inlets is too large, one flow-limiting valve should be fixed at the side of higher pressure.

6. Prior to installation, provisions should be made to flush the piping of any debris or other foreign materials to ensure proper system operation.
