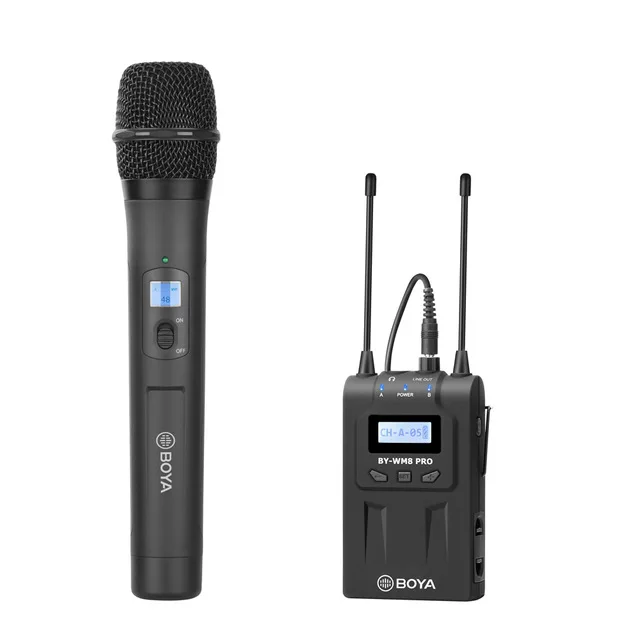

BOYA BY WM8 Pro K1 48 Channels UHF Wireless Microphone System (1 Transmitter 1 Receiver) for Canon Nikon Sony DSLR Cameras

BOYA BY-WM8 Pro K2 K1 Dual Wireless Microphone 48 UHF Channel Condenser Mic for Smartphone DSLR Camera DV Camcorder Interview

Introduction

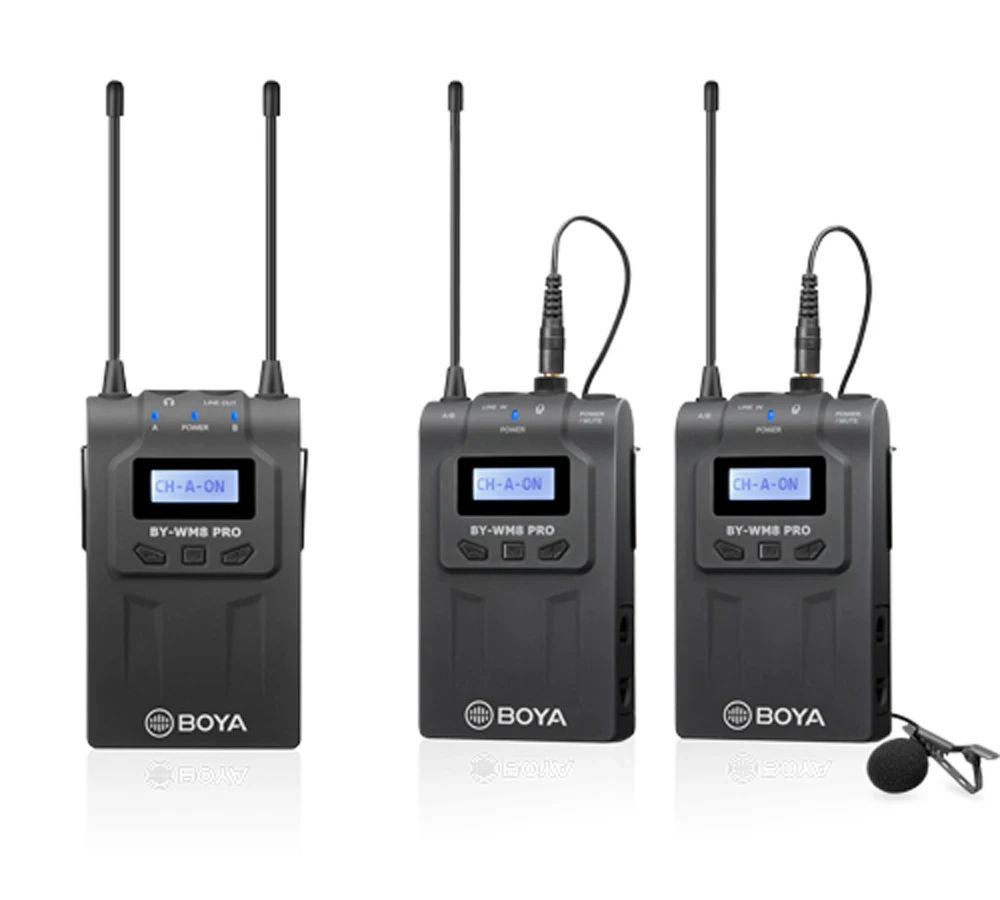

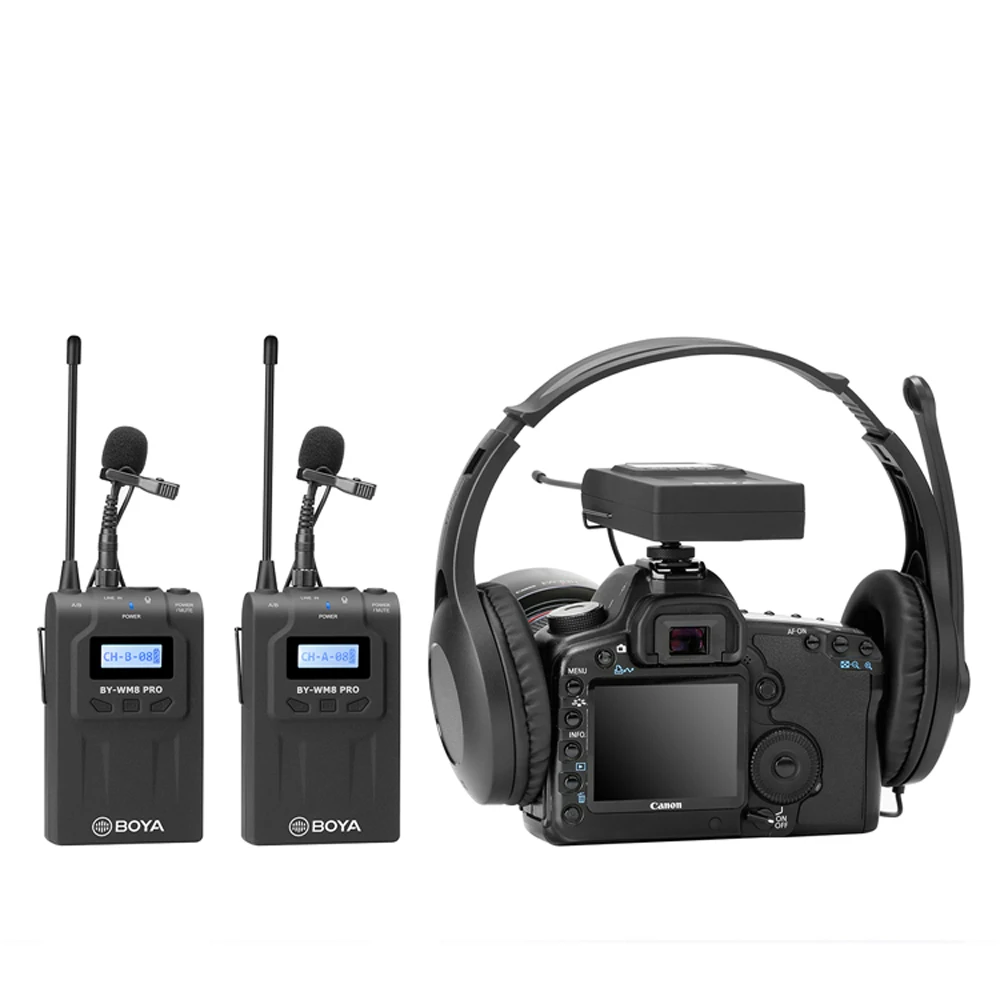

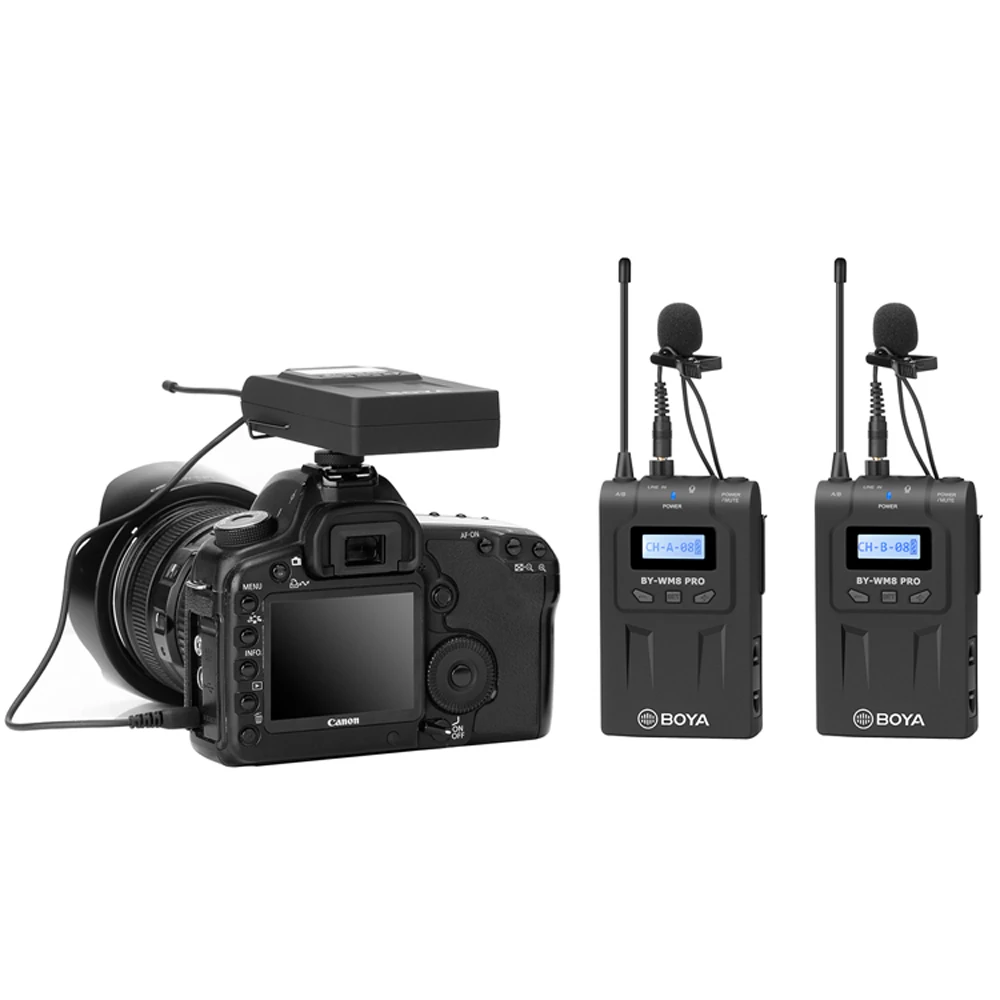

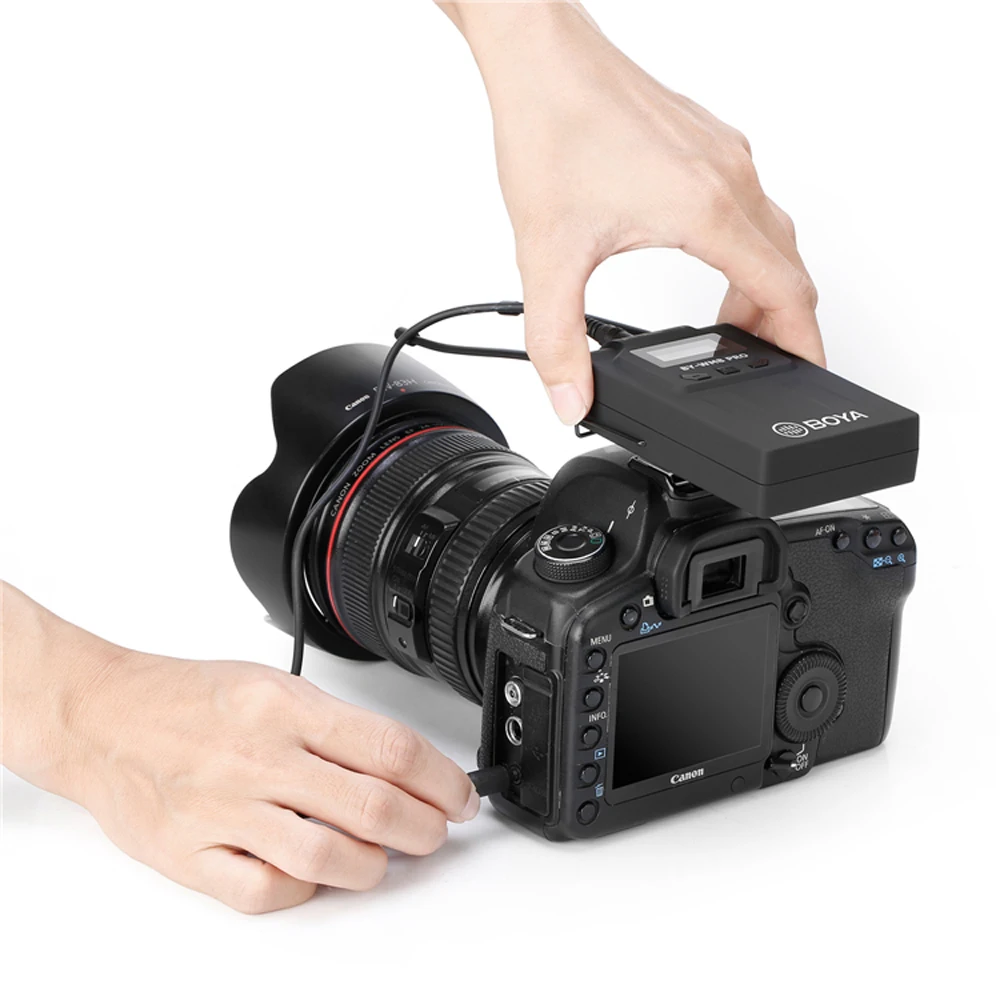

The BOYA BY-WM8 Pro is an upgrated UHF Dual-Channel Wireless Microphone System for capturing audio with dual subjects, features an easy-to-read LCD display, a wide switching RF bandwidth, PLL-synthesized tuning and digital companding circuitry. The package is suitable for a wide range of wireless applications such as interviews, electronic news gathering (ENG),electronic field productions (EFP), film production, business and educational applications, and more. The BY-WM8 Pro-K2 system consists of two bodypack transmitters, a camera-mount receiver, and two omnidirectional lavalier microphones. Also included with this system is a shoe-mount adapter, a single 1/8" to XLR output cable, a single 1/8 to 1/8" output cable, carrying case. The BY-WM8 Pro-K1 system consists of a bodypack transmitter, a camera-mount receiver, and two omnidirectional lavalier microphones. Also included with this system is a shoe-mount adapter, a single 1/8" to XLR output cable, a single 1/8 to 1/8" output cable, carrying case. The receiver is built with mic and headphone output jacks. The bodypack transmitter includes a MIC jack and LINE IN jack. Note: To save battery life, if only use one transmitter, please turn OFF the other channel from receiver.

Features

Digital Companding Up to 48 Selectable UHF channels Broadcast-Quality Sound Includes Two Transmitters and One Receiver Dual-Channel Wireless Receiver Up to 32 MHz of transmission bandwidth Operation range can reach up to 100m(300') (without obstacle) Seletable Stereo and Mono Mode Mic and Line-in Selectable Mute function Easy and flexible wireless synchronization between transmitter and receiver via infrared. User-friendly menu operation, Easy-to-read LCD displays Wide range of accessories adapts the system to most of requirements Automatic Locked-plug avoids accidental changing of settings Monitoring sound by headphone output (Receiver)

System

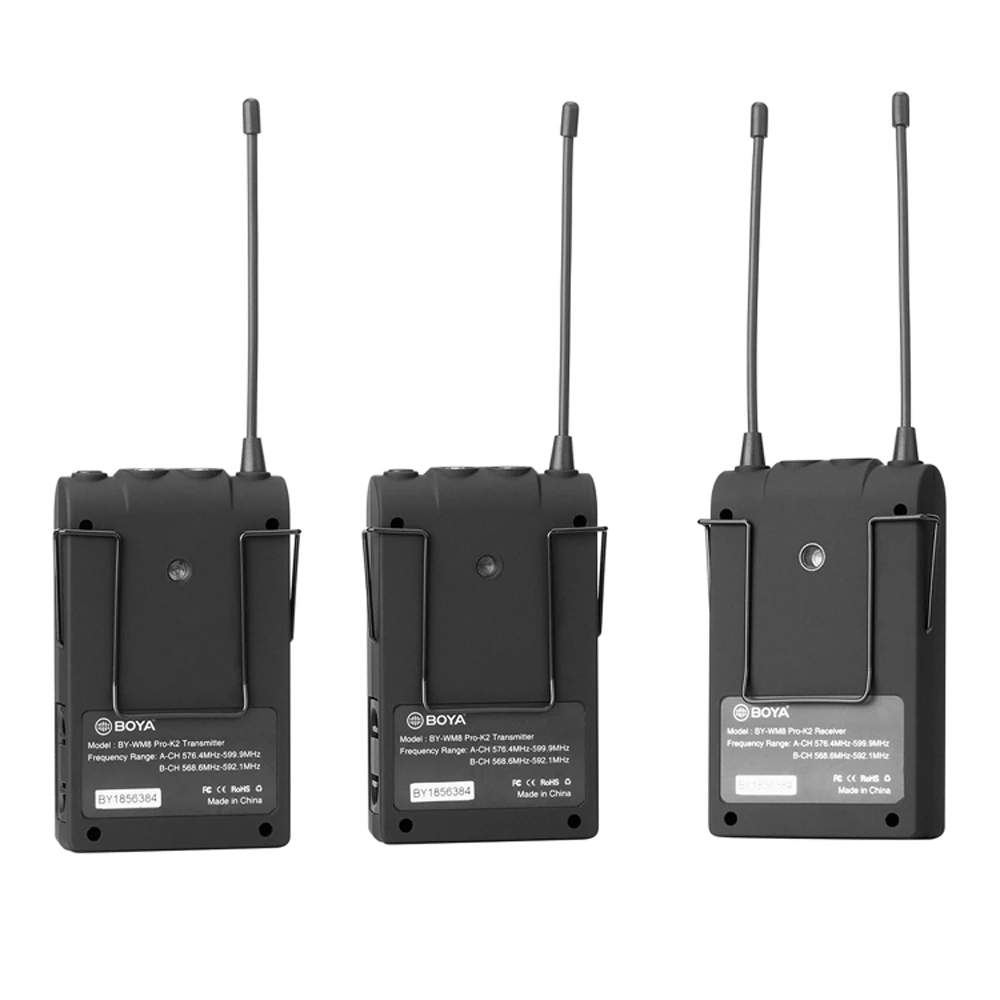

Oscillator type: PLL Synthesized Control Oscillator Carrier Frequency Range: 576.4 MHz-599.9 MHz (Transmitter: A ) 568.6 MHz-592.1 MHz (Transmitter: B ) Channels: 48 Frequency response: 40 Hz to 18 kHz (+/-3dB) Operation range: 100m (300')(without obstacle) Operating temperature: 14° F to 122° F (-10℃ to +50℃) Storage temperature: 14° F to 131° F (-10℃ to +55℃)

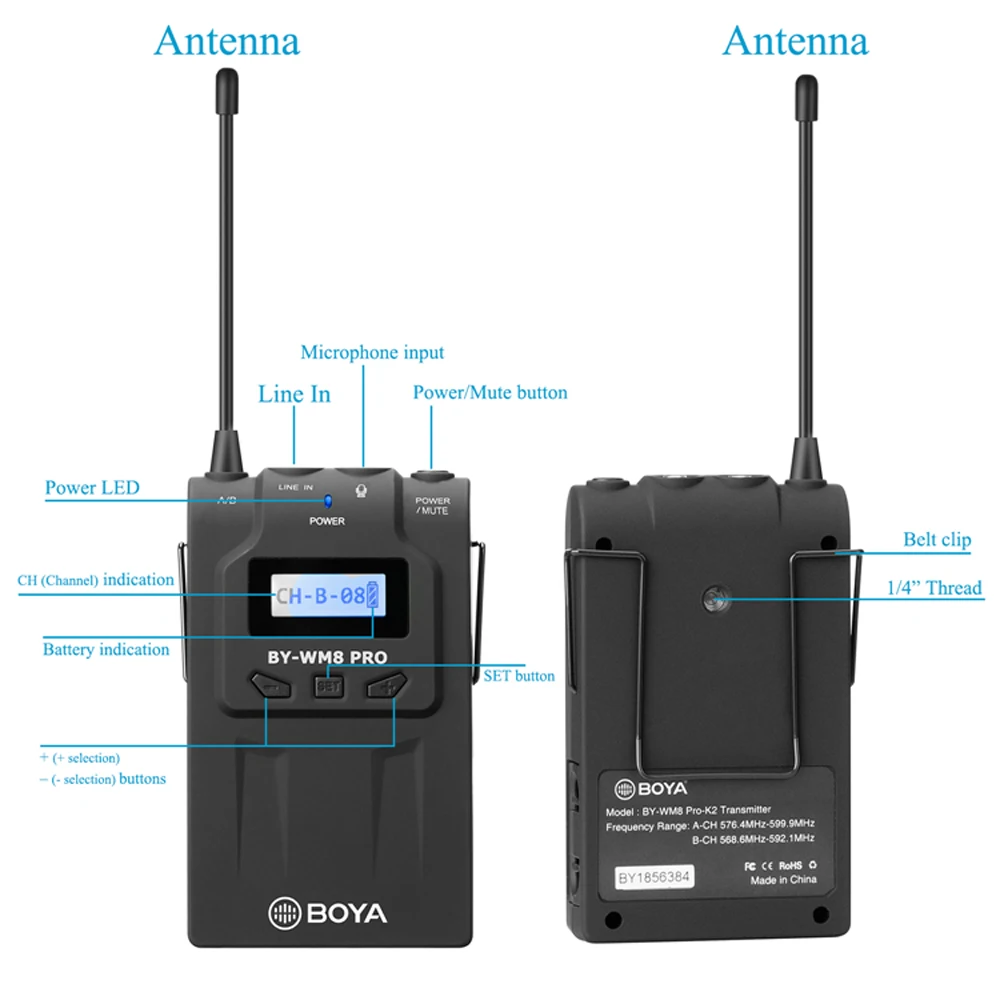

Transmitter:

RF output power: ≤10 mW Antenna: 1/4λ wire antenna Spurious emission: 250 nW or less Audio input connector: 3.5mm mini jack Reference audio input level: –60 dBV (MIC input, 0 dB attenuation) Reference deviation: ±5 kHz (–60 dBV, 1 kHz input) Input frequency range: 20 Hz-20 KHz Distortion: 0.5% or less Power supply: Two AA size batteries Operation time: About 6 hours Dimensions: 208(H) × 67(W) × 29(L)mm Weight: 80g without batteries

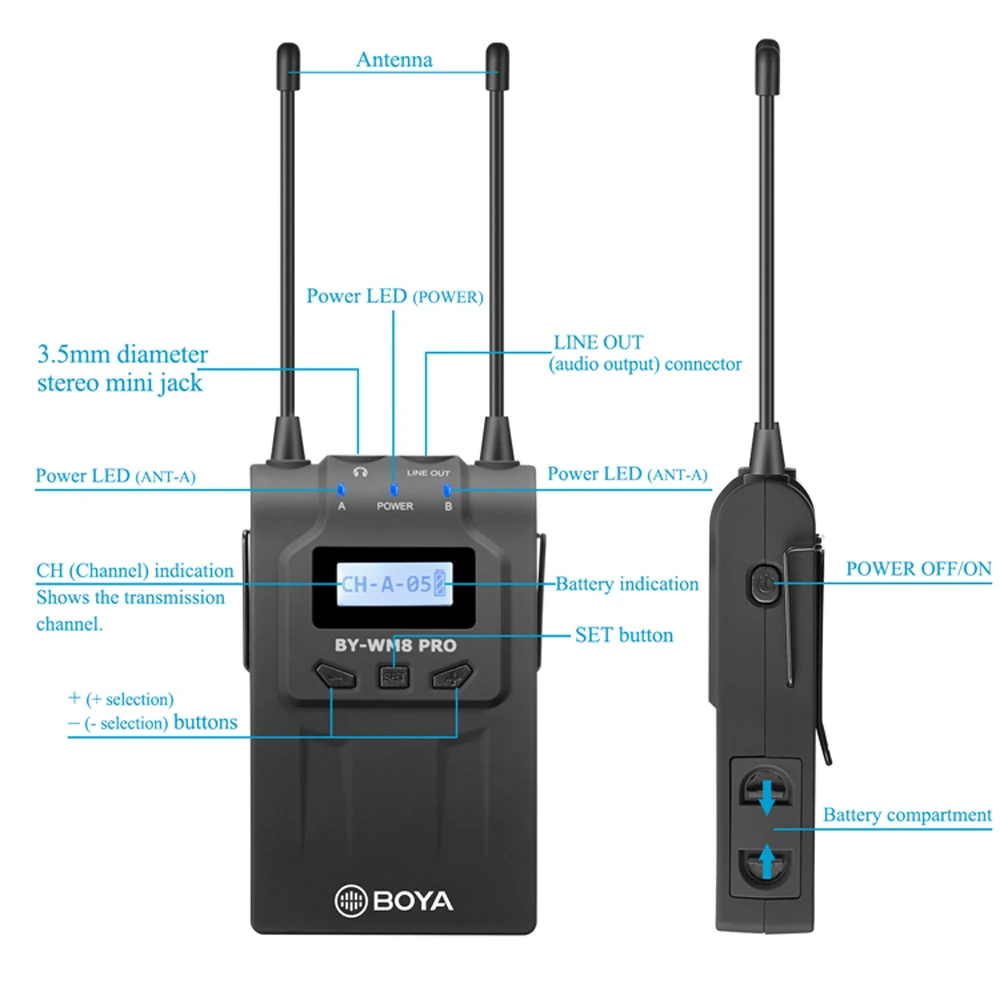

Receiver

Antenna: 1/4λ wire antenna Audio input connector: 3.5mm mini jack Signal-to-noise ratio: 70 dB or more Distortion: 0.5% or less Headphone output level: 30mW (16 Ω) Audio output level: –60 dBV Power supply: Two AA size batteries Operation time: About 4 hours Dimensions: 208(H) × 67(W) × 29(L)mm Weight: 90g without batteries

Lavalier Microphone

Transducer: Back electret Condenser Polar pattern: Omni-directional Frequency Range: 35Hz ~ 18 KHz Signal / Noise: 74dB SPL Sensitivity: -30dB +/-3dB / 0dB=1V/Pa, 1 kHz Connector: 3.5mm locking mini plug Length: 1.2m (4’)

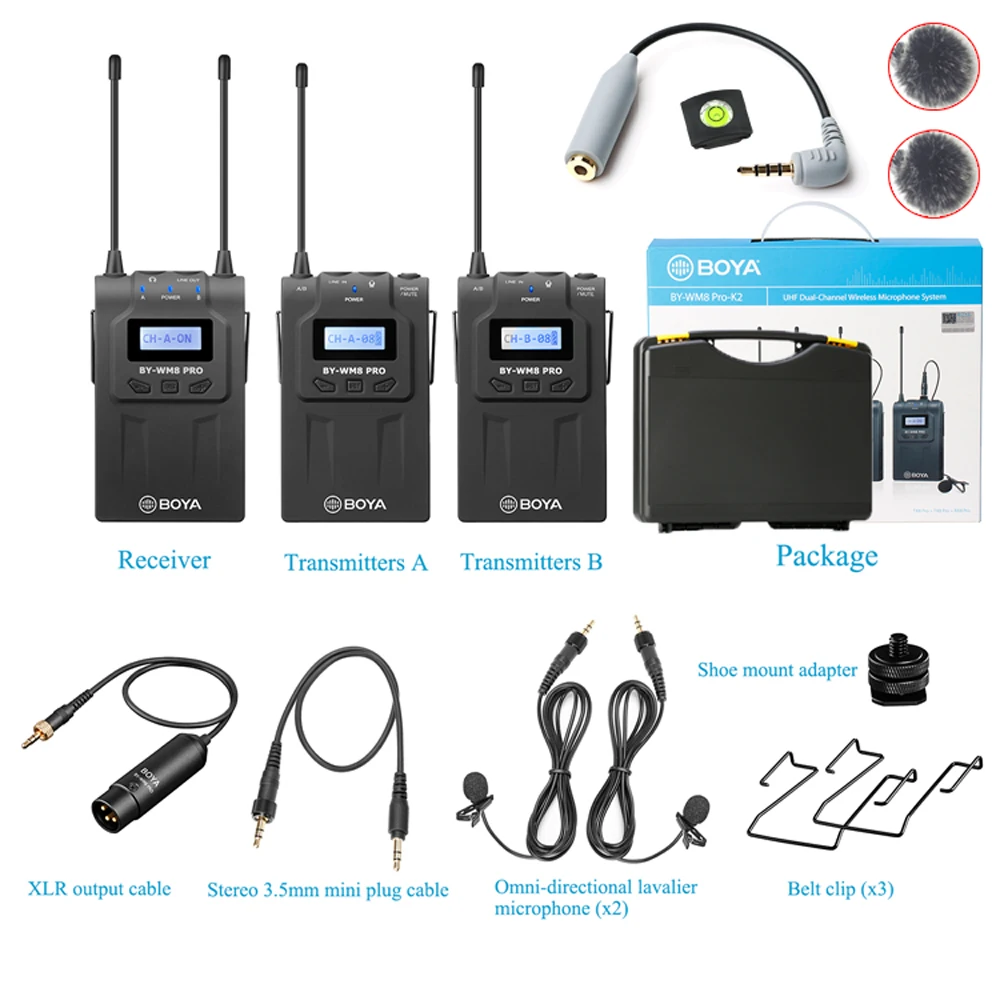

BY-WM8 Pro K2 Package List

1 x Dual Channel Wireless Receiver 2 x Wireless Transmitter 2 x Omnidirectional Lavalier Microphone 2 x Foam Windscreen 2 x Lapel Holder Clip 2 x Belt Clip 1 x Stereo 3.5mm mini Plug Output Cable 1 x XLR Output Cable 1 x Product Mannual 1 x Carry Case 2 x Furry Windshield (Free Gifts) 1 x 3.5mm Adapter Cable for Smartphone (Free Gift) 1 x Shoe Level Cap (Free Gift)

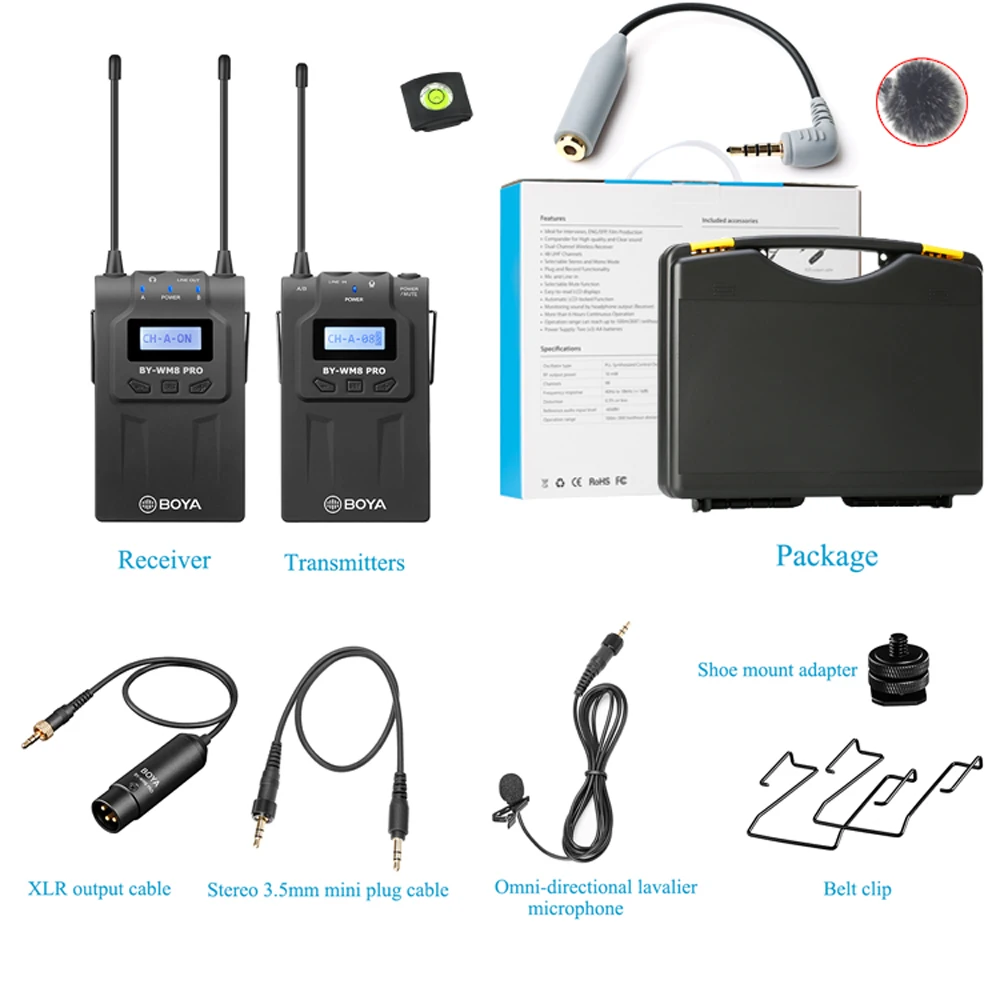

BY-WM8 Pro K1 Package List

1 x Dual Channel Wireless Receiver 1 x Wireless Transmitter 1 x Omnidirectional Lavalier Microphone 1 x Foam Windscreen 1 x Lapel Holder Clip 1 x Belt Clip 1 x Stereo 3.5mm mini Plug Output Cable 1 x XLR Output Cable 1 x Product Mannual 1 x Carry Case 1 x Furry Windshield (Free Gifts) 1 x 3.5mm Adapter Cable for Smartphone (Free Gift) 1 x Shoe Level Cap (Free Gift)
