20 120Ton Trailer mounted Mobile Drum Mixing Asphalt Plant
- Category: >>>
- Supplier: Henan ZOOMLINE Machinery Co. Ltd.
Share on (62499338732):
Product Overview
Description

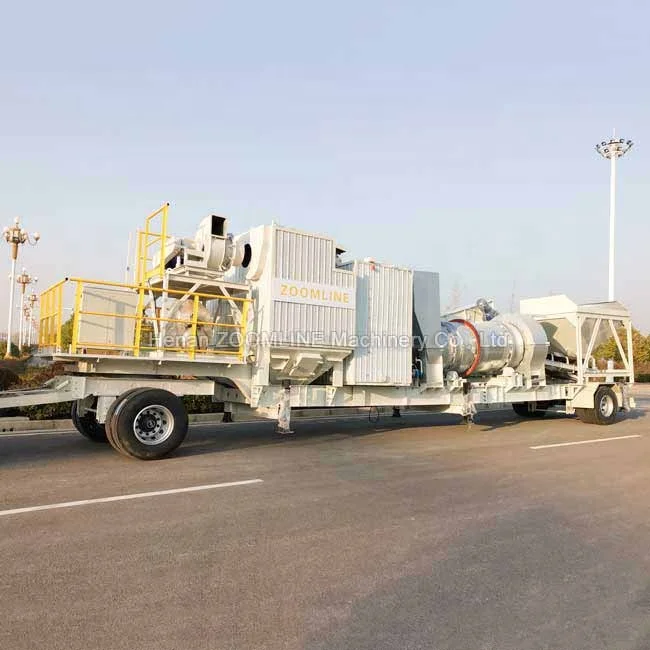

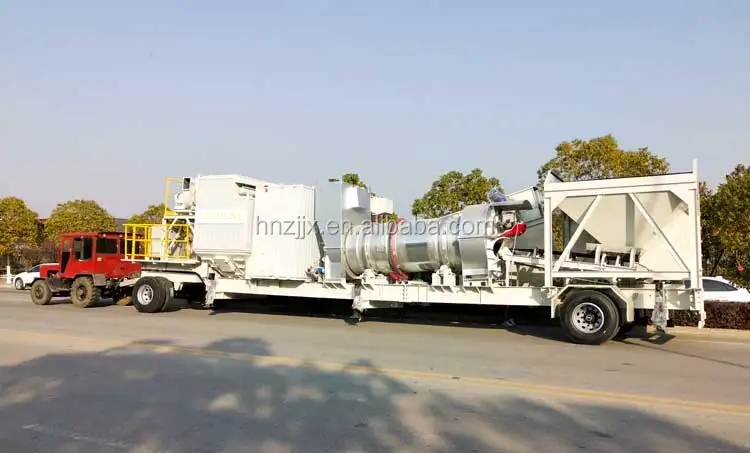

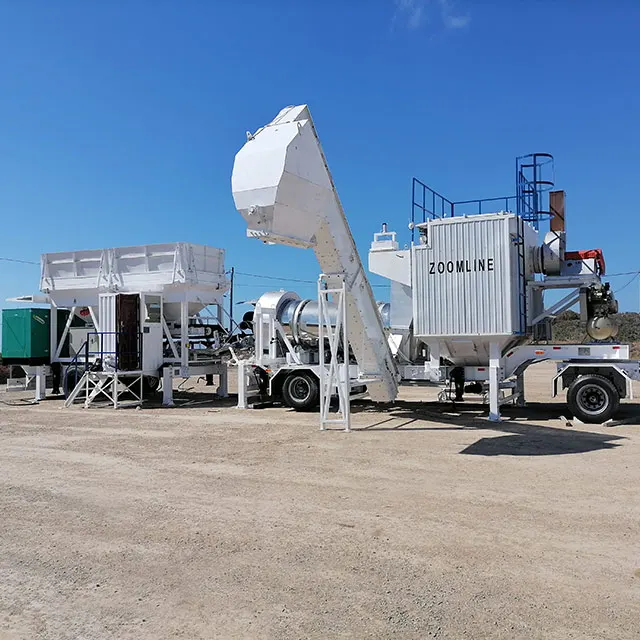

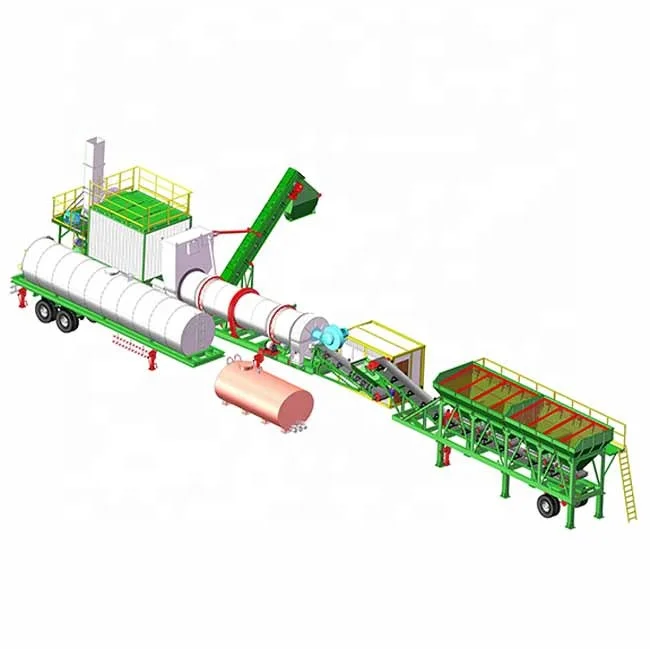

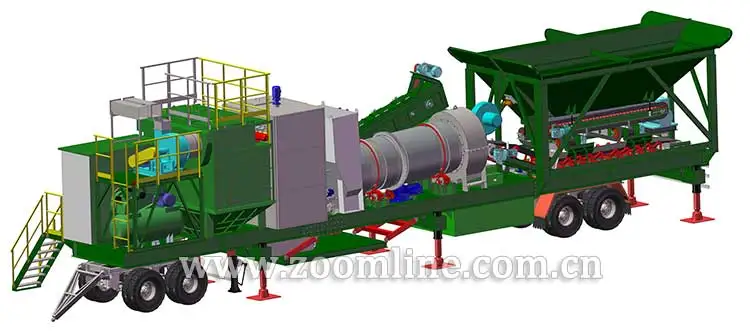

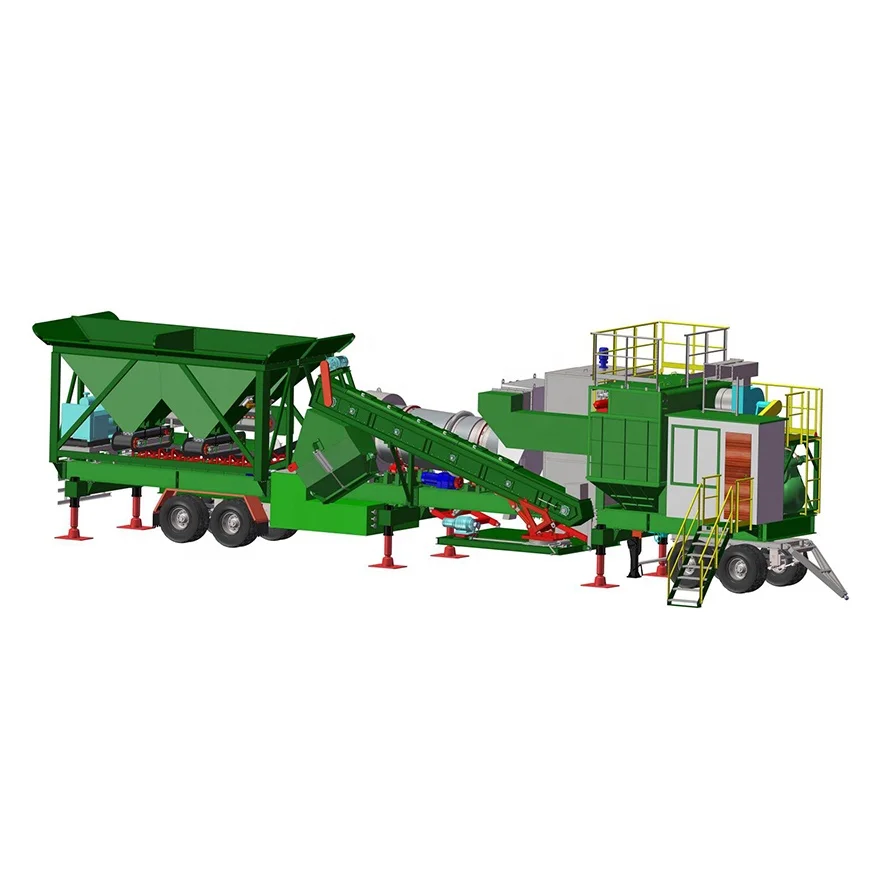

20-120Ton Trailer-mounted Mobile Drum Mixing Asphalt Plant
Product Description

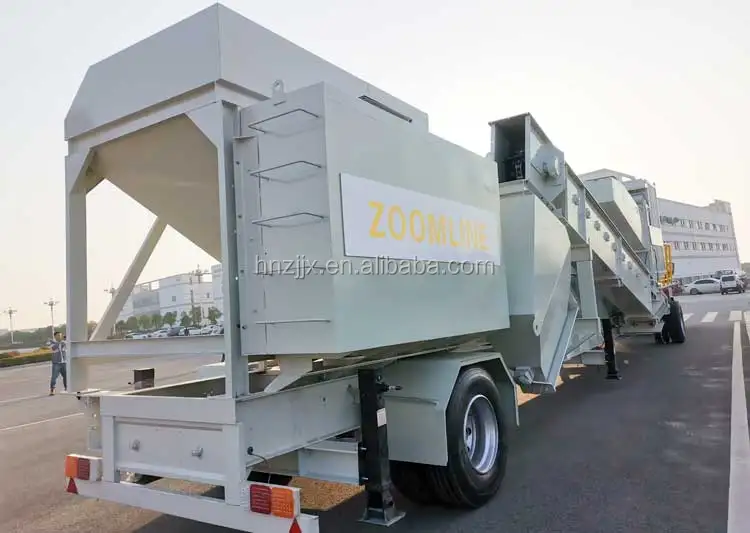

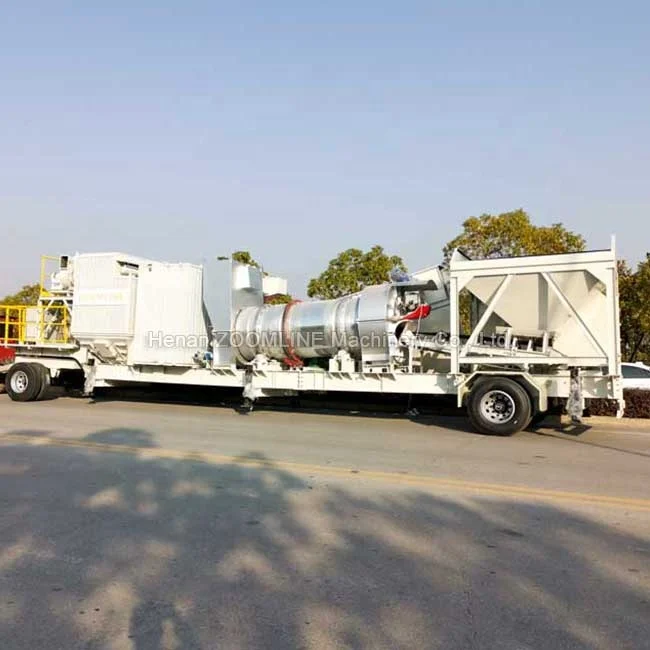

- “one-trailer-mounted ” continuous asphalt mixing plant is optimized and redesigned based on our stationary continuous asphalt mixing station
and semi-mobile continuous asphalt mixing station.
- “one-trailer-mounted ” continuous asphalt mixing plant realizes the high integration of asphalt plant, and one transport trailer can realize
all the functional requirements of the asphalt mixing station (filling, drying, mixing, storage of finished products, operation),
which meets the user's requirements for fast installation, fast transition, and rapid production.
- Up to now, our “one-trailer-mounted ” continuous asphalt mixing plant” has been exported to Europe, Africa, North America etc.
The convenience of fast transportation, transfer, and rapid recommissioning greatly saves the costs and improves the construction efficiency.
| One-trail-pulled continuous asphalt plant main parameters | ||||||
| Model | ZAP-C20M | ZAP-C40M | ZAP-C60M | ZAP-C80M | ZAP-C120M | Note |
| Rated output(T/H | 20 | 40 | 60 | 80 | 120 | 5% water content, standard condition |
| Oil consumption(tons/hour) | 7 or less | 7 or less | 7 or less | 7 or less | 7 or less | light oil/heavy oil/fuel gas |
| Total power(KW) | 50 | 69 | 110 | 150 | 210 | Standard configuration |
| Dimension(L×W×H)m | 15.5×3.1×4.48 | 17.9×3.1×4.48 | 21×3.1×4.48 | 21×3.1×4.48 | 21.5×3.1×4.48 | |
| Amount of axles | 2 | 2 | 2 | 2 | 3 | |
| Volume of cold feed bins | 4.5m³ | 2×4.5m³ | 3×4.5m³ | 3×4.5m³ | 4×4.5m³ | Optional |
| Size of drum(Diameter×Length) | ∅1.2m×3.8m | ∅1.2m×5.3m | ∅1.5m×7m | ∅1.5m×8m | ∅1.8m×8.5m | |
| Driving power of drum(Kw) | 11 | 15 | 22 | 22 | 7.5×4 | |
| Type of dust collector | Bag house filter | Other types are also optional | ||||
| Filter area | 115m² | 150m² | 210m² | 260m² | 340m² | |
| Power of induced draft fan(Kw) | 11 | 18.5 | 30 | 30 | 55 | |
| Volume of finished product silo(m³) | 1 | 1 | 1.5 | 1.5 | 2 | |
| Operation methods | Manual/Automatic | |||||
| Type of mixing | Continuous type | |||||
| Bitumen heating way | electrical heating,thermal conductin oil heating, direct heating | Optional | ||||
| Measurment of bitumen | flow measurement | |||||
| Temperature of finished asphalt(℃) | 130℃~160℃ | |||||
Related Products
Our factory
Henan ZOOMLINE Machinery CO., Ltd is a professional supplier of asphalt mixing plant and support equipments that draws on years' experiences and technology developments.
Our main asphalt mixing plants include:
Stationary asphalt mixing plant(ZAP-S series)
Mobile asphalt mixing plant(ZAP-M series)
Continuous asphalt mixing plant(ZAP-C series)
ZOOMLINE certification

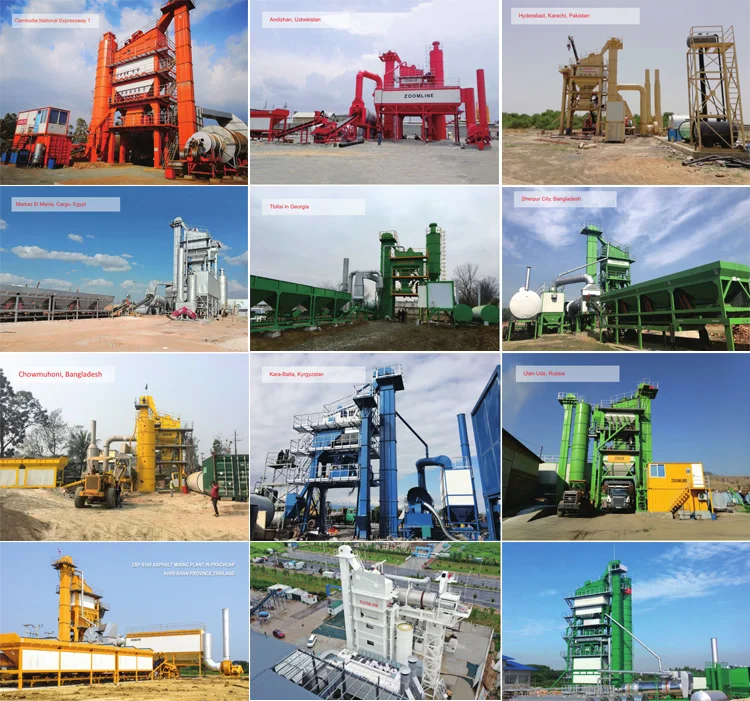

Nowadays, our asphalt plant products have been sold to Russia, Cambodia, Bangladesh, Egypt, Pakistan, Georgia, Indonesia, Belgium and Thailand etc. Our asphalt mixing plants have got CE,GOST,EAC,EMC and ISO9001 certification and we hold 18 patents which own to the concerted efforts of our employees.

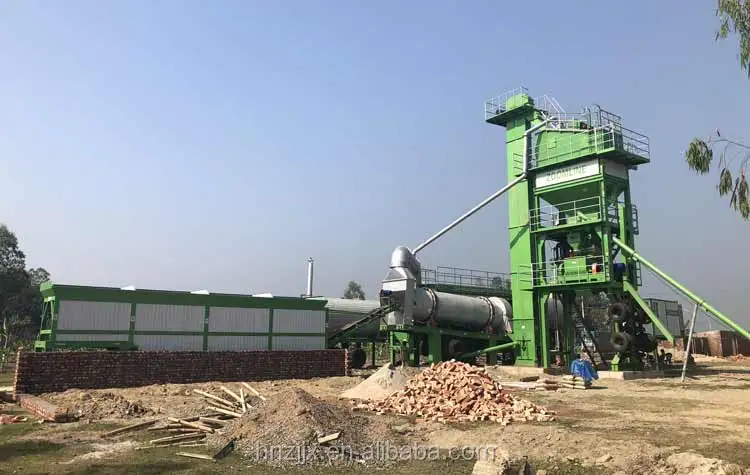

Customer visit
Since ZOOMLINE start-up, we have become one of the most reliable partners of construction projects at home thorough ongoing technical investment.Welcome to our factory to visit the asphalt mixing plants.

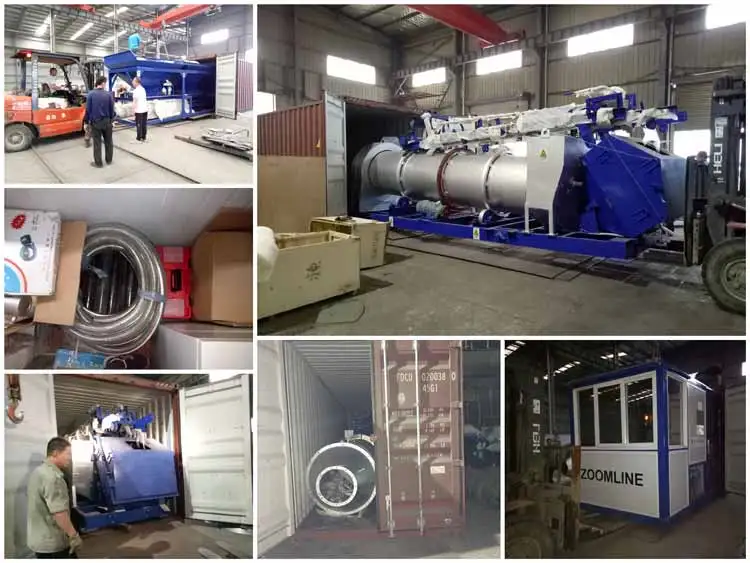

Packaging & Shipping
1.The whole asphalt mixing plant is designed according to standard high cabinet container, suitable for the construction requirement in both home and abroad.
2.All the components of this asphalt plant can be put into the container, can greatly reduce transport cost.
After-Sales Service
Our professional after-sales services team could provide timely and reliable service for any of our customers who need support.
1. Professional technical team, to provide users with equipment selection, layout program design, construction programs and other consultation services.
2. Technical guidance during equipment operation, PLC with remote monitoring, large capacity recipe storage,special needs customization.
3. Equipment installation, commissioning, training technical support. Provide a full range of technical training on operation, maintenance for users and equipment manager, to provide multiple technical advice.
4. The equipment upgrades, relocation technical support in the future. To provide seamless equipment technology upgrades,perfect and efficient removal plan.
