Products Description
General information

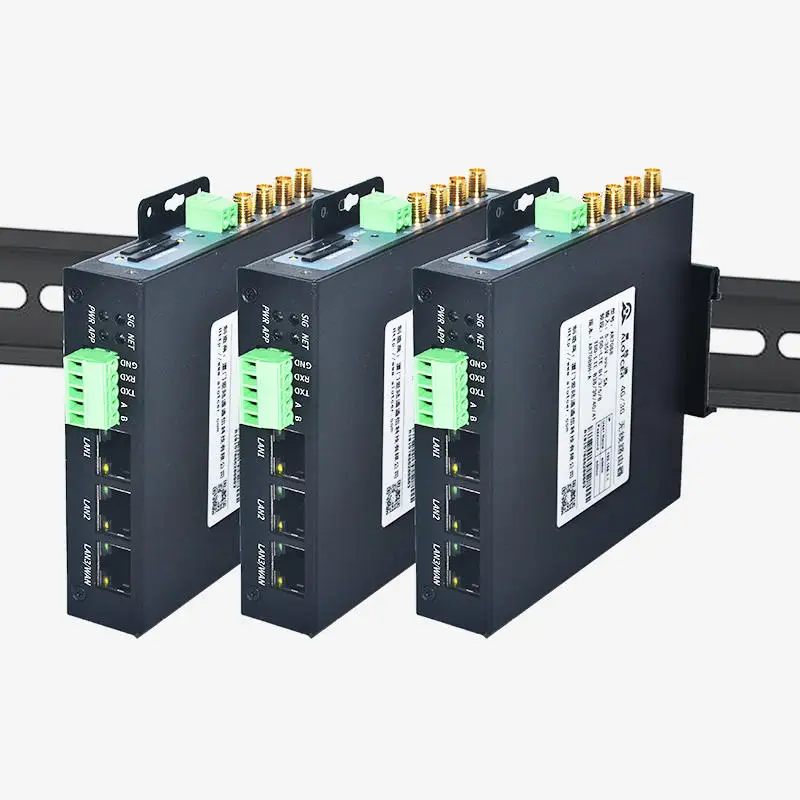

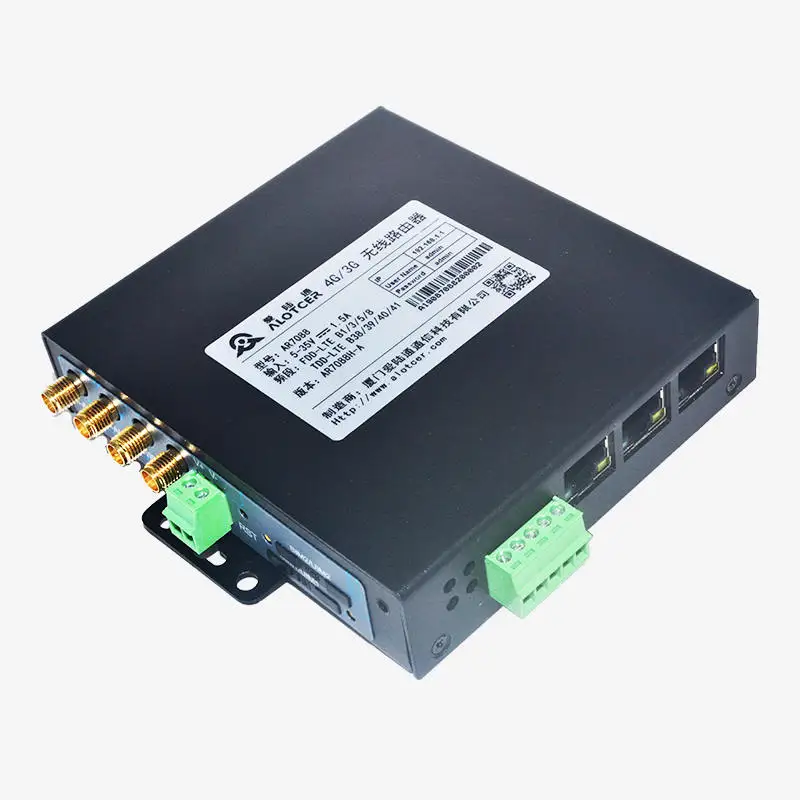

AR7088H ROUTER is a kind of terminal device that developed based on 2G/3G/4G, WIFI, VPN technology. It adopts high-powered industrial 32-bits CPU and embedded real time operating system. It supports RS232 and RS485, Ethernet and WIFI port that can conveniently and transparently connect one device to a cellular network, allowing to connect to your existing serial, Ethernet and WIFI devices with only basic configuration.
It has been widely used on M2M fields, such as intelligent transportation, smart grid, postal services,industrial automation, telemetry, finance, POS, water supply, environment protection, post, weather, and so on.
It has been widely used on M2M fields, such as intelligent transportation, smart grid, postal services,industrial automation, telemetry, finance, POS, water supply, environment protection, post, weather, and so on.
Item | Contents | ||
Hardware System | CPU | Industrial 32 bits CPU | |
FLASH | 16MB (Extendable to 64MB) | ||
SDRAM | 128MB | ||

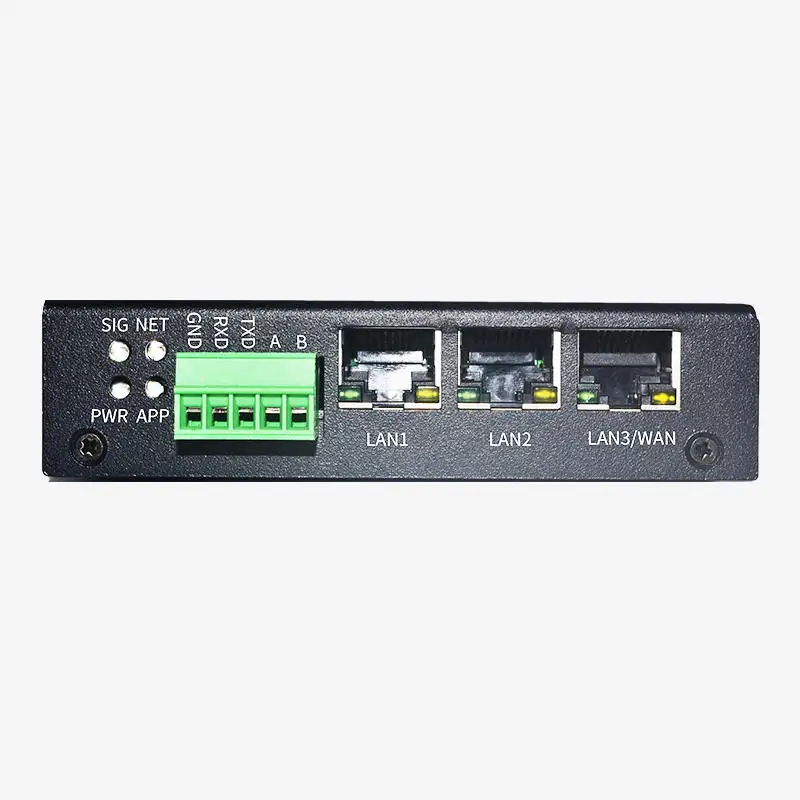

Interface | WAN/LAN | 1 10/100Mbps WAN(RJ45,can configurable as LAN) port, auto MDI/MDIX, 1.5KV magnetic isolation protection | |
Serial | 1 RS232 and 1 RS485, 15KV ESD protection Serial port: 5 PIN industrial terminal, 3.5mm pitch Data bits: 5, 6 ,7, 8 Stop bits: 1, 1.5(optional), 2 Parity: none, even, odd, space, mark Baud rate: 110~230400 bps Large serial port data cache:10MB | ||
LAN | 2 10/100Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection | ||

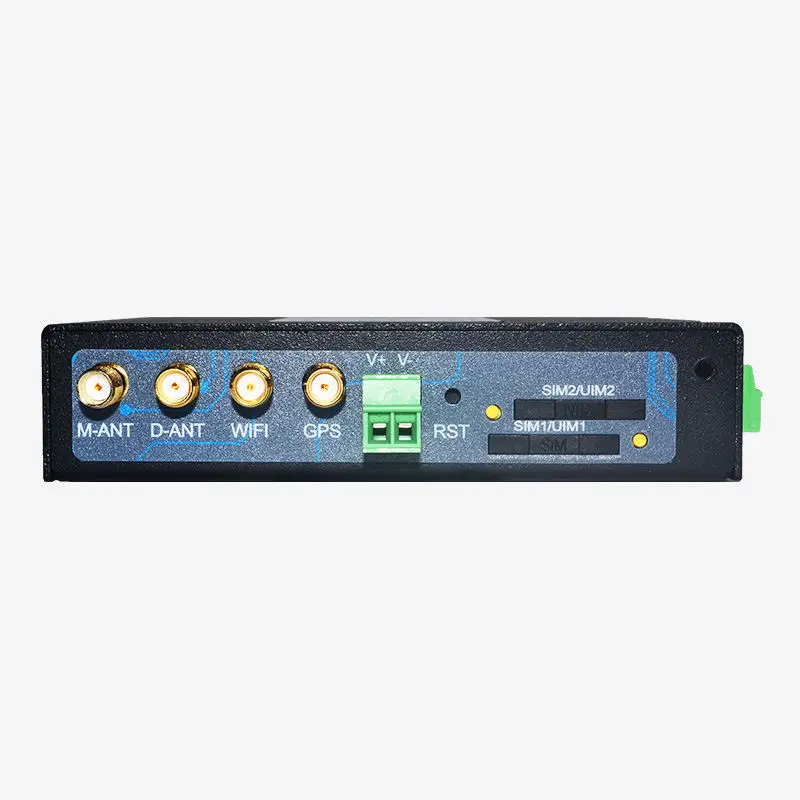

Antenna | Cellular/GPS: Standard SMA female interface, 50 ohm WIFI: Standard SMA male interface, 50 ohm | ||
SIM/UIM | Standard 3V/1.8V user card interface, 15KV ESD protection | ||
Power | 2 PIN industrial terminal, 3.81mm pitch, reverse- voltage and over voltage protection | ||
Reset | Press this key for 8 seconds to restore the Router to its original factory default settings | ||
Indicator | “PWR”、”SIG”、”NET”、”APP” 、”Link”(RJ45) | ||
Network | GSM/GPRS/EDGE: 850/900/1800/1900MHz CDMA: 800/1900MHz WCDMA/HSUPA/HSPA+: 850/900/1900/2100MHz CDMA2000 1x/ EVDO Rev. A:800/1900MHz TD-S CDMA: 1880-1920/2010-2025MHz(A/F) TDD-LTE:Band 38/39/40/41& Band 61/62 (Private Network) FDD-LTE:Band1/2/3/4/5/7/8/12/13/17/18/19/20/21/25 /26/28/66 | ||
PPP Protocol | Support PPP Protocol | ||
PPP Heartbeat | Maintaining links with the cellular network to prevent forced sleep, to ensure the stability of dial-up link. | ||
Network Authentication | Support CHAP/PAP Authentication | ||
TCP Heartbeat | Monitor the server connection | ||
WIFI （Optional) | Standard | IEEE802.11b/g/n | |
Bandwidth | IEEE802.11b/g: 54Mbps (max) IEEE802.11n: 150Mbps (max) | ||
Security | WEP, WPA, WPA2, etc. WPS (optional) | ||
Power supply | Power range | DC 5~35V, Recommended 12VDC/1.5A | |
Communication Current | <500MA(@12VDC) | ||
Standby Current | <250MA(@12VDC) | ||
Physical | Dimensions | 107x98x24mm | |
Weight | 350g | ||
Installation | Mount Kit or DIN Rail 35mm (optional) | ||
Environmental Limits | Operating Temperature | -35~+75ºC (-31~+167℉) | |
Storage Temperature | -40~+85ºC (-40~+185℉) | ||
Operating Humidity | 95% ( unfreezing) | ||
Details Images
Applicable Models
Certifications
Product packaging
Our Company
Xiamen Alotcer Communication Technology Co., Ltd. is a leading provider of M2M, IOT communication products and solutions.vDeeprooted in Networking Wireless Communications for 5 years, both from the product quality and the company's scale are in theindustry-leading level. We have obtained SGS certification and are ISO9001 certified, along with CE, FCC, EMC, ROHS, RED NationalNetwork Center certifications. There are more than 200 employers in Alotcer, R & D personnel is about 30%, and with 3000 squaremeters of office space. Because focused, so specialized. Our products are sold all over the world and well received by customers.
FAQ
1.What's the shipping cost?
Shipping bia DHL, UPS, Fedex, TNE is 3-5 days. For 1 pc router,shipping cost is 23 USD to United Sates by Express DHL.
2.What's the package?
Industrial package with 10 pcs router in a main box, 1kg/pc.
3.What's the warranty?
Repair rate less than 0.1%, even after a one- year warranty, we will only charge a small amount of maintenance cost.
4.How can i visit you?
You are welcome to visit Alotcer in Xiamen,China. And we have booth world wide every year.
Shipping bia DHL, UPS, Fedex, TNE is 3-5 days. For 1 pc router,shipping cost is 23 USD to United Sates by Express DHL.
2.What's the package?
Industrial package with 10 pcs router in a main box, 1kg/pc.
3.What's the warranty?
Repair rate less than 0.1%, even after a one- year warranty, we will only charge a small amount of maintenance cost.
4.How can i visit you?
You are welcome to visit Alotcer in Xiamen,China. And we have booth world wide every year.
