China Brand New Type QC11K Series metal hand shearing machine
- Category: >>>
- Supplier: Nanjing Chzone Machine Tool Co. Ltd.
Share on (62499590867):
Product Overview
Description

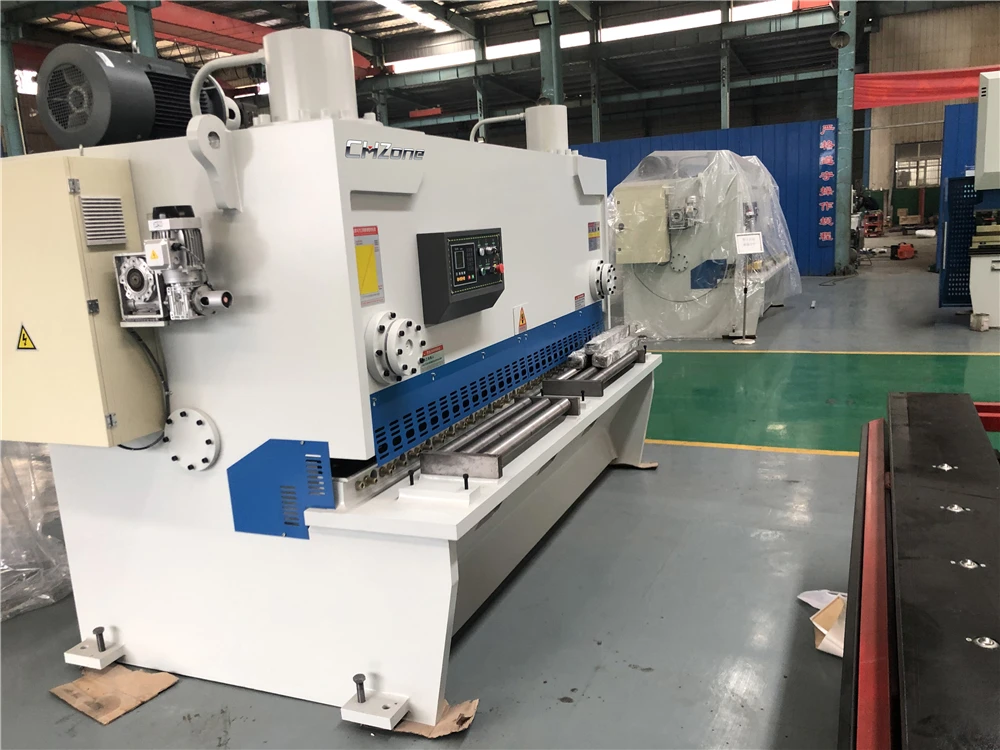

QC11K-6*2500 Hydraulic Guillotine Shearing Machine
Product Description
Main features:
* ESTUN E21S NC Controller
* Kacon Foot Pedal
* Guillotine shear has a higher accuracy
* ESTUN E21S NC Controller
* Kacon Foot Pedal
* Guillotine shear has a higher accuracy
* Safty fence for side and front
* standard equipped with one set blades, can use more than 2 years
* standard equipped with one set blades, can use more than 2 years
Controller | E21S |
Hydraulic Valve | Rexroth/First |
Electrics | Schneider |
Cylinder | Taifeng |
Motor | Siemens |
Pump | Sunny |
Controller
ESTUN E21S
■ HD LCD display, with both Chinese and English language options, a display programming parameters, faster and more convenient programming
■ Backgauge control：Smart positioning, can also be manually adjusted as needed to remove the mechanical hand positioning device.
■ Cut Stroke: Built-shearing time relay, simple operation, cost savings
■ Shear angle: Built shear angle adjustment function, eliminating the angle indicators and buttons
■ Backgauge control：Smart positioning, can also be manually adjusted as needed to remove the mechanical hand positioning device.
■ Cut Stroke: Built-shearing time relay, simple operation, cost savings
■ Shear angle: Built shear angle adjustment function, eliminating the angle indicators and buttons
Main Parameters
Series | Name | QC11K-6*2500 | Unit |
1 | Max. Cutting Thickness | 6 | mm |
2 | Max. Cutting Width | 2500 | mm |
3 | Throat Depth | 250 | mm |
4 | Stroke Times | 10 | SPM |
5 | Back Gauge Stroke | 10-6000 | mm |
6 | Cutting Angle | 0.5-3 | Degree |
7 | Motor Power | 7.5 | KW |
14 | Oil Pump | 25MCY-14B | |
15 | Max. Hydraulic Pressure | 25 | Mpa |
16 | Hydraulic Oil need | 150 (L-HM 46) | L |
18 | Voltage | 220/380/415/440 | V |
19 | Length | 3300 | mm |
20 | Width | 1700 | mm |
21 | Height | 2000 | mm |
22 | Weight | 5500 | KG |
Detailed Images
E21S NC Controller
Easy to operate, stable quality
Schneider Electrics
High safety grade
Rexroth Valve
Germany BOSCH Brand

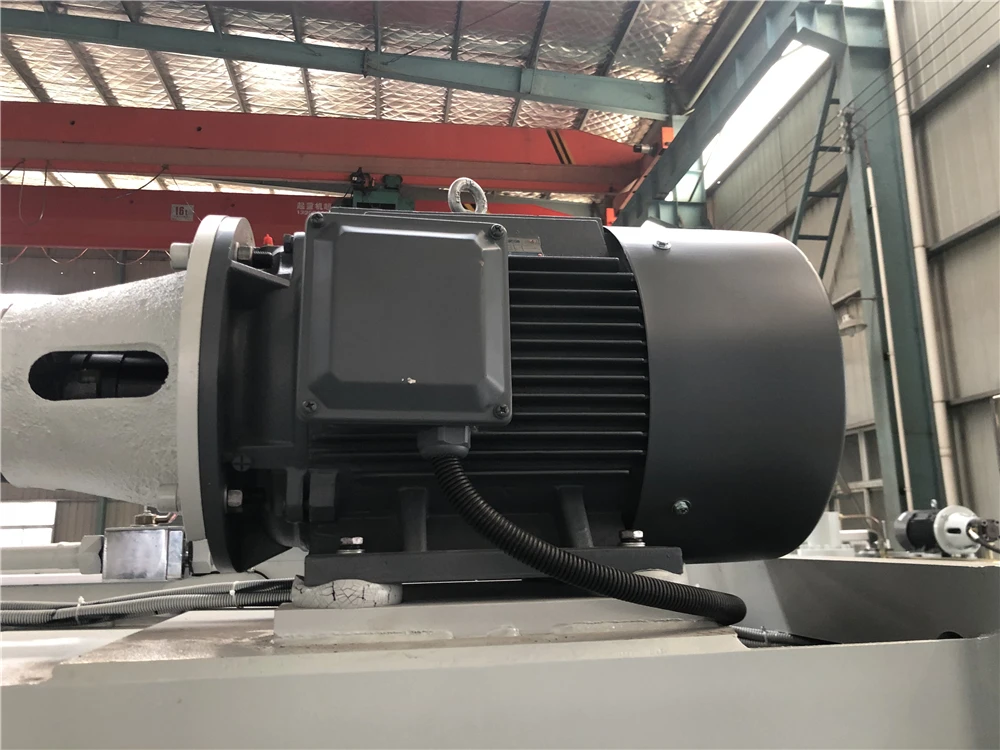

Siemens Motor
Siemens China factory made

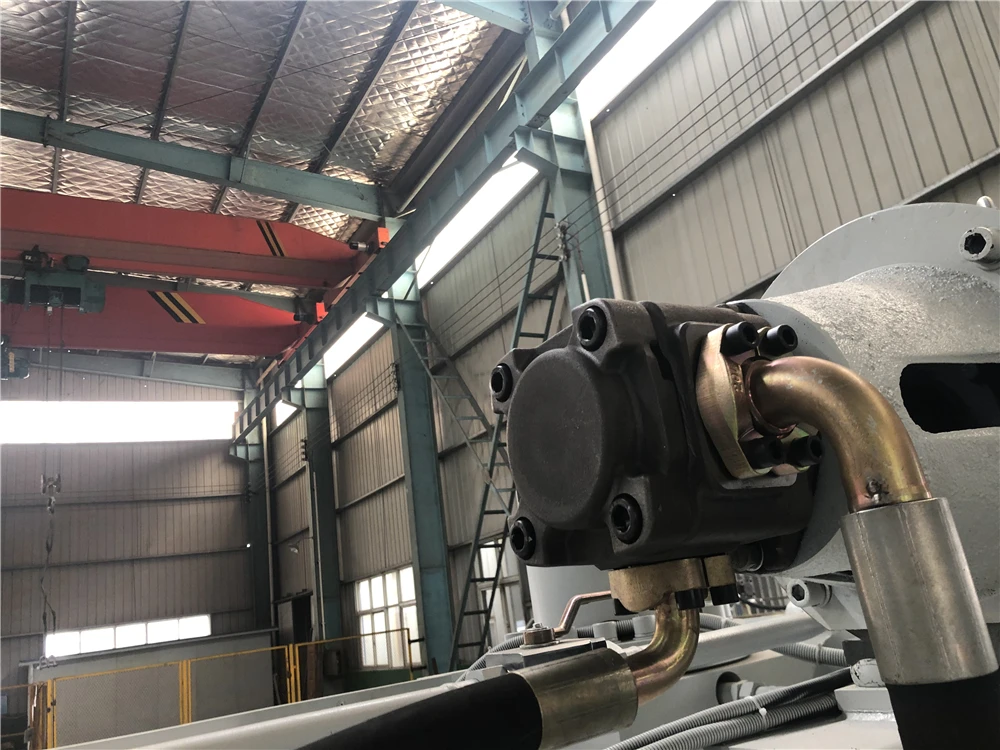

Sunny Oil Pump
AMreican famous brand, High quality.
Taifeng Cylinder
Most Famous brand in China. Life-long time aftersale maintance.
Back Gauge
Automatic backgauge

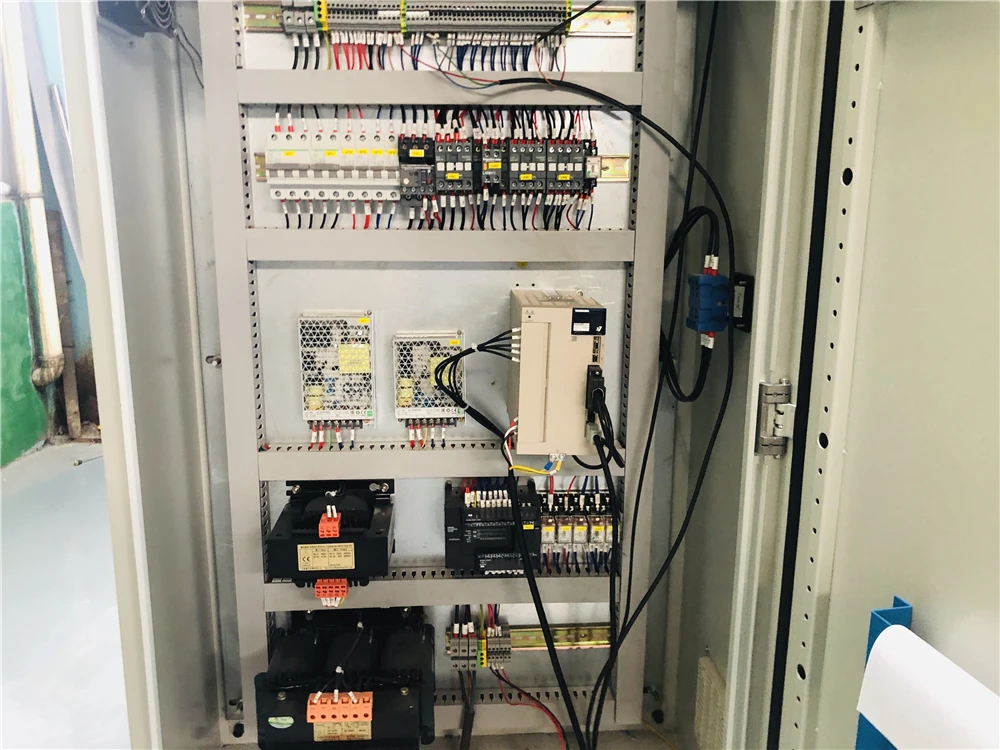

Electric Box
Factory made type,high safety
Kacon Foot Pedal
South Koera Brand
Related Products
Optional Parts
Back Side Material Slider
easy to collect rest material
Metal Type Front Fence
stable and safety
Air Cooling Device
suitable for the Tropics

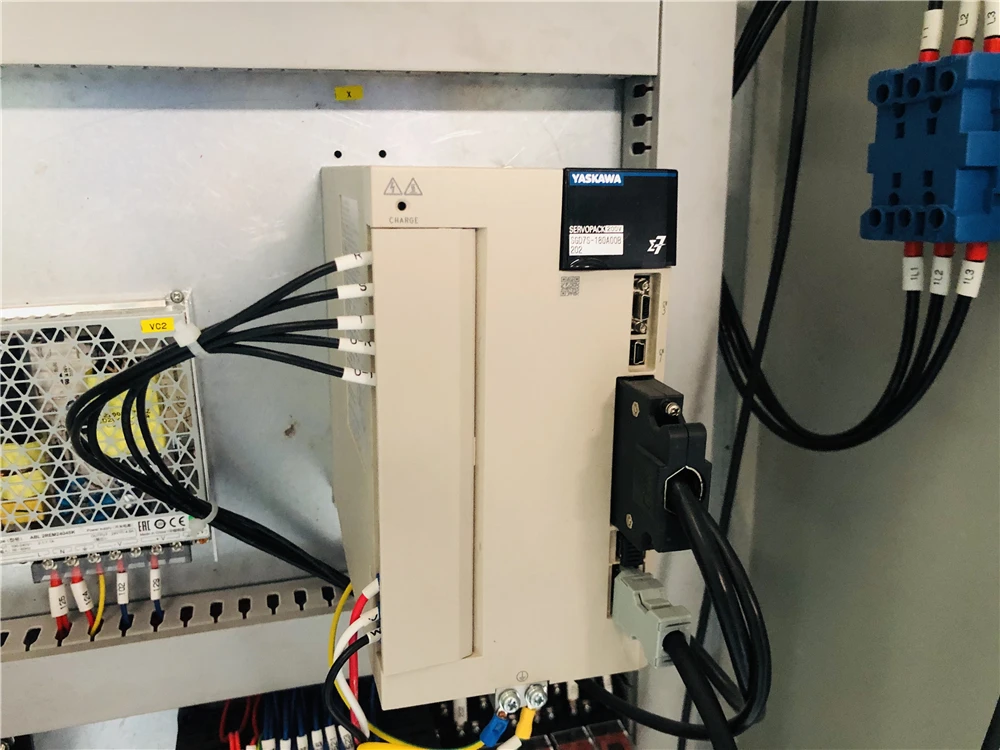

E200PS Controller with Servo
ESTUN E200PS CNC controller
With servo motor and driver
High Accuracy
P40/P40T CNC Controller
ELGO CNC Controller
automatic cutting angle and blade gap adjust
high accuracy
Photoelectric protection
Back side protection device
for CE standard safety
Packing&Shipping
Machine usually send by sea. Is suitable for 20GP/40GP/40HQ/40OT container.
Some small machine can use Plywood case packing.
After loading machine will use carbon steel fix it.
