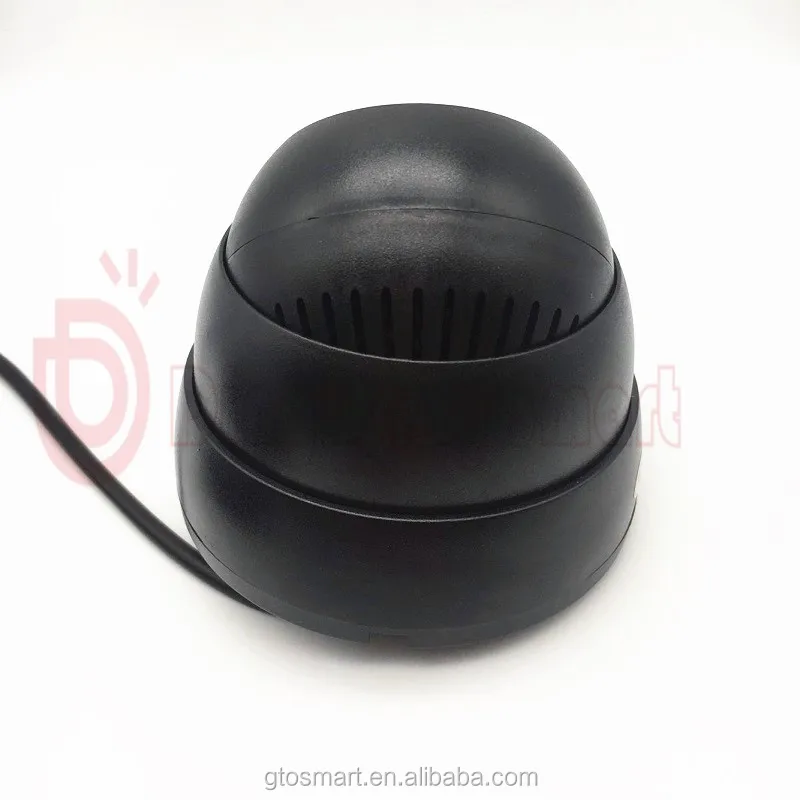

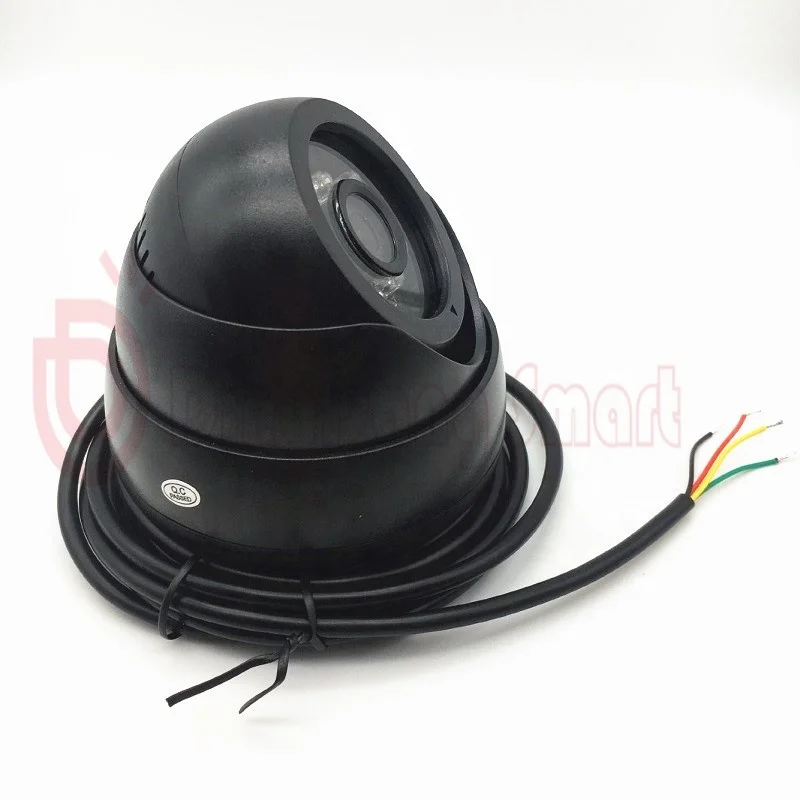

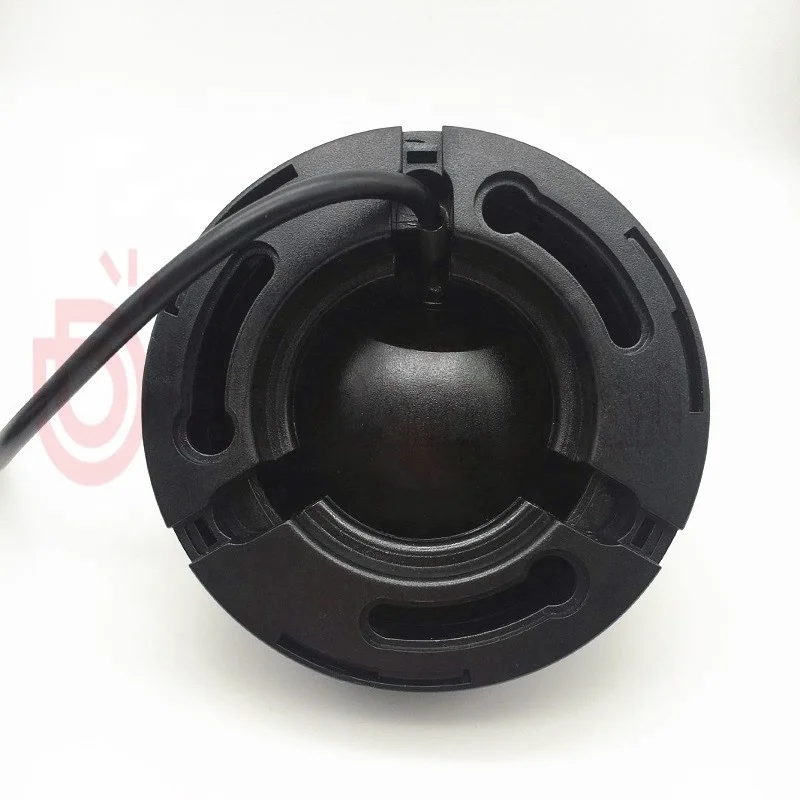

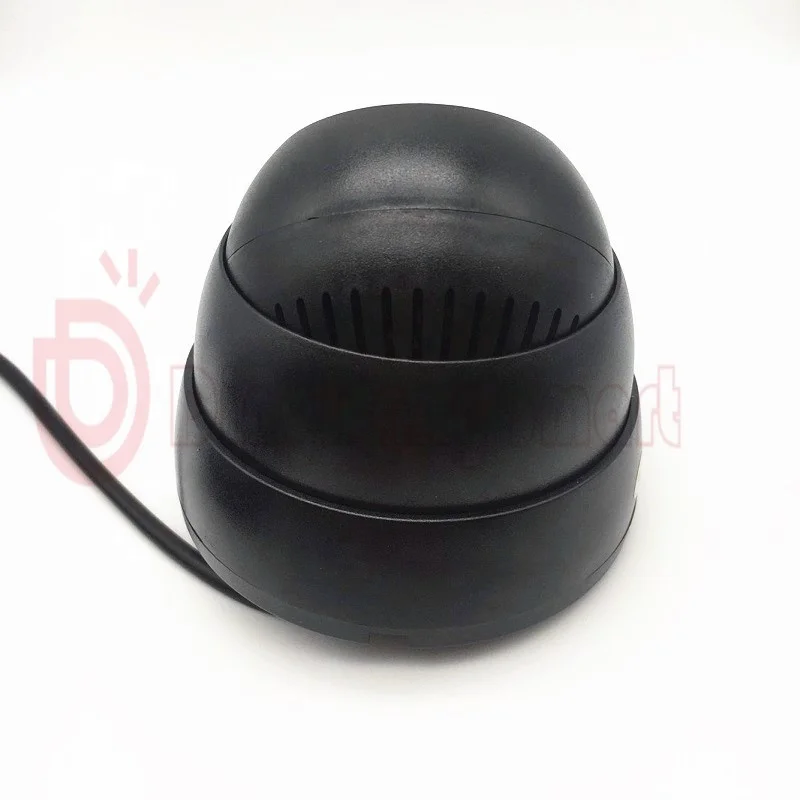

18pcs IR leds RS232 Cmos VC0706 Serial metal Dome Camera with RS232 for vehicle car
- Category: >>>
- Supplier: Shenzhen Dingdang Smart Technology Co. Ltd.
Share on (62499605015):
Product Overview
Description
18pcs IR leds Cmos RS232 VC0706 Serial metal Dome Camera with RS232 for vehicle car
Feature:
*Low cost and low powered camera for embedded imaging applications.
*On-board EEPROM provides a command-based interface to external host via RS232,RS485 and TTL serial link.
*UART: Up to 115.2Kbps for transferring JEPG Still Pictures
*Support Fast continuous snapshot thing.
Specification:
| Model: | GTO-SCM03DM3-R18 |
| Sensor: | Cmos 1/4 Sensor |
| Pixel: | 0.3MP |
| Shutter Type: | Electronic Rolling Shutter |
| Resolution: | 640x480, 320x240, 160x120 |
| Image Compression: | Still Jpeg/MJpeg |
| Focal Length: | Default 3.6mm (Optional 2.0mm/2.8/mm/6mm/8mm/12mm/ 16mm) |
| Focusing Range: | 20mm to Infinity |
| Serial Interface: | RS232/RS485/TTL for selection |
| Baud Rate: | 38400—115200bps for selection |
| Connector: | Default with 20CM bare 4 Pin wires,other can be customized |
| Protocol & Conection: | VC0706 |
| White Blance: | Automatic |
| Exposure: | Automatic |
| Gain Control: | Automatic |
| IR leds: | 18pcs |
| Night Vision Distance: | 3-10meter |
| Pin Description: | RS232(TX,RX,GND,5V) RS485(A,B,GND,5V) TTL(TX,RX,GND,5V) |
| Working Current: | About 90-200mA |
| Operating Temperature: | -20 to 70°C |
| Casing: | Vandal-proof Dome Casing |
Product Description
Application:
1.General purpose embedded imaging and control.
2.Security System.
3.Access Control System.
4.Robot Vision,object detection and recognition.
5.Industial Control System.
6.Automotive System.
7.Medical System etc.
Packaging & Shipping
In Color Box or Netural Packaging,do as customer's requirement.
1. Worldwide Shipping.(Except some countries)
2. Orders processed timely after the payment verification.Usually,we can ship in 1-7days.
3. We only ship to comfirm order addresses.Your order address MUST MATCH your shiping address.
4. Express: Around 3-7 working days to arrive.
5. International Air Mail: around 2-4 weeks to arrive according different country
Payment:
1.Alipay ,Paypal , T/T, Trade Assurance,Western Union,Visa ,MasterCard ,Escrow are acceptable.
2.Discount is available if you need a large amount , please contact us .
Our Services
| Quick Response | Within 24hours you can get a reply. |
| Sample | Sample is available,it will be send 2-3day after your paid sample charge and shiping cost. |
| Shipping method | By sea,by air,by express(DHL,UPS,FEDEX,TNT,HK post,China post,EMS,SF etc) |
| OEM&ODM | OEM desgin,OEM color,OEM packing,ODM are highly welcome. |
| Trade Terms | EXW,FOB,CIF or as per your request. |
| QC | Each product will be 100% inspected before shiping. |
| After-Service | Responsible and effective |
| Warranty | 12 months. |
FAQ
♦Are you manufacturer?
Yes,we are designer and manufacturer for smart camera for more than 13 years!
♦What Lens optional you have?
We have normal M12 2.1/2.6/2.8/3.2/3.6/4/6/8/12/16mm lens,wide angle fisheye lens and varifocal lens etc.
♦What resolution camera you have?
We have 0.3/1.0/2.0/3.0/4.0/5.0/8.0/13.0 MegaPixel Camera.
♦How do I know which camera and lens is right for me?
Pls tell us the application of your camera,what is the distance of object you need to see.
Then we will use our best judgement to recommend you.
♦Do you accept samll order?
Yes,Sampler order available.
♦Are OEM&ODM available?
Yes,the lens,cable,panel,Image Sensor Chip,gift box,carton,mould,screen logo is available.
♦What's the delivery date for my order?
Most of item have stock.Bulk order about 10-15 days.
♦What's your warranty policy?
All of our products has 1 year warranty. If our products have problem.We will resend a new one or partial refund.All returned items must provide us with the shipping tracking number,specific reason for the return,and you PO#.
As the item returned,buyer should pay for the return shipping fee.
