Good quality sawdust dryer machine

Product Overview

Description

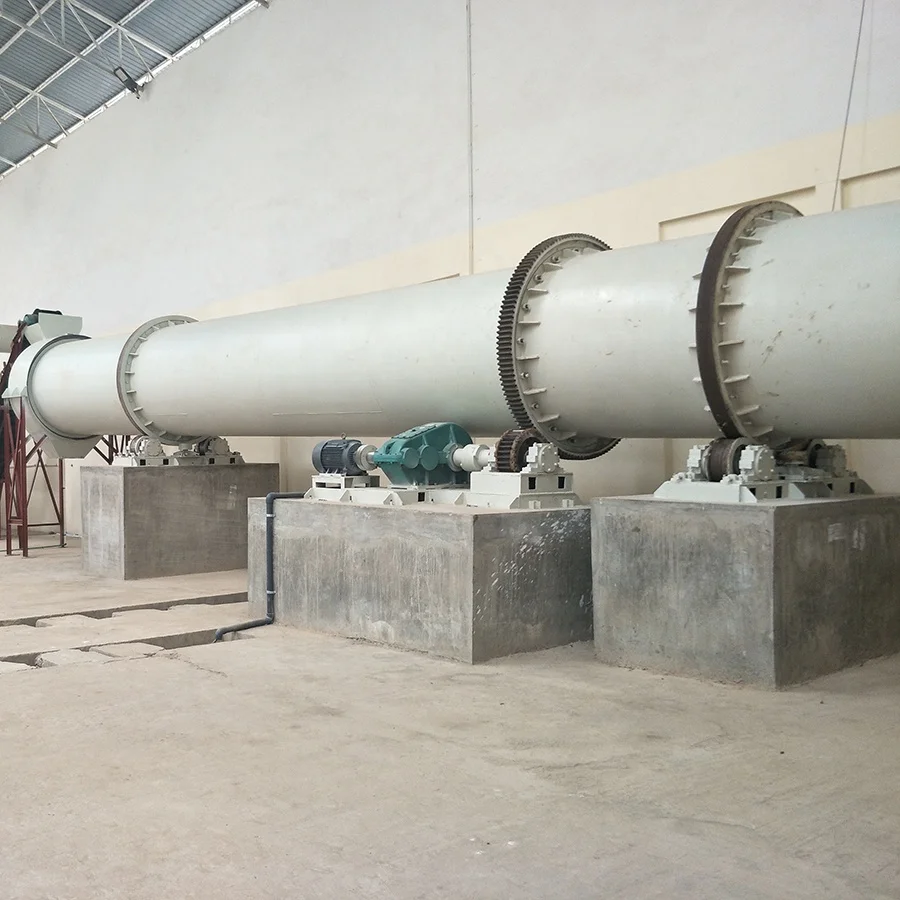

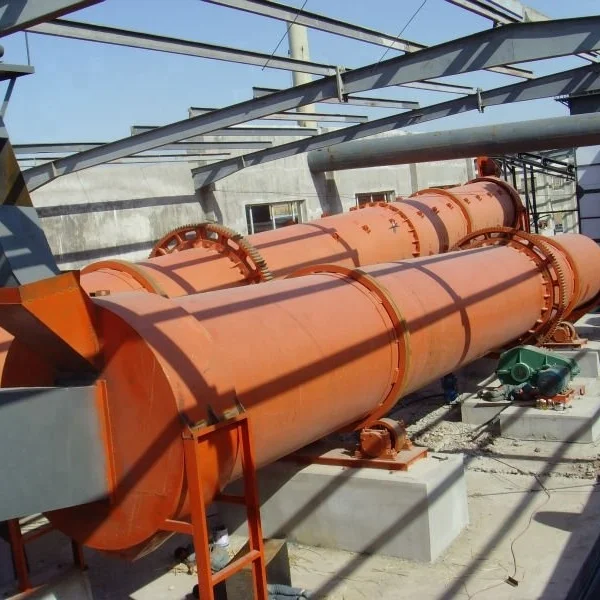

The outside view of rotary drum dryer

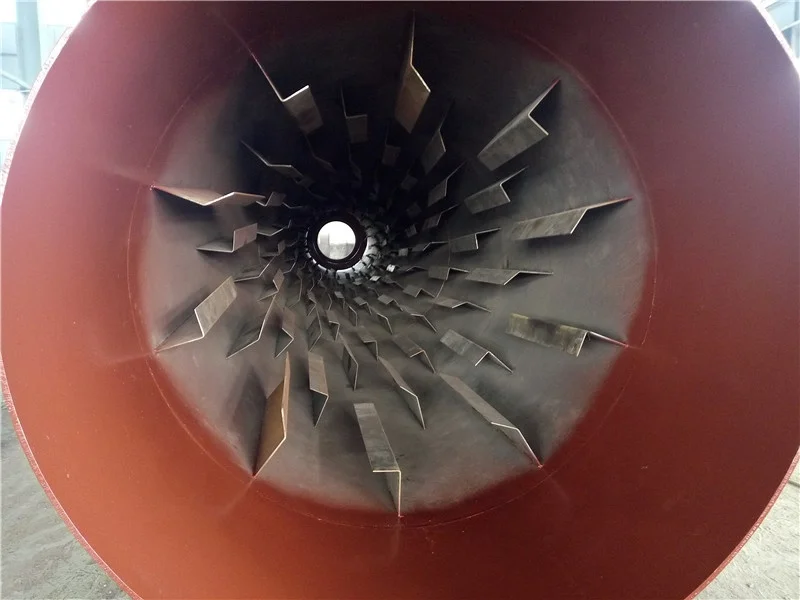

The inner structure of rotary drum dryer







1.The Components of Rotary Drum Dryers



1.1 Shell:The shell of rotary dryer can be made from a variety of materials,including carbon steel,stainless steel and a variety of alloys.



1.2 Raw material feed:The raw material feed area,also called the feed chute,is where feedstock is fed into the system,typically by a feed acrew or chute.



1.3 Drive assembly:The drive assembly is the mechanism that cause the drum to rotate.Several options are available here,but the gear and pinion are the best choice.



1.4 Riding ring:Riding ring add structural support for the drum,and serve as a place to burden the pressure of the whole shell.



1.5 Thrust rollers:Thrust rollers push on the riding ring to stop the drum from drifting,or moving horizontally.



1.6 Flights:Available in several designs,material lifter,or flights,help to maximize effiency of heat transfer between the material and the drying air.



1.7 Product discharge:The product discharge area is where product exits the dryer.Here,product can move on to the next step in the process flow.



1.8 Knocking systems:Knocking systems help to prevent build-up within the dryer,by knocking off material as the drum rotates.





2.How Rotary Drum Dryers Work



Rotary dryers are comprised of a rotating drum,into which the material is fed,in combination with the drying air.Flights,or lifters,pick up the material from the bed,carrying it over,and dropping it through the air stream as the drum rotates to maximize heat transfer between the material and drying air.The tumbling action given by a drum offers the added benefit of polishing the pellets,further rounding them as they dry.





3. Characteristics of rotary drum dryer

• The shell of organic chicken manure fertilizer pellet drying equipment uses assembled structure,it is easy to transport
• Add granulation area,improves the granulation effect,increase the surface finish and strength of particle
• The banking plank adopts modular structure,for the materials bestrew the entire interface of shell,so that heat exchange is thoroughly
• Set with thermometer,vibration device,sealing devices,improves production efficiency,the structure is simple and maintenance is easy.



4. Model of rotary drum dryer

Model	Specification diameter *length of shell (m)	Produc- tivity (t/h)	Inclination  (degree)	Inlet temperature  (℃)	Water content  of discharge (%)	Rotate speed (r/min)	Power (kw)	Weight (t)
HG1212	Φ1.2*12	1-2	2-3	110-300	1-4	5	11	10
HG1515	Φ1.5*15	3-4	2-3	110-300	1-4	4.5	15	16
HG1818	Φ1.8*18	5-7	2-3	110-300	1-4	4	22	25
HG2020	Φ2.0*20	8-10	2-3	110-300	1-4	4	30	28
HG2222	Φ2.2*22	10-14	2-3	110-300	1-4	4	37	45
HG2424	Φ2.4*24	14-16	2-3	110-300	1-4	3.68	55	56
HG2626	Φ2.6*26	16-18	2-3	110-300	1-4	3	75	78
HG2828	Φ2.8*28	18-20	2-3	110-300	1-4	3	90	98
HG3030	Φ3.0*30	20-30	2-3	110-300	1-4	3	132	137
HG3232	Φ3.2*32	30-35	2-3	110-300	1-4	3	150	144

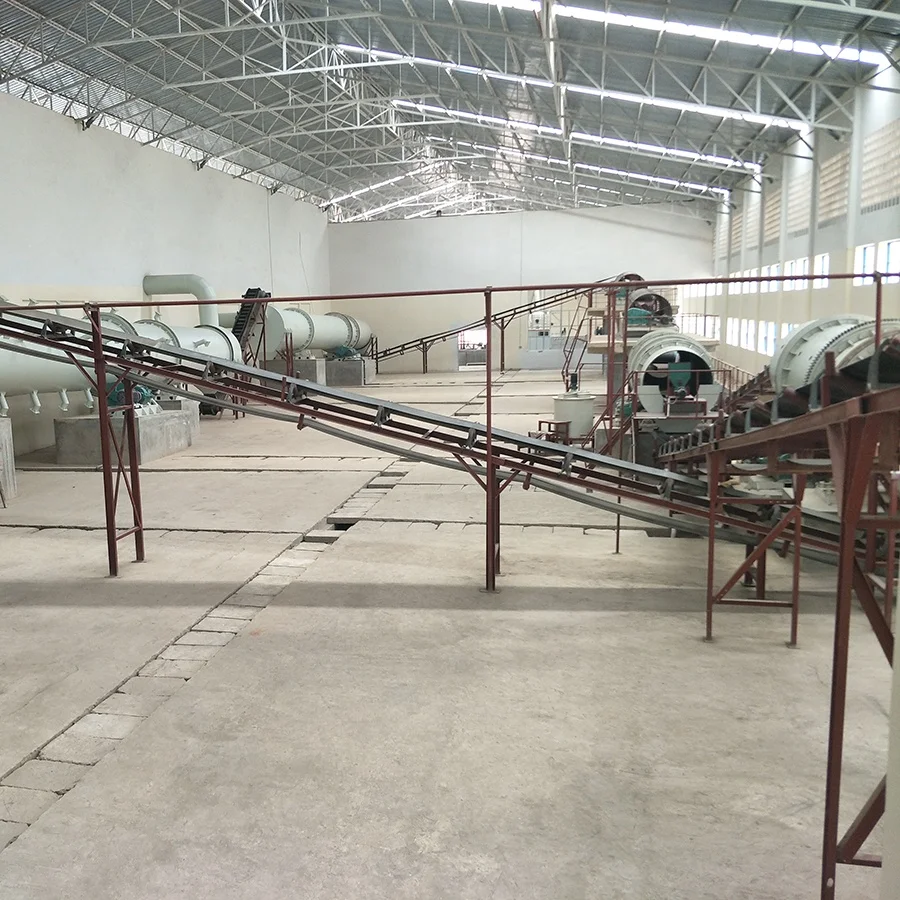

Our organic fertilizer production line in Africa

Machines of NPK fertilizer /Organic fertilizer production line



1 Electronic belt scale(optional)



2 Mixing machine or grinding machine,various options based on process requirements



3 Belt conveyor and bucket elevator



4 Rotary granulator or disc granulator,various options base on process requirements



5 Rotary dryer machine



6 Rotary cooler machine



7 Rotary sieve or vibrating screen



8 Coating machine



9 Packing machine and stack







Exported places:



Our fertilizer equipments have exported to South Africa,India,Korea,India,

Saudi Arabia,Indonesia, Malaysia, Loas, Vietnam,Burundi,Dominician republic,

Mongolia,Spain and other countries.

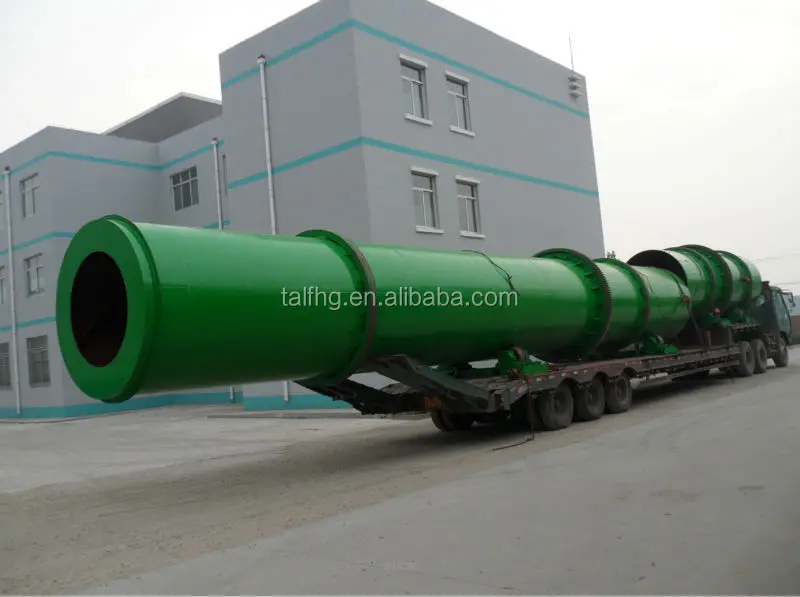

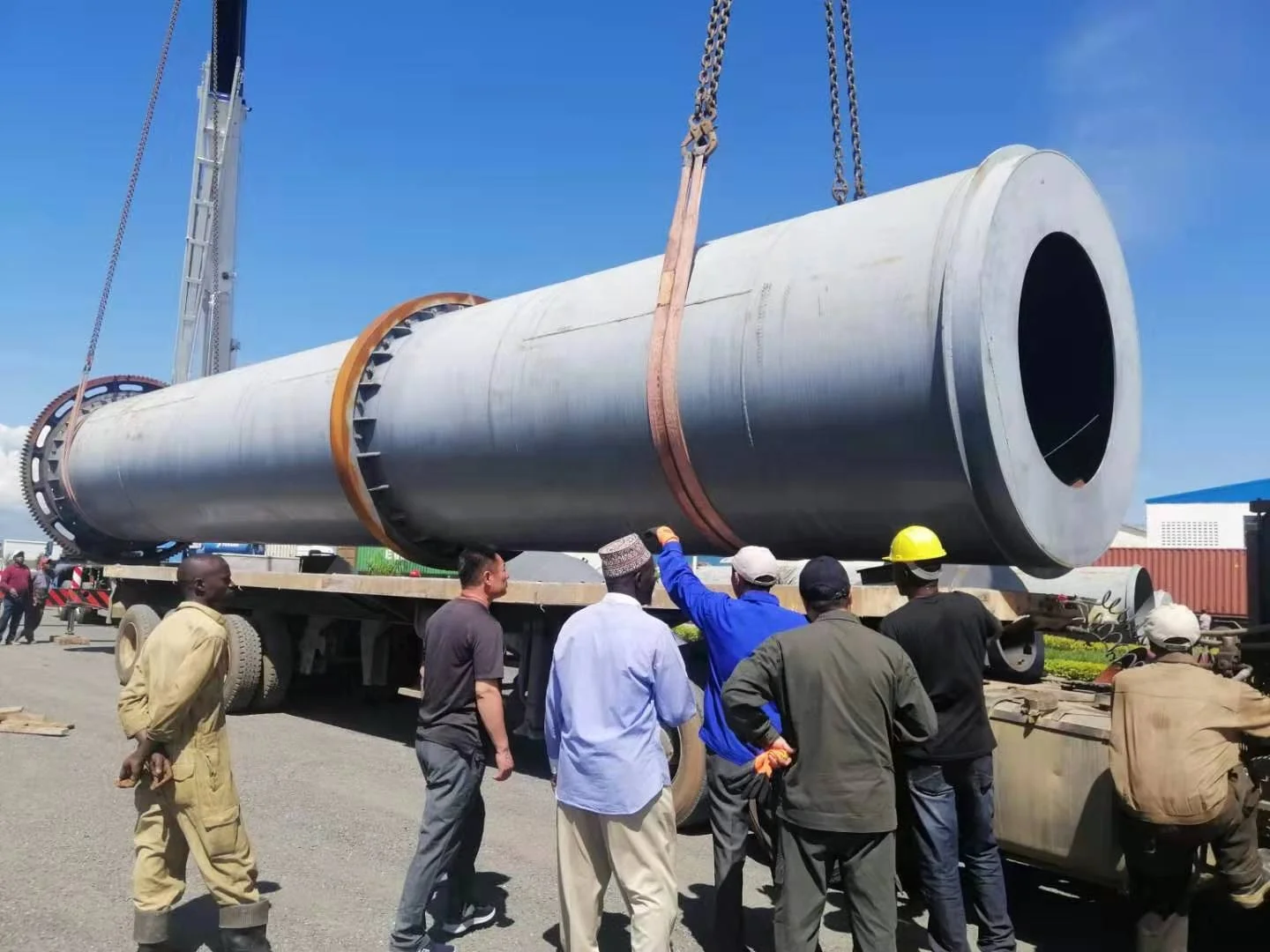

Export to South Africa

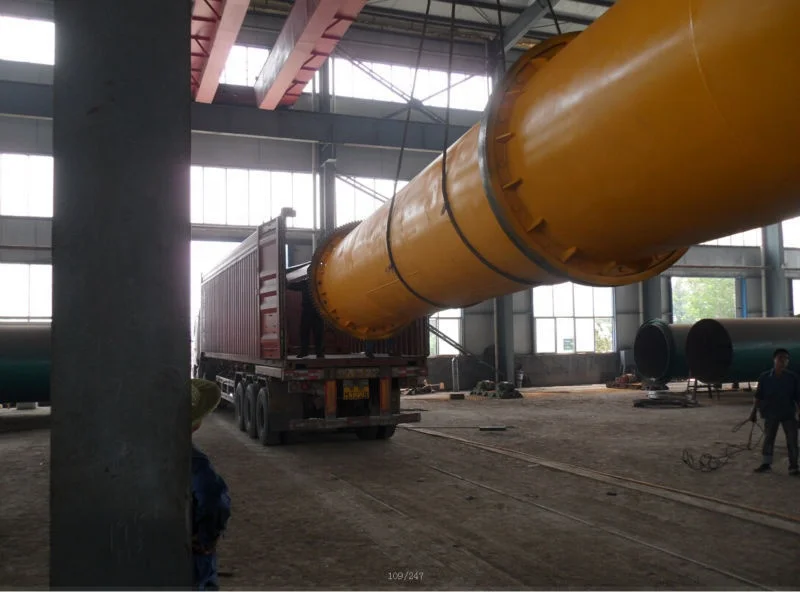

Export fertilizer machines by bulk ship

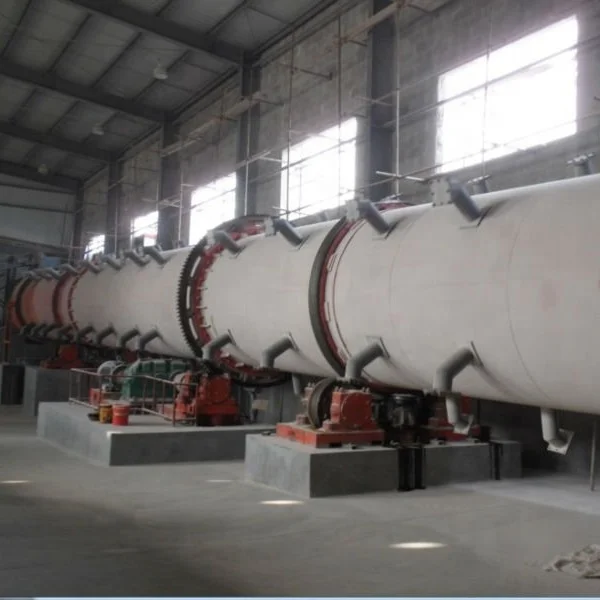

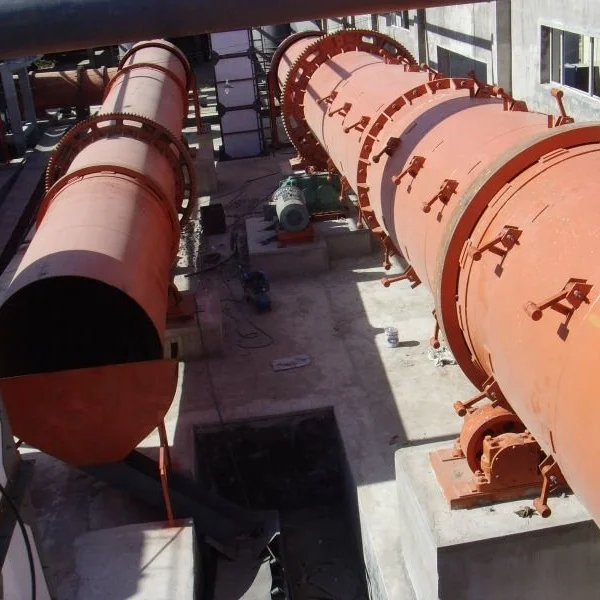

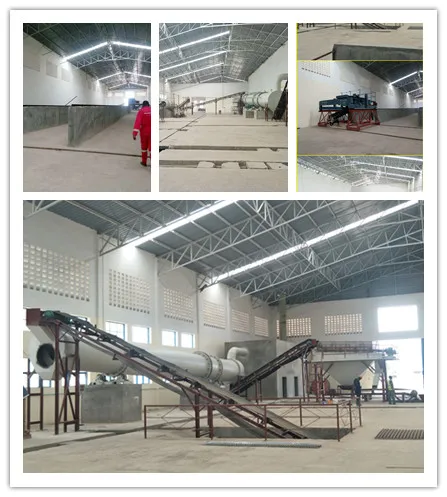

Installation site



 We could provide the complete system from engineering,manufacturing fertilizer equipments, installation, commissioning, training local workers , fertilizer formula  and other after-sales services to our clients.



Installation site of NPK fertilizer production line in Dominican Republic





Inatallation in Nigeria







Our NPK fertilizer project in India

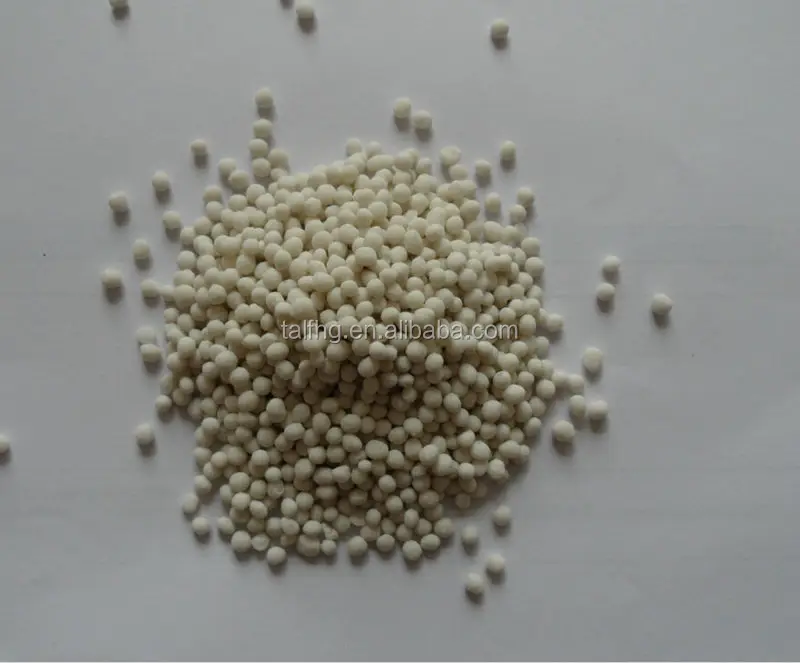

Final fertilizer granules produced by our machines





We can supply fertilizer production line with capacity 1-30 tons per hour ,

equals to 10,000 tons per year to 300,000 tons per year.
