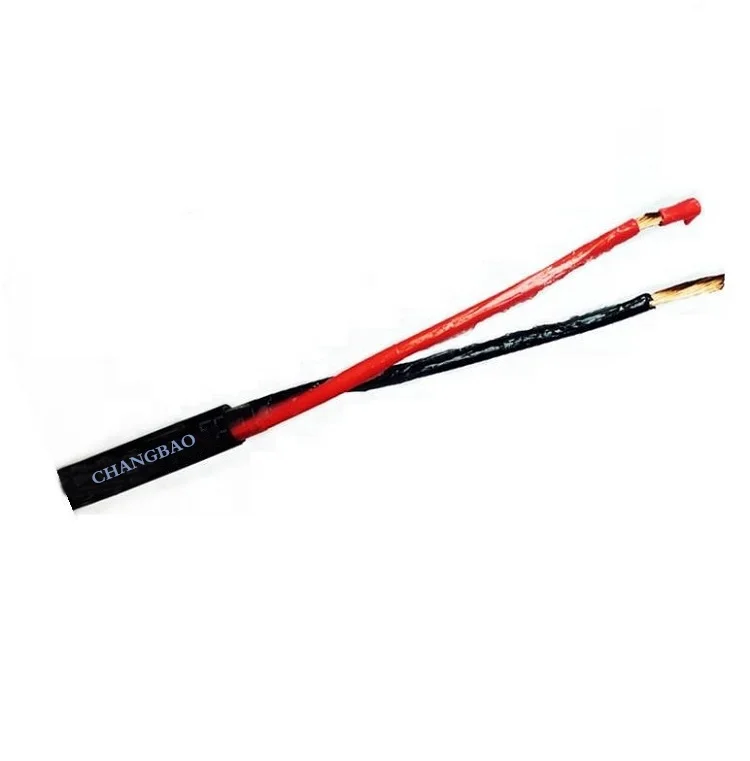

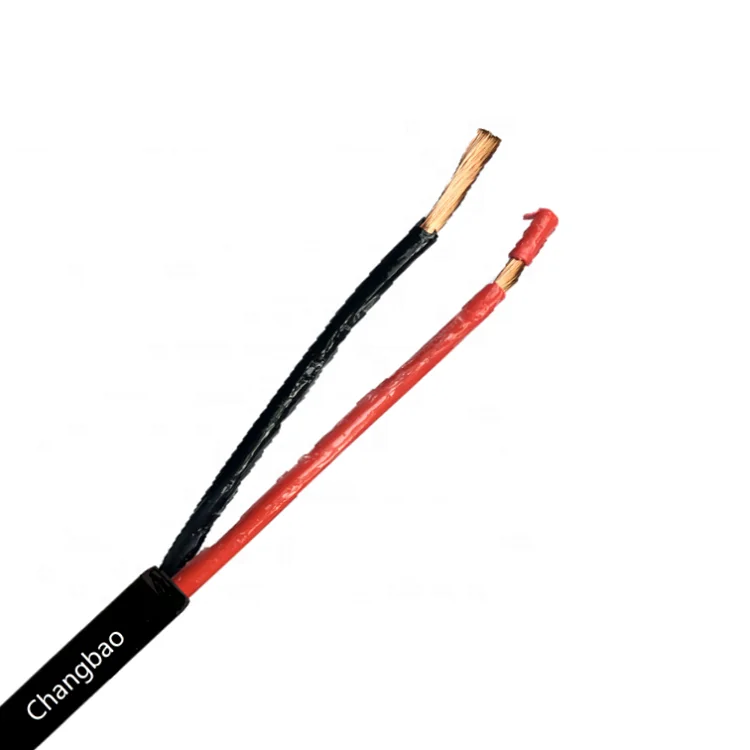

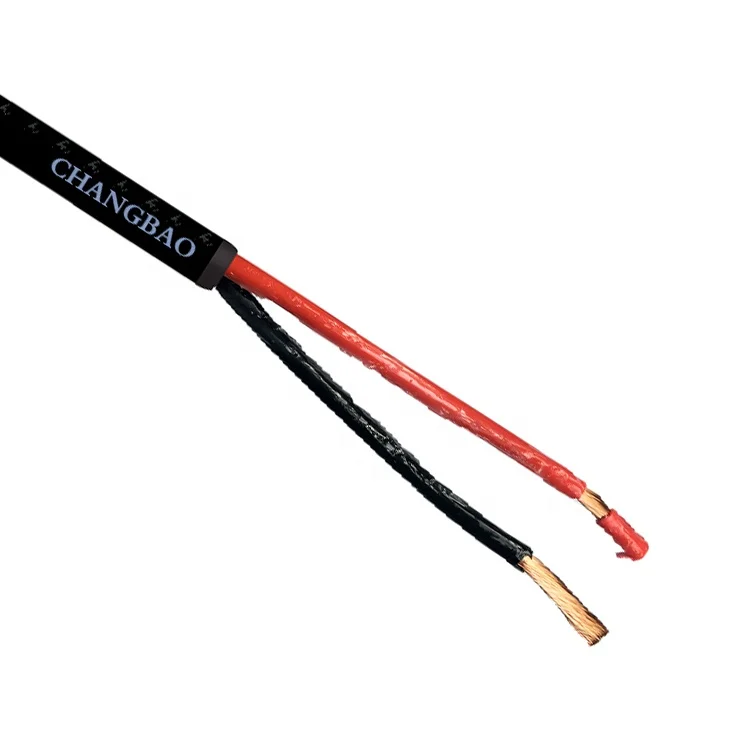

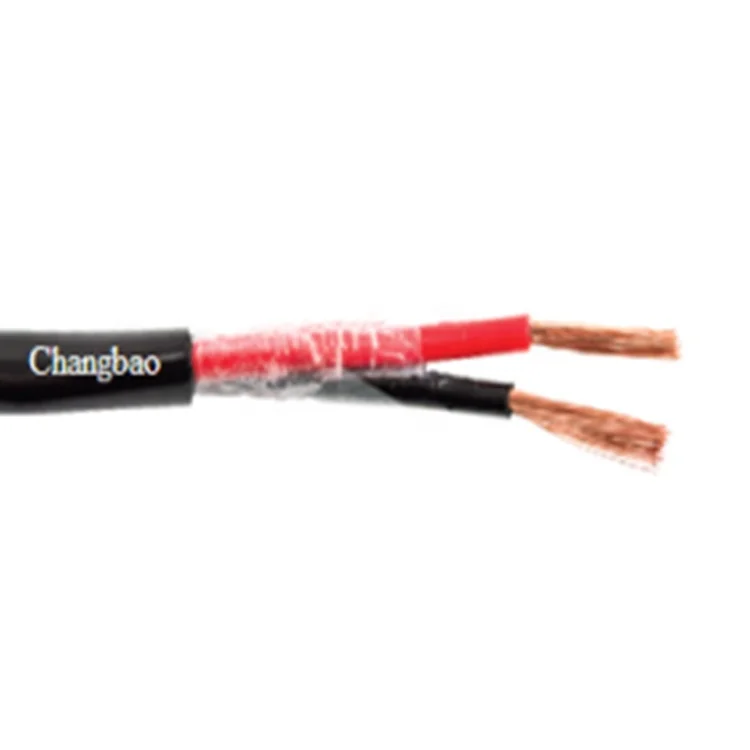

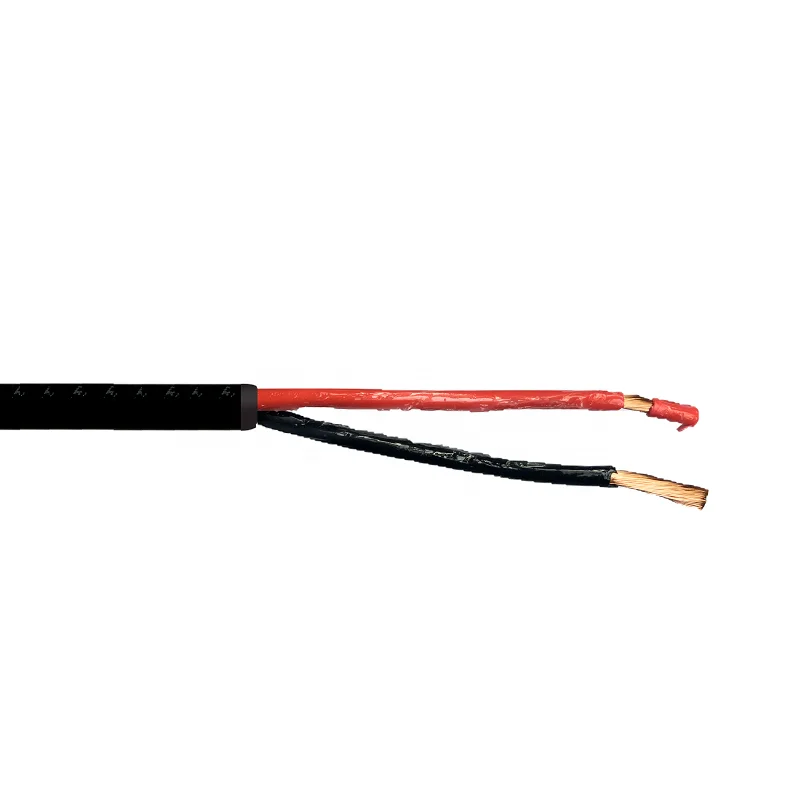

Changbao high end rohs outdoor gel filled direct burial landscape 12 awg 14 awg 16 awg ofc 2 core hifi audio wire speaker cable
* 2 Cores High Strands Oxygen Free Copper Conductors * With Gel Filled , Flooded Core , Shielded and Unshielded Structures Are Both Available * Direct Burial Grade , LLDPE Jacket , UV Resistant and Waterproof For Landscape Outdoor Speaker Systems Applications * Tangle Free Spool Packing * Excellent performance, sound quality for professional home theatre systems speaker and audio connections * CE , RoHs Compliant
14AWG 2 Core 105 Strands OFC Gel Filled Direct Burial Landscape Grade Audio Speaker Cable Wire

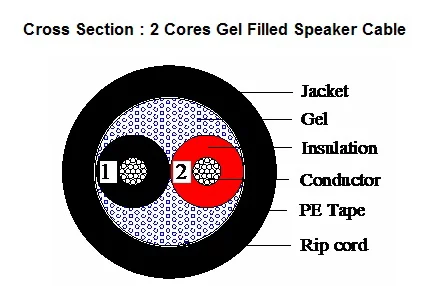

Construction Characteristics:
Conductor
Material
Stranded Bare Copper
Size
14AWG X 2C
Construction
105/0.16mm
Insulation
Material
PVC
Colors
Black & Red
Assembly
Filler
Gel
Core wrap
PE Tape
Jacket
Material
LLDPE
Diameter
6.30mm±0.20mm
Rip Cord
Nylon
Color
Black
Electrical & Physical Characteristics:
Rating
75℃ 300V
Conductor Resistance
Max 9.2ohm/km at 20℃
Insulation Resistance
Min 50MOhm·km at 20℃
Dielectric Strength
Min AC1.5KV
AC Leakage Current Through overall Jacket
AC 1500V <= 10mA
Twists per foot
2.5
Insulation
Unaged
Tensile Strength
13.8 Mpa
Elongation
150%
Aged
Tensile Strength
11.7 Mpa(100℃ 168h)
Elongation
80%(100℃ 168h)
Jacket
Unaged
Tensile Strength
10.8 Mpa
Elongation
300%
Aged
Tensile Strength
9.2 Mpa(100℃ 168h)
Elongation
150%(100℃ 168h)
Cold Bend Test
-20℃ 4hours No Cracking
