DPSS Laser diode module 75w 100w laser module
- Category: >>>
- Supplier: Beijing Belle Laser Technology Co. Ltd.
Share on (62500068673):
Product Overview
Description

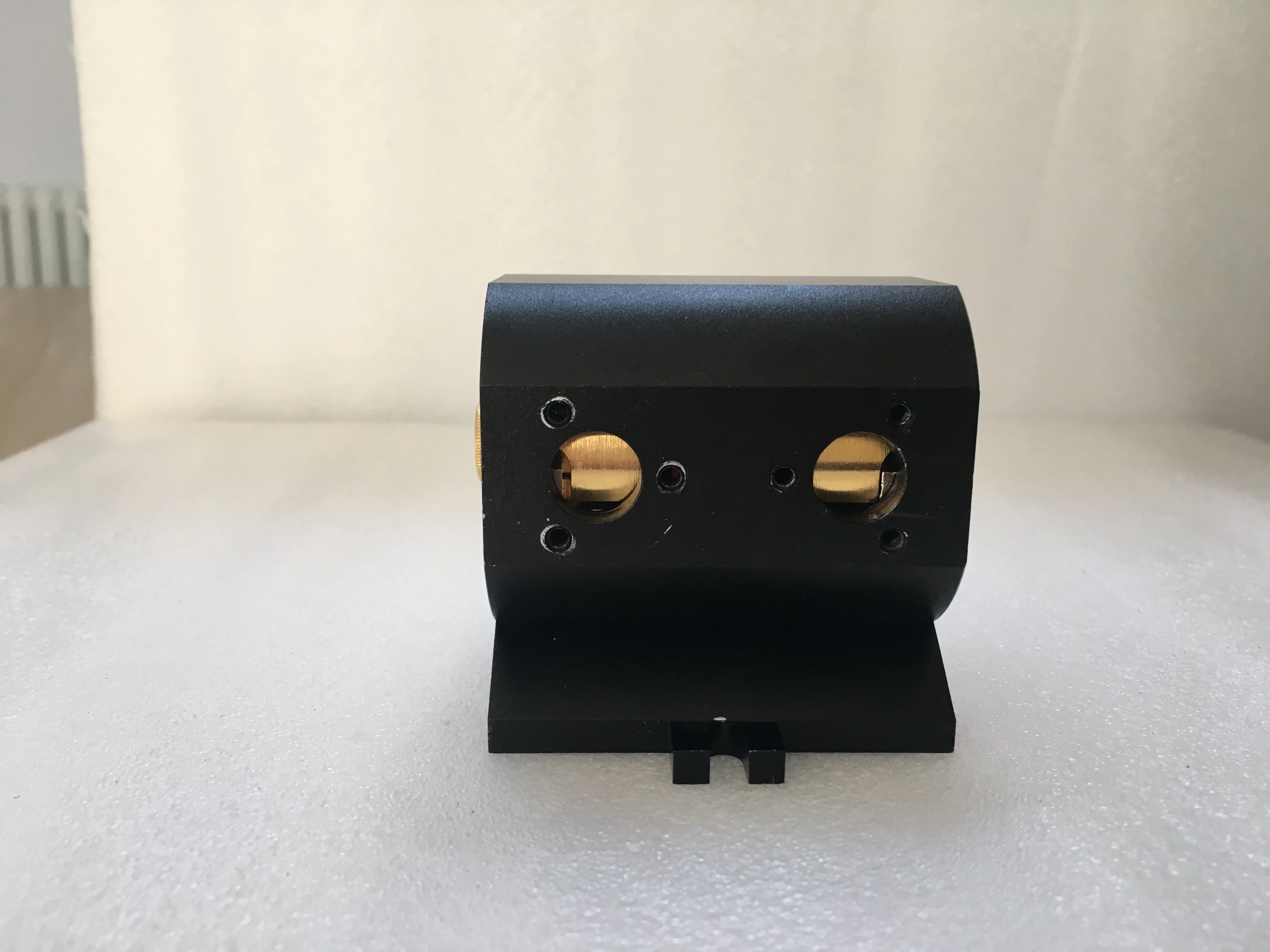

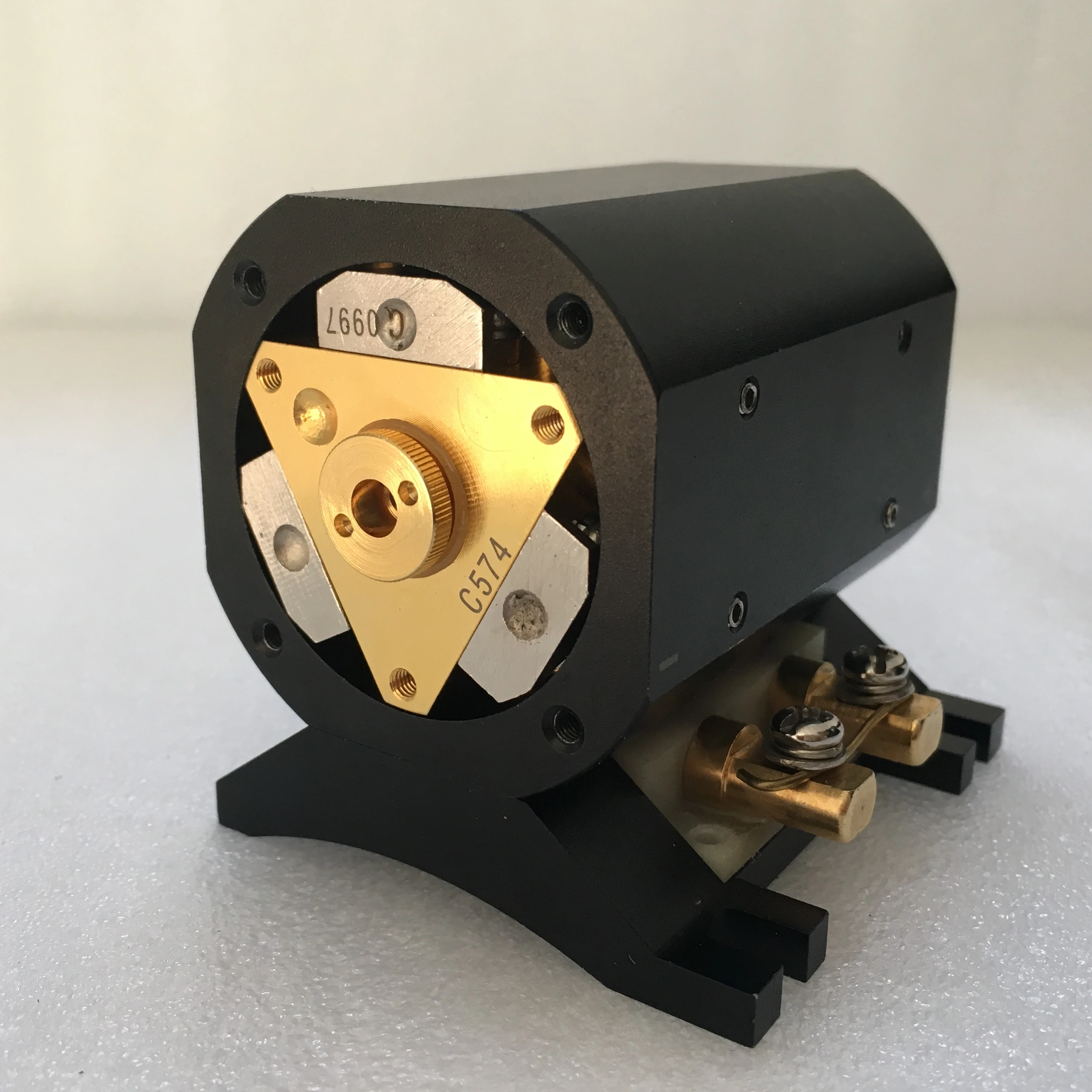

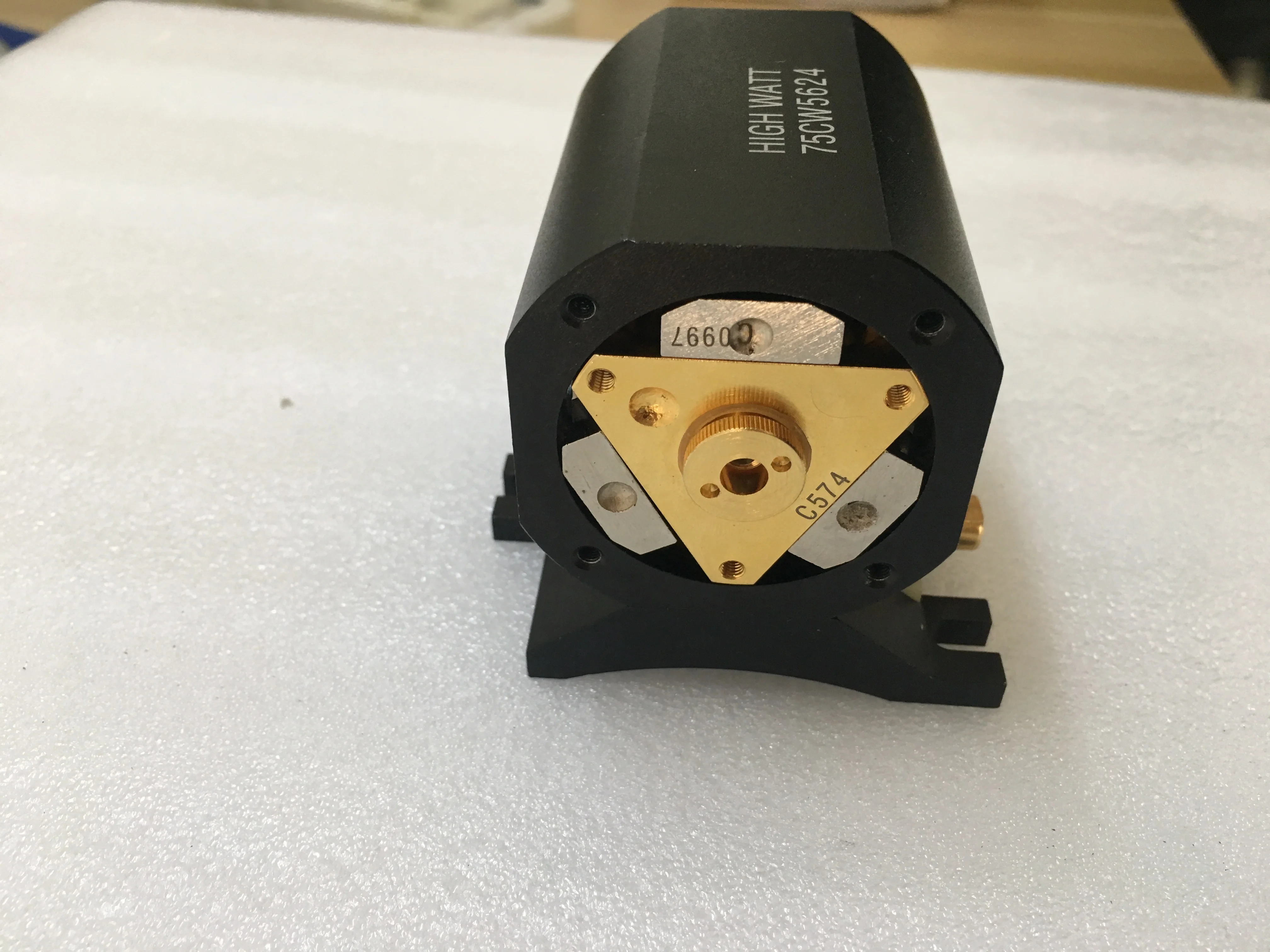

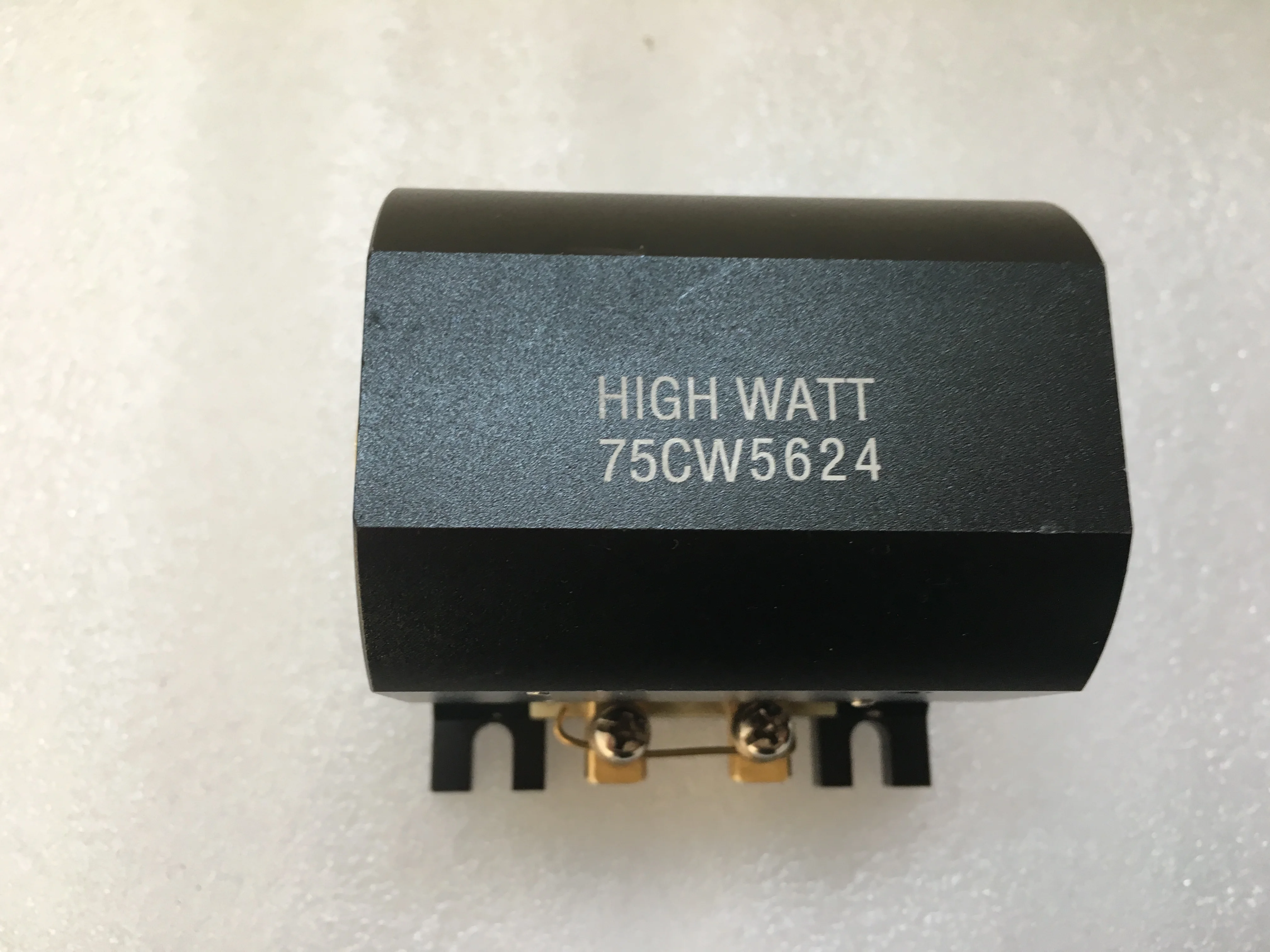

DPSS Laser diode module 75w 100w laser module
Product Description

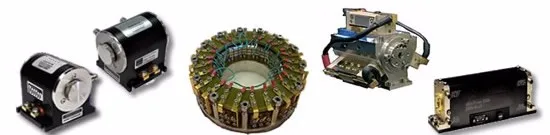

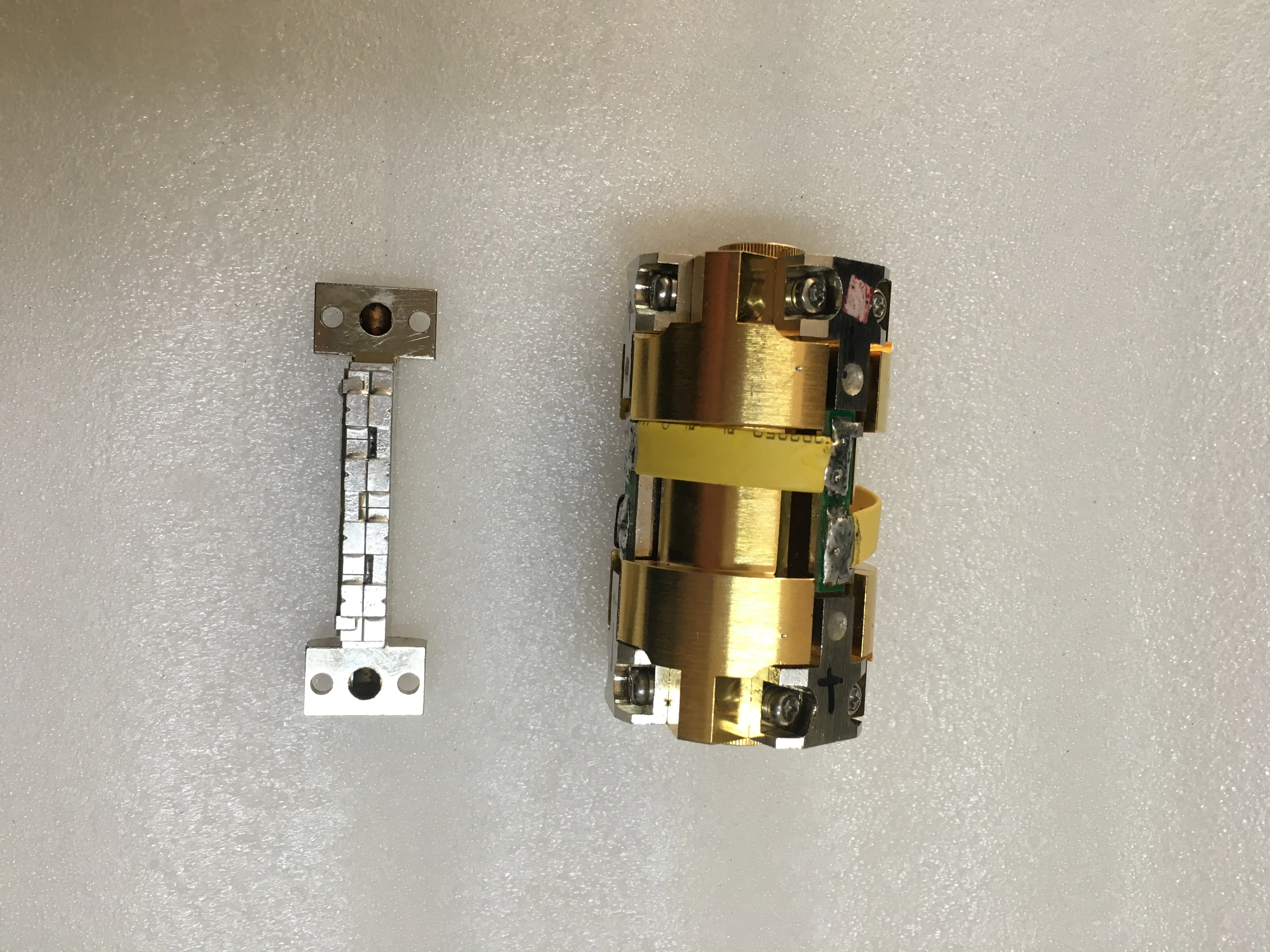

CW Diode Pumped Laser Modules (DPSS laser modules at 1064nm) are designed by side-pumping geometry with 808nm laser diode arrays and Nd:YAG rods. Bellelaser is now providing high power laser modules with power from 10W, 20W up to 500W. It is widely used for industry, such as laser marking, engraving, welding, cutting, drilling and etc.
Standard Product Models
| GTPC-25 | GTPC-50D | GTPC-50S | GTPC-75 | GTPC-100 | GTPC-200 | GTPC-500 | GTPC-1000 | |
| YAG Diameter(mm) | 3 | 3 | 3 | 3 | 4 | 5 | 6/7 | 7 |
| Output Power(w) | 25 | 50 | 50 | 75 | 100 | 200 | 500 | 1000 |
| Operating ourrent(A) | 29 | 15 | 18 | 29 | 29 | 29 | 29 | 29 |
| LD Bias(V) | <6 | <24 | <18 | <18 | <24 | <42 | <100 | <180 |

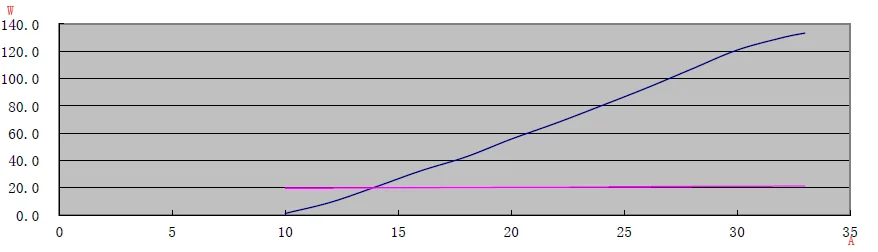

GN75/100 Test Data
Company Information
We are the only manufacturer possess the core technology of laser diode packaging and diode pumped solid-state (DPSS). Not only produce product, also focus on R&D laser diode.

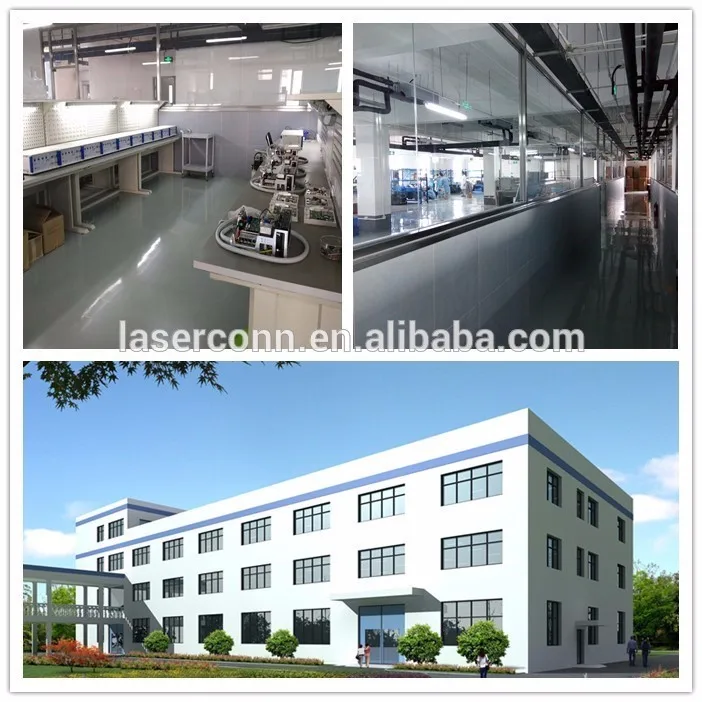

We have class 10K clean room and class 100 local clean zone(according to Federal Standard 209E). Insisting the concept of specialization, adopting the latest advanced technology with international standards.
Contact us
Please contact us or leave a message to request quote or ask for support.
