Best fusion splicer of original japan fusion splicer FSM 70S FSM 88S FSM 90S
- Category: >>>
- Supplier: Shenzhen Huayixin Technology Co. Ltd.
Share on (62500231968):
Product Overview
Description

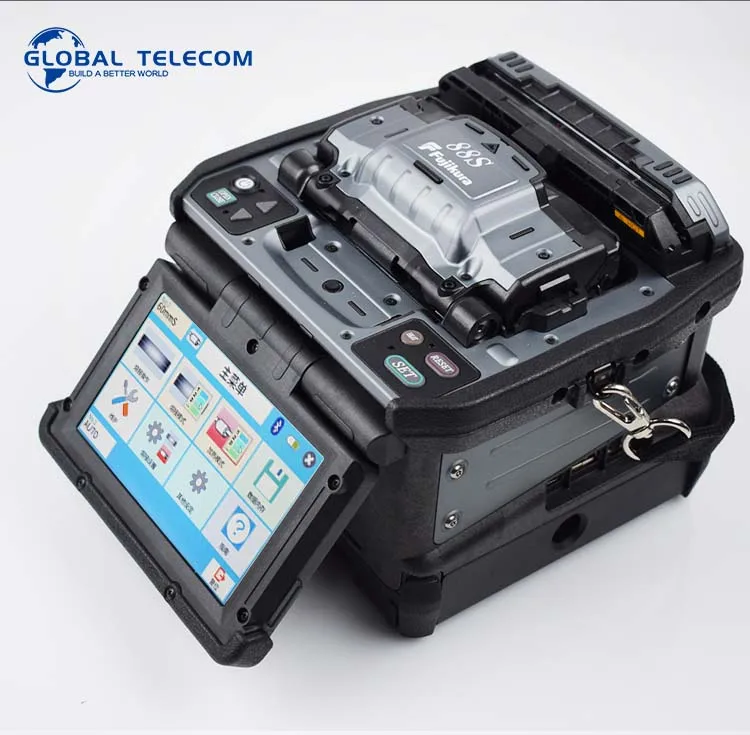

FSM-88S world best splicer machine
The faster automated features of the 90S fusion splicer reduce installation times. With this splicer, an operator can complete the entire splicing process from splicing to heating without touching the 90S and only moving the fiber.

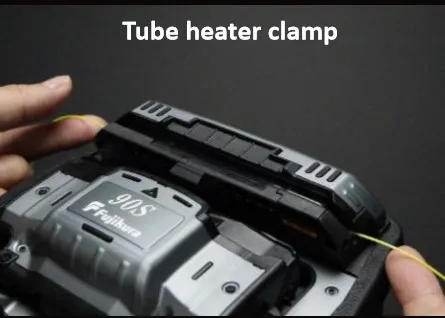

The fiber retention clamps support the automated operations. When the sheath clamps open automatically after splicing, the fiber retention clamps gently hold the spliced fiber to keep it from flying out. The retention clamps release when the fiber is lifted by the operator.
Product Description
1. Core Alignment Technology The 90S fusion splicer has high precision lenses which provide accurate core to core alignment regardless of core-cladding concentricity error. Also, the lenses allow the splicer to discriminate between fiber types.
2. Advanced Image Processing Technology The 90S possesses advanced image processing technology which analyzes the profile of the fiber image as a brightness pattern. The 90S finds the true core position and achieves the consistent lower splice loss．
3. Fiber Discrimination Function The 90S fusion splicer automatically identifies the optimum arc discharge parameters in accordance with the fiber type.
User Friendly
1. Easy Fiber Protection Sleeve Positioning The shape of the sheath clamp is optimized for the 60mm length protection sleeve. The length from splice point to the edge of the sheath clamp is 30mm. Therefore, it is easy to center the protection sleeve over the splice by using your finger as the reference splice point.

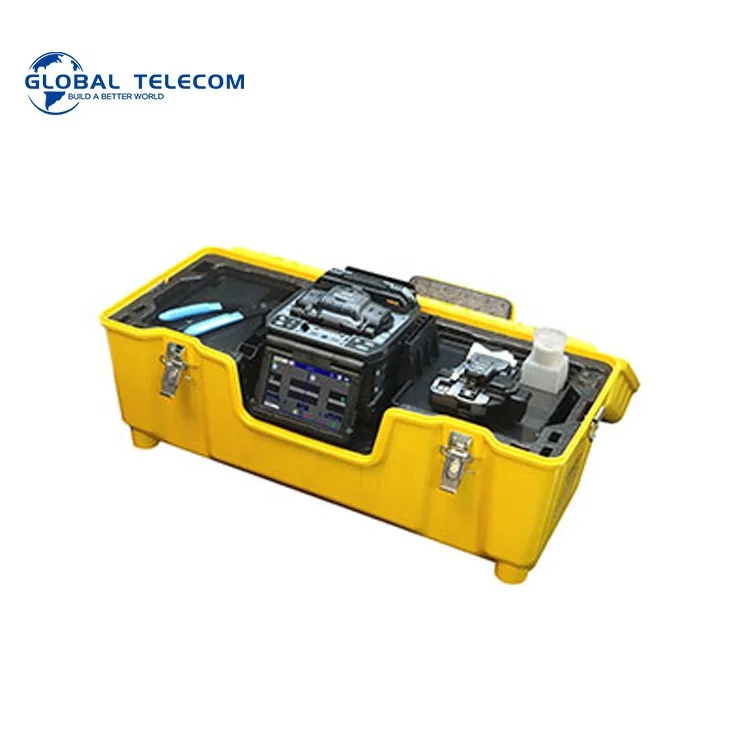

2. Carrying Case There are multiple ways to utilize the 90S carrying case. The 90S is ready to use just by opening the case, but it is also possible to use the 90S on top of the carrying case or only with the work tray depending on the work environment.
Active Blade Management Technology
1. Automatic Blade Rotation The 90S fusion splicer and CT50 fiber cleaver are enabled with wireless data connectivity. This capability allows automatic cleaver blade rotation when the splicer judges the blade is worn. Also, the 90S fusion splicer can connect to two CT50s simultaneously.
2. Blade Life Management The 90S fusion splicer displays the remaining blade life and informs the user when a blade height change, position change, or new blade is required.
USA NK6000 Series
NK6000 series optical time domain reflectometer is a new generation of portable and intelligent measuring instrument designed by AVES Communication Technology for testing optical fiber communication system. Adopt 5.8 inch color touch screen, button/ touch dual operation; Internal integration of eight major functional modules, multi-functional integration to help customers effectively solve the field test and maintenance; The highest 45 dB dynamic range, can penetrate optical splitter, effective PON network testing; Intelligent power-saving management, 20 hours long standby, efficient protection of test dimension Continuous
EXFO Maxtester 700 Series
The MaxTester 700B series is the first tablet-inspired OTDR line that is handy, lightweight and rugged enough for any outside plant environment. With a 7-inch, outdoor-enhanced touchscreen—the most efficient handheld display in the industry—it delivers an unprecedented user experience. Its intuitive Windows-like GUI ensures a fast learning curve. Plus, its new and improved OTDR 2.0 environment offers icon-based functions, instant boot-up, automatic macrobend finders as well as improved auto and real-time modes.The MaxTester 700B series is a line of genuine high-performance OTDRs from the world’s leading manufacturer.
Viavi Smart OTDR 100A/B ,100AS
The lightweight and compact SmartOTDR speeds and optimizes field testing of metro and access networks—with a tailored OTDR
interface and automatic analysis that any technician can understand.
With SmartOTDR, generic or user-defined setup configurations eliminate setup errors and maintain results consistency. One-touch
operation and a single results window ensure fast and easy measurements, while robust wireless connectivity options increase productivity anywhere.
interface and automatic analysis that any technician can understand.
With SmartOTDR, generic or user-defined setup configurations eliminate setup errors and maintain results consistency. One-touch
operation and a single results window ensure fast and easy measurements, while robust wireless connectivity options increase productivity anywhere.
Viavi Smatrt OTDR alwasy focus on the quality and customer
TECHNICAL SPECIFICATIONS | MAXTESTER 715B | MAXTESTER 720C | MAXTESTER 730C |
Display | 7-inch outdoor-enhanced touchscreen and tablet-inspired versatility | 7-in (178-mm) outdoor-enhanced touchscreen, 800 x 480 TFT | 7-inch outdoor-enhanced touchscreen and tablet-inspired versatility |
Storage | 2 GB internal memory (20 000 OTDR traces, typical) | 2 GB internal memory (20 000 OTDR traces, typical) | 2 GB internal memory (20 000 OTDR traces, typical) |
Batteries | Rechargeable lithium-polymer battery 12 hours of operation as per Telcordia (Bellcore) TR-NWT-001138 | Rechargeable lithium-polymer battery 12 hours of operation as per Telcordia (Bellcore) TR-NWT-001138 | Rechargeable lithium-polymer battery 12 hours of operation as per Telcordia (Bellcore) TR-NWT-001138 |
Power supply | Power supply AC/DC adapter, input 100-240 VAC, 50-60 Hz, 9-16 V DCIN 15 Watts minimum | Power supply AC/DC adapter, input 100-240 VAC, 50-60 Hz, 9-16 V DCIN 15 Watts minimum | Power supply AC/DC adapter, input 100-240 VAC, 50-60 Hz, 9-16 V DCIN 15 Watts minimum |
Wavelength | 1310 ± 20/1550 ± 20 | 850 ± 20/1300 ± 20/1310 ± 20/1550 ± 20/1625 ± 10 | 1310 ± 20/1550 ± 20/1625 ± 10/1650 ± 5 |
Dynamic range（dB) | 30/28 | 27/29/36/35/35 | 39/38/39/39 |
Event dead zone（M） | 1 | Singlemode: 0.7 Multimode: 0.5 | 0.5 |
Attenuation dead zone（M） | 4 | Singlemode: 3 e Multimode: 2.5 f PON dead zone:35 | 2.5 |
Distance range(KM) | 0.1 to 160 | Multimode: 0.1 to 40 Singlemode: 0.1 to 260 | 0.1 to 400 |
Pulse width(ns) | 5 ns to 20 | Multimode: 3 to 1000 Singlemode: 3 to 20 000 | 3 to 20000 |
Linearity(dB) | ±0.05 | ±0.03 | ±0.03 |
Loss threshold(dB) | 0.01 | 0.01 | 0.01 |
Loss resolution(dB) | 0.001 | 0.001 | 0.001 |
Sampling resolution(m) | 0.04 to 5 | Multimode: 0.04 to 5 Singlemode: 0.04 to 10 | 0.04 to 10 |
Sampling points | Up to 256 000 | up to 256000 | up to 256000 |
Typical real-time refresh(Hz) | 4 | 4 | |
Stable Source output power(dBm) | -2.5 | -2.5 | |
Reflectance(dB) | ±2 | ±2 |
