automatic adult diaper making machine manufacturer

Share on (62500272428):


Price:$780,000.00 - $820,000.00

Quantity:


Product Overview

Description


High Speed Automatic adult diaper machine machine

Product Description
SubjectParameter
Stable Working Speed300pcs/min (By order)
Pass Percentage≥98%
Operating Rate≥85%
Power Supply380V 50Hz
Electrical Supply380V ±5%, 50Hz Three-phase four-wire + ground wire
Power InstalledAbout 400KW (Not included hot melt glue machine)
Supply Pressure0.6-0.8Mpa
Machine Sizes (L× W× H )28m× 2.1m× 3.3m(L× W× H )(Only for reference)
Main Engine Sizes (L× W× H )31m× 4m x 3.6m  (L× W× H ) ( Only for reference)
Machine ColorCustomerized





CONFIGURATION
Product structure Leg cuff N.W., Topsheet N.W., Fluff core (with SAP), Side tape, Elastic Waistband, Frontal tape, Backsheet.
Product sizeM: 680*450mm, L: 800*650mm, XL: 950*760mm

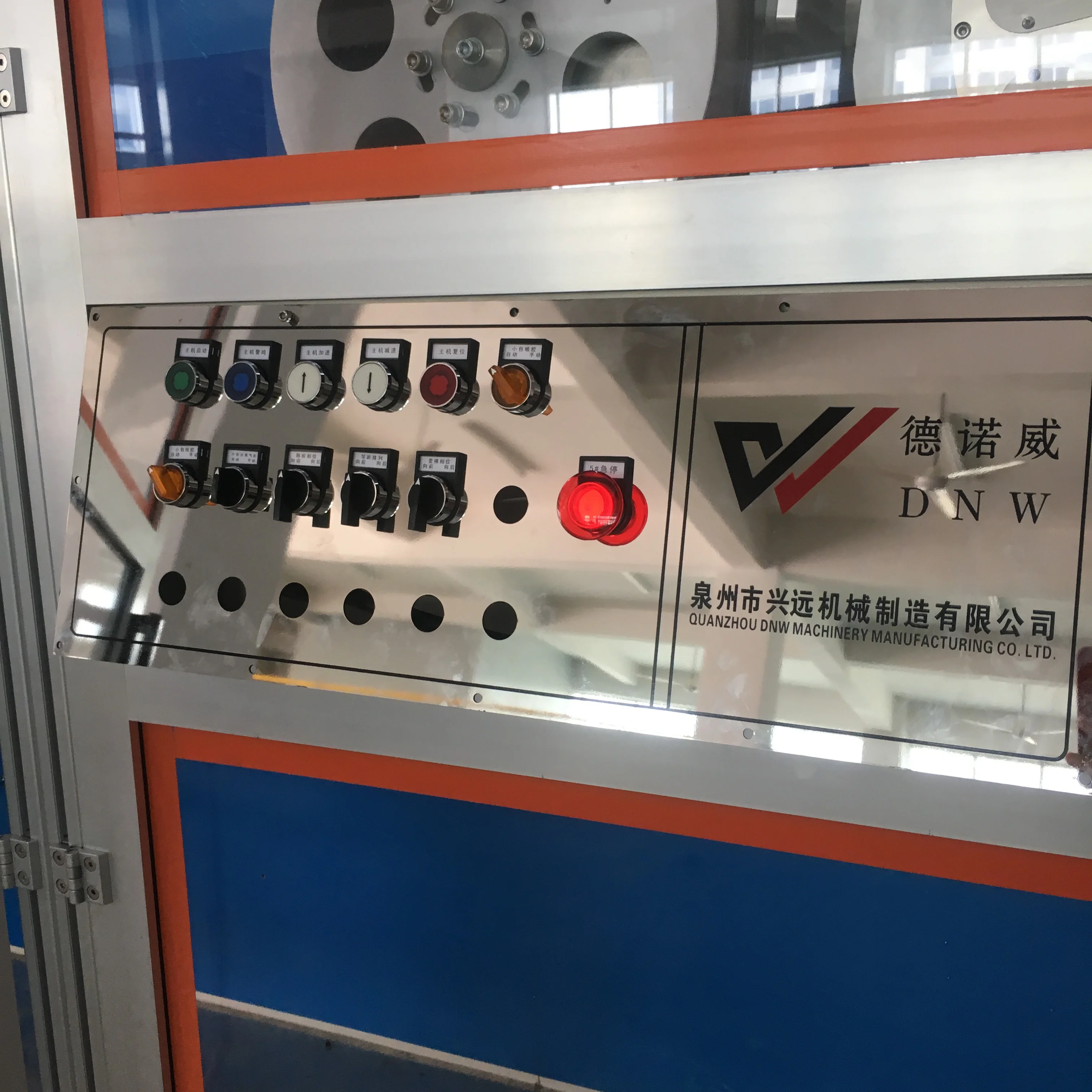

Contral systemPLC control system, operating on the touch screen, man-machine interface.
Tension systemLeg cuff N.W., Topsheet N.W., elastic waistband, upper & down tissue, backsheet are A&B shaft active unwinding by inverter motor.
Drive systemServo Drive (Easy to change size), timing belt and flat belt are imported products, and all the key parts are using imported bearings.
Safety systemIt has safety device on the operating side, matched with urgent stop switch. High audio fan uses sound insulation or silencer.
Packing wayEquipped with the stacker at the request of client.
Materials corrective systemGermany BST automatic web guide system (optional)





Packaging & Shipping

packing and loading.jpg

Company Information


Quanzhou DNW Machinery Manufacturer Co., Ltd.is a professional in the research, development, production, sales and service of disposable hygiene product manufacture equipment.
Our company has consistently adhered to "quality as a fundamental, development by innovation" as business culture. DNW have strong design and technology team and equipped with advanced CNC gantry machining center, CNC high-precision CNC lathe, large-scale radial drilling machine, precision saddle lathes, milling machines and other processing equipment.





Our Services

We can provide full aspects after-sales service :

  • You can send technician to our factory to learn to operate the machine before 1 month from the machine delivery. We can offer food and accommodation.
  • When machine arrives in your factory, we will send technician to your factory to install, test the machine and train your workers.
  • If you need one Chinese technician work long time for you, we can help you for that since we have long term cooperation with them.
  • Life-long after sales service for our machines.
FAQ

Q1:When can I get the price?

A1:We usually quote within 24 hours after we get your inquiry. If you are in urgent to get the price,  please call us by +86-13606908730 or tell us by Email so that we will take your inquiry as the first priority.

Q2:How can I get a sample to check your quality?

A2:After price confirmation, we sincerely invite you to our factory to check our operation and production.

Q3:Can you do the machines' appearance design for us?

A3:Yes. We have a professional team with rich experience in machine's appearance design and manufacturing. Machine structure design is according to the products that you want to produce.

Q4:What's your after sales service?

A4:When machine is delivered from our factory, we’ll apply the visa for our engineers to your country. As soon as the machine arrives in your factory, we’ll assign them to go immediately. You can also assign your staff to our factory to learn.

Q5:Could you also supply raw materials?

A5:Yes, surely we can. We also produce some raw materials and have long term cooperation with many raw materials suppliers. They can provide us good quality and good price. This is in our service chain.

Q6: If I need to change certain spare parts, how can I confirm the item No. with you?

A6: Each spare part on our machine has unique code No. We have the spare parts codes regulation system. We only need you to tell us the laser code No. on the spare part. Then we can confirm with you the drawing at the soonest time and supply you the spare part accordingly.
