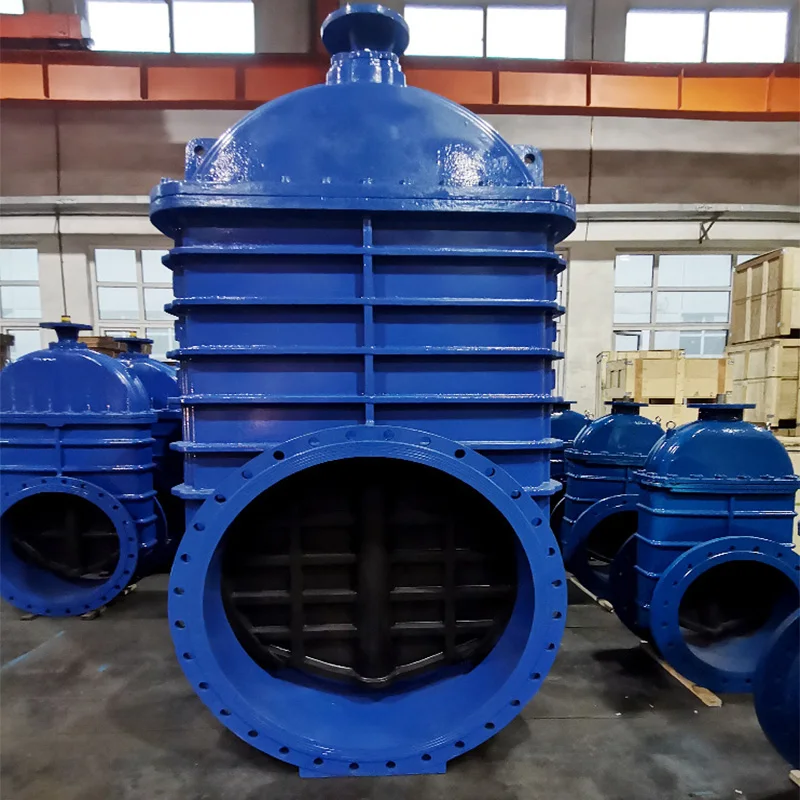

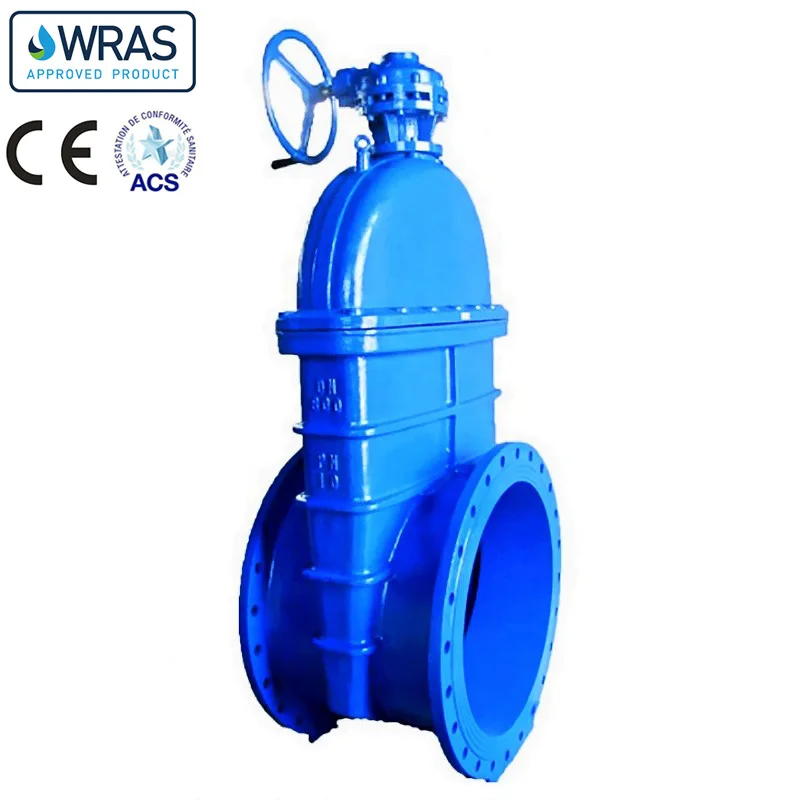

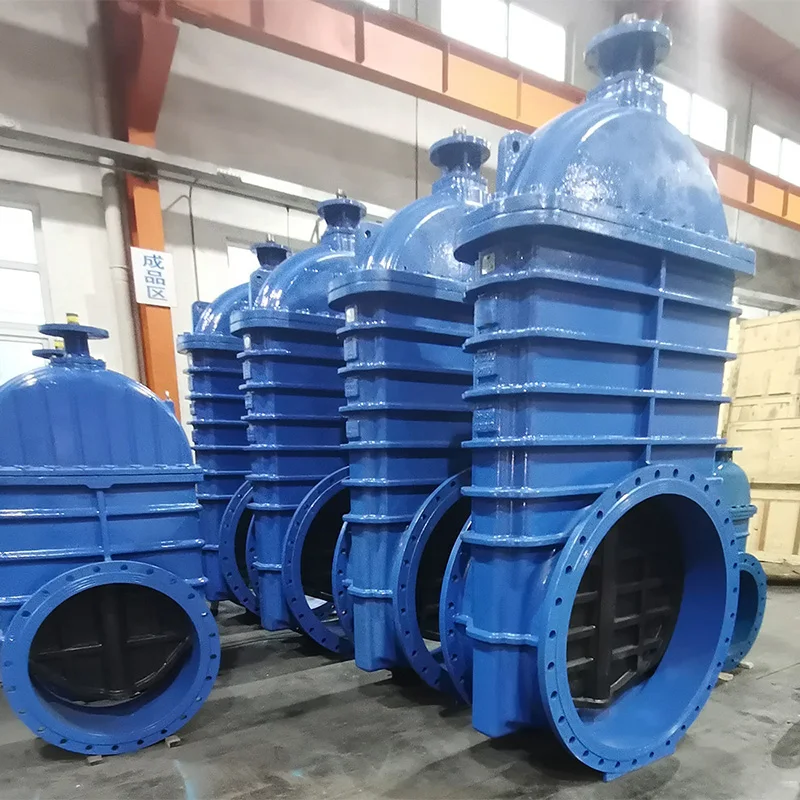

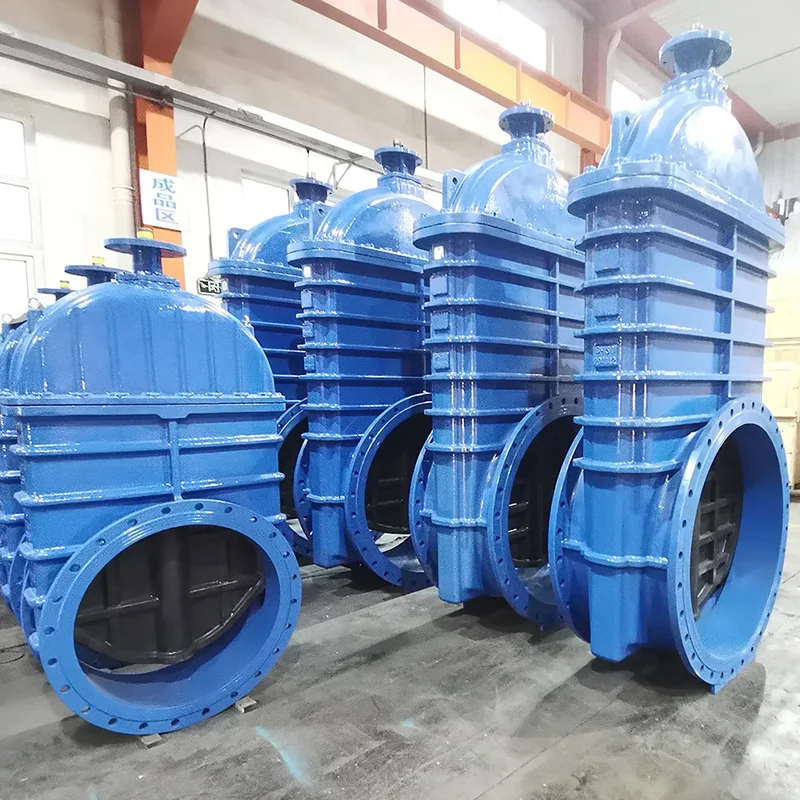

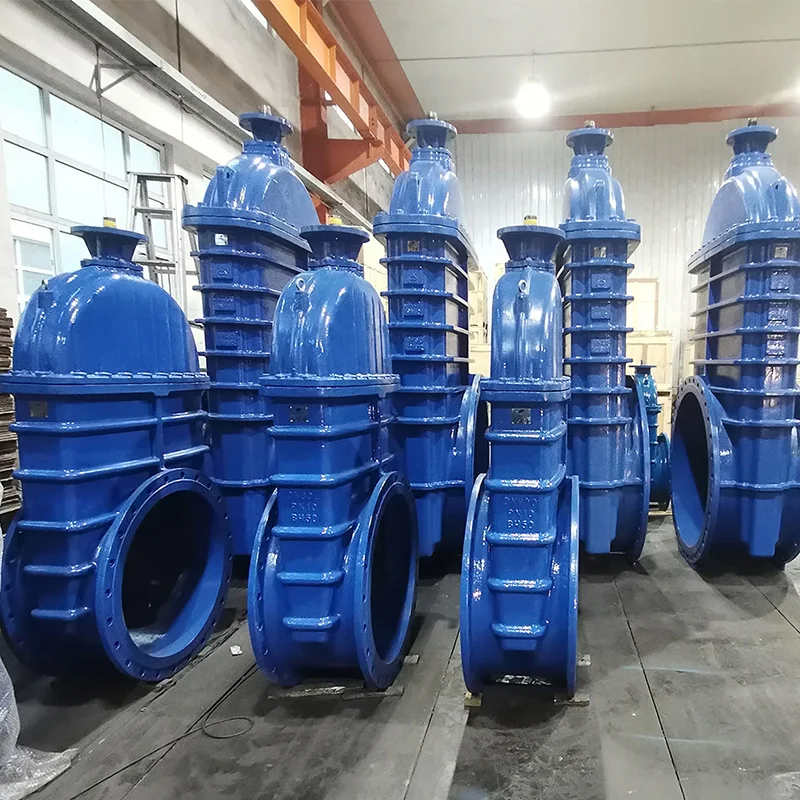

Big size PN16 DN600 DN1200 DN800 ductile iron resilient seated wedge gate valves
- Category: >>>
- Supplier: Tianjin Union Valve Co. Ltd.
Share on (62500308634):
Product Overview
Description
20 inch Cast Iron soft seat Gate Valve
Specifications:
| Normal Pressure(Mpa) | 1.0 | 1.6 |
| Nominal diameter(mm) | 50-1200 | 50-600 |
| Test pressure Shell | 1.5 | 2.4 |
| (MAP)SEAL | 1.1 | 1.76 |
| Applicable temperature | 150 | |
| Applicable medium | Fresh water, Sewage, Sea water, Air, Vapor, Food, Medicine, Oils, Acids, Alkalis, etc. | |
| Operating mode | manual, worm gear, pneumatic, electric, etc. | |
Standards:
| Design & Manufacture | Flange Connection | Face to Face Dimension | Test & Inspection |
| BS5163 | BS4504 PN10 / PN16 | BS5163 | BS6755 |
Material:
| NO. | Part Name | Material |
| 1 | Body | Cast Iron / Ductile Iron |
| 2 | Wedge | Ductile iron |
| 3 | Wedge Seat Ring | Brass |
| 4 | Stem | Stainless Steel |
| 5 | Bonnet | Bonnet |
Features:
1. Small in size, light in weight, easy installation and maintenance.
2. Simple and compact construction, quick 90 degree on-off operation.
3. Minimized operating torque, energy saving.
4. Flow curve tending to straight line, excellent regulation performance.
5. Long service life, standing the test of tens thousands opening/closing operations.
6.Wide selecton of materials, applicable to various medium.
Application:
Chemicals,air,water,steam,oil, acids,salts,etc
production process
Packaging & Shipping
Company Information
IMGV---Tianjin Union Valve Co., Ltd. is a professional valve manufacturer with high quality products and internal management standards. It has a high reputation in the foundry industry. Our company has a modern factory, advanced manufacturing processing and testing equipment, strong technical force.
We have More than 200 employees, more than 30 years of professional experience, skilled technicians and operators, the products passed ISO 9001:2015 and CE certification, our main products are concentric butterfly valve,eccentric butterfly valve, triple-eccentric butterfly valve, soft seat gate valve, ball valve, check valve, Y-strainer, rubber joints, etc. With product quality and perfect service system, it is sold in dozens of countries and regions such as Europe, America, Southeast Asia, Middle East, Australia, North Africa, South Korea, Hong Kong,Taiwan and so on. Our company's purpose is: professional and technical support, perfect after-sales service!
We welcome you to contact us for more information and look forward to working with you!
chat now
FAQ
1. Q: Are you a manufacturer or trading company ?
A: we are valve manufacturer and factory ,and not trading company.
2. Q: Do you have agent or representative abroad?
A: We dont have agent abroad,please contact us to purchase valves
from TIANJIN UNION VALVE CO.,LTD. directly.
3. Q: What's your product range?
A: We can produce Butterfly valve,Gate valve,Check valve,Y strainer,Rubber Joint
by ISO/ANSI/DIN/JIS/ EN/GOST/AS standard.
4. Q: Is there any stock in your factory? and how about your lead time?
A: We stock valves with normal sizes. The lead time depends on your quantity,
generally 30-35 days.
5. Q: Which countries do you export to ?
A: We export directly to vast majority of countries in the world.
6. Q: What certificates will you provide ?
A: We can provide CE/ ISO / WRAS
7. After-sales service
18 monthes year warranty for all kinds of products
As an experienced manufacturer, you can rest assured of the quality and sales service
8. Payment
T/T, L/C, OA, D/P, D/A
9.Transportation
Transported by DHL, UPS, EMS, Fedex, SF, by Air, by Sea
10. Do you provide free sample?
Free sample is ok for us.
11. Do you accept custom design on size?
Yes, if the size is reasonable
Our Services
We promise that we will ship the goods on time;
We can customize your company logo on valve body;
We can do different colors according to your requirements;
We can produce different standards valves to different markts.
We provide perfect after-sales service and technical support.
