CNC Veneer Spindless Rotary Peeling Machine Wood Peeling Lathe for plywood with CE

Product Overview

Description

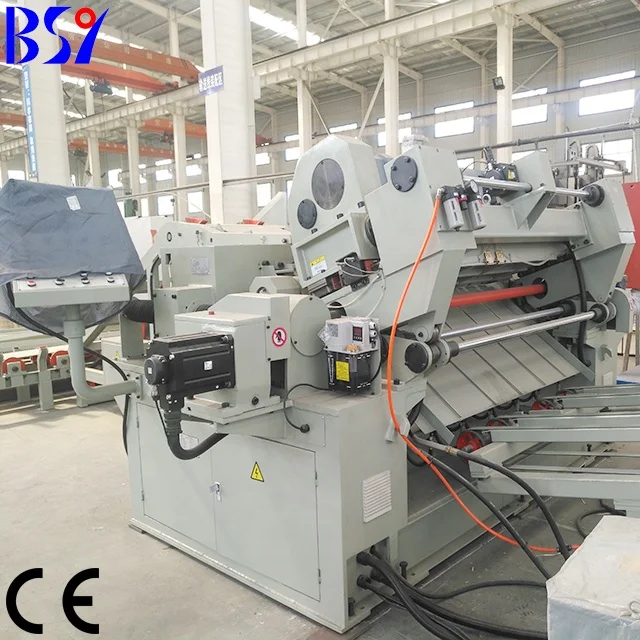

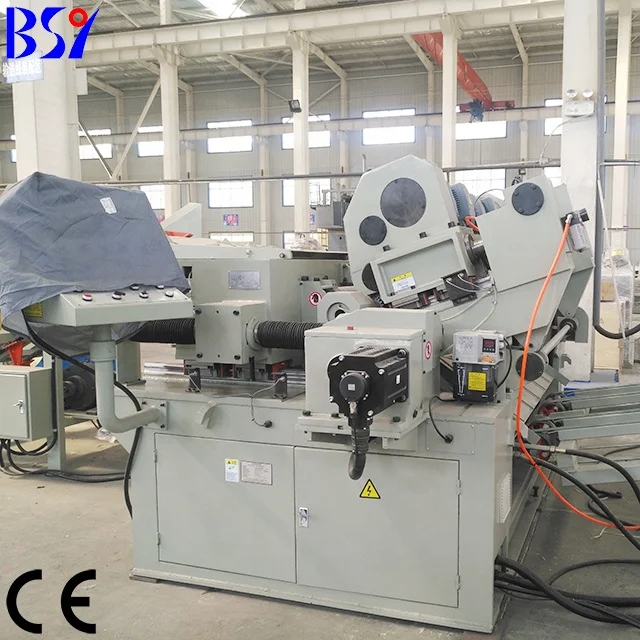

This is spindless rotary peeling lathe with  CNC blade gap adjustment and gear transmission system.

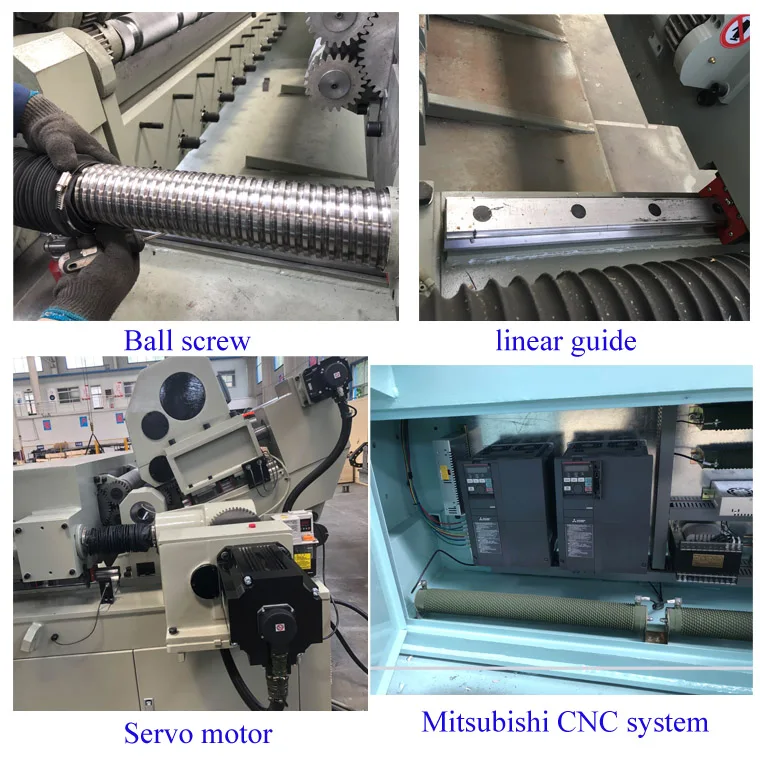

With Mitsubishi system, linear guide and ball screw feeding it can guarantee the veneer evenness and minimized the torlerance

With nose bar, the spindless peeling machine has the same function as spindle peeling lathe, but the log core

is only 60mm.

With hydraulic system for knife installation it can make easy to change knife when need to grind and save time.

It is very popular for veneer and plywood factory.

We have 4f, 6f and 8f to meet different requirement. You can choose it according to your demand





MODEL	SL2600/5E	SL2600/5B	SL1350/5E	SL1350/5B
Max. cutting length (mm)	2600	2600	1350	1350
Max. cutting diameter (mm)	500	480	500	480
Log-core diameter (mm)	60	40	60	40
Peeling speed ( m/min)	30-80	30-80	30-80	30-80
Veneer thickness(mm)	0.5-3.0	0.8-3.0	0.5-3.0	0.8-3.0
Driven rollers motor  (kw)	44	44	30	30
Feeding servo motor  (kw)	11	11	7	7
Blade gap servo motor  (kw)	3.5	1.5	3.5	1.5
Hydraulic motor  (kw)	1.5	1.5	1.5	1.5
Total Power (kw)	61.5	58	43.5	40
Overall dimensions (mm)	4600x2220x1900	4750x2150x1870	3350x2200x1900	3500x2150x1870
Weight (kg)	13500kg	11500kg	12000kg	10000





Why do you choose us:

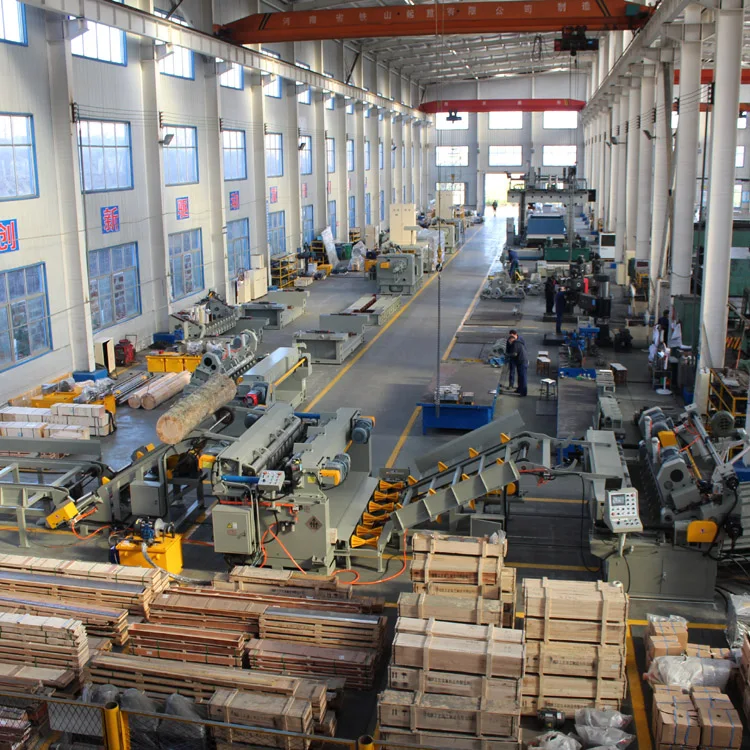

1. Leading manufacturer of woodworking machinery in China, found in 1956. specialize in this field for more than 60 years.

2. Almost 30 year export experience, exported dozens of countries in Asia, Europe, Africa and America. All products are quite popular among clients.

3.Specializing in plywood production line and finger joint board production line. We have our own designers to meet any of your requirement.

4. Having own after –sale maintenance center, our engineer can go to overseas for installation and commissioning.

The main productions include: log debarker, log charger, double-spindle veneer peeling lathe, single-spindle veneer peeling lathe, CNC non-spindle veneer peeling lathe, veneer clipper, press machine, veneer dryer, glue spreader, size trimming saw, Four-Side Moulder ,  sanding machine etc
