Двухсторонняя клейкая изоляционная лента из стекловолокна Ptfe 0,2 мм
- Category: >>>
- Supplier: Jiangsu Bocheng New Tech Materias Co. Ltd.
Share on (62500419055):
Product Overview
Description
Product Description
PTFE Double Side Adhesive Tape/PTFE Insulating Tape
PTFE double side adhesive tape is a fiberglass fabric impregnated with PTFE dispersion and coated with high-temperature, pressure-sensitive silicone adhesive. It is very durable and versatile product. The combination of PTFE, fiberglass and high temperature silicone adhesive allows ptfe adhesive tape to perform in continuous temperatures up to 500F. It is dimensionally stable and resistant to tears, punctures, abrasion and wear. It will not cold flow under heavy loads.
PTFE Insulating Tape is well known as its smooth surface, non-stick, chemical resistance and high temperature resistance and insulation properties. Yellow rippled release liner or dot dimple PVC release liner is applied to the adhesive surface for ease of application.
PTFE double side adhesive tape is a fiberglass fabric impregnated with PTFE dispersion and coated with high-temperature, pressure-sensitive silicone adhesive. It is very durable and versatile product. The combination of PTFE, fiberglass and high temperature silicone adhesive allows ptfe adhesive tape to perform in continuous temperatures up to 500F. It is dimensionally stable and resistant to tears, punctures, abrasion and wear. It will not cold flow under heavy loads.
PTFE Insulating Tape is well known as its smooth surface, non-stick, chemical resistance and high temperature resistance and insulation properties. Yellow rippled release liner or dot dimple PVC release liner is applied to the adhesive surface for ease of application.
Material | PTFE Double Side Adhesive Tape/PTFE Insulating Tape |
Width | 13, 15, 19, 20, 25, 38, 50MM, Cuttable |
Length | 10M, 30M, 33M |
Roll Width | 1000MM, 1250MM, 1500MM |
Thickness | 0.12MM-0.3MM |
Res. Temperature | -70-260℃ |
Break down voltage | 6KV-18KV |
PTFE Double Side Adhesive Tape/PTFE Insulating Tape
1). excellent heat resistance –100°F (-73° C) to +550°F (+288°C)
2). non-stick surface
3). chemical and corrosion resistance
4). excellent insulating performance (Breakdown Voltage: 6KV-18KV)
4). excellent insulating performance (Breakdown Voltage: 6KV-18KV)
5). non-toxic, long service life up to 10years
6). Excellent release characteristics
7). Low surface friction
- PTFE Double Side Adhesive Tape/PTFE Insulating Tape
APPLICATION
-Easy release surface for heat sealing and packaging machines;
- Ironing and pressing equipment;
- Covering drying cylinders;
- Lining chutes, release surface on bonding tools;
- PVC welding release fabric.
- widely used for masking
- used for insulation.
- High temperature resistance
- High tensile strength
- Ironing and pressing equipment;
- Covering drying cylinders;
- Lining chutes, release surface on bonding tools;
- PVC welding release fabric.
- widely used for masking
- used for insulation.
- High temperature resistance
- High tensile strength

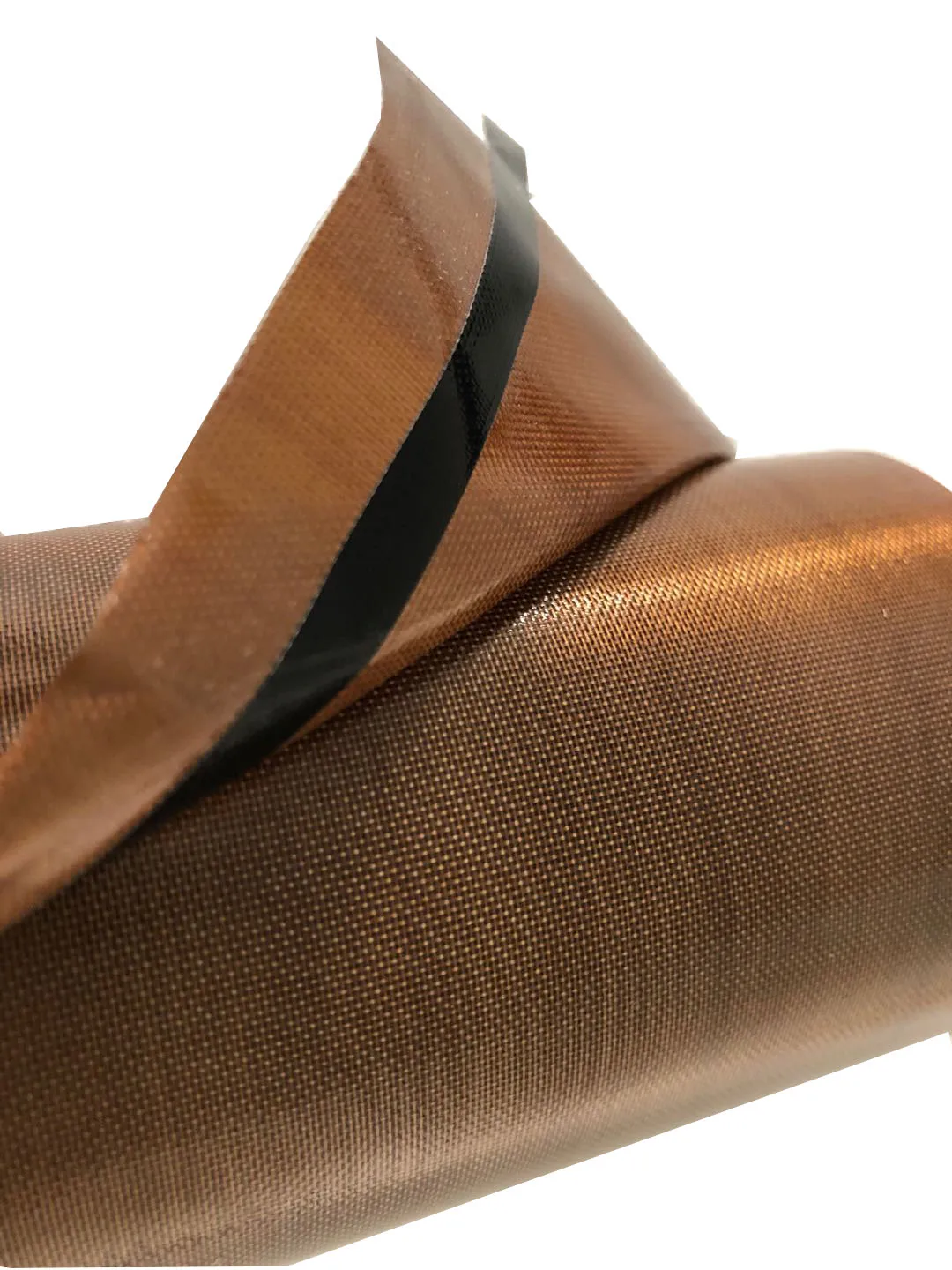

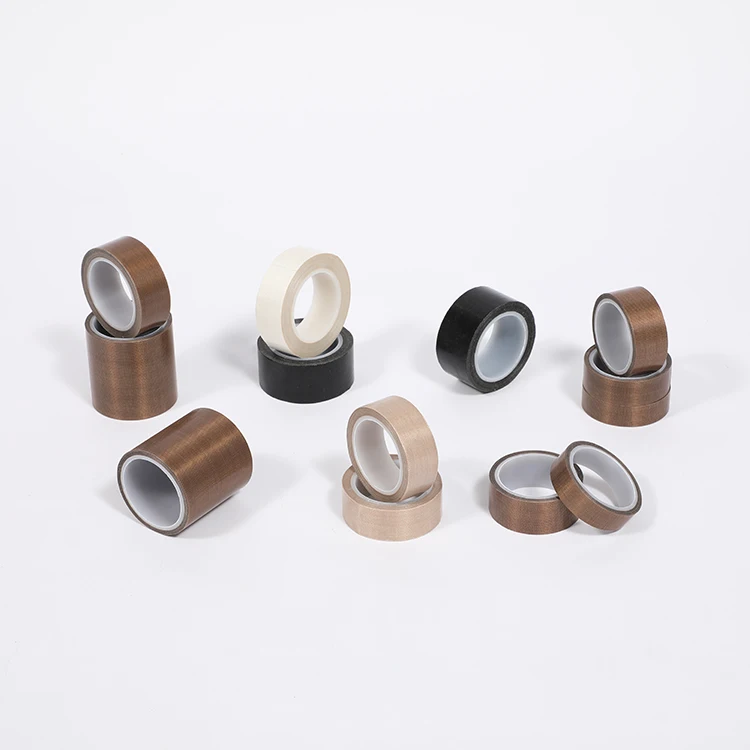

Detailed Images
PTFE Double Side Adhesive Tape/PTFE Insulating Tape
As one of the largest supplier in China, K-Fab use the best imported adhesive to produce a variety of tear resistant non-stick ptfe tape in china market.We can offer self-wound PTFE tape and continuous rolls with protective corrugated yellow liner or dot dimple smoother liner.
Main capability:
*Smooth surface, easy clean
*Non stick, reusable
*Chemical resistance
*Insulating properties
*Heat-resistance
As one of the largest supplier in China, K-Fab use the best imported adhesive to produce a variety of tear resistant non-stick ptfe tape in china market.We can offer self-wound PTFE tape and continuous rolls with protective corrugated yellow liner or dot dimple smoother liner.
Main capability:
*Smooth surface, easy clean
*Non stick, reusable
*Chemical resistance
*Insulating properties
*Heat-resistance
Size Information
Size Chart of This Design
Item | Thickness | total weight (g/m²) | Adhesion Strength (to Steel(N/4cm) | Docking Test (times) | High Temperature Peel Test |
KB008AS | 0.12mm | ≥200 | ≥21 | ≥3 | No peeling for half an hour at 260℃ |
KB013AS | 0.175mm | ≥300 | |||
KB018AS | 0.225mm | ≥430 | |||
KB025AS | 0.3mm | ≥550 |
Related Products
Packing&Shipping
Packing: Air bubble films and carton or as the customers’ requests
Shipping:Small order: By express, DHL, UPS, FEDEX, and EMS.
Large order: By sea or by air.
Choose the best and convenient way for you need.
Delivery time:5-15 days after payment in advance.
Choose the best and convenient way for you need.
Delivery time:5-15 days after payment in advance.
Company Introduction
Our company is specialized in producing and selling various high-performance industrial composite materials. Our main products include PTFE coated fiberglass fabric, conveyor belts, silicone coated fiberglass fabric, food-grade PTFE and silicone baking lines, mats and other relative heat resistant PTFE and silicone materials. Our company has a professional team with good experience in providing thermal materials. Our company applies strict quality control systems and service systems, contributing to customers and markets which need high-performance composite materials. Our products are used in textile, dyeing, printing, food drying, petroleum, steel, chemical, medicine industry, etc. The products of our company sell well all over China and are exported to many foreign countries and regions with a good reputation.
Our Services & Strength
1. Large production capacity
2. Large warehouse facilities
3. Fast sampling
4. Competitive price
5. On time delivery guarantee
2. Large warehouse facilities
3. Fast sampling
4. Competitive price
5. On time delivery guarantee
FAQ
1. What are our advantage to start business with you?
(1) Prompt delivery. We have six big coating machines and some other small machines. The delivery time is about 5-15 days.
(2) Reasonable price. Our machines are imported, which can improve the work efficiency,thus we can provide you high quality with competitive price.
(3) Variety choices. Our products are divided into economical series and premium series. We can fulfill a variety of requirements for you and bring best benefits for each other.
2. Do you have a good material stock for quick delivers?
We have a good material stock for quick delivers. Every time we produce a large amount,we will produce more than the specific quantity. For these products, we can sell to our small distributors for the quick order.
3. How wide is your standard production in PTFE fiberglass fabric?
The standard width is 1250mm. The max width is 3850mm.The min width is 1000mm.We can also provide you the customized items if required.
4. What about the MOQ?
For the regular thickness and width, we can provide you any quantity you need.
5. What about the raw material you use?
We use imported fiberglass from Taiwan and the PTFE resin is imported from Daikin and DuPont.
6. Do you have the specific QC department?
Of course we have the specific QC department.Our company applies strict quality control system and service system.
7. What about the warranty?
We are quite confident in our products.We have special quality control department who will 100% check each goods before shipment,and we can assure you all the goods sent out are in good conditions.When customers receive the goods in 15 days,if,unfortunately,there occurs broken ones,please tell us and show us the detailed proof so we can check it and give certain replacement in the next order.
8. How to order samples?
We can provide FREE samples,but you need to afford the freight.If you place an order next time,we will return the samples freight to you.
(1) Prompt delivery. We have six big coating machines and some other small machines. The delivery time is about 5-15 days.
(2) Reasonable price. Our machines are imported, which can improve the work efficiency,thus we can provide you high quality with competitive price.
(3) Variety choices. Our products are divided into economical series and premium series. We can fulfill a variety of requirements for you and bring best benefits for each other.
2. Do you have a good material stock for quick delivers?
We have a good material stock for quick delivers. Every time we produce a large amount,we will produce more than the specific quantity. For these products, we can sell to our small distributors for the quick order.
3. How wide is your standard production in PTFE fiberglass fabric?
The standard width is 1250mm. The max width is 3850mm.The min width is 1000mm.We can also provide you the customized items if required.
4. What about the MOQ?
For the regular thickness and width, we can provide you any quantity you need.
5. What about the raw material you use?
We use imported fiberglass from Taiwan and the PTFE resin is imported from Daikin and DuPont.
6. Do you have the specific QC department?
Of course we have the specific QC department.Our company applies strict quality control system and service system.
7. What about the warranty?
We are quite confident in our products.We have special quality control department who will 100% check each goods before shipment,and we can assure you all the goods sent out are in good conditions.When customers receive the goods in 15 days,if,unfortunately,there occurs broken ones,please tell us and show us the detailed proof so we can check it and give certain replacement in the next order.
8. How to order samples?
We can provide FREE samples,but you need to afford the freight.If you place an order next time,we will return the samples freight to you.
