MJ397F Woodworking Machine Auto Feed Vertical Band Saw Wood Cutting Machine
- Category: >>>
- Supplier: Asia Gongyou (Weihai) Co. Ltd.
Share on (62500536131):
Product Overview
Description
Product Description
Circular saw series
Finger Joint Shaper series
Table-sliding Milling Machine
Milling machine series
Planer series

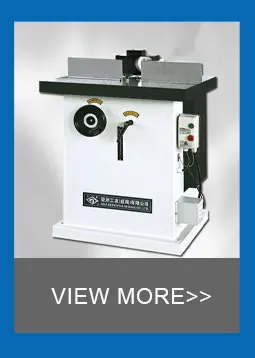

Vertical Single-spindle milling machine

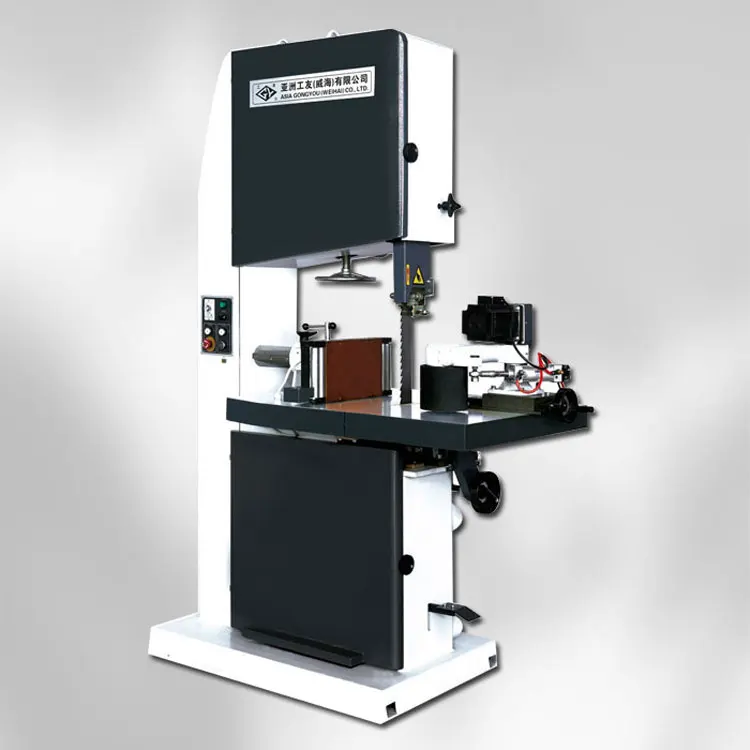

MJ397F Woodworking Machine Auto Feed Vertical Band Saw Wood Cutting Machine

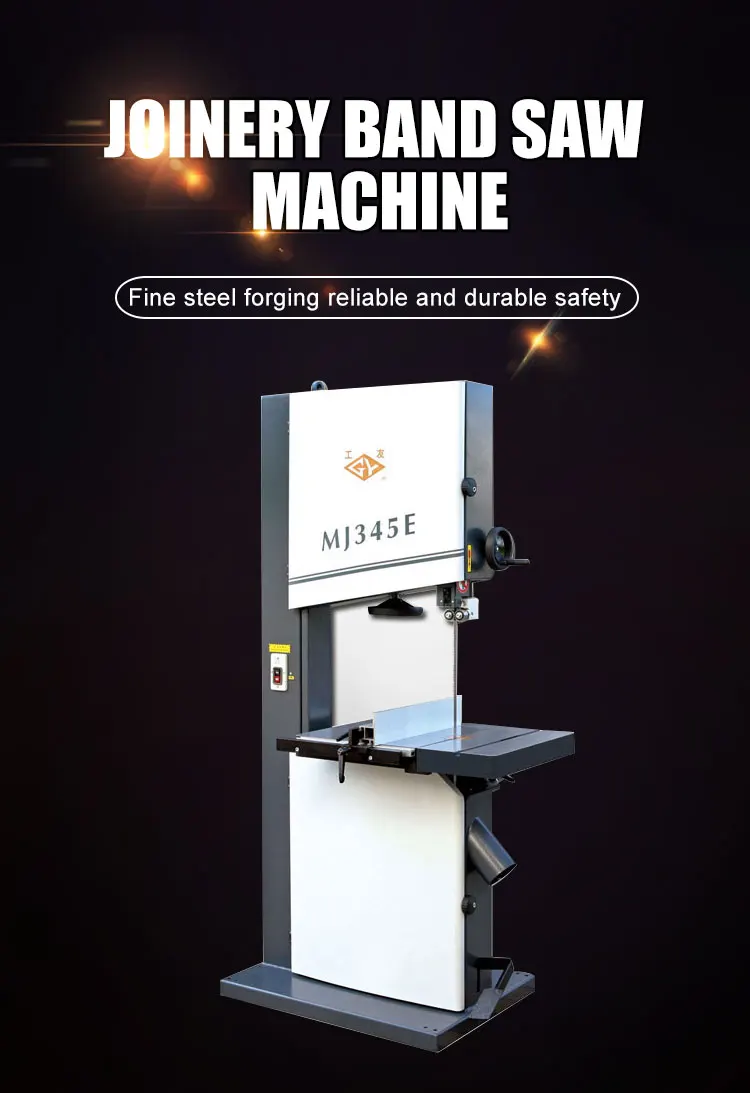

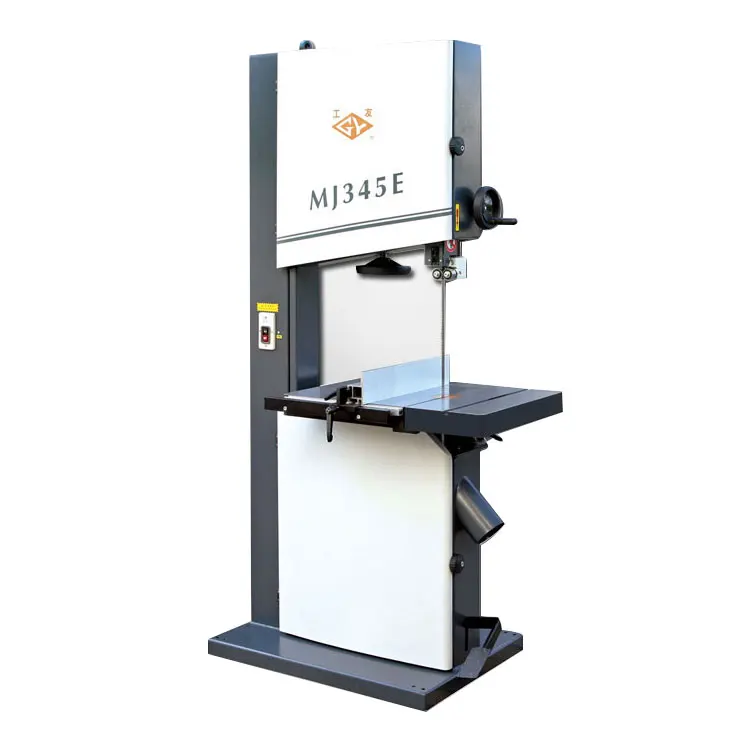

MJ345E
MJ396

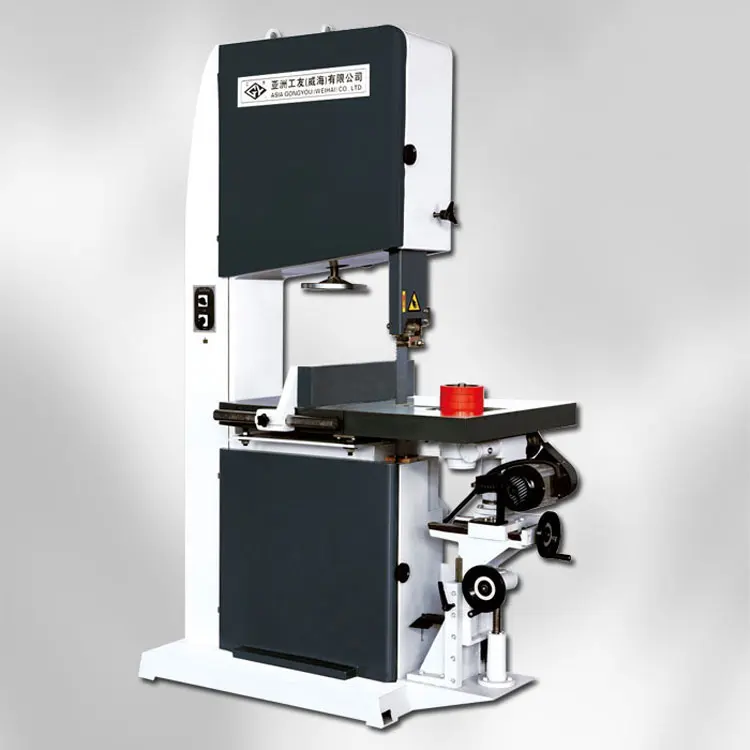

MJ397
MJ397F

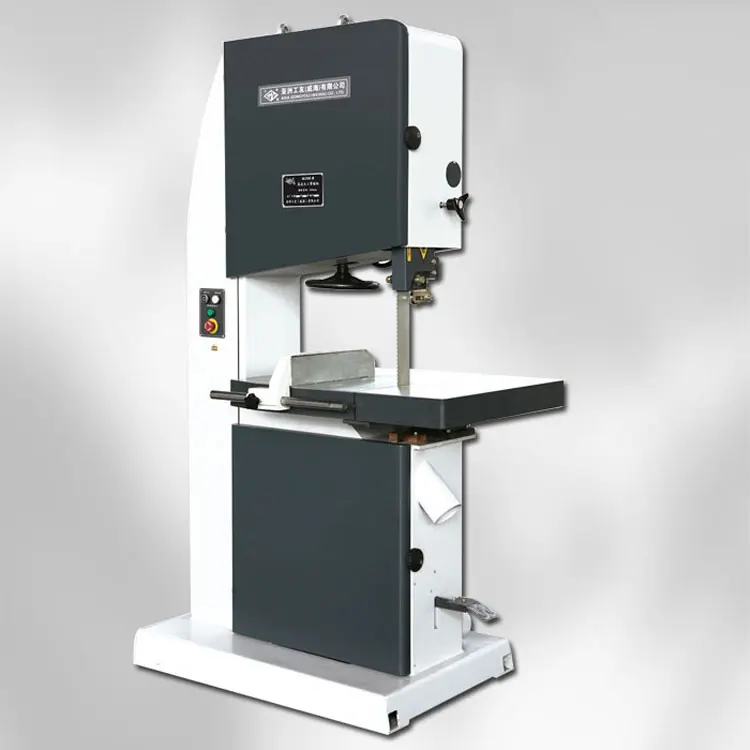

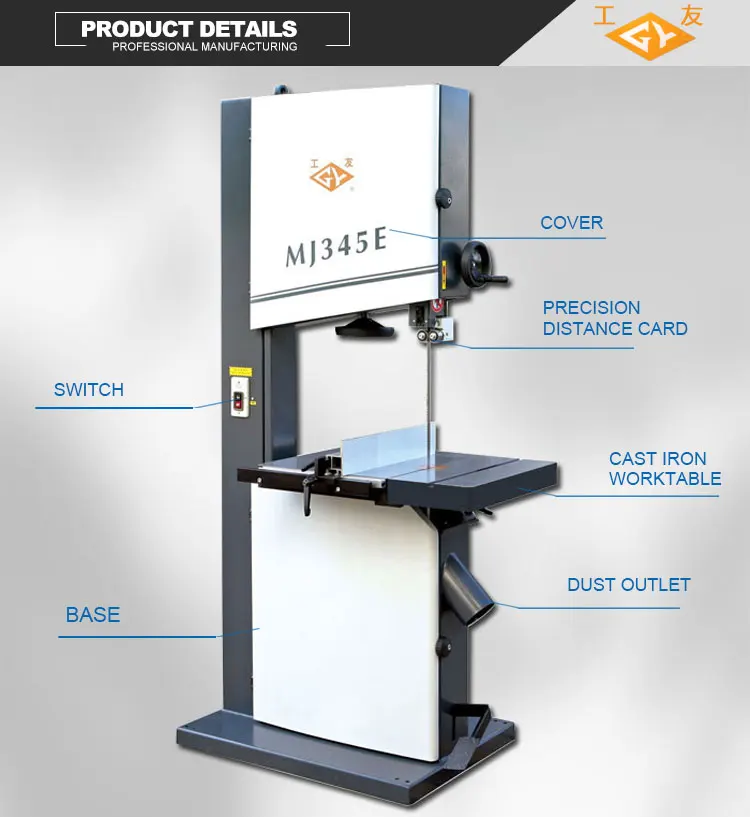

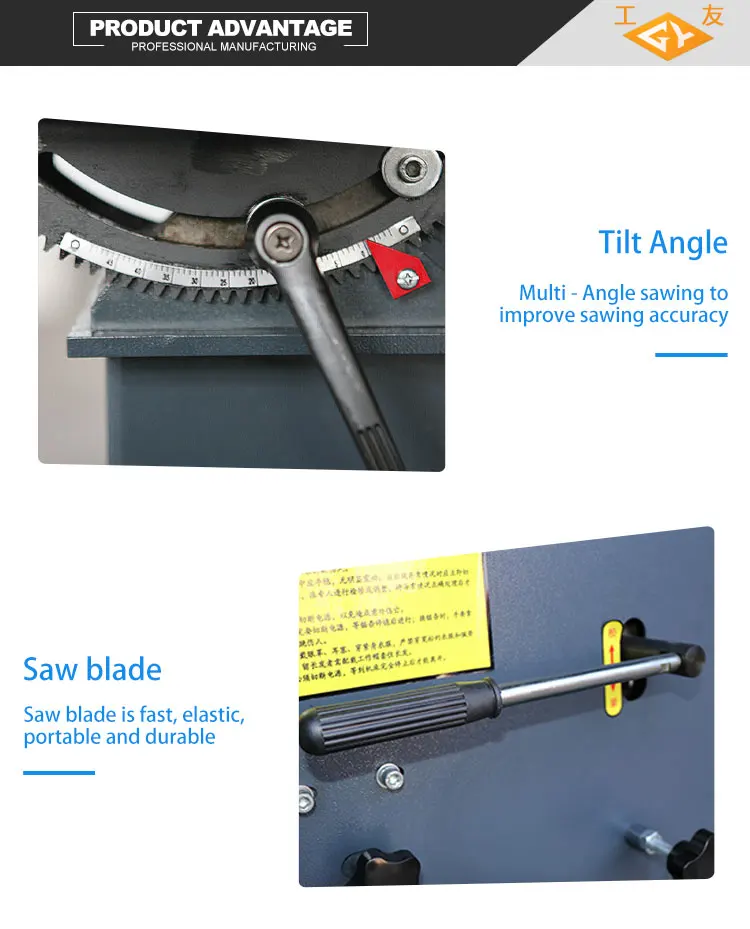

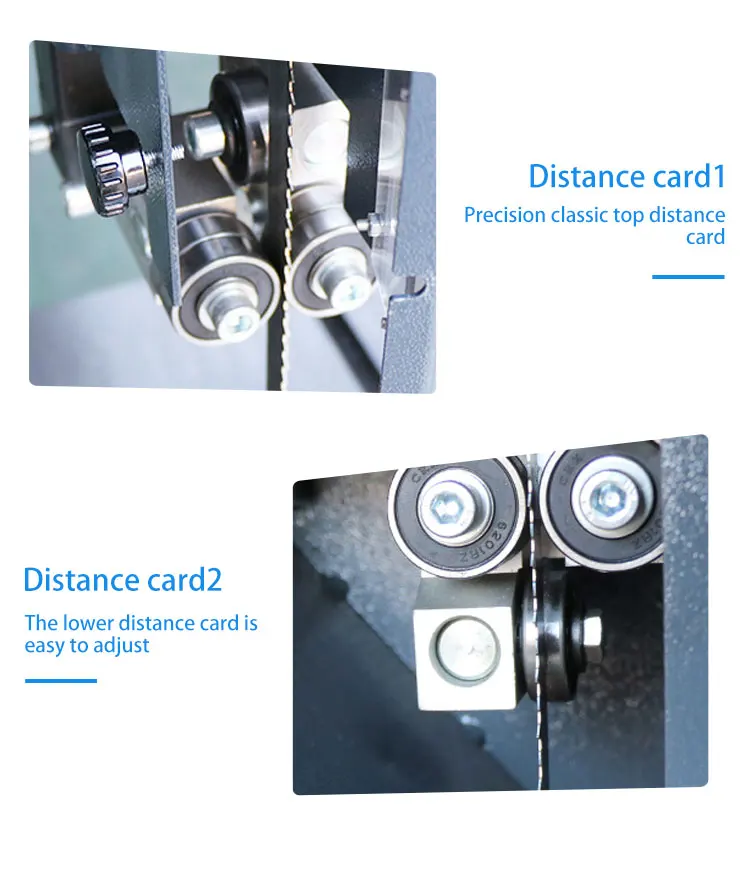

Detailed Images
Technical Specification
Technical Specification | MJ344E | MJ345E | MJ346E | MJ396 | MJ397A |
Saw wheel dia. | Ø400mm | Ø500mm | Ø600mm | Ø600mm | Ø700mm |
Max.sawing thickness | 300mm | 300mm | 300mm | 280mm | 390mm |
Table tilt angle | 0-45° | 0-45° | 0-30° | 0-20° | / |
Saw wheel speed | 1000r/min | 1000r/min | 900r/min | 770r/ min(Main spindle speed) | 760r/ min(Main spindle speed) |
Motor power | 2.2kw | 2.2kw | 3.0kw | 4kw/380V | 7.5kw/380V |
Overall dimensions | 820×620×1700mm | 920×650×1900mm | 1020×660×2050mm | 1200×860×2140mm | 1600×900×2475mm |
Net.weight | 185kg | 218kg | 300kg | 480kg | 896kg |
Technical Specification | MJ397F | MJ397 | MJ375B | ||
Saw wheel dia. | Ø700mm | Ø700mm | Ø480mm | ||
Max.working thickness | 200mm | 390mm | / | ||
Motor power | 300kw | / | / | ||
Table tilt angle | 0-20° | / | / | ||
Saw wheel speed | 750r/min | 800r/min | 720r/min | ||
Main motor | 7.5kw | 7.5kw | 7.5kw | ||
Feed motor | 0.9kw | 0.3-0.45kw | / | ||
Feeding speed | 0.1-5.8m/min | 1.8/3.7/2.8/5.8/4.7/9.6m/min | / | ||
Overall dimensions | 1416×830×2450mm | 1600×900×2475mm | 4000×1740×1780mm | ||
Net.weight | 880kg | 960kg | / | ||
Max.workpiece width | / | 550mm | / | ||
Sawing log size | / | / | Ø500×3000mm | ||
Saw blade size | / | / | 32×0.7×3660mm | ||
Related Products

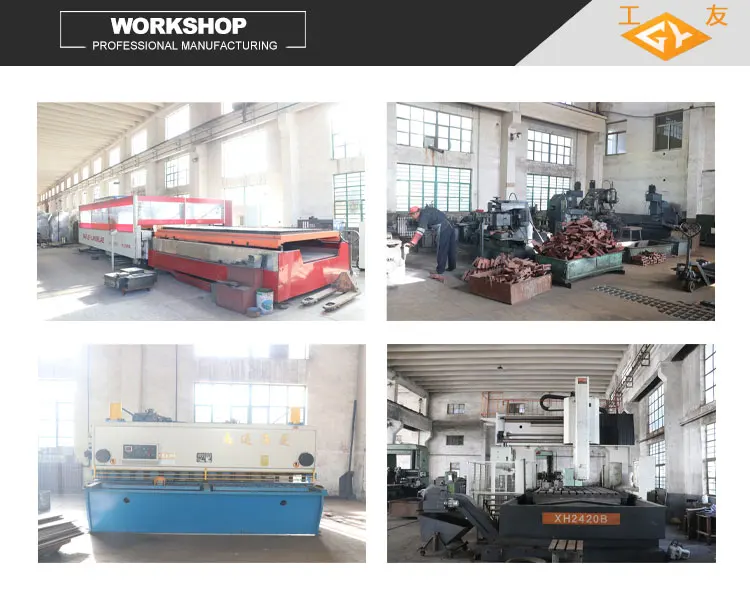

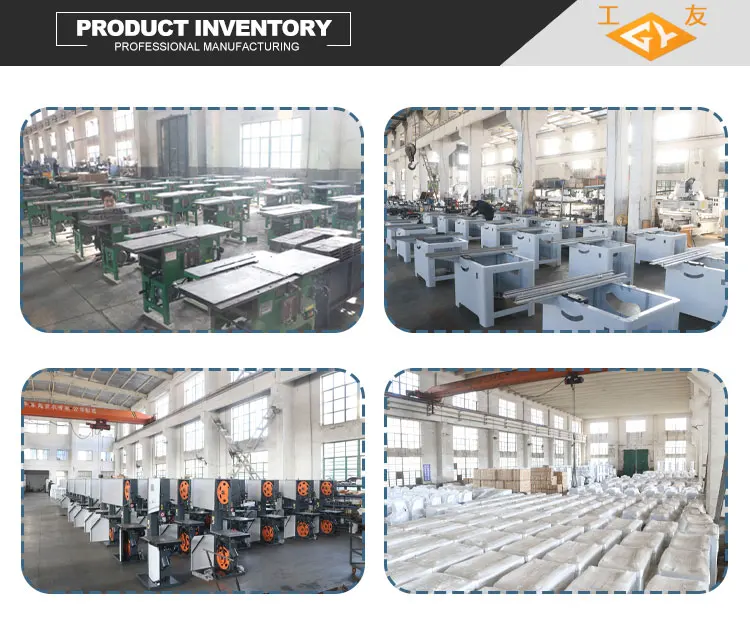

Company Introduction
