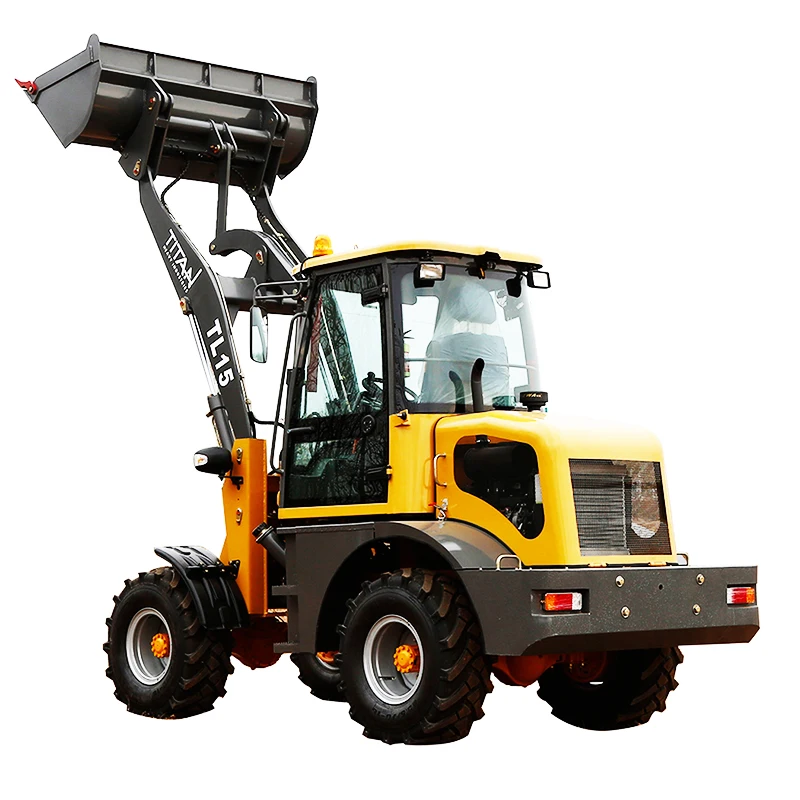

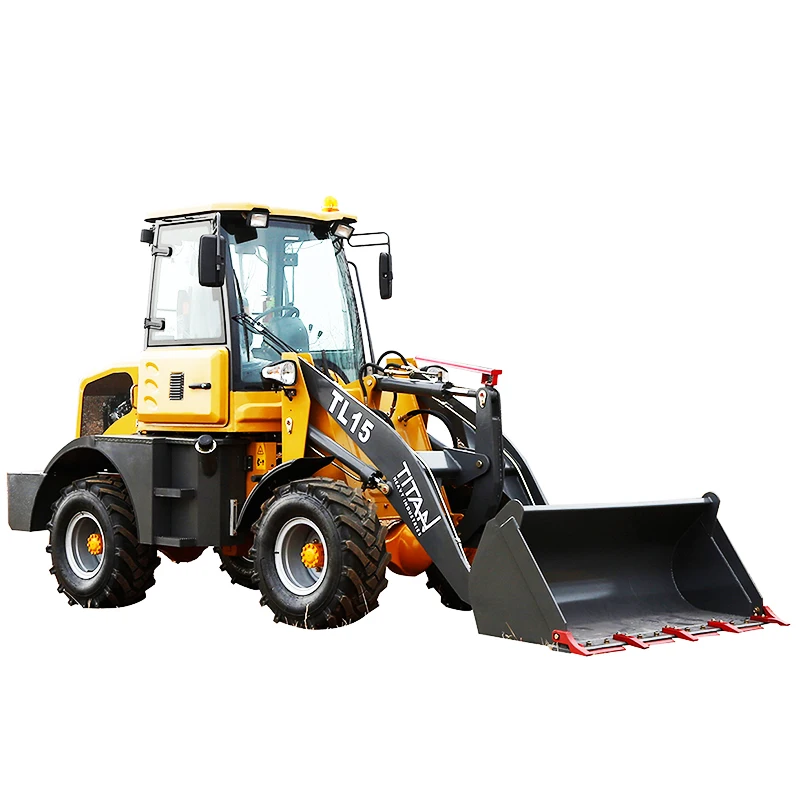

Titan TL15 wheel loaders 1500kg yellow Radlade front end compact tractor wheel loaders
- Category: >>>
- Supplier: Weihai Titan Heavy Machinery Co. Ltd.
Share on (62500574785):
Product Overview
Description
Product Description
Item | Specifications | Item | Specifications |
Rated loading weight | 1500kg | Operating weight | 3500kg |
Rated bucket capacity | 0.8m3 | Overall dimensions(LxWxH) | 4870x1750x2650mm |
Bucket width | 1700mm | Engine model | XINCHAI 498(EURO III) |
Track base | 1400mm | Engine type | In-line arrangement, water cooled, four-cycle diesel engine |
Wheel base | 1950mm | Engine starting mode | Electric |
Min. turning radius(outside of rear wheels) | 4400mm | Rated power/Rated speed | 36.8KW/2650rpm |
Min. Ground clearance | 270mm | Brake mode | Four-wheel hydraulic spread-shoed brake |
Dump height fully raised | 2580mm | Warranty | 12 months after received the goods |
Reach fully raised | 860mm | Color | According to the requirements of customers |
Lifting time | <5.0S | Tyre type | 12-16.5 wide tyre |
Max. Tilt angle | 300 | Shipping port | Qingdao port, China |
Max. Bucket breakout, lift cylinder | 42KN | Packing details | Nude package, 1Unit/20's GP with disassembled cabin, 3Units/40's HQ |
Maximum Speed | 21km/h | Delivery time | 20 days after confirm the order |
Driving mode | Four-wheel full hydraulic drive | Supply ability | 100 units per month |
Quality
Titan Heavy Industries utilise only quality, proven componentry in the production of our product range. Our Chief Engineer Eric, has been involved in the design and production of premium, export quality equipment since 2003. All Titan Machinery undergoes rigorous factory testing for both operation and finish prior to delivery.
Seivice
Titan Heavy Industries offers the very best in after sales support, not just during the warranty period of our products but also their whole life. We are available online 7 days a week to handle any product or technical inquiries.
Warranty
The premium range of Titan products is supported by a no nonsense 12 month / 2000 hour parts warranty. We will replace any warrantable, defective parts free of charge during this period. We utilise the express services of DHL and TNT Worldwide to deliver parts to you FAST!
Installation
Titan can assist you in the preparation and installation of your new equipment. Our factory trained technicians share with you their detailed and extensive knowledge of the equipment.

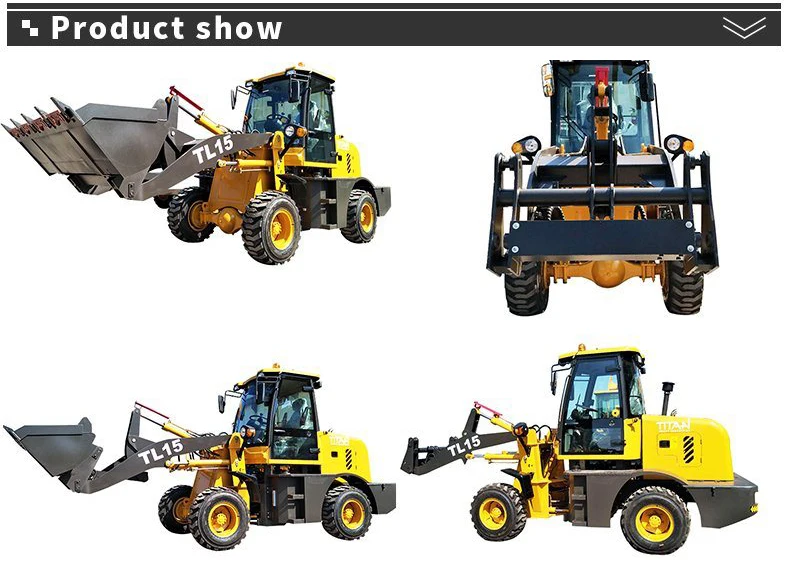

TL15 – 1500kg Rated Capacity Articulated Wheel Loader
Standard:
Xinchai 490 (EURO Ⅲ)Engine. 3 Cylinder Engine. Automatic with Torque Converter. 4 Wheel Drive. Standard Bucket. Luxury Cabin.
Adjustable Steering Wheel. 220V Engine Pre-heater. Cabin Heater. Air Pre-heater.
Lock For Lifting And Steering Cylinder. Hydraulic Check System. Quick Hitch. Mechanical Joystick. Easy-damaged Spare Parts.
Xinchai 490 (EURO Ⅲ)Engine. 3 Cylinder Engine. Automatic with Torque Converter. 4 Wheel Drive. Standard Bucket. Luxury Cabin.
Adjustable Steering Wheel. 220V Engine Pre-heater. Cabin Heater. Air Pre-heater.
Lock For Lifting And Steering Cylinder. Hydraulic Check System. Quick Hitch. Mechanical Joystick. Easy-damaged Spare Parts.
Premium Oversized Cabin
Our oversized, export quality cabin in the TL15 has room enough for even the largest operator. The cabin offers excellent working vision and toughened glass.

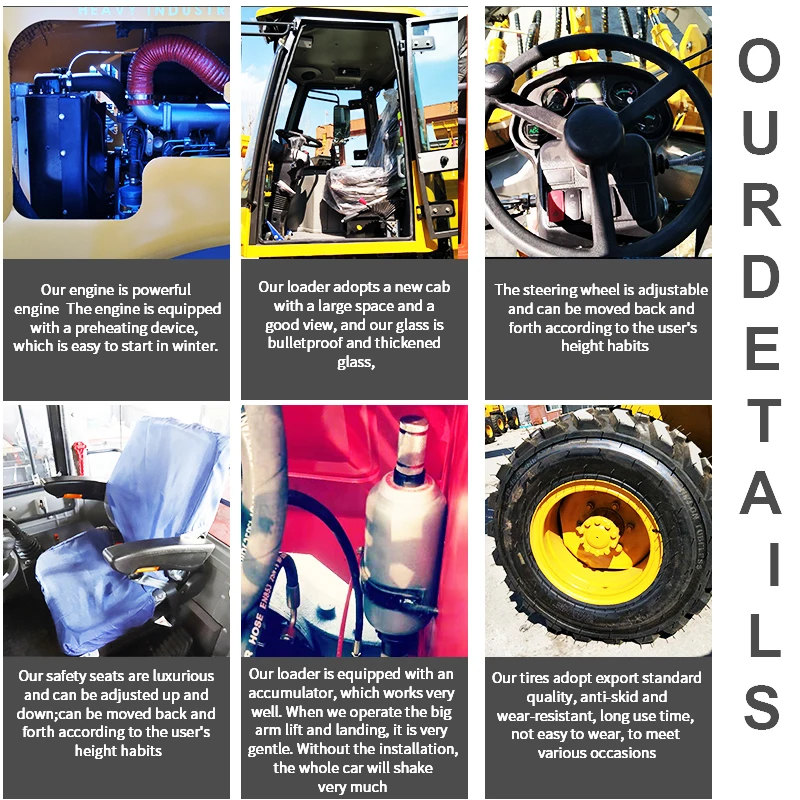

Our powerful engine
Our engine is powerful engine respect to the standard of Euro III. The engine is equipped with a
preheating device, which is easy to start in winter
Adjustable Steering Column
The adjustable steering column is a standard across all Titan Wheel Loaders. Used in conjunction with the multi-function suspension seat, operators of various heights and weights can be assured of finding a comfortable working position
Air filters
High mounted engine pre cleaners, and high quality inner and outer filters are standard fitment to all Titan Wheel Loaders protecting your valuable investment from damage relative to the working envirnonment.
Passive Boom Suspension
The Titan TL15 Loader is fitted with passive boom suspension as standard. This boom suspension / accumulator system, cushions the impact of heavy loads through the hydraulic system. The system design protects both the operator and loader chassis from excessive stresses working in heavy environments.
Quick hitch position indicator
Quick hitch position indicators are a standard across all Titan Wheel Loaders. These indicators give operators a quick, visual confirmation that all attachments are fitted and locked in correctly prior to work.
Articulation Pins
The hardest working part on your Titan TL15 Wheel Loader is the articulation pins. The pins used by Titan in the production and assembly of our wheel loaders are fully hardened and fitted into removable bushes that are easily greased. This system is proven as being both durable and long lasting.
Cabin Mounts
The cabin floors in the Titan Loader range are fully insulated and utilise double rubber mounts. Using Ny-Locks, this system reduces noise, heat and vibration into the cabin from the drivetrain thus increasing the operators comfort.
soundproof cotton
Insulated sound proofing is found underneath, at the rear of the cabin, and throughout the engine hood.
Multi-layer spray paint
Our loader has been subjected to electrophoretic treatment ,polished and sanding before painting.
we have painted three times to ensure the loader will not rust for many years
Certifications
Attachment
We have more than 40 kinds attachments,All kinds of attachments can be replaced,It can be customized to your requirements.
Packing & Delivery
We use container transportation,according to your requirements,for you to choose the appropriate collccation If container is too tighber,we will use pefilm for packing or pack it accordfng to customers special requset.
Our Company
Weihai Titan Heavy Machinery Co. Ltd
Weihai Titan Heavy Machinery Co. Ltd is a professional manufacturer engaged in the research, development, production, sale and service of wheel loader, excavator and forklift.
In addition, we have obtained many kinds of certificates SGS, ISO CE etc. Whether selecting a current product from our catalog orseeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.
We sincerely thank all the friend’s support at home andabroad, look forward to establish development business cooperation with you, hand in hand advances boldly, create prosperity.
Our agent is interviewed by local TV station,give you a reason why choose titan.we provide our agents with technical support,service suport,exhibition support,price support,quality support and help them to open the local market and establish long-term cooperation.
Our team won the strength business award for its excellent performance in the compettion.Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Australia, European East and South Asia, North and South America, etc. We also welcome OEM and ODM orders.
FAQ
Q:Why choose Titan?
1) Titan: an experienced loader manufacturer with over 11 years.
2) Titan TEAM: customers-focused,you'll get reply within 5 minutes.
3)Titan: premium quality with reasonable price.
4) Titan: CE,BV,SGS,ROPS and FOPS,ISO9001:2008 varified.
Q:What is Titan warranty?
1) Titan after-sales: life-long, meantime offer one year and one month warranty.
2) Titan proposal: order some wearing parts with loader for easy maintenance.
Q:What about Titan delivery term?
10-14 days after down payment received.
Q:What about the payment term?
30% advance payment,70% balance by T/T.
