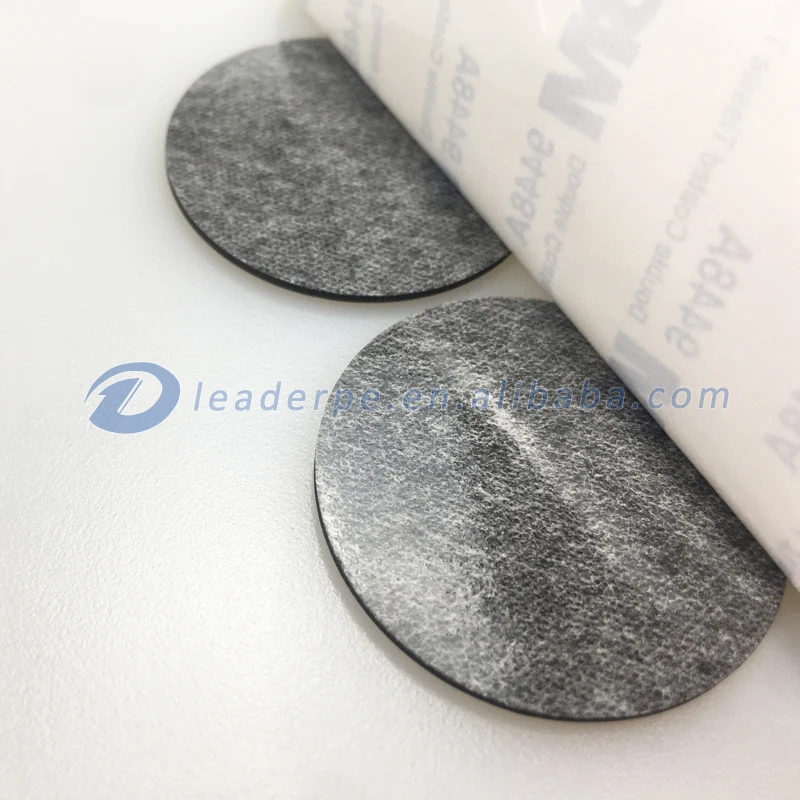

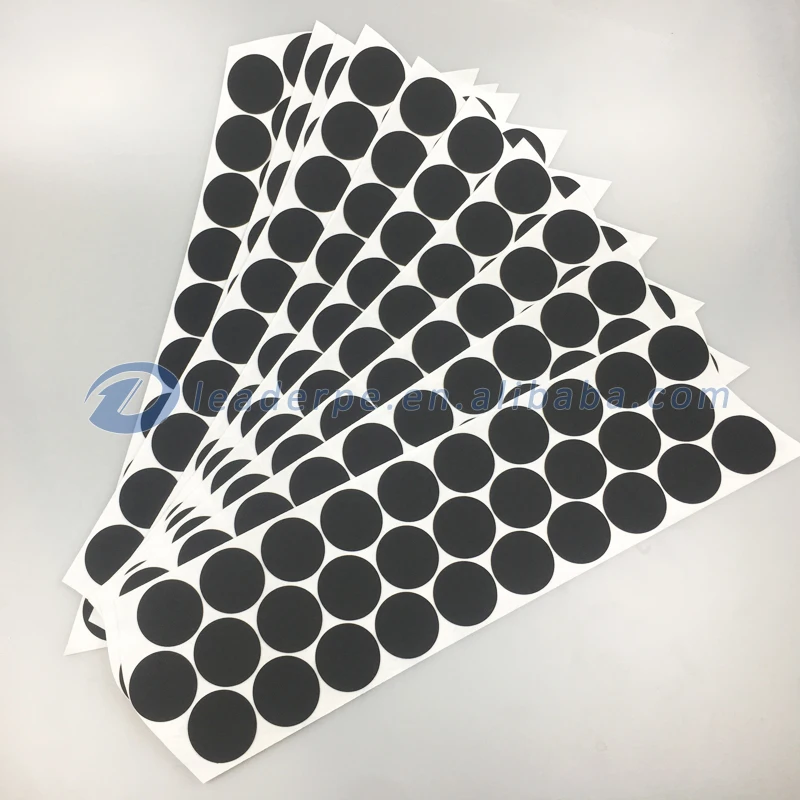

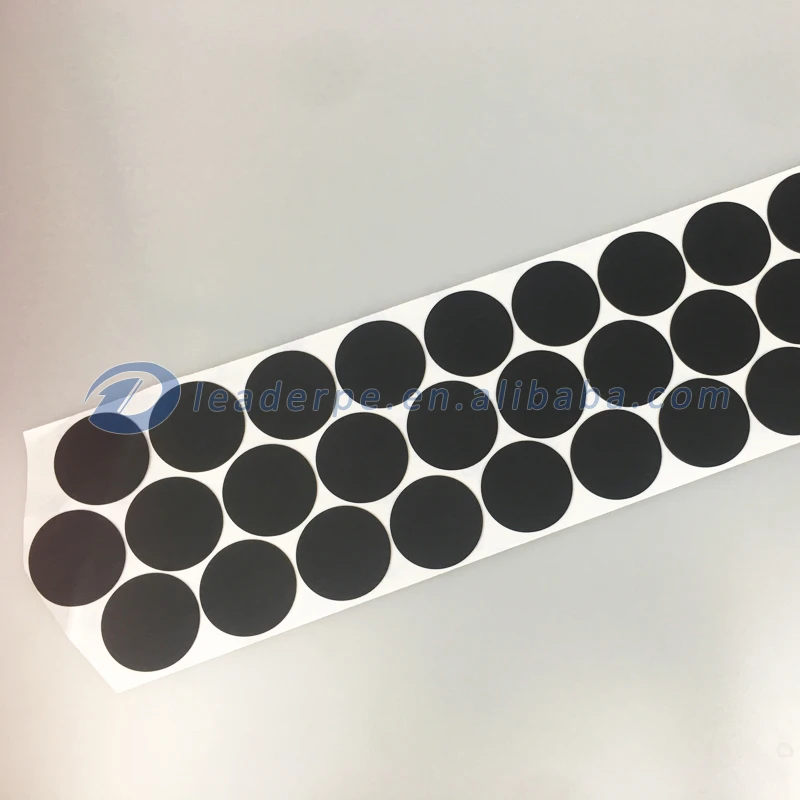

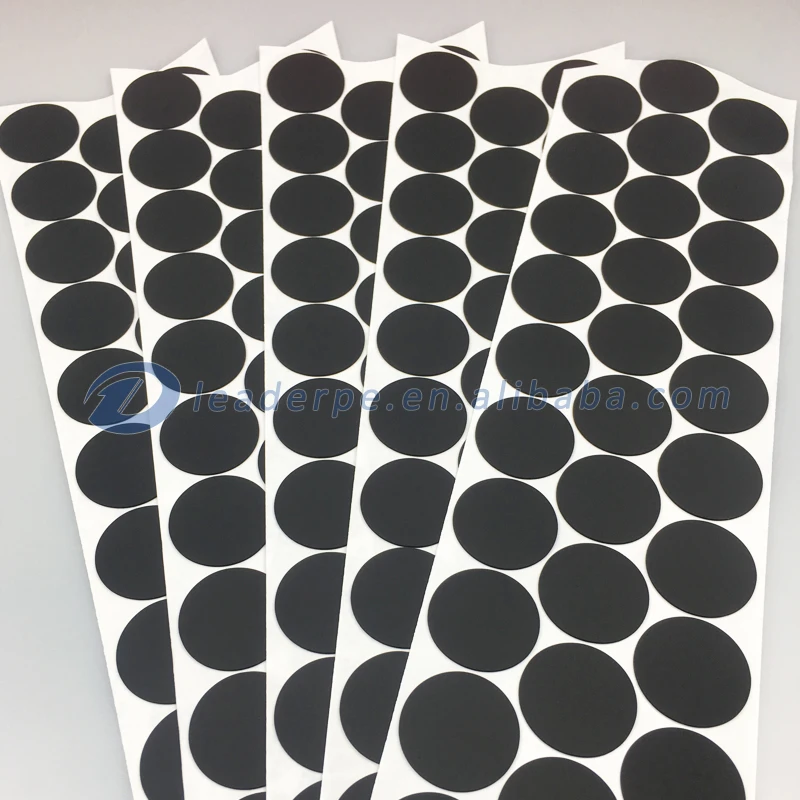

4701 41 30045 04 Poron Foam Custom Die Cut Black 3M Poron Gasket
- Category: >>>
- Supplier: Dongguan Leader Optronics Technology Co. Ltd.
Share on (62500788166):
Product Overview
Description
4701-41-30045-04 Poron Foam Custom Die Cut Black 3M Poron Gasket
Die Cutting 3m adhesive poron foam
The very soft PORON 4701-30 polyurethane foam is ideal in applications where flexibility is a key requirement. PORON 4701-30 foam material maintains its integrity and effectiveness in gap filling, gasketing and vibration isolation applications.
Features of 3m adhesive poron foam
Thickness range of .031 to .5 in (.79 to 12.7 mm)
Available densities of 320 or 400 kg/m3 (20 or 25lb/ft3)
Excellent compression set resistance
Temperature range of -51 to 121° C (constant use recommended at 90°C)
Technical Sheet of Rogers Poron 4701-30
| PROPERTY | TEST METHOD | VALUE | |||
|---|---|---|---|---|---|
| PHYSICAL | |||||
| Density, kg /m 3 (lb / ft 3 ) | ASTM D 3574-95, Test A | 240 (15) | 320 (20) | 400 (25) | |
| Tolerance, % | ± 10 | ||||
| Thickness, mm (inches) | 4.78 – 12.70 (0.188 - 0.500) | 1.57 – 3.18 (0.062-0.125) | 0.79 – 1.14 (0.031 - 0.045) | ||
| Tolerance, % | ± 10 | ± 15 | |||
| Standard Color (Code) | Black (04) | ||||
| Compression Force Deflection, kPa (psi) Typical kPa, (psi) | 0.51cm/min (0.2” / min) Strain Rate Force Measured @ 25% Deflection | 7 - 35 (1 – 5) 21 (3) | 21 - 55 (3 – 8) 35 (5) | 35 - 83 (5 – 12) 62 (9) | |
| Hardness, Durometer, Shore "O", Shore “A” | ASTM D 2240-97 | <3 <3 | 8 5 | 16 12 | |
| Compression Set, % max. | ASTM D 1667-90 Test D @ 23 ºC (73 ºF) ASTM D 3574-95 Test D @ 70 ºC (158 ºF) ASTM D 3574-95 Test J/Test D autoclaved 5 hrs @ 121 ºC (250 ºF) | 2 10 5 | |||
| Dimensional Stability, % max. change | 22 hrs @ 80ºC (176ºF) in a forced-air oven | ± 1 | |||
| Tensile Strength, kPa (psi) min. Typical kPa (psi) | ASTM D 3574-75 Test E | 138 (20) 207 (30) | 207 (30) 346 (50) | 242 (35) 484 (70) | |
| Tensile Elongation, % min., Typical | ASTM D 3574-75 Test E | 100 160 | 100 155 | 100 150 | |
| Tear Strength, kN/m (pli) min Typical kN/m (pli) | ASTM D 264-91 Die C | 0.2 (1) 0.9 (5) | 0.5 (3) 1.2 (7) | 0.7 (4) 1.8 (10) | |
| TEMPERATURE RESISTANCE | |||||
| Recommended Constant Use, max. | SAE J-2236 | 90°C (194°F) | |||
| Recommended Intermittent Use, max. | 121°C (250°F) | ||||
| Embrittlement | ASTM D 746-98 | -51°C (-60°F) | |||
| Cold Flexibility | MIL-P-12420D 1991 @ -40 °C (-40 °F) | Pass | |||
| FLAMMABILITY | |||||
| Flammability, mm (inches) | UL 94HBF (File E20305) (Pass≥) MVSS 302 (Pass≥) CSA Comp HBF (File 188149) (Pass≥) | 4.8 (0.188) 4.8 (0.188) 4.8 (0.188) | 2.4 (0.093) 1.6 (0.062) 2.4 (0.093) | 1.6 (0.062) | |
We can provide die-cutting Rogers Poron 4701-30, 4701-40, 4701-50, 4701-60, 4790-79, 4790-92, etc. If you are interested in die-cutting Rogers Poron Foam Gaskets, please contact us for more details.

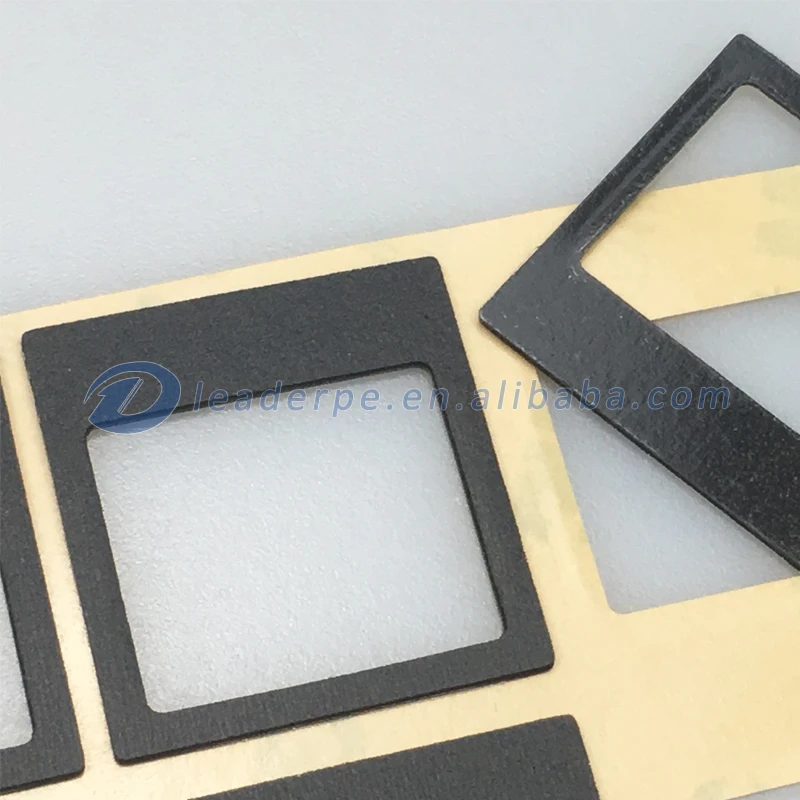

Customized Die Cutting Rogers Poron
Benefits of 3m adhesive poron foam
Flexible and easily compressed
Excellent durability
Noise reduction
Leader OPUS - Reliable Die-cutting Poron Gasket Supplier
Why Choose us as black poron foam gasket Supplier?
Packaging and Delivery of 3m adhesive poron foam
Customer Visit for 4701-41-30045-04 Poron Foam Cutom Die Cut Black 3M Poron Gasket
