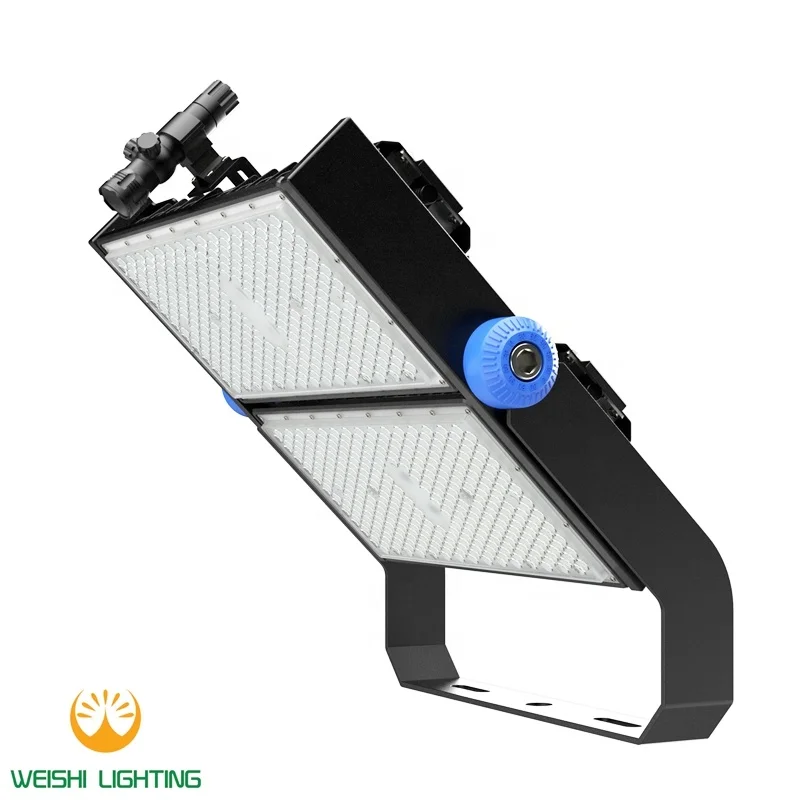

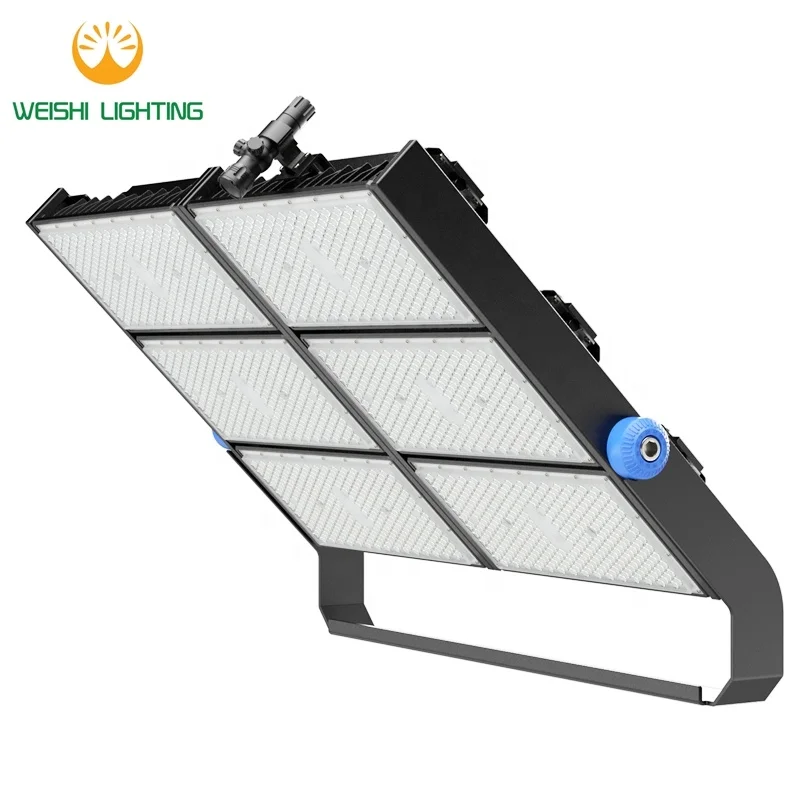

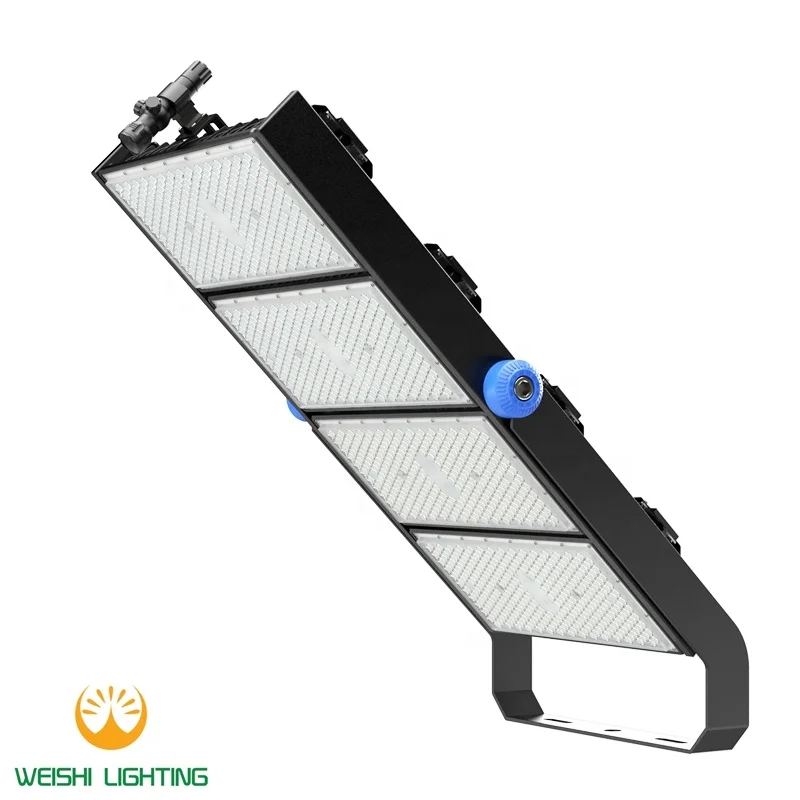

IP66 400W 500W 750W 1000W LED Floodlight 600w 800w 1000w for Sports Feilds Soccer Fields Football Stadium Lighting
- Category: Flood Lights >>>
- Supplier: Shandong Weishi Lighting Technology Co. Ltd.
Share on (62500910422):

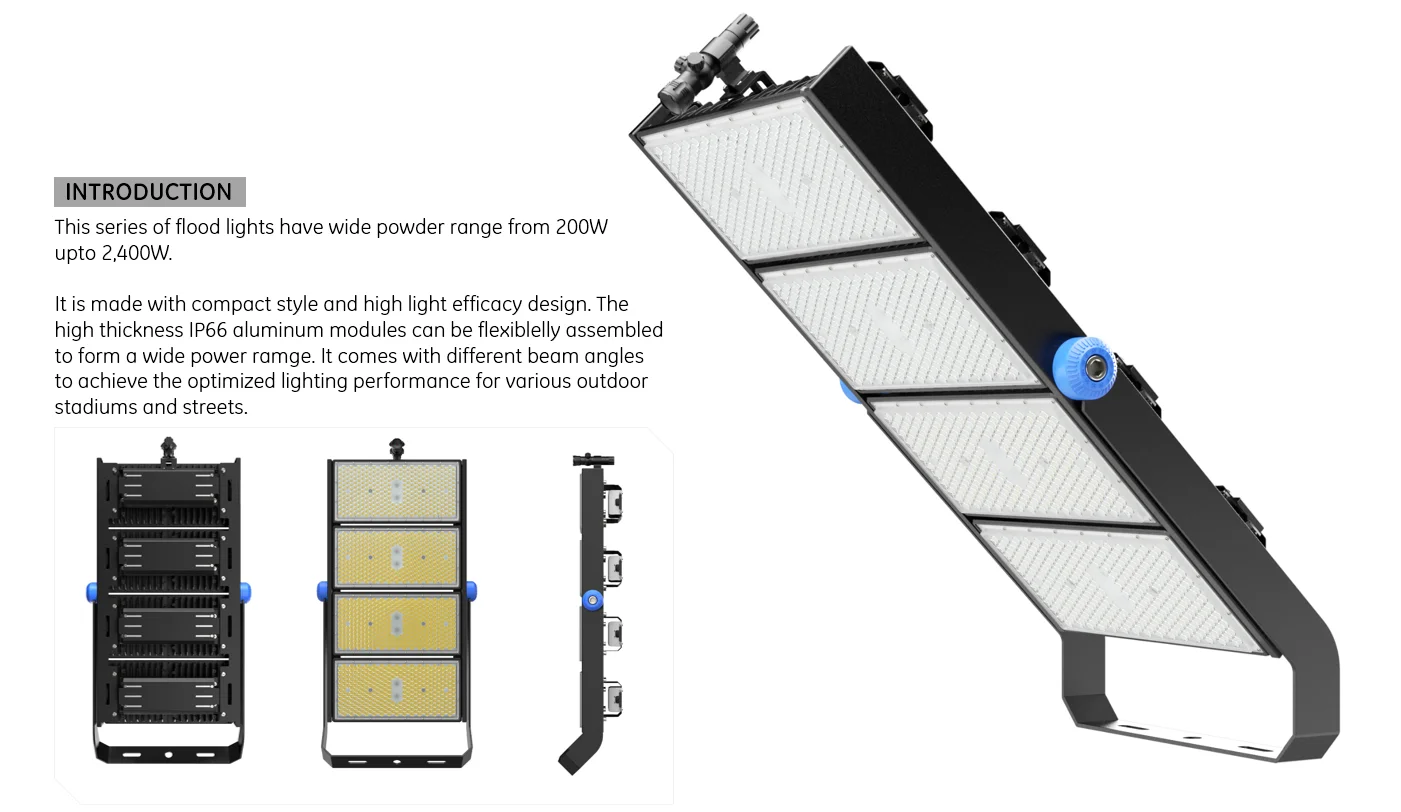

Product Overview
Description
WSFL07
FEATURES

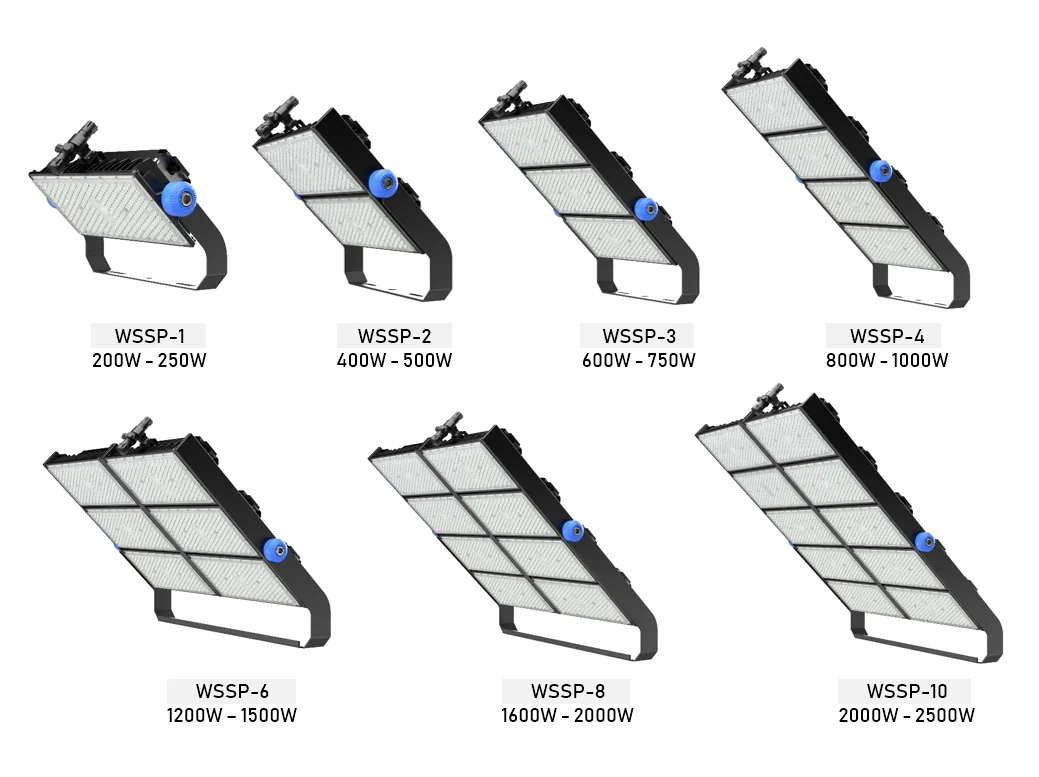

MODEL SERIES
TOP QUALITY LEDs
● High Lumen 160lm/W CREE LEDs
● Multi Beam Angle Optional Optical Lenses
● LM-80 Qualified >12,5000hrs Long Life LEDs
● CRI >75Ra

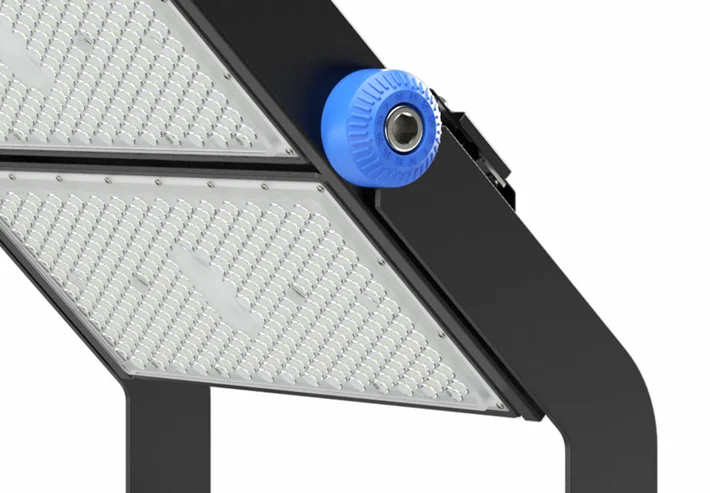

ADJUSTABLE TARGET ANGLE
● Target Angle Adjustable
● With Degree Mark to Help to Adjust

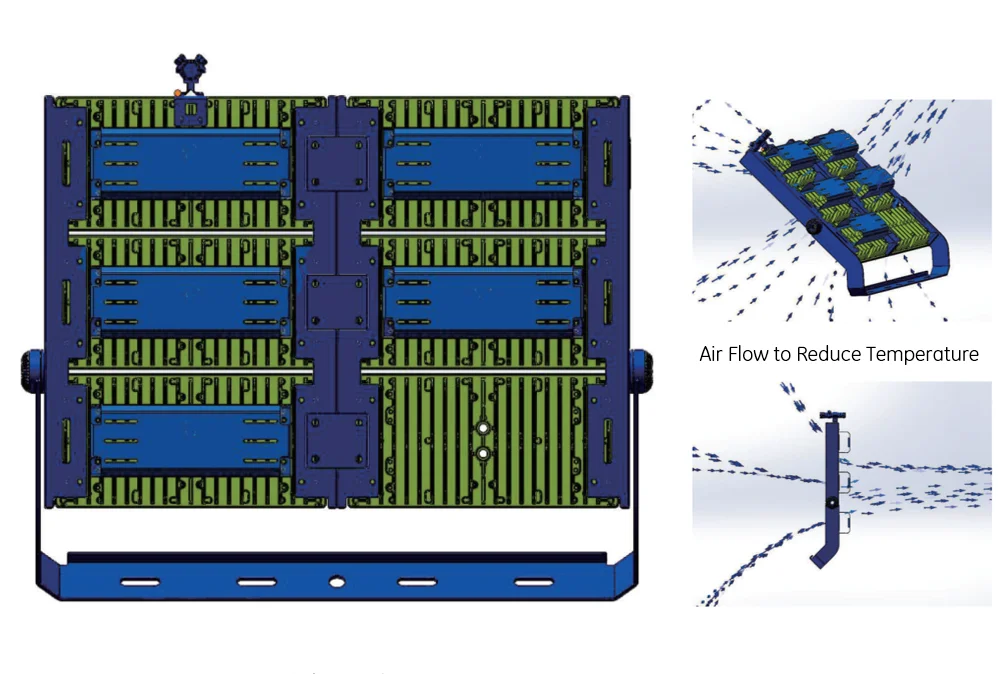

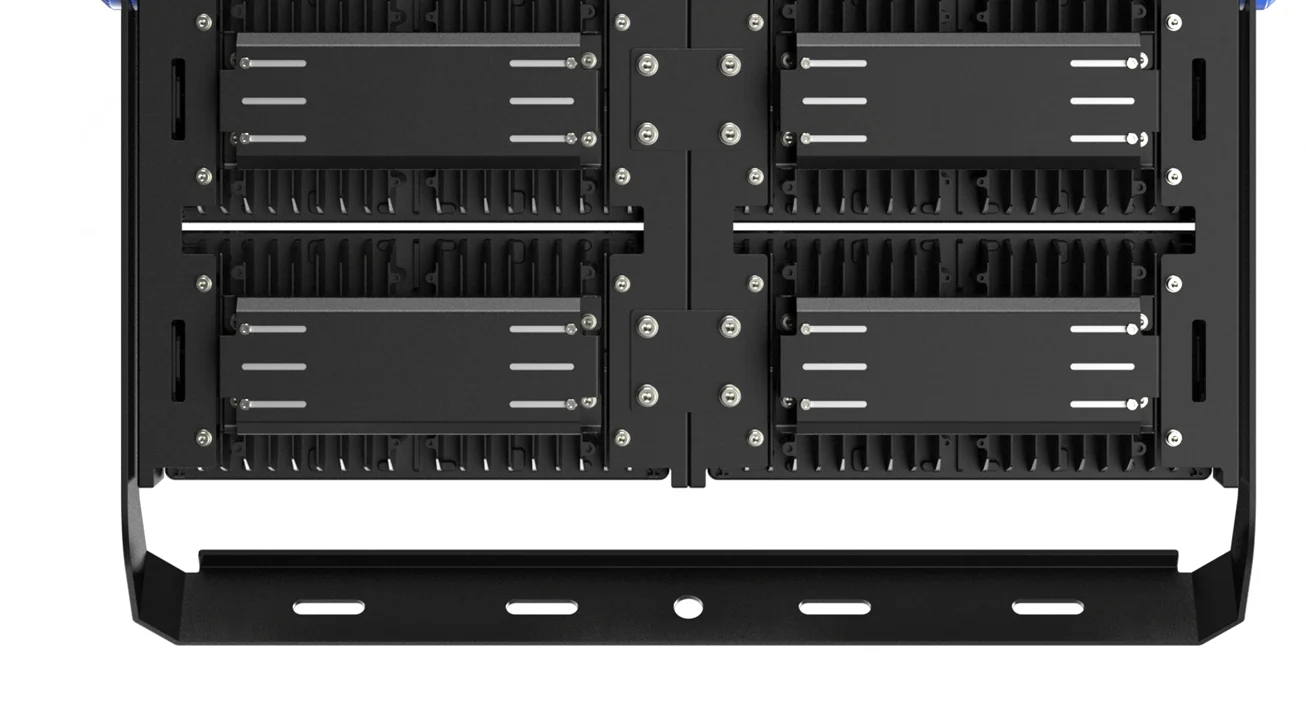

ADVANCED HEAT MANAGEMENT DESIGN
● Modular Design to Create Air Flow
Enables Lower Working Temperature
● Help to Prolong the Usage Life of Drivers and LEDS

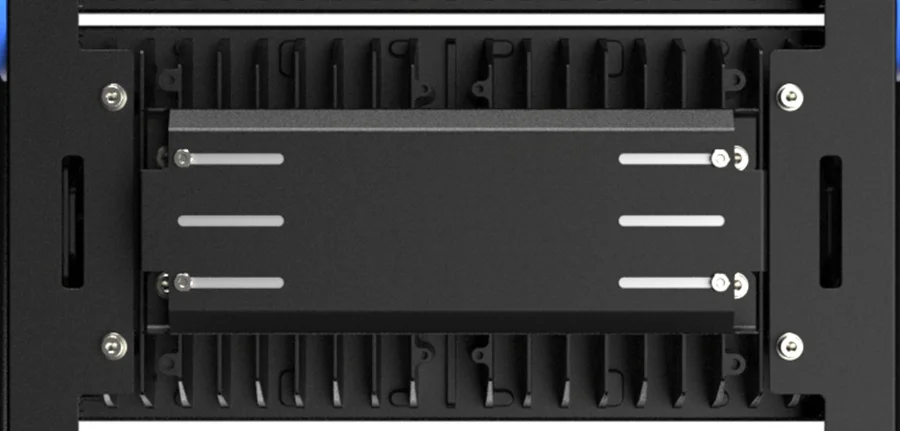

HIGH QUALITY MW LED DRIVERS
● Waterproof LED Drivers with Case Protection
● High Quality Brand Drivers to Ensure the
Reliability for Outdoor

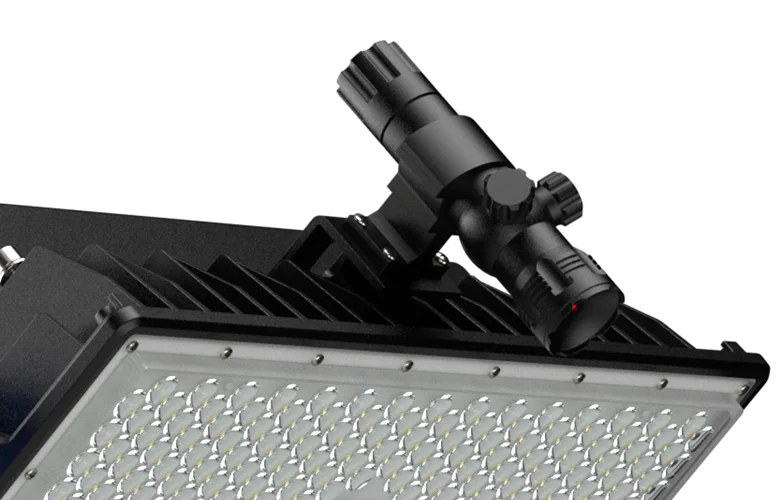

LASER SIGHT
● Laser Sight can be Provided to Target to the Best Position on the Field

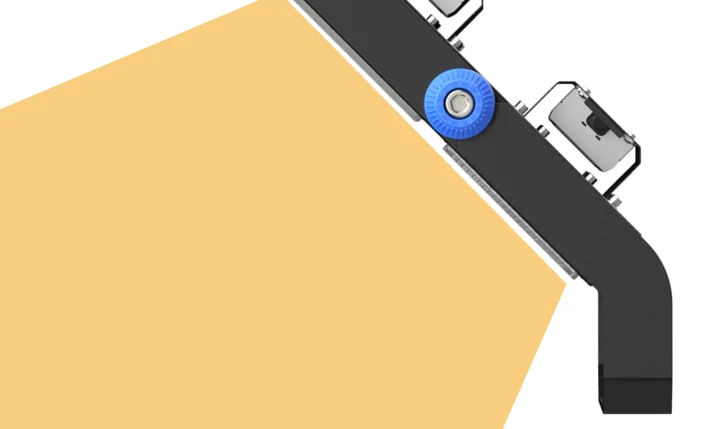

SPECIAL DESIGNED BRACKET
● Special Designed Bracket to
Avoid Blocking the Light
● Improve the Light Efficiency
HIGH THICKNESS ALUMINUM
● Aluminum with Powder Coating Materials
● Anti-glare Shells to Reduce Glare to Create a Comfortable Environment
HIGH STRENGTH BRACKETS
● High Strength Metal Bracket to
Withstand Strong Winds
● Rotating Bracket to Suit for Various Installation Condition
SPECIFICATIONS
Model Series: WSSP Series
Power Range: 200W - 2400W
LED Efficacy: >160lm/W
CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 5700K, 6500K
CRI: ≥70Ra
LED Life: >125,000hrs
Beam Angle: 15° / 30° / 45° / 60° / 90°
PF: >0.97
Power Supply Efficiency: >92%
THDi: ≤10%
Surge Protection: 10KV
Control: Photocell / Type Phase Dimming / 0-10V / PWM / Dali Dimming Optional
Material: Aluminum and PC Optical Lens
Color / Finish: Sand Black
Protection Grade: IP66
MODEL NO. | WSSP-1 | WSSP-2 | WSSP-3 | WSSP-4 | |||
POWER RAGE | 240W (200W-250W) | 480W (400W - 500W) | 720W ( 600W - 750W) | 960W (800W - 1000W) | |||
INPUT | 100 - 305V AC | ||||||
LEDs | High Efficacy Branded 3030 LEDs | ||||||
LED QTY | 336pcs | 672pcs | 1008pcs | 1344pcs | |||

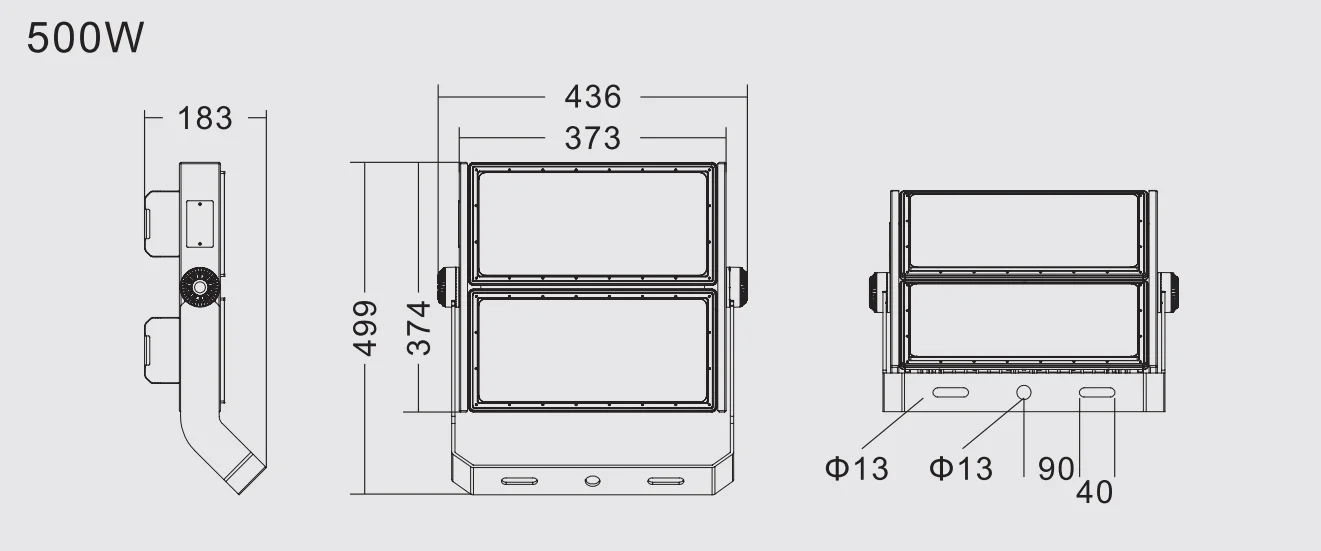

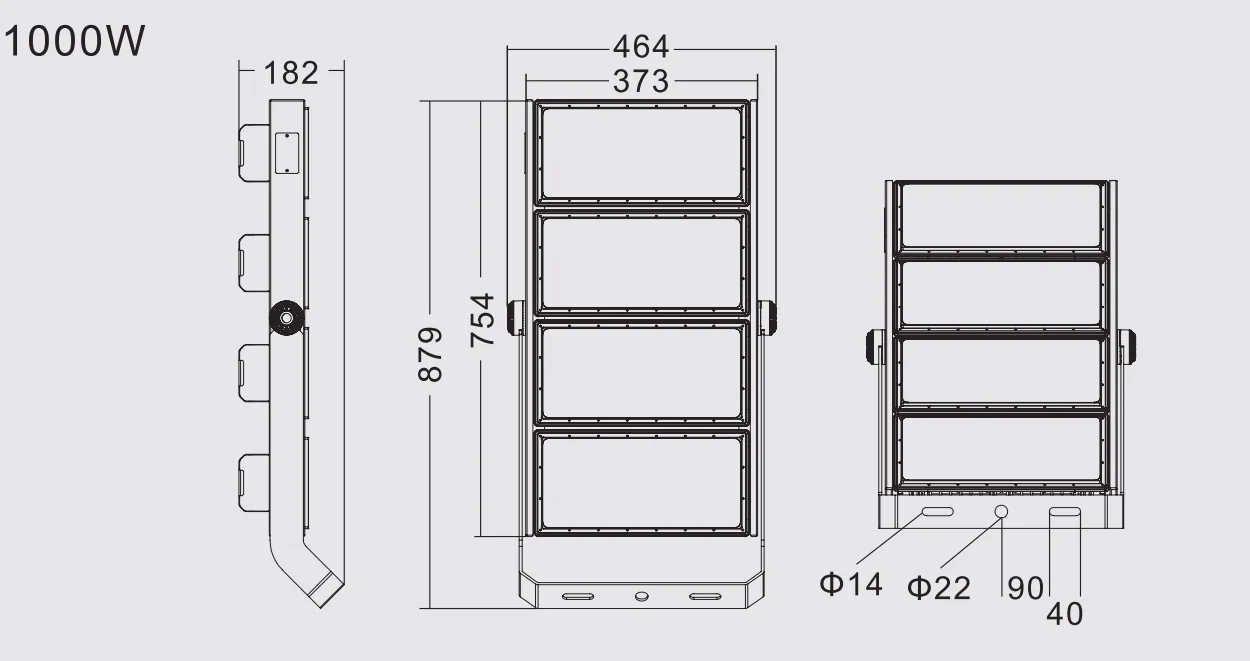

DIMENSIONS | 436*284*163mm | 436*499*183mm | 464*689*183mm | 464*879*182mm | |||
NET WEIGHT | 4.2kg | 16.0kg | 20.5kg | 29.3kg | |||
PROTECTION | IP66 | ||||||
MODEL NO. | WSSP-5 | WSSP-6 | WSSP-8 | WSSP-10 | |||
POWER RAGE | 1200W (1000W-1250W) | 1440W (1200W – 1500W) | 1920W (1600W - 2000W) | 2400W (2000W - 2500W) | |||
INPUT | 100 - 305V AC | ||||||
LEDs | High Efficacy Branded 3030 LEDs | ||||||
LED QTY | 1680pcs | 2016pcs | 2688pcs | 3660pcs | |||
DIMENSIONS | 464*1069*183mm | 865*692*189mm | 865*882*189mm | 865*1072*189mm | |||
NET WEIGHT | 36.0kg | 36.5kg | 43.5kg | 52.0kg | |||
PROTECTION | IP66 | ||||||

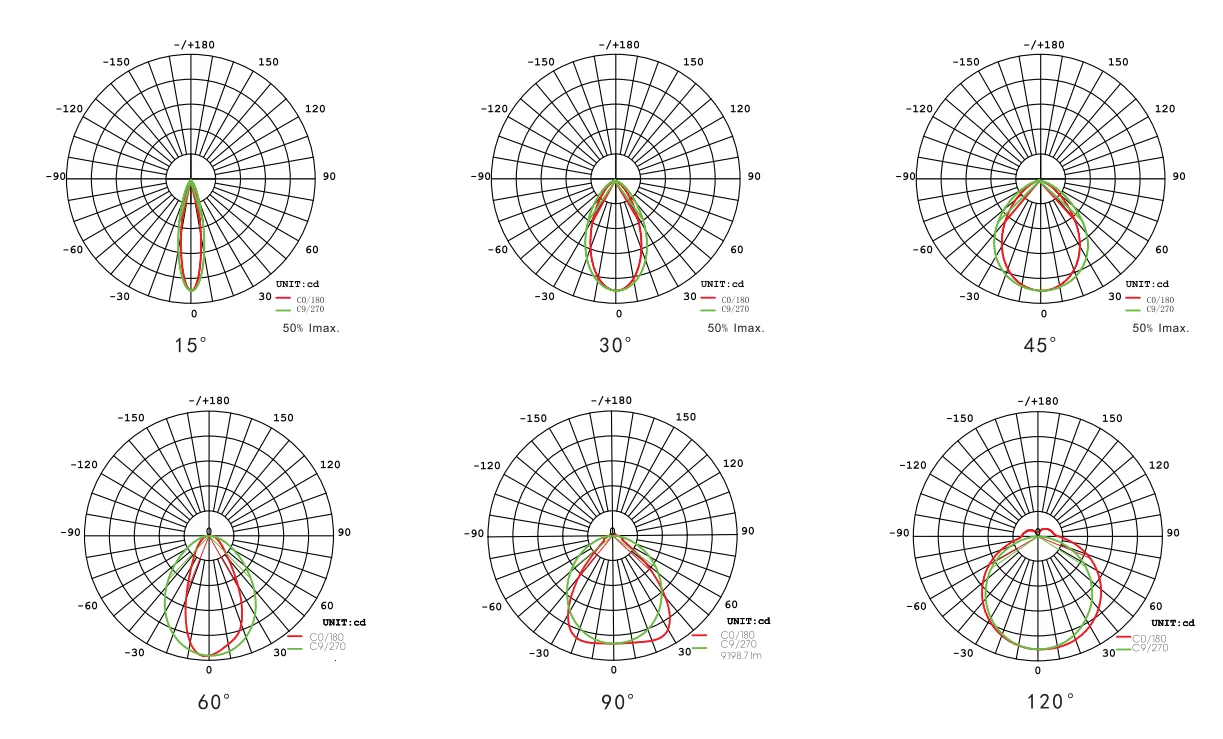

LIGHT DISTRIBUTION
APPLICATIONS
Architectural lighting, area lighting, tunnel lighting, warehouses, high mast lighting, football stadium lighting, swimming pool, car parks, production lines, exhibition halls and etc.
