Tobee Effluent Handling
$12,600
Salt Water Brine Pump, Salt Water Heat Pump, Pompe Pvdf Hcl
- Category: >>>
- Supplier: Shanghai Shuangbao Machinery Co. Ltd.
Share on (62500927254):
Product Overview
Description
Product Description

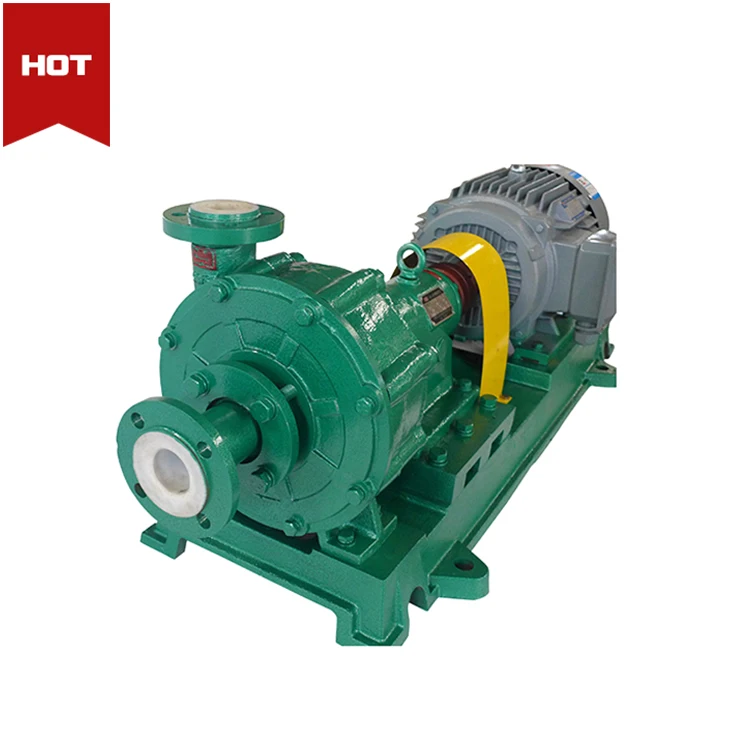

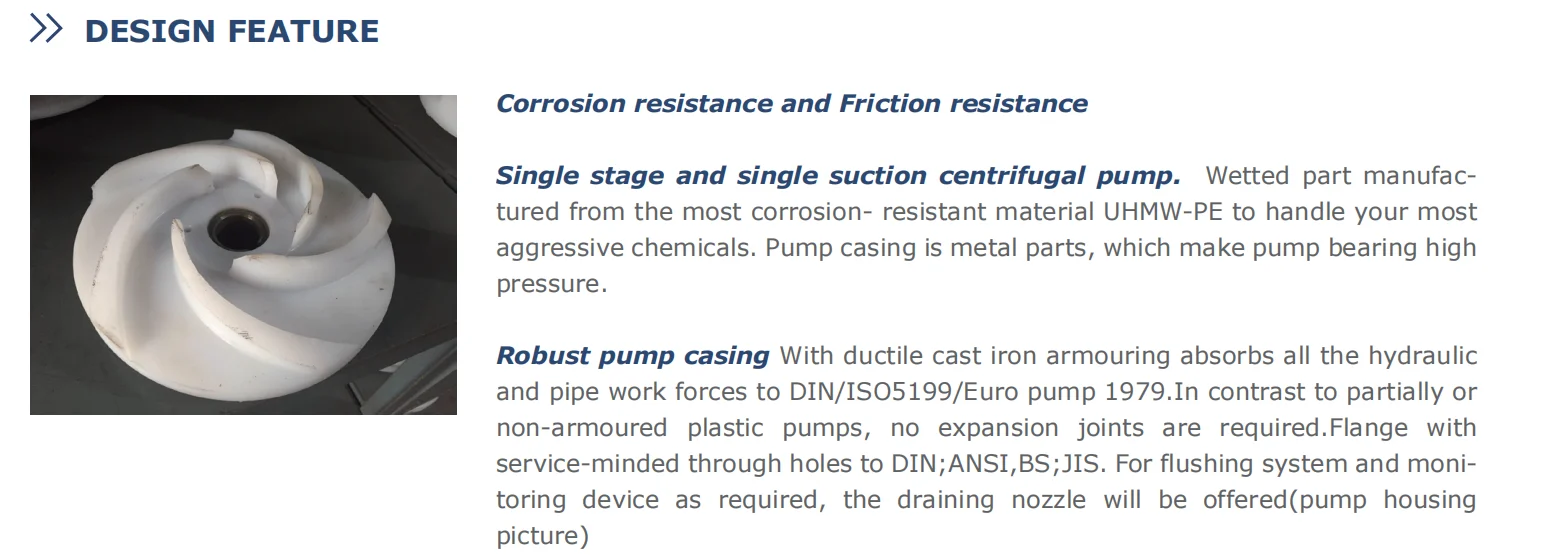

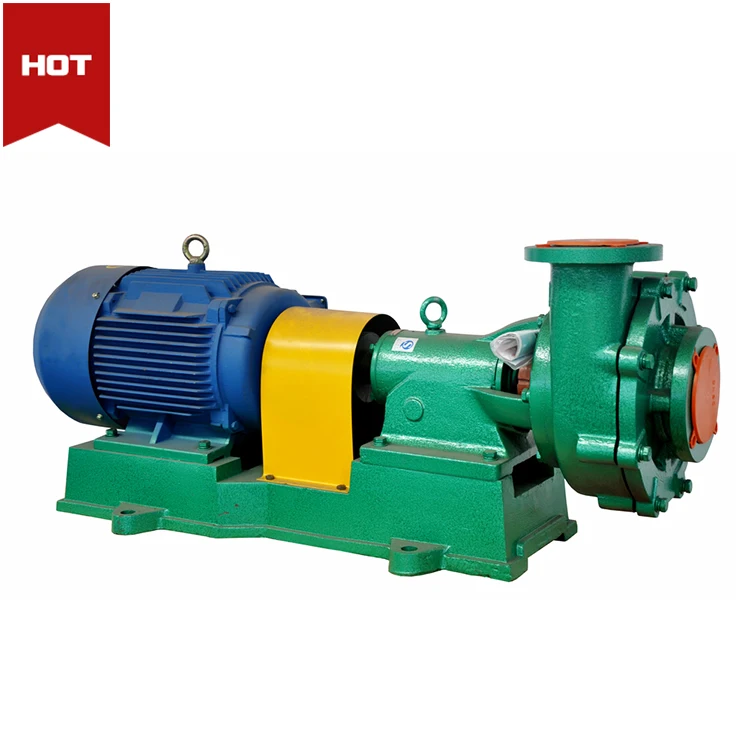

UHB-ZK is a horizontal slurry pump, a single stage and single suction centrifugal pump, especially designed for high corrosion liquid which contains tiny particles.

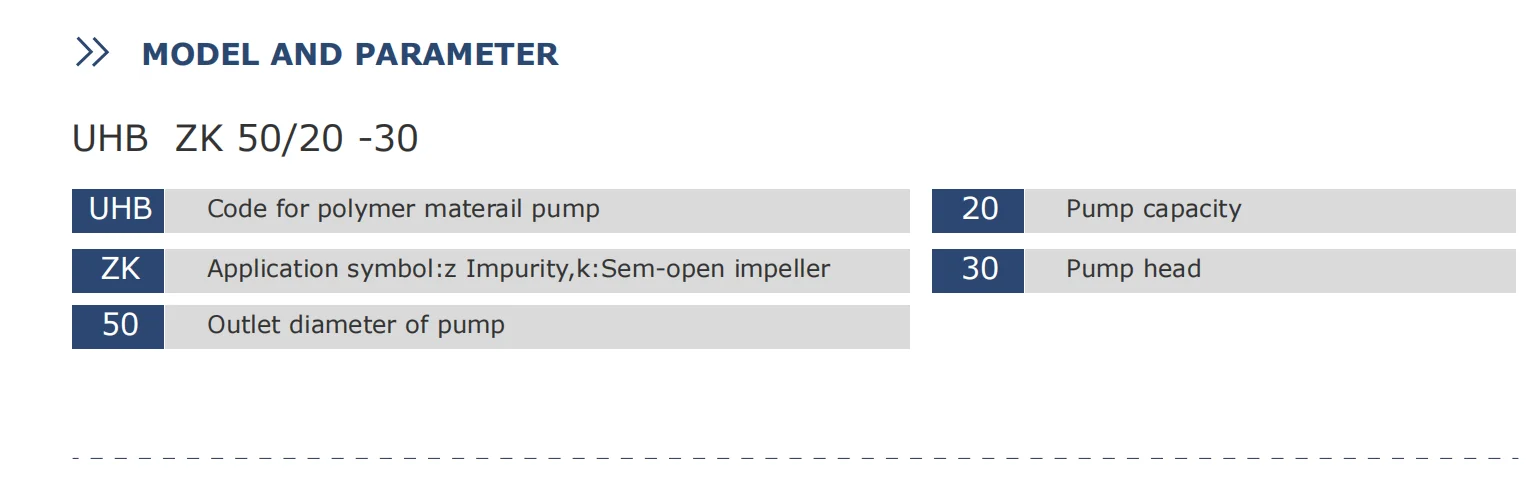

Pump type: UHB-ZK slurry pump
Certification: ISO9001, CE, AEC
Temperature range:-20°C ~ 80°C
Product Name | Promotional fluorine plastic electric suction high flow chemical pump |

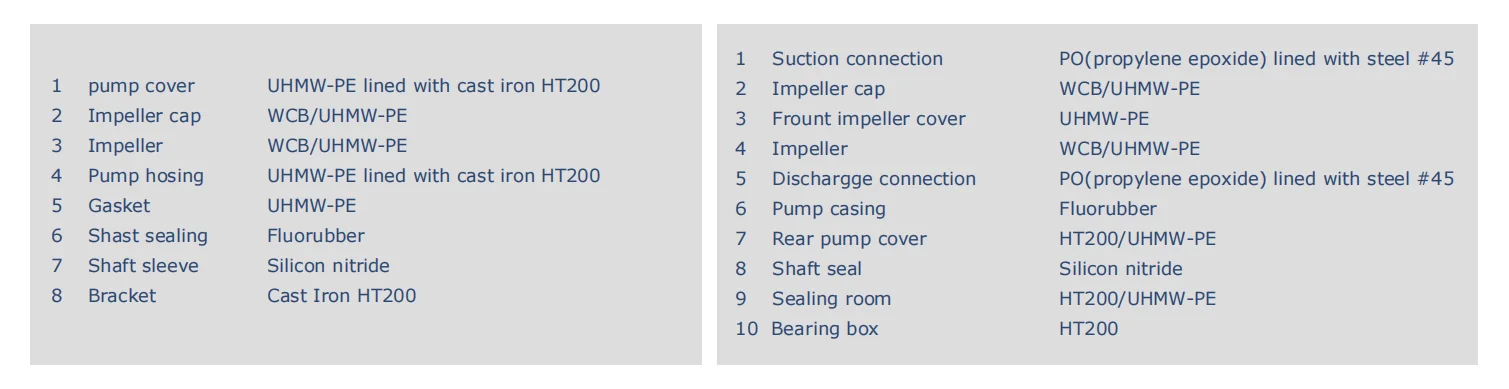

Material | UHB lining |
Temperature | -20°C ~ 80°C |
Standard | ISO/ANSI/ASME |
Flow rate | 1600m3 / h |
Head | up to 2000m |
Voltage | 380V/50HZ; 415V/50HZ, according to different country voltage |
Producrt Details

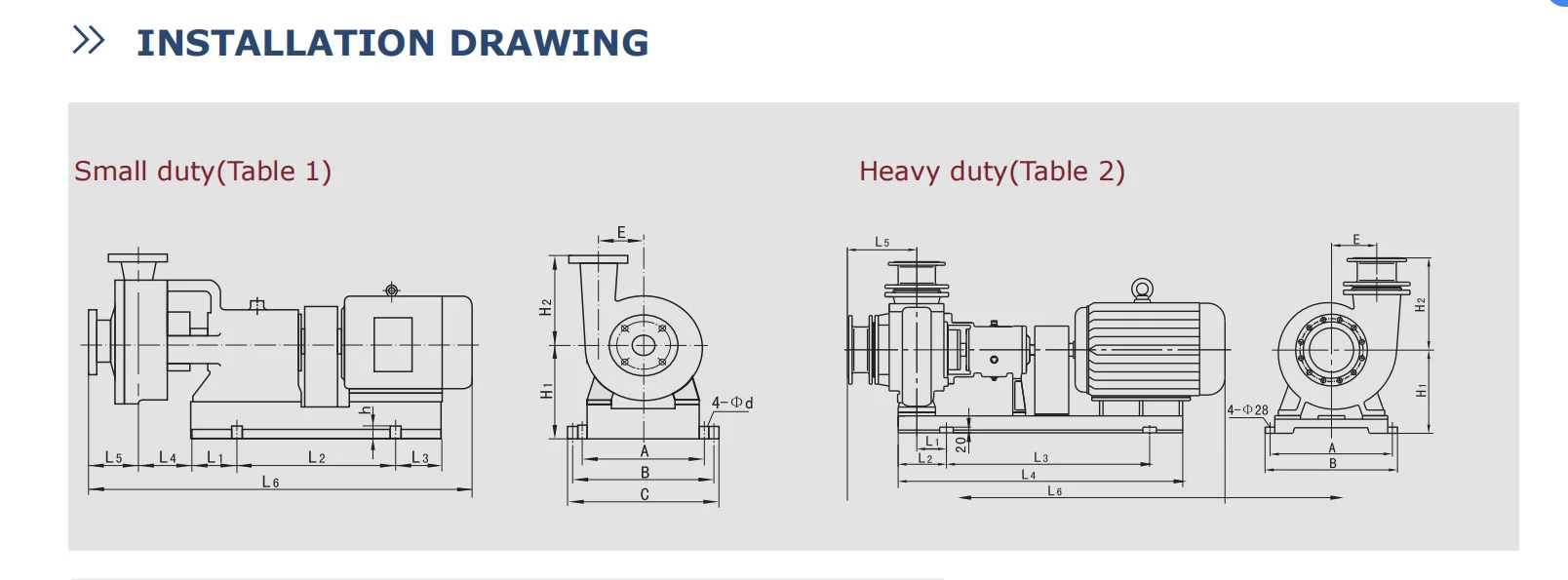

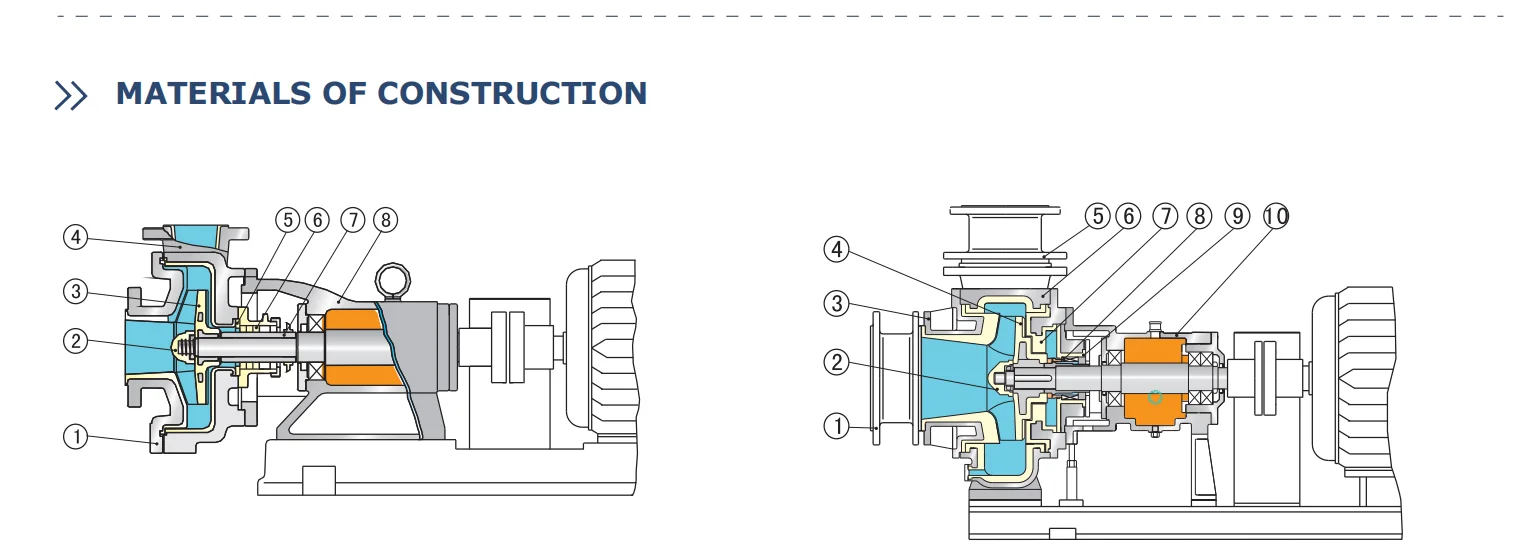

Several points on structure:
1.Light duty pump structure, suction diameter <200mm
Bracket structure , Pump casing no base plate, the bracket share a common plate with motor Bearing lubrication method: diameter≦125mm, bearing by grease lubrication, bearing housing no additional machine oil
required.
Diameter>125mm, bearing by oil lubrication, bearing house need additional machine oil.
2.Heavy duty pumps structure. Suction diameter≥250mm.
Pump is suspension structure; pump and motor share a common base plate.
Bearing lubrication method is grease lubrication, bearing house need additional machine oil.

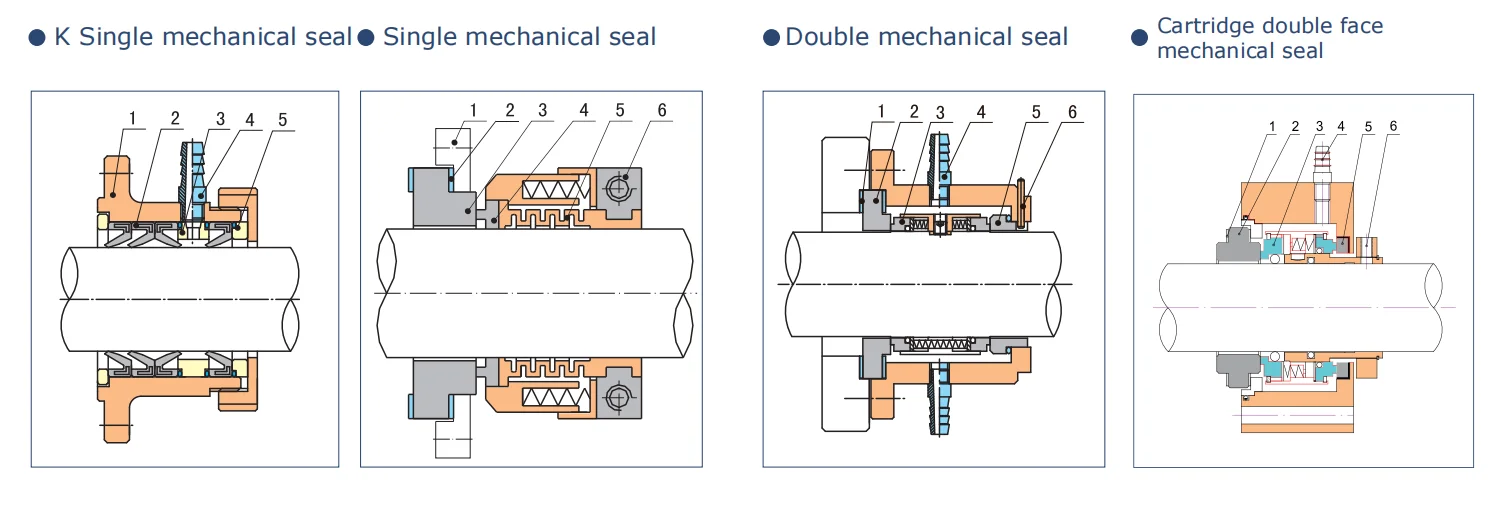

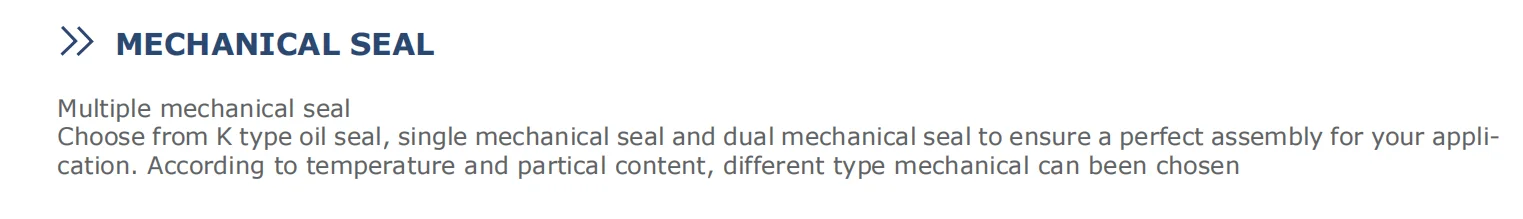

3.UHB-ZK slurry pump can choose from multiple mechanical seal according to different application, normally seal type
is K type oil seal.
About Factory

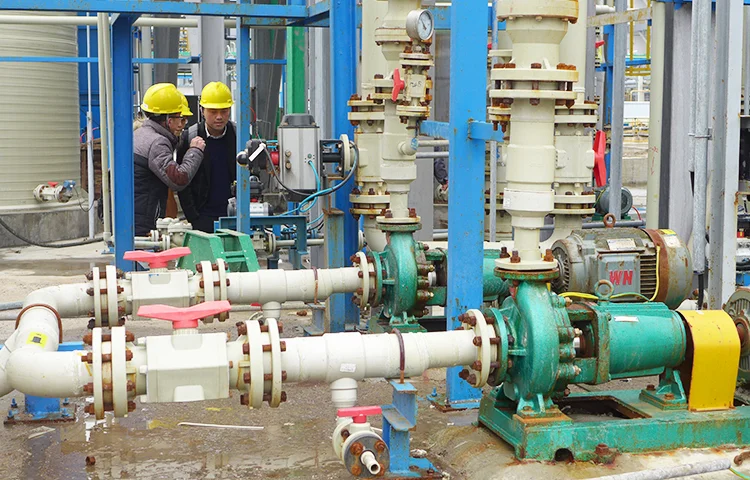

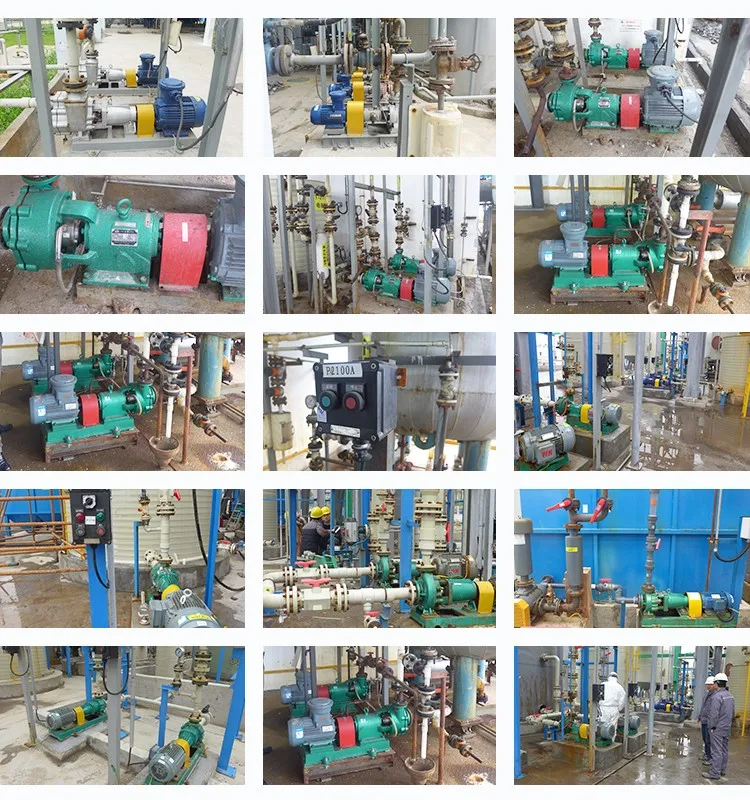

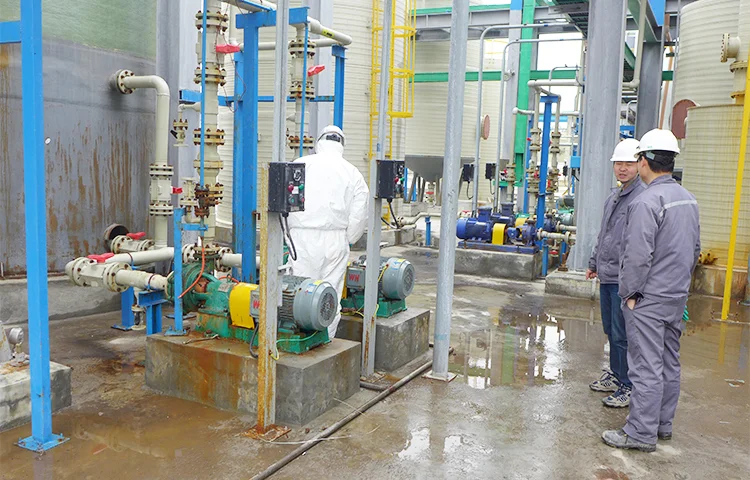

Customer Photo
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
