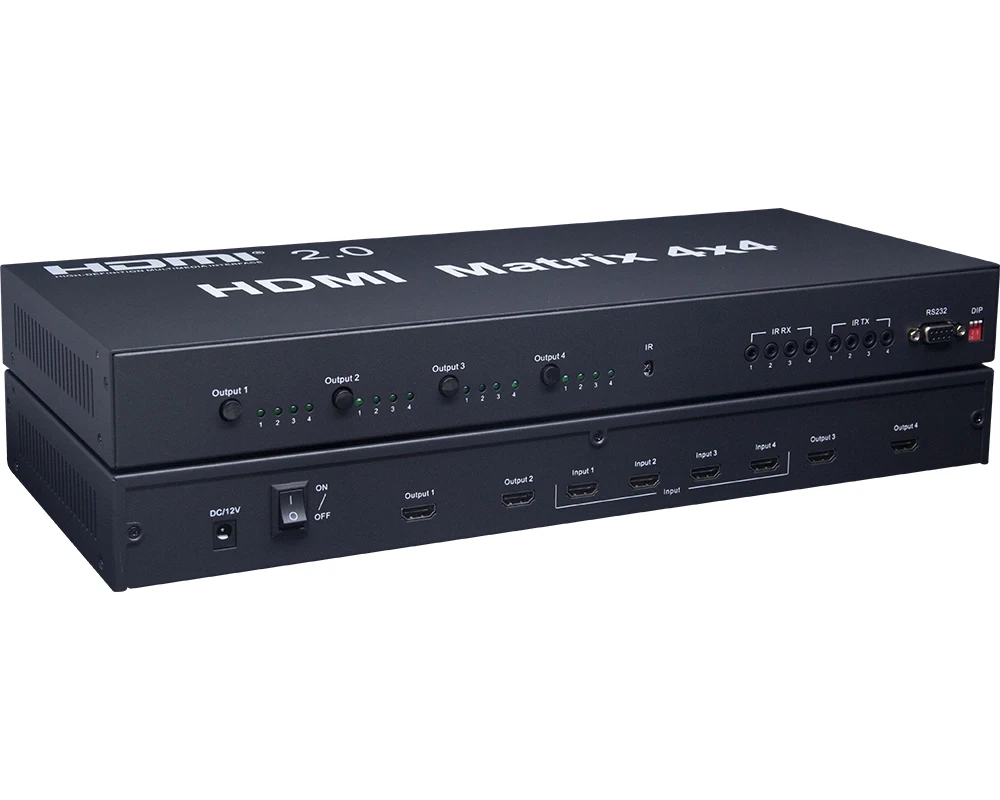

Introduction : The 2.0 HDMI Matrix 4x4 can connect four HDMI signal sources with the four displays at the same time.It can easily and freely split or switch four hdmi signals on four displays or projectors which compatible with hdmi signal. Extra infrared receiver extension, IR emitter, RS232 are supplied for remote control. HDMI matrix 4x4 has the ability of equalization and amplification to ensure HDMI signal's transmission through long cable without quality loss.This HDMI matrix offers solutions for digital entertainment center, HDTV, retail and show site, HDTV, STB, DVD and projector factory, noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
Features : * Support HDMI 2.0,HDCP 2.2* Support 3D; * Support high definition resolutions 4K/60Hz,1080p, 1080i, 720p and other standard video formats; * Support audio format DTS-HD/Dolby-trueHD/LPCM/DTS/DOLBY-AC3/DSD;* Support IR Remote Control* Support RS232 * The four outputs could show the same or different source simultaneously; * Support 4K (input) resolution 2K (output) (Downscaling)

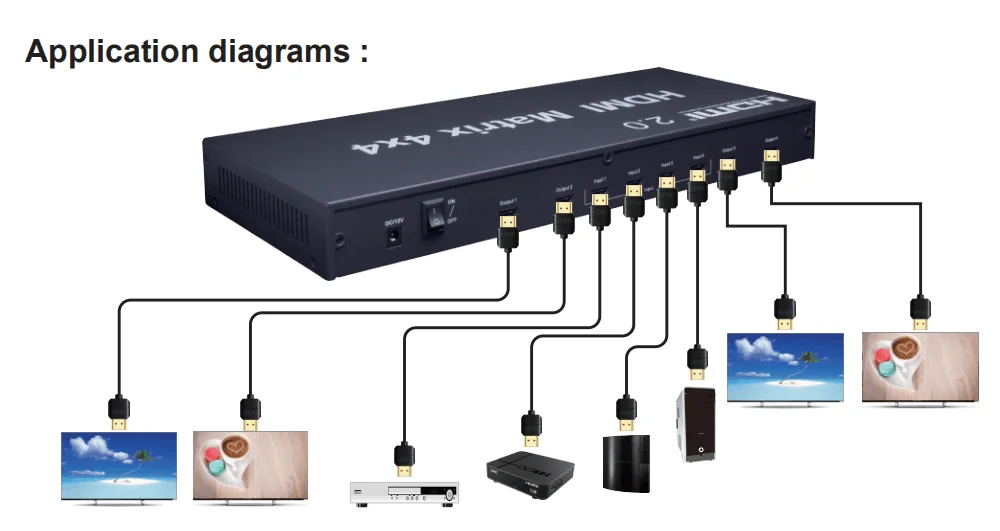

Operating and Connecting : 1. Connect each HDMI source devices and input of HDMI Matrix with HDMI cable. 2. Connect display devices and output of HDMI Matrix with HDMI cable. 3. Use the IR remote control to switch the signal source freely. 4. Connect 12V power supply to the HDMI 4x4 Matrix. 5. How to use RS-232 port? Through RS - 232 port you can update software and monitor the state of the input and output signals. And can switch signals. When connects the computer, customer can easily switch the signals via computer.
IN1 IN4 IN2 IN3 4K HDMI Matrix 4x2 IN1 IN4 IN
