Fractional Rf Microneedle Machine/factory price of Rf Fractional machine

Product Overview

Description

Facial beauty equipment radiofrequency micro needle rf fractional

What is Micro Needle Fractional RF system?

    The Micro-Needle Fractional RF System is the ideal technology for skin lifting, tightening and rejuvenation by utilising minimally invasive micro-needles to deliver controlled RF energy directly into various depths of the skin.

    It has had outstanding success for all skin types with very low risk of side effects and PIH – a key difference when compared to optical based treatments (IPL & Laser).

   The RF energy is delivered through the focused tip of the micro-needles, leading to far-less trauma to the surrounding epidermis. This leads to significantly decreased discomfort and down time for the patient compared to conventional fractional lasers. Non-insulated micro-needles are more effective and takes care of both epidermal and dermal problems without the need for additional superficial fractional RF treatments (SFRs).

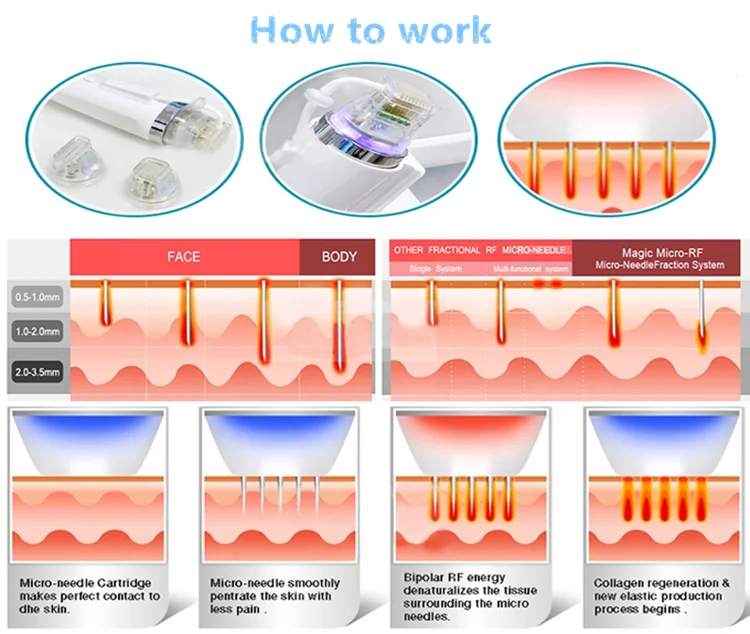

Working Theorapy :

 Fractional RF needle system through the special design of many fractional needle point array, the high speed digital motor controls order through the epidermis and the dermis accurate to control the depth of 0.25-3 mm,again by the end of lattice needle release RF,stimulate collagen and elastic tissue,and is not themal damage skin layer potentical.When skin tissues through this process,the epidermal layer is safe,RF energy can well to penetrate to the dermis,stimulate collagen protein hyperplasia,not only is the best way to improve the scars,but also long-term tightening skin wrinkles induced the good method. Cryo helps SRF and MRF play its function.

 Advantages:



1.treatment with vacuum,more comfertable

2. Non Insulated Needles
It is possible to operate equal therapy to Epidermis Layer and Dermis Layer as the needle do not have Insulation Plating.

3. Stepping Motor Type
Different to existing Solenoid Type, the needle inserts to the skin smoothly with no shock, and causes no bleeding and no pain after the procedure.

4. Gold Plated Needles
Needle is durable and also has high Biocompatibility by applying Gold Plating. Patient with metal allergy could also use it with not concerning Contact Dermatitis.

5. Precise Depth Control. 0.5~5.0mm [0.1mm Step]
Operates epidermis layer and dermis layer by Controlling the needle depth in unit of 0.1mm

6. Safety Needle System
- Sterilized disposable needle tip
- Operator can easily notice the applying RF energy from ared light.
7. Elaborate Needle Thickness. Min : 0mm < Max : 0.3mm
The needle structure is easy to penetrate the skin with minimum resistance.

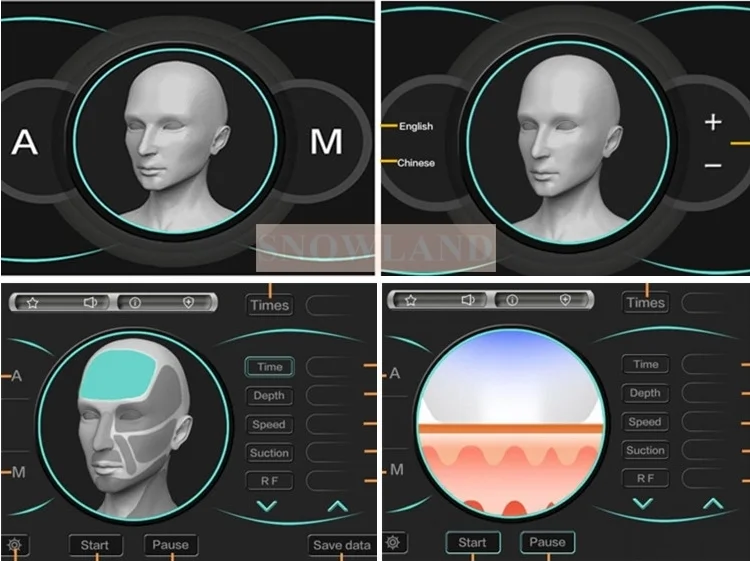

Product interface:

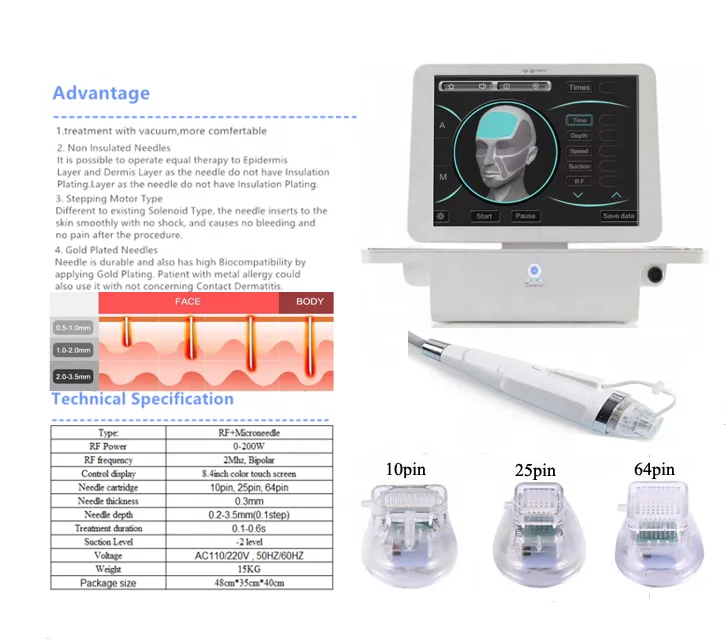

Specifications:

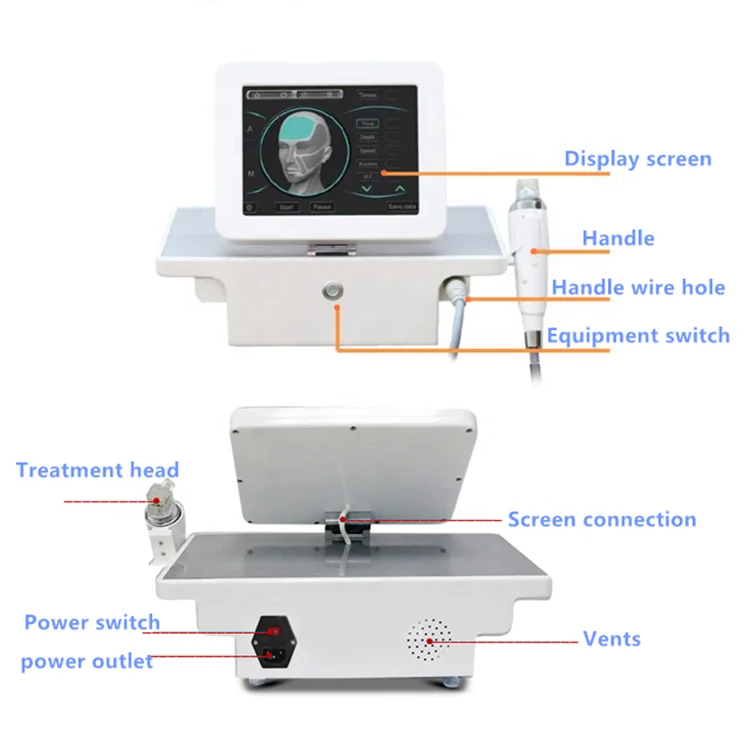

Machine size:

technical parameter:



Type:	RF+Microneedle
RF Power	0-200W
RF frequency	2Mhz, Bipolar
Control display	8.4inch color touch screen
Needle cartridge	10pin, 25pin, 64pin
Needle thickness	0.3mm
Needle depth	0.2-3.5mm(0.1step)
Treatment duration	0.1-0.6s
Suction Level	-2 level
Voltage	AC110/220V , 50HZ/60HZ
Weight	15KG
Package size	48cm*35cm*40cm



Packaging and Logistics:



Beijing Goldenlaser Development Co., Ltd.is a high-tech company which has been engaged in R&D, production, sale & after-sales service of beauty equipment and accessories since 2000. Presently, we have many high qualified engineers and a well-educated sales team. We communicate with many foreign Optical Engineering Research Centers to enlarge our scale and

increase investment in new products to meet the requirements of different markets. Our main business focuses on developing

and producing high quality beauty equipment inner accessories.

We are in the leading position in the field of beauty equipment.
We have independently developed Elight, diode laser hair removal, co2 fractional laser,ipl+diode laser,and all kinds of slimming

machine skin care products. With high technology, stable quality and perfect treatment results, these devices have won great

popularity among clients from all over the world. Furthermore, the best quality products make our company have great competitiveness

in the market, promoting technology of beauty to a high speed development level.
Our company insists on the "Quality is our life, integrity will win market" principle. With excellent product quality, we have won the trust

of our customers. We will make those who take great enthusiasm with Beauty friends' dream come true! Creating and maintaining a

leading position in world science and technology in Beauty field is the unshaken goal of Goldenlaser!



1. What is the Payment Terms?

Re: T/T (Wire Transfer), Western Union, Moneygram, Paypal



2. How do you delivery the machine?

Re: By door to door service, say DHL,UPS,TNT,FEDEX,etc ,Or air cargo, Or by sea.



3. What about the delivery?

Re: About 3-7 working days.



4. What’s your warranty?

Re: 12 months for host machine.



5. Do you offer clinical training?

Re: Yes .Welcome to our company for free and professional training.



6. Do you offer OEM/ODM service?

Re: Yes .Welcome to contact us for more details.



Professional aesthetic equipments supplier: IPL/SHR hair removal machine, RF wrinkle removal machine, Diode laser, Q-switch Nd yag laser, Er yag fractional laser, Co2 fractional laser, Low level laser etc.
