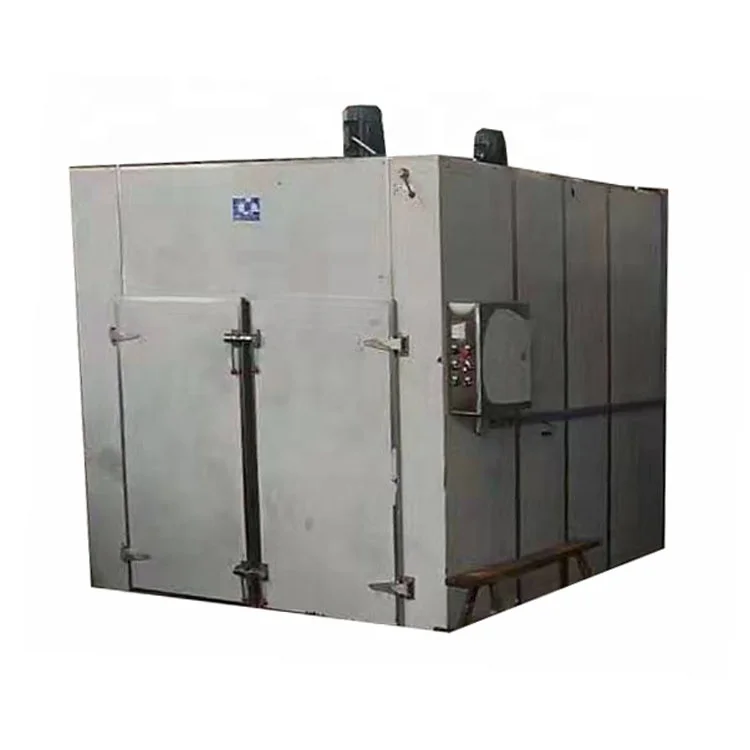

Dehydrated onion production line dehydrated coffee berry plum dehydrator for yam mushroom drying machine

Product Detail

Introduction

CD system Hot Air Circulation Drying Oven has reached the advanced level at home and abroad  by a lot of upgrading, adopt the axial flow fan, with automatic constant temperature control system. Its thermal efficiency is more than 95%, adopts convective heat transfer method to heating the air by few type heating methods.

Application

The hot air dryer oven is widely used in food processing, such as purple yam , sweet potato , pumpkin slice , mango , apple , banana , data , pineapple , kiwi berry , strawberry , ginger , onion, carrot , garlic , ginseng , mushroom , red ginseng , honysuckle , etc

Advantages

1,Heat source: electricity,steam,gas,biomass,coal(Option)
2, Control system adopts intelligent temperature controller and a button control, convenient operation, long service life.
3, Hot air circulated in the working shop, high thermal efficiency, energy saving;
4, Using the forced ventilation function, the box is not adjustable air distributing plate, material drying uniformity.
5, The trolley and trays made by our factory are uniform in dimensions, and can be exchanged each
6, Low noise, automatic temperature control, convenient installation and repair.
7, Wide applicable range, variety of materials can be drying.
8, The temperature range is RT-150 °C. controllable and adjustable.

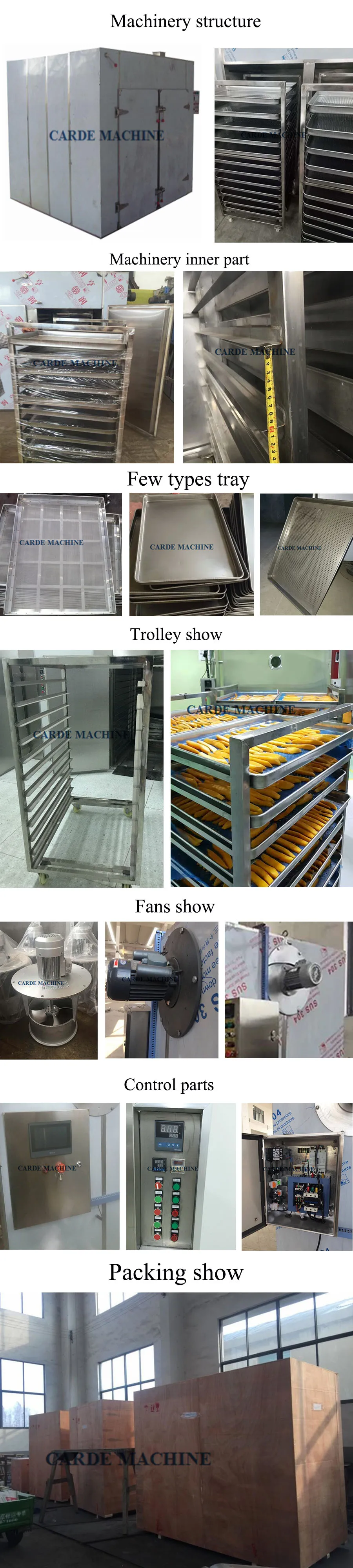

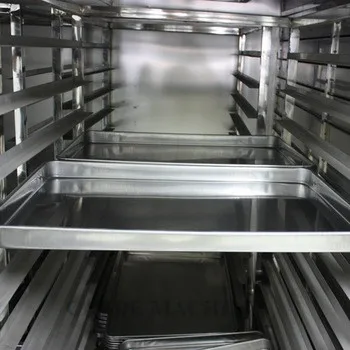

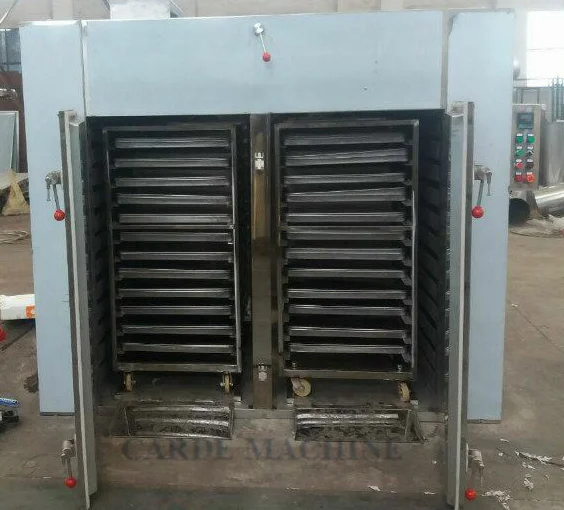

Details Show

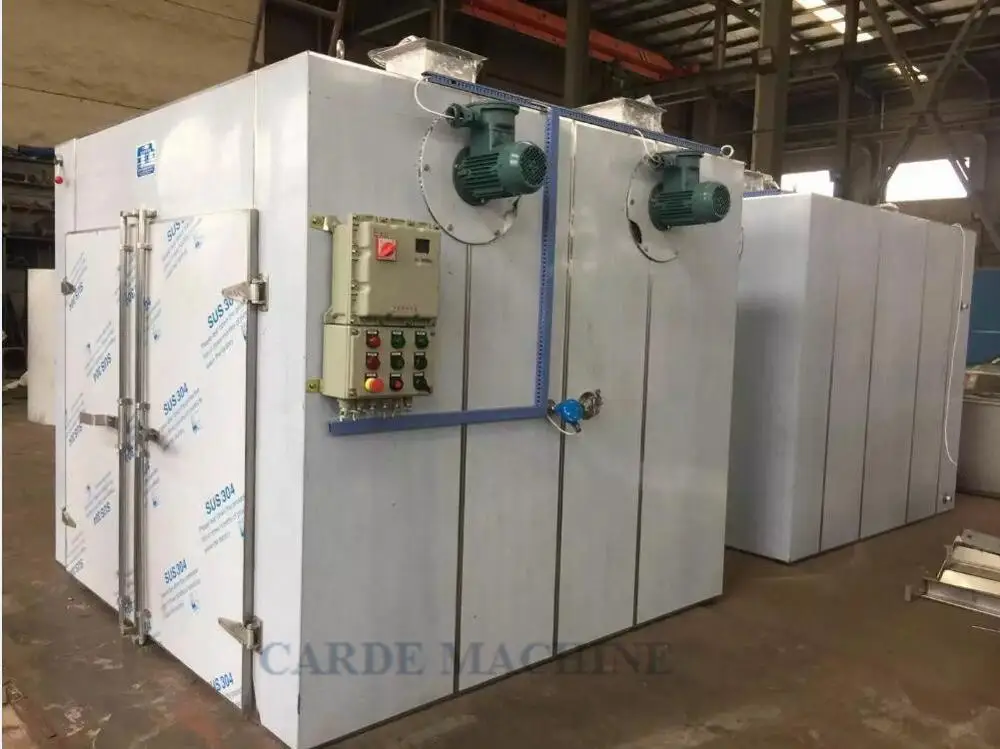

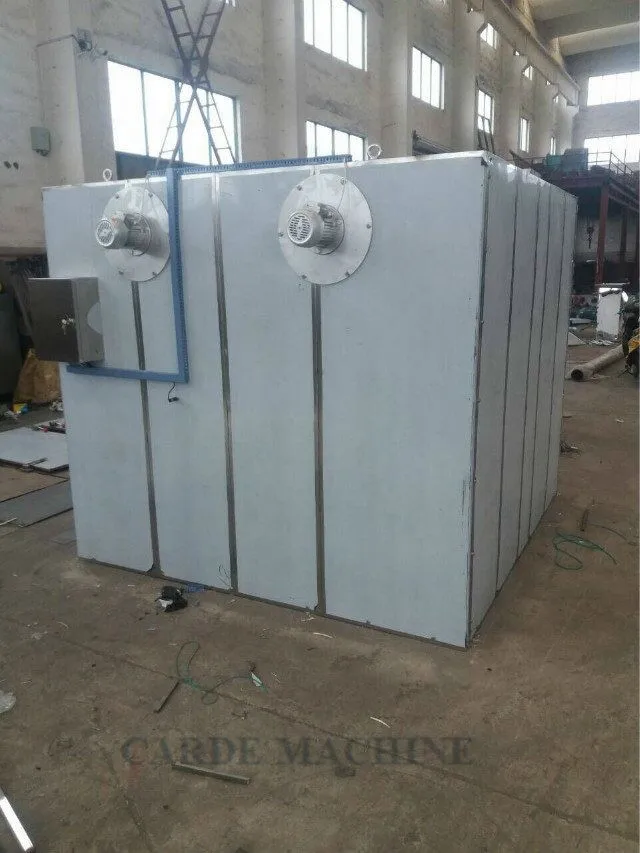

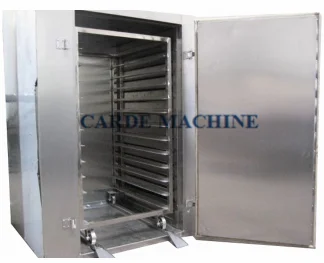

Same system,other models hot air dryer

(Click other models picture,see more details)

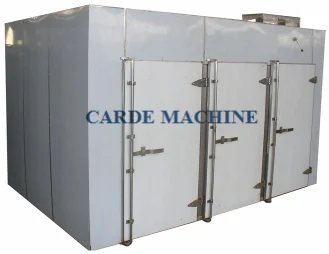

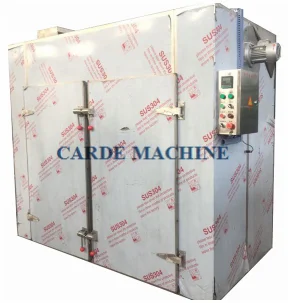

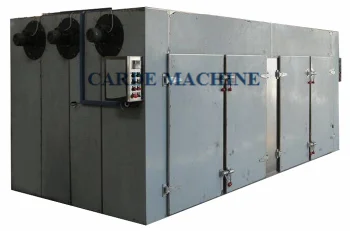

Model: CD-HX-24 Capacity(Batch):100-150kg Tray quantity: 24Pcs Tray size: 640*460*45mm Heating method: electricity Power: 9Kw Machine size: 1400*1200*2000mm (Heat method option: electricity steam,gas,diesel,biomass,coal etc)
Model: CD-HX-48 Capacity(Batch):200-250kg Tray quantity: 48Pcs Tray size: 640*460*45mm Heating method: electricity Power: 15Kw Machine size: 2300*1200*2000mm (Heat method option: electricity steam,gas,diesel,biomass,coal etc)
Model: CD-HX-144 Capacity(Batch):700-750kg Tray quantity: 144Pcs Tray size: 640*460*45mm Heating method: electricity Power: 48Kw Machine size: 2300*3200*2000mm (Heat method option: electricity steam,gas,diesel,biomass,coal etc)
Model: CD-HX-192 Capacity(Batch):900-950kg Tray quantity: 192Pcs Tray size: 640*460*45mm Heating method: electricity Power: 60Kw Machine size: 4450*2200*2000mm (Heat method option: electricity steam,gas,diesel,biomass,coal etc)
Customized model Can customize these details: Machine size Tray quantity Heating method (electricity,steam,gas,diesel,biomass,coal etc) ETC...... . . .
