Product Overview
Description

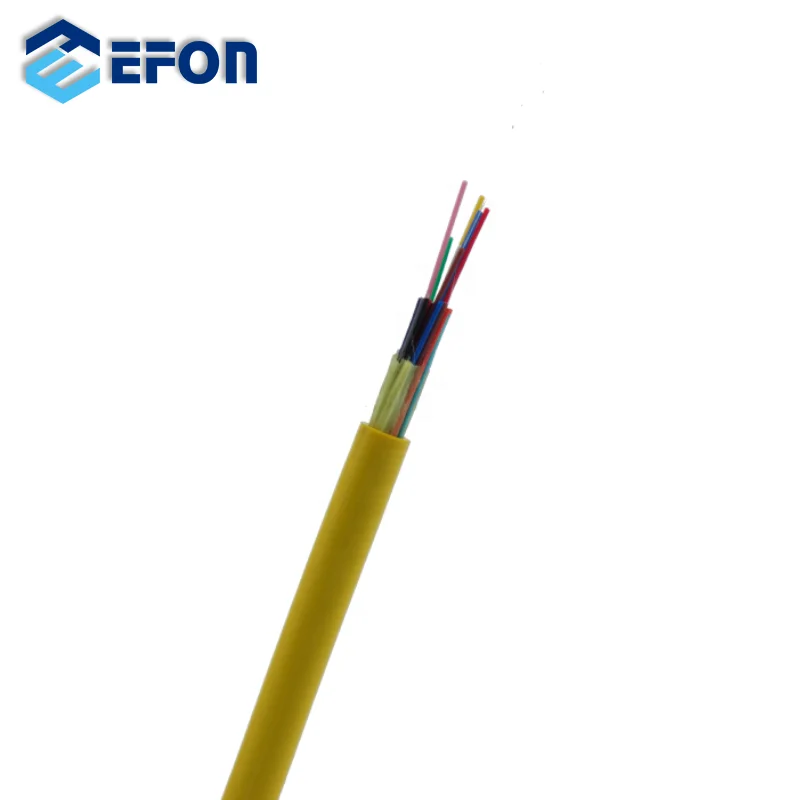

GJFJV-X Indoor Tight buffer MM OM3 Aqua Fiber Optic Distribute Cable
Product Description
MPC Multi-Purpose Distribution cable use several Φ900µm flame-retardant tight buffer fiber as optical communication medium, the tight buffer fiber wrapped with a layer of aramid yarn as strength member units, and the cable is completed with a PVC or LSZH(Low smoke, Zero halogen, Flame-retardant) jacket.

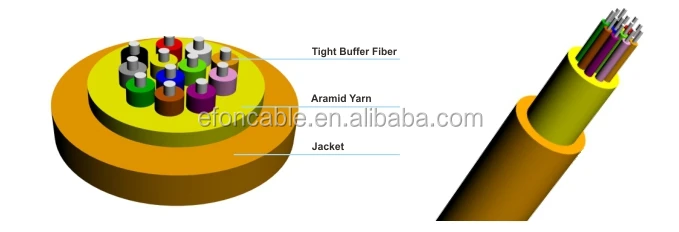

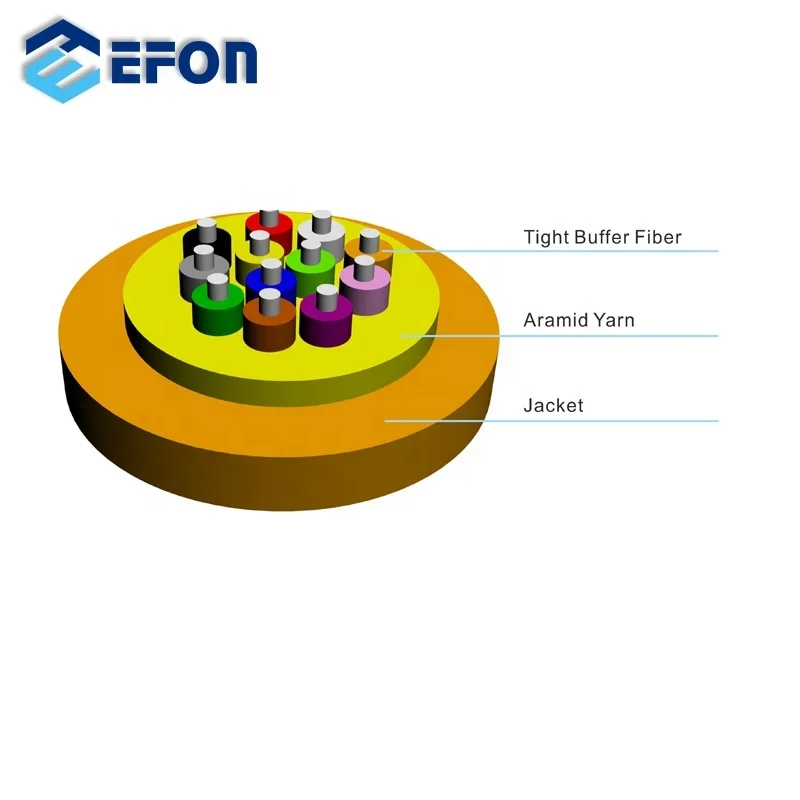

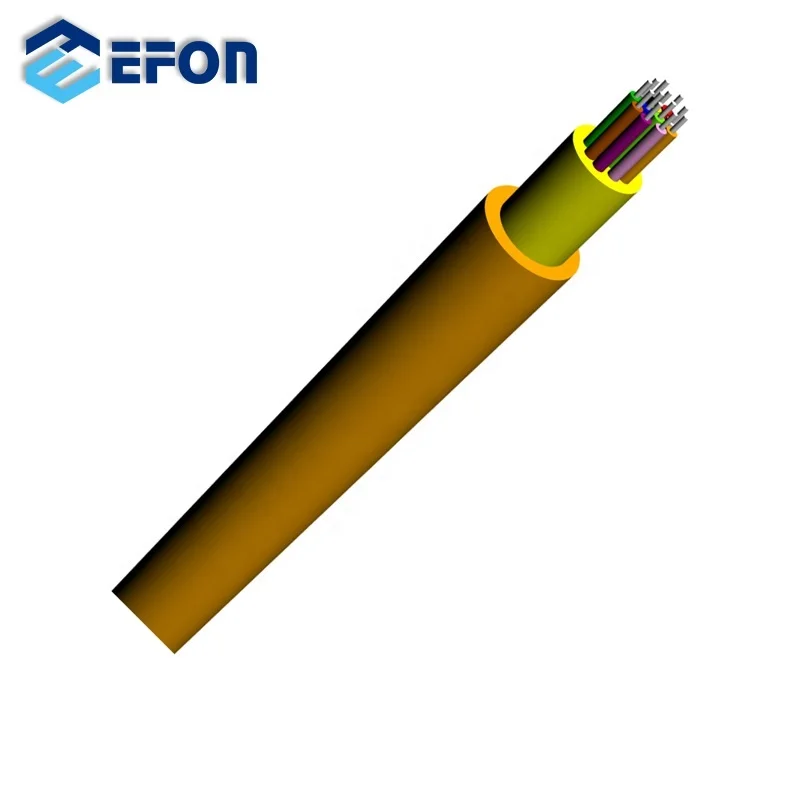

Cable Structure
Fiber on Tight buffer distribution cable:
900um or 600um tight buffer fibers
Strength Member on Tight buffer distribution cable:
Kevlar yarns
Outer Jacket on Tight buffer distribution cable:
Flame resistant PVC or LSZH
Features on Tight buffer distribution cable:
- Tight buffer fiber easy of stripping.
- Tight buffer fiber have excellent flame-retardant performance.
- The outer jacket material have many advantages such as anti-corrosion anti-water, anti-ultraviolet radiation, flame-retardant and harmless to environment etc.
- Aramid yarn as strength member make cable have excellent tensile strength
Applications on Tight buffer distribution cable:
- Indoor any purpose cable distribution.
- Backbone distribution cable in a building.
- Multi optical fiber jumper.
Options on Tight buffer distribution cable:
Fiber Type: G.652D, G.657A1 or G.657A2 single mode fiber and OM1, OM2, OM3, OM4 muti mold fiber.
Optical Characteristics on Tight buffer distribution cable:
| Fiber Type | Attenuation | Overfilled launch Bandwidth | Effective Modal Bandwidth | 10GB/S Ethernet link length | Min Bending Radius | |
| Conditions | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | |
| Unit | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G652D | 0.36/0.22 | 16 | ||||
| G657A1 | 0.36/0.22 | 10 | ||||
| G657A2 | 0.36/0.22 | 7.5 | ||||
| 50/125 | 3.0/1.0 | ≥500/500 | 30 | |||
| 62.2/125 | 3.0/1.0 | ≥200/500 | 30 | |||
| OM3 | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 30 | |
| OM4 | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 30 | |
| B1-OM3 | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 7.5 | |
| B1-OM4 | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 7.5 | |
Structure and Technical Specification
| Cable Code | Cable Diameter (mm) | Cable Weight (kg/km) |
(N/100mm) | Crush Resistance (N/100mm) | |||
| PVC jacket | LSZH jacket | Short Term | Long Term | Short Term | Long Term | ||
| 4 | 4.8±0.5 | 16 | 18 | 440 | 130 | 1000 | 300 |
| 6 | 5.1±0.5 | 20 | 23 | 440 | 130 | 1000 | 300 |
| 8 | 5.6±0.5 | 27 | 31 | 440 | 130 | 1000 | 300 |
| 12 | 6.2±0.5 | 32 | 36 | 440 | 130 | 1000 | 300 |
| 24 | 8.1±0.5 | 53 | 57 | 660 | 130 | 1000 | 300 |
Note :THis datasheet can only be a referance,but not a supplement to the contract,Please contact our sales people for
more information.
Tight buffer distribution cable:
We produce and test cable comply with following standard:
main products
ahout us
Located in Ningbo, the main seaport city in China, Ningbo Haishu Efon Communication Limited is a professional manufacturer of fiber optic cables. We have more than 15 years' experience in producing communication cables and fiber optic cables. Since then we have been growing to become a leading Chinese manufacturer and exporter of fiber optic products around the world.
Quality and Safety
We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers. Besides, all of our products have been strictly inspected before shipment. Our products have passed RoHS, ISO9001 and TLC certifications.
Our Principles
Full customer satisfaction
Commitment to high-quality service
Long-term cooperation and profits for each other

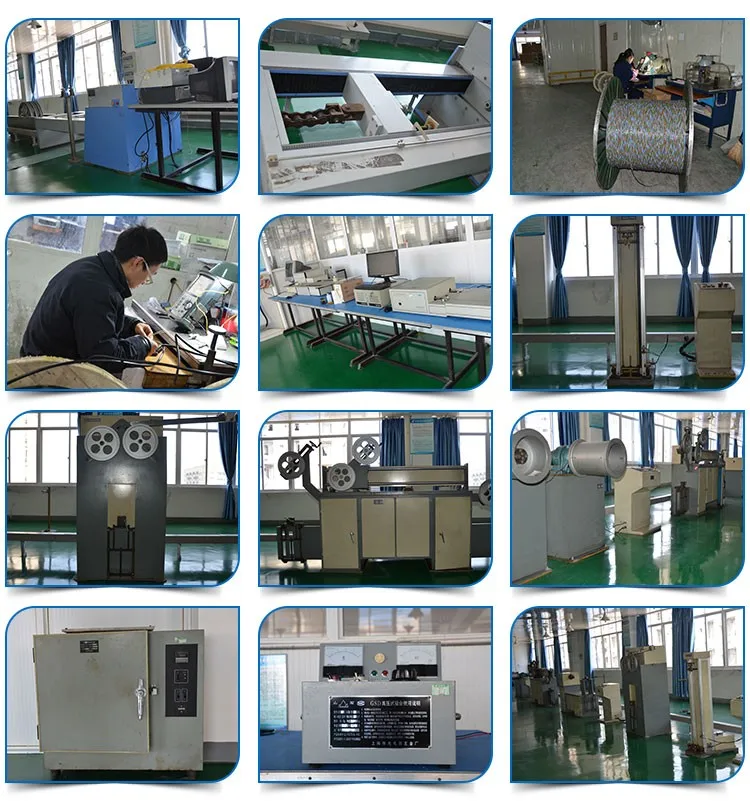

workshop show
