Customized Solar Electric Bicycles Light Power Tools Baby Toys Universal Lithium Rechargeable 24V 12V 12Ah LiFePO4 Battery 12V
- Category: >>>
- Supplier: Shenzhen Yabo Power Technology Co. Ltd.
Share on (62501577850):
Product Overview
Description
Product Description
Electrical Characteristics | Nominal Voltage | 12.8V |
Nominal Capacity | 12Ah@0.2C | |
Energy | 153.6Wh | |
Internal Resistance | ≤70mΩ | |
Cycle Life | 2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity | |
Self Discharge | ≤3.5% per month at 25℃ | |
Standard Charging | Max.Charging Voltage | 14.0~14.6V |
Charging Mode | At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C | |
Charging Current | 6A | |
Max.Charging Current | 12A | |
Standard Discharging | Discharging Current | 6A |
Max. Continuous Current | 15A | |
Max.Pulse Current | 30A(<3S） | |
Discharging Cut-off Voltage | 10.0 | |
Operating Condition | Charge Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity |
Discharge Temperature | -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity | |
Storage Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity | |
Water Dust Resistance | IP55 | |
Structure | Cell & Format | IFR32700 N65,4S2P |
Casing | Plastic | |
Dimension(L*W*H*TH) | 150*70*70*93 | |
Weight | Approx. 1.4Kg | |
Terminal | M5 |
Details Images
Test Chart

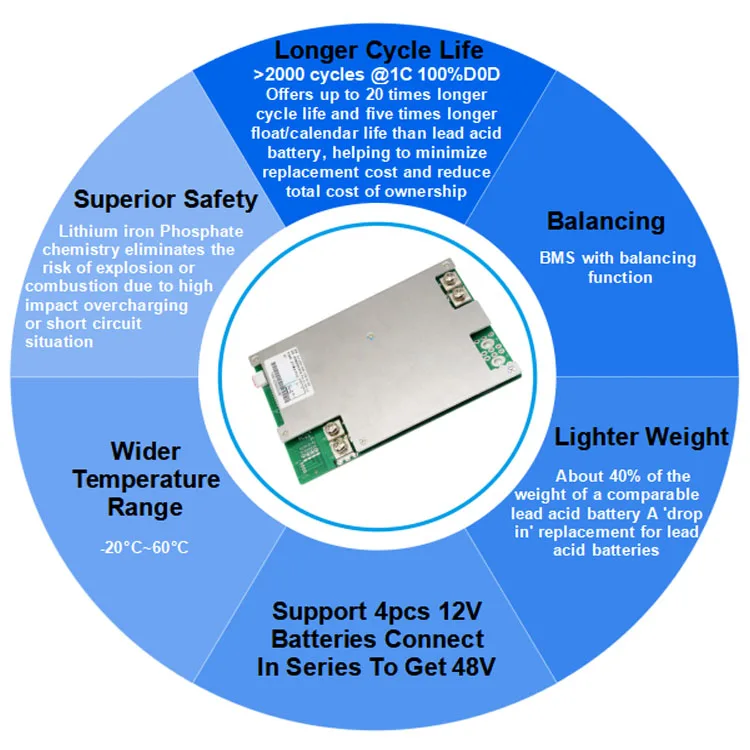

Features
◆ Using the technology of lithium iron phosphate cell, superior safety,thousands of cycles, 100%DOD, under normal conditions.
◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature.
◆ Free of maintenance .
◆ Internal cell balancing.
◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
◆ Can be charged using most standard lead-acid charges (set).
◆ Wider temperature range:-20℃~60℃.
◆ Support for Series application expansion (up to 51.2V) and two in parallel.
◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature.
◆ Free of maintenance .
◆ Internal cell balancing.
◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
◆ Can be charged using most standard lead-acid charges (set).
◆ Wider temperature range:-20℃~60℃.
◆ Support for Series application expansion (up to 51.2V) and two in parallel.
