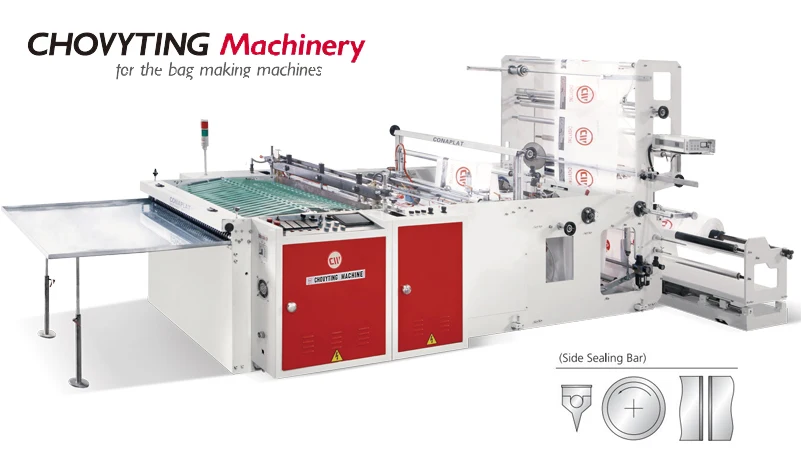

High speed LDPE HDPE Poly Polyethylene Film Heat Cutting Side Sealing Plastic Bag Making Machine
Brief Introduction:The machine frame is made of prefabricated flame cut sheet 12mm thick to ensure the machine rigidity, less machine vibration under high-speed running. Feeding motor, automatic control, save labor adjusted, stability in operation professional technician is not necessary. Any different type of the bag with several use as option, easy to replace.
Standard components including PE side weld bar, easy change double weld bar, bottom weld bar and PP weld bar can be optional.
Optional
• Different type of punching unit
• zipper and slider equipment
• Longitudinal sealing device
• Perforation equipment
• Round bottom seal for chicken bag
• Glue adhesive tape device
• DHL bag (courier service bag)equipment/ Security bag equipment
• Bottom triangle sealing device
• Auto Conveyor Table
• Folding Unit
• double sealing bar
• bottom sealing bar
• pp material sealing bar
Details Images:

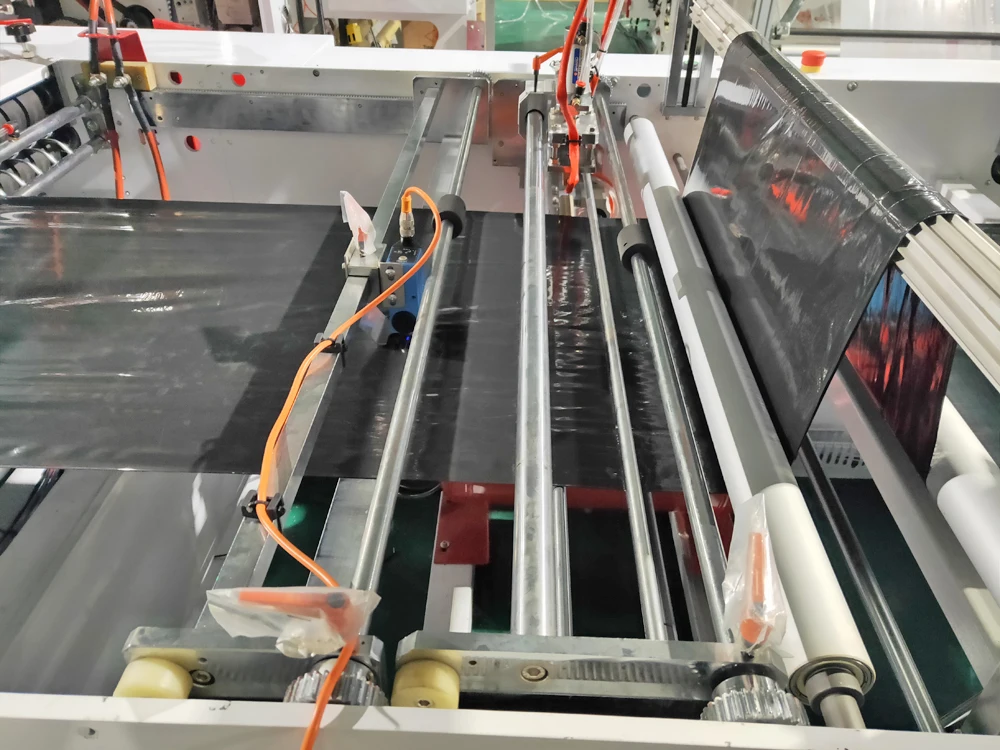

Bottom gusset device
Max. 60mm depth
Printed Mark checking

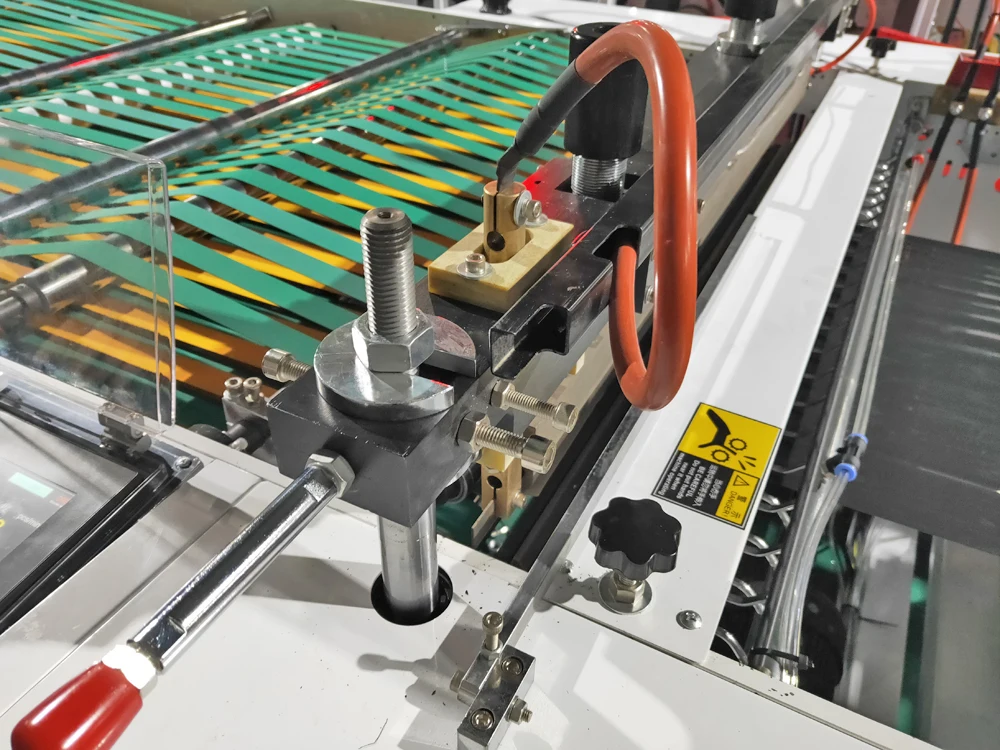

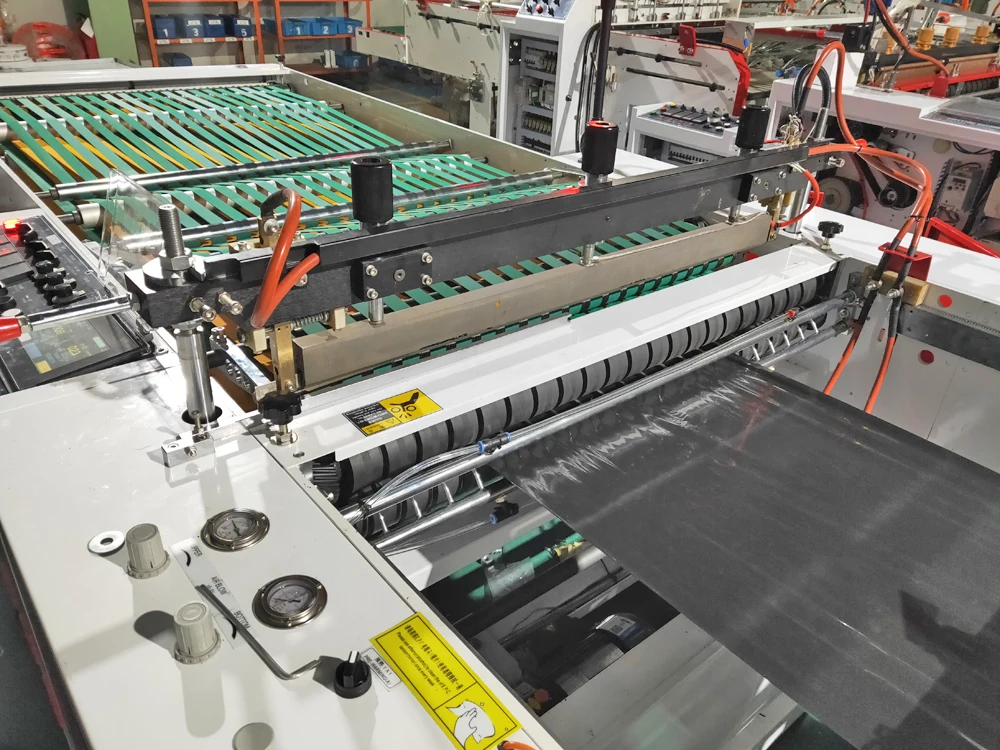

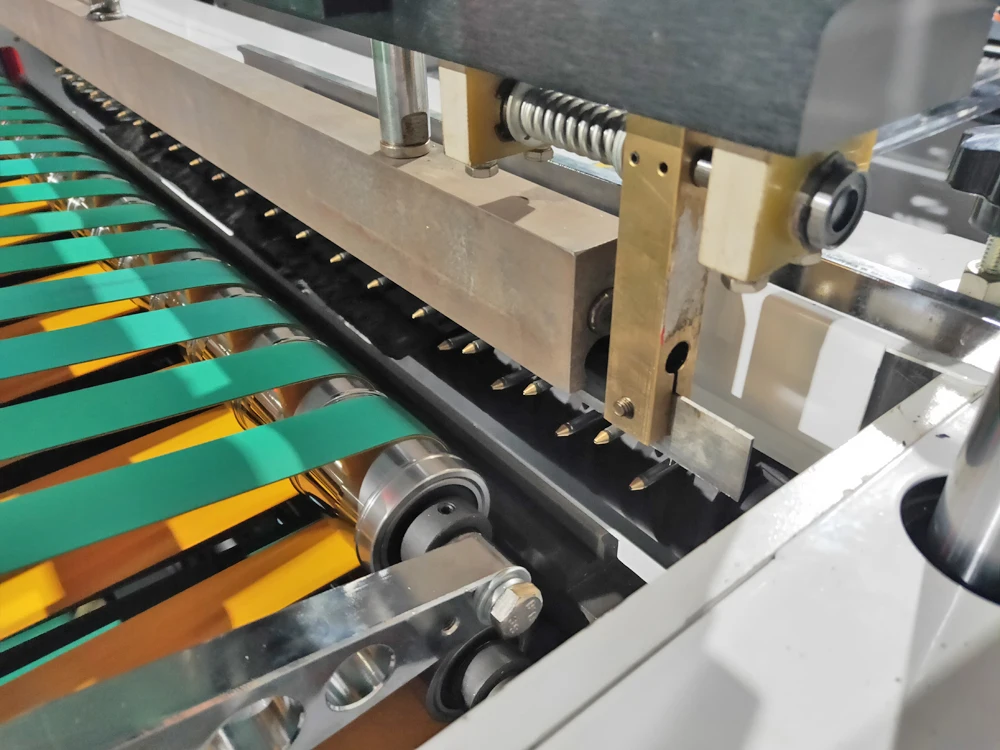

Sealing and cutting knife
Optional:
bottom sealing knife
double sealing knife
PP knife

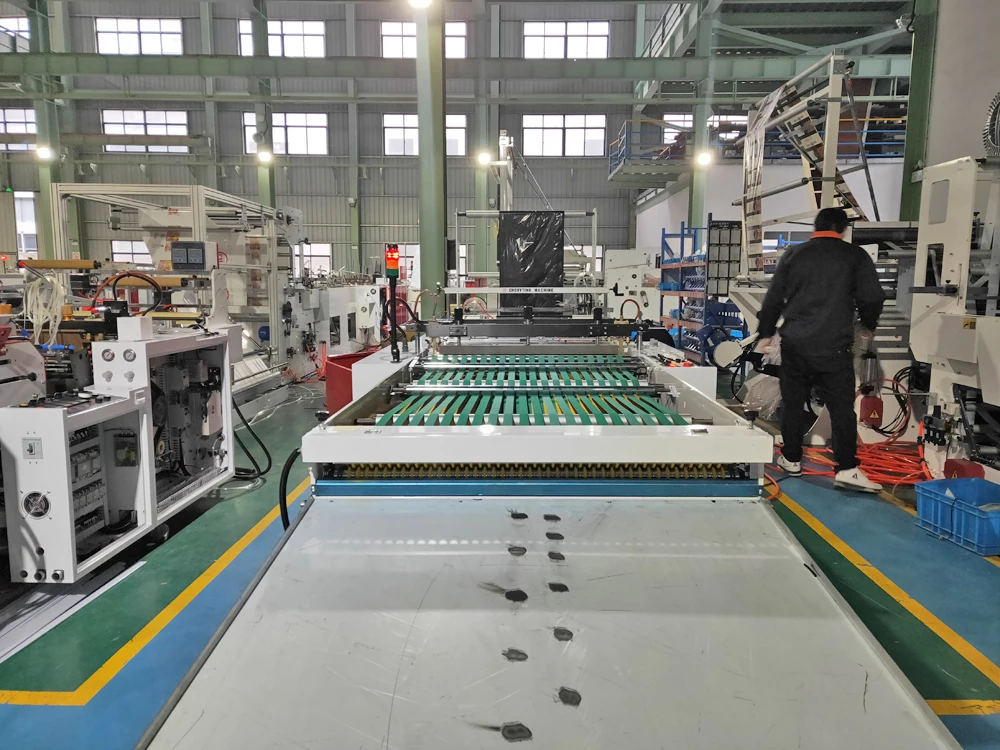

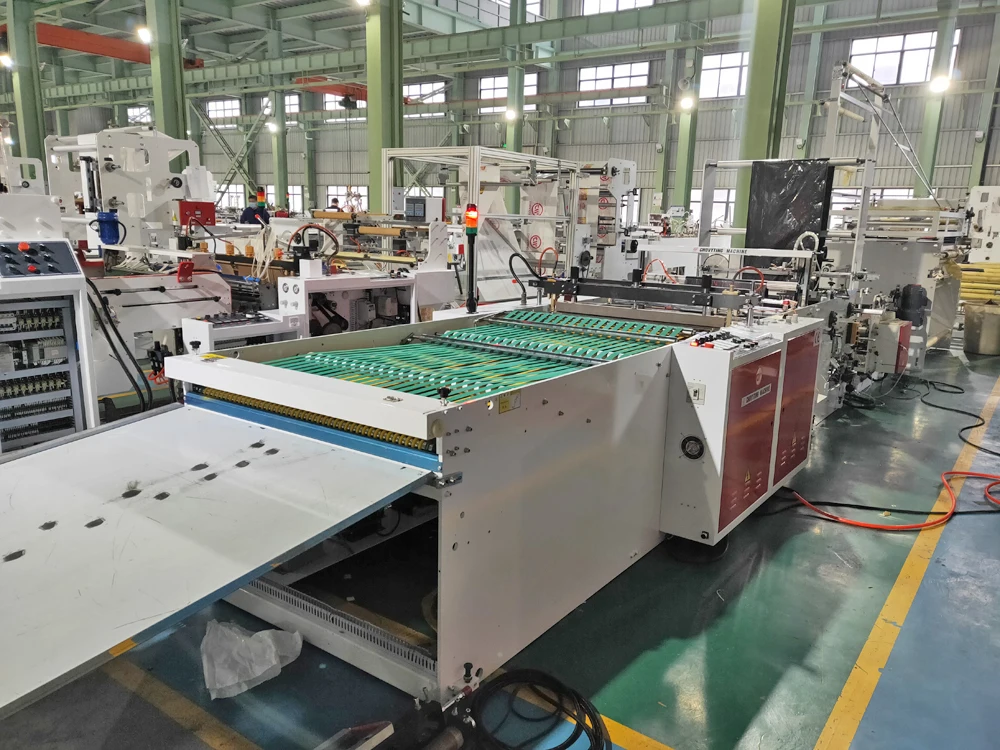

Collecting table
Optional: auto collecting table can be chosed
Technical Parameter :
Model
CW-800SBD
Bag type

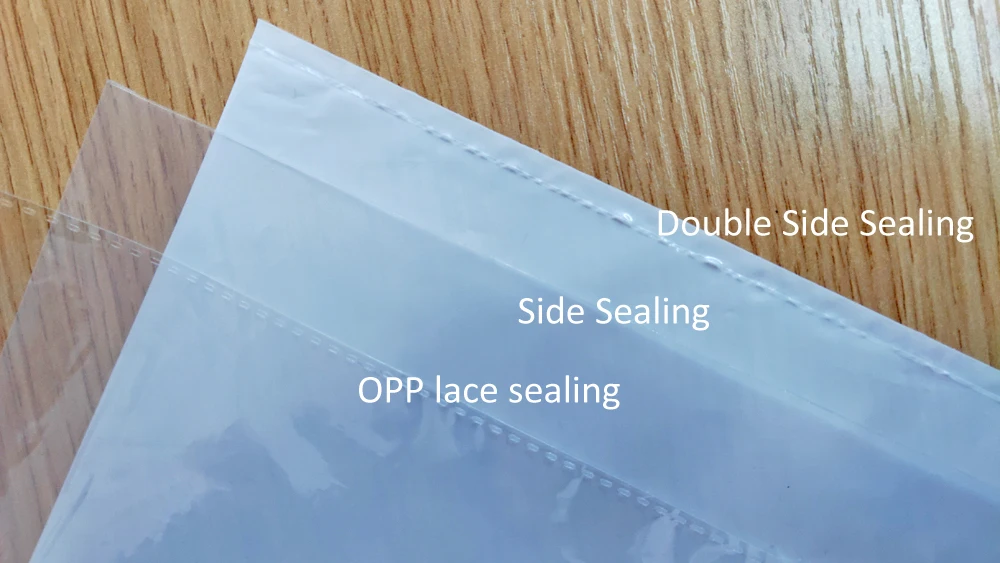

bottom sealing bag, side sealing bag, opp bag, double sealing bag
Unwind width
1200mm film
Unwind dia.
φ900mm (max.)
Bag width
250-600mm
Bag length
250-700mm
Bottom Gussets
50-75mm
Film thickness
HDPE 0.025-0.05mm
LDPE 0.035-0.08mm
Production speed
100-150pcs/min
Line speed
60m/min
Total power
约 8kw
Machine dimension
5000*1550*1870mm
Machine weight
1500kg
Air compressor
6HP
