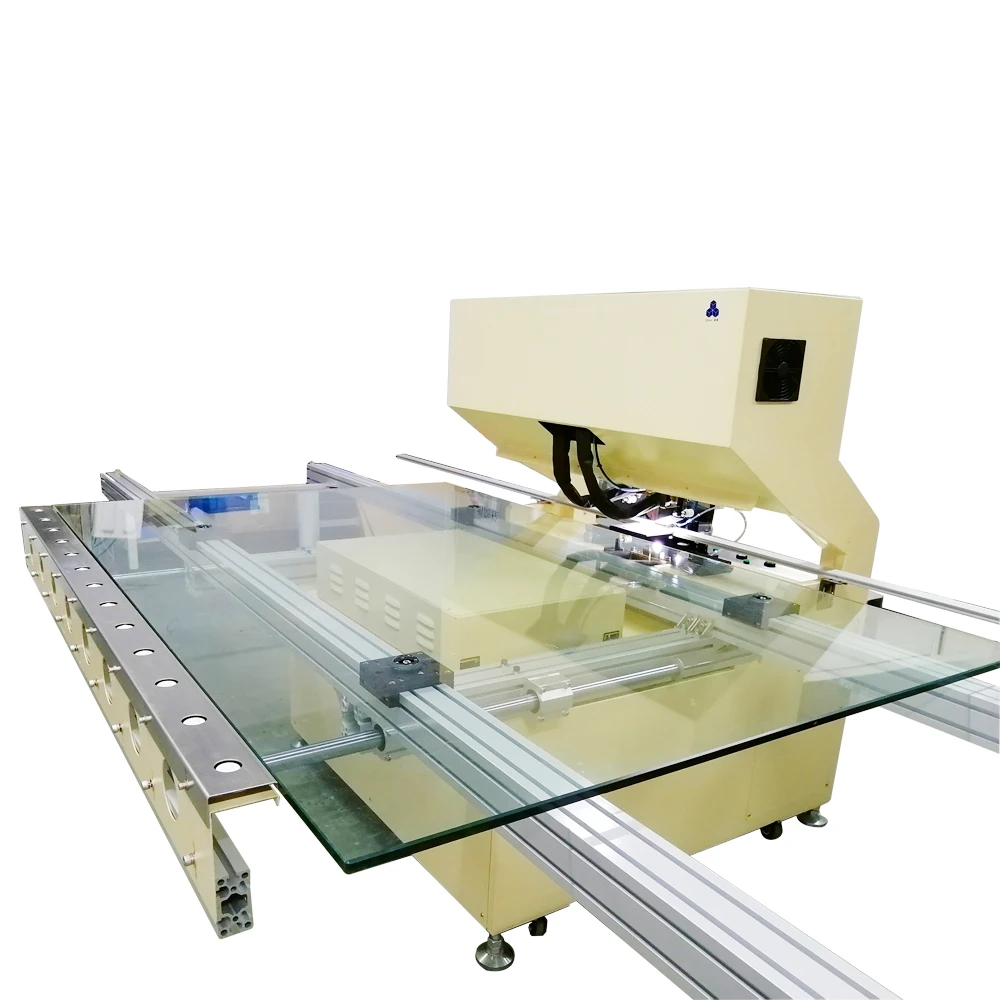

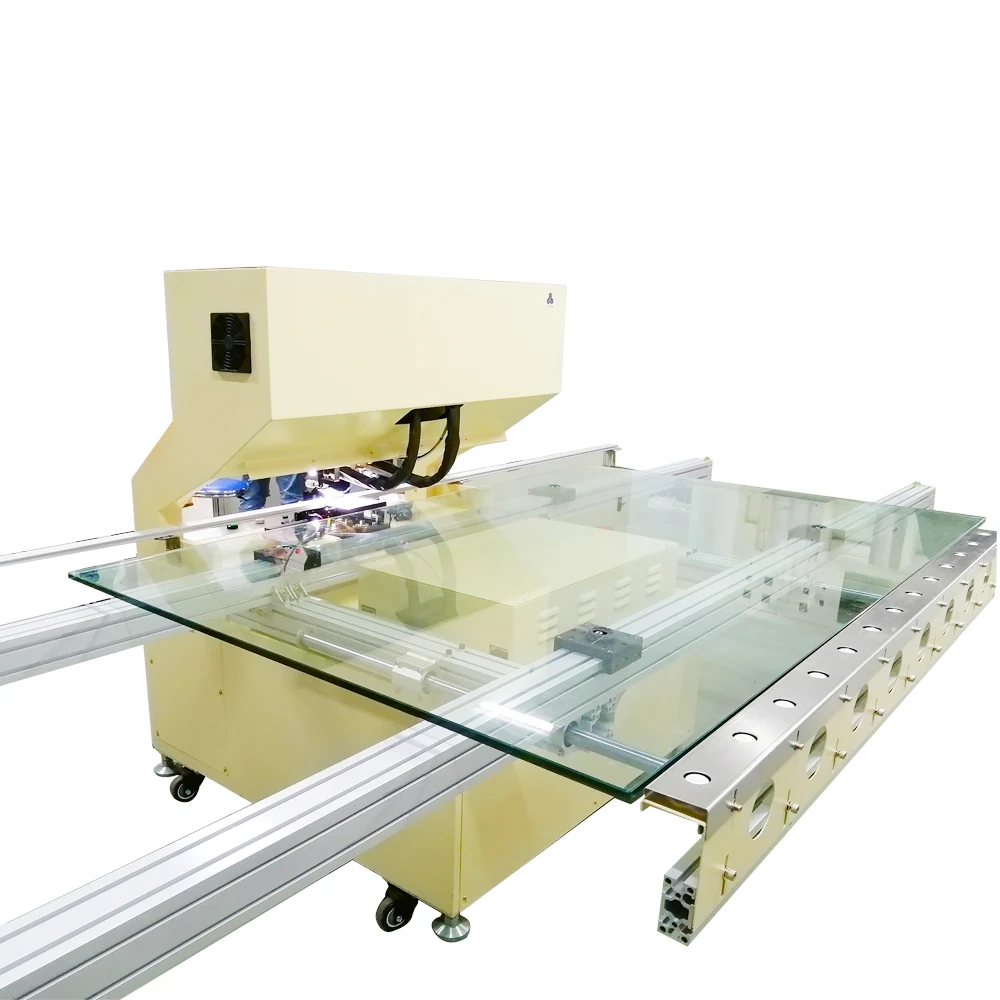

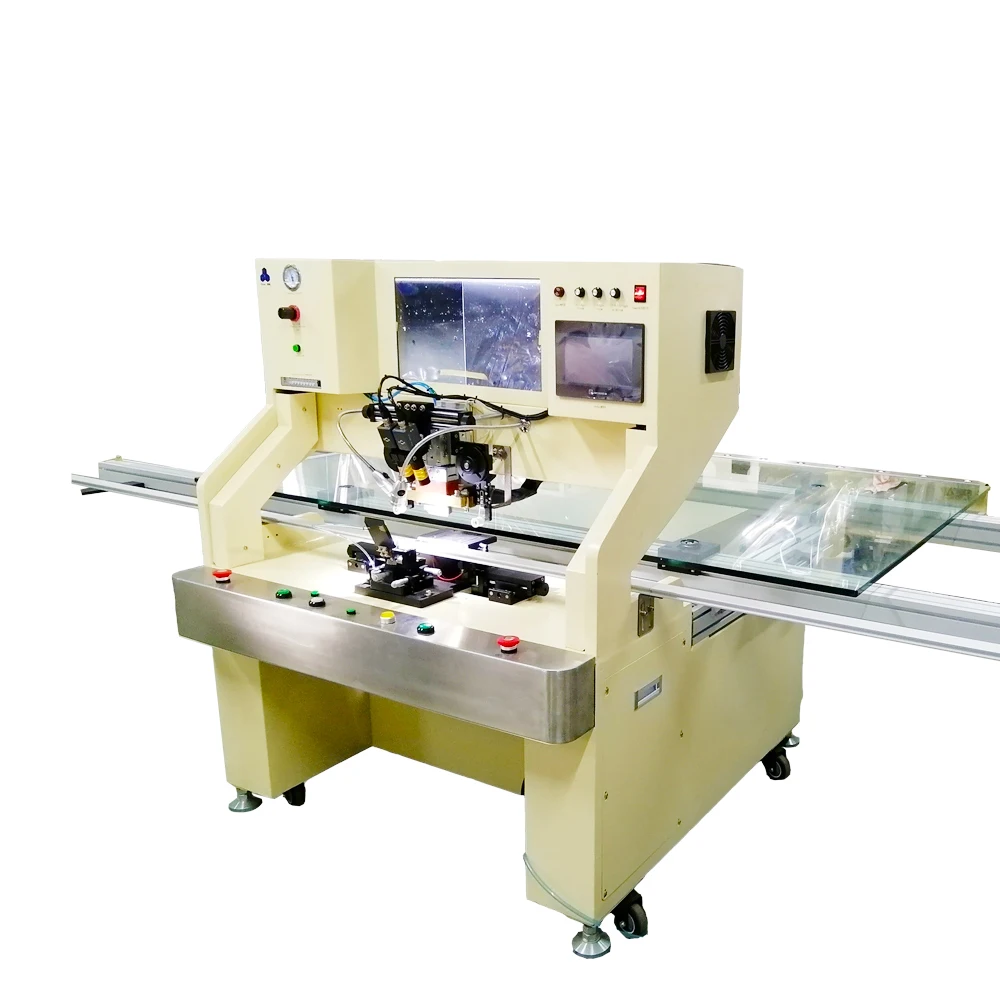

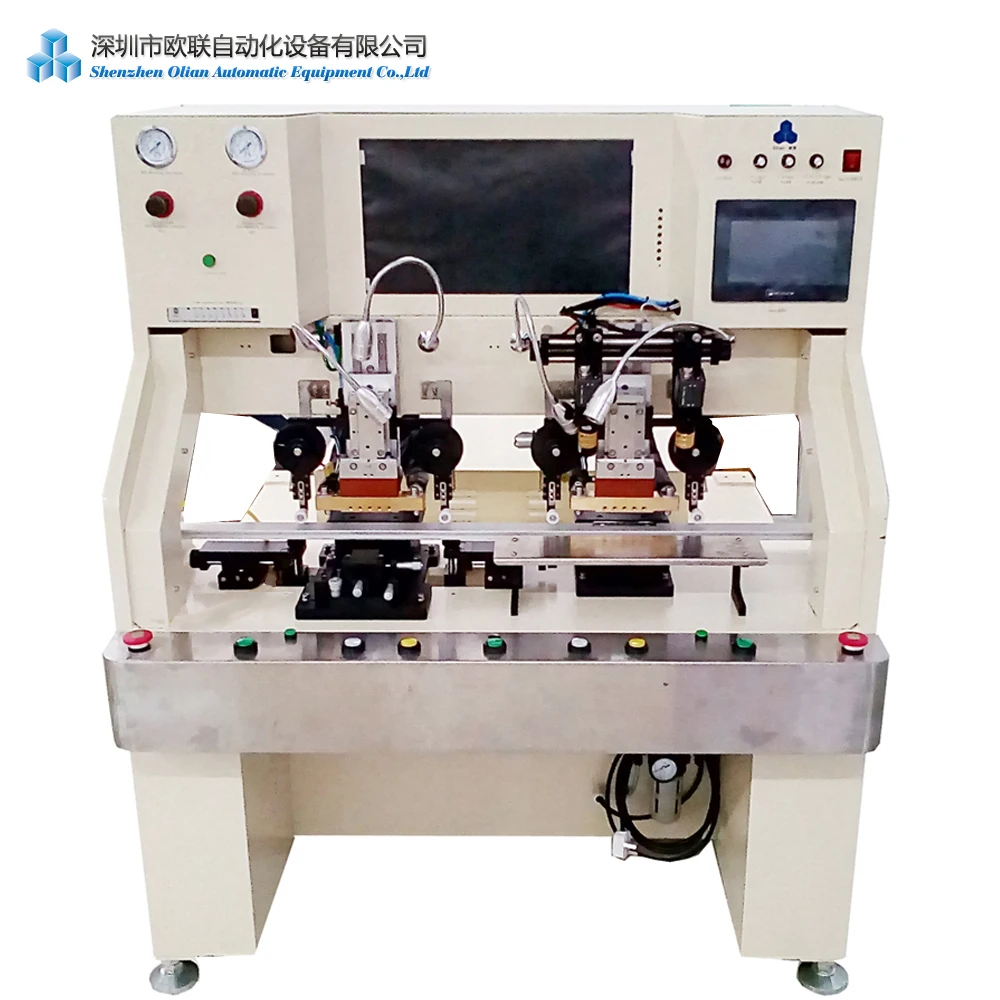

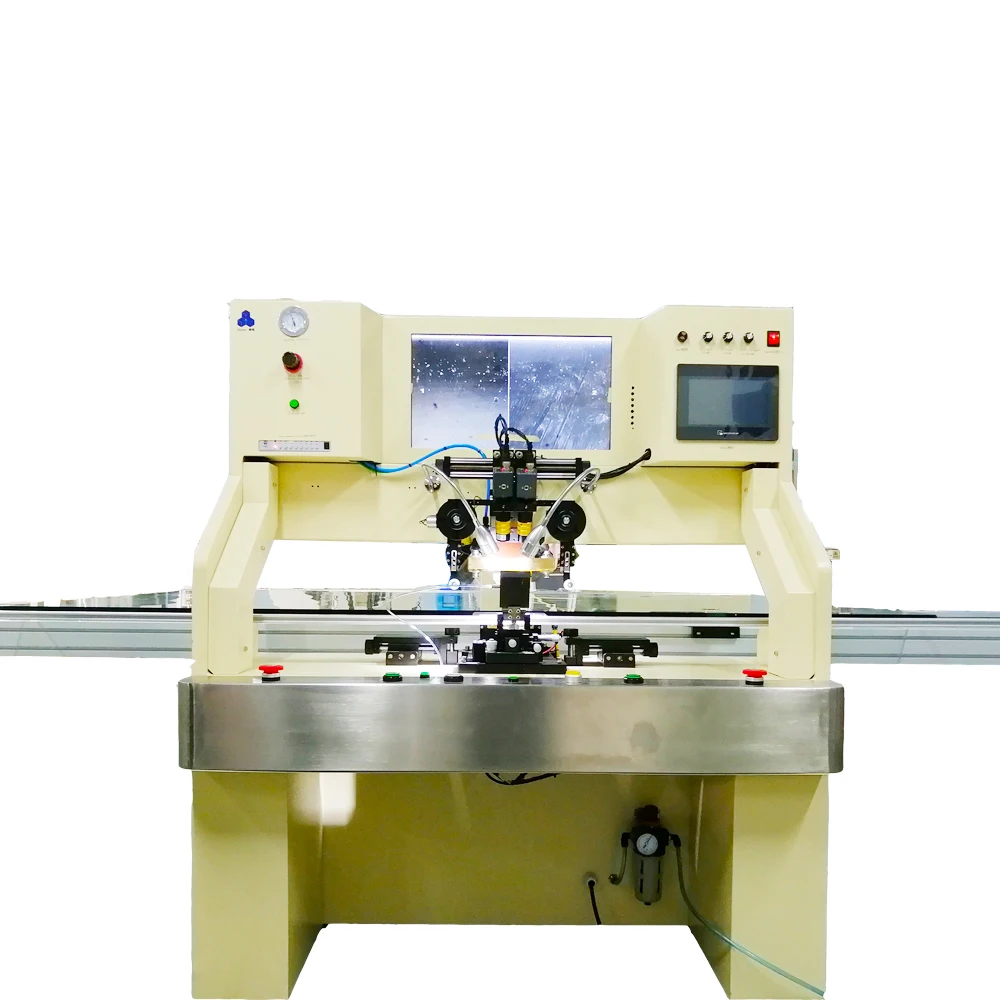

Small Tv Panel Repair Tester Lcd Screen Head Fog Cog Fpc Acf Tab Cof Bonding Machine
China's leading LCD TV Panel repair machine manufacturer, please contact whatsApp :+8618025368481
Thermocouple Type | K type OMEGA wire |
| Model: | OL-1285DH |
| Product Name: | FOF single station Pulse Heating Bonding machine |
| Suitable For: | Suitable for FPC/COF Contraposition bonded to LCD which attached ACF,Used for COF repair |
| Size Range: | 12-85inch |
| Bonding Precision: | X±0.01MM ,Y±0.01MM |
| Machine Capacity: | 12S/Pcs,2500pcs/day |
| Indenter Qty: | 1PCS |
| Power Supply: | 220V±10%,50HZ,1200W |
| Air Supply: | 0.4~0.7MPa,dry air |
| FPC size: | Max:L80*W60MM Min:L10*W15MM |
| Platform Precision: | ±0.01MM |
| Pressure Head Size: | 80*1MM (customizable) |
| Temp Range: | RT~400℃ |
| Time Range: | 1~99.9sec |
| Product Size: | W1200*1200*H1380MM |
| N.W: | About 550kg |
| Packing Size: | |
| G.W: | About 550kg 6CBM |
- This equipment Simi-automatic Pre-bonding machine, is position and pre-bonding IC on well attached ACF, Panel taking is manuel, position and pre- bonding is automatic. Applied for 1"-8" panel.
- Adopt high-granularity visual control system and positioning system (panasonic and FAST are optional)
- More user-friendly interface design, so that the learning staff more easy to use
- Adopt modular design and variety function, shorten product switching time and new product debugging time
- IC suction nozzle and prepress head separate design, greatly improve the machine capacity
