Plastic Pedalo Fishing Boat Making Machine Rock And Roll Rotational Moulding Machine
- Category: >>>
- Supplier: Anhui Ruichen Environmental Technology Co. Ltd.
Share on (62501767431):
Product Overview
Description
Product Overviews

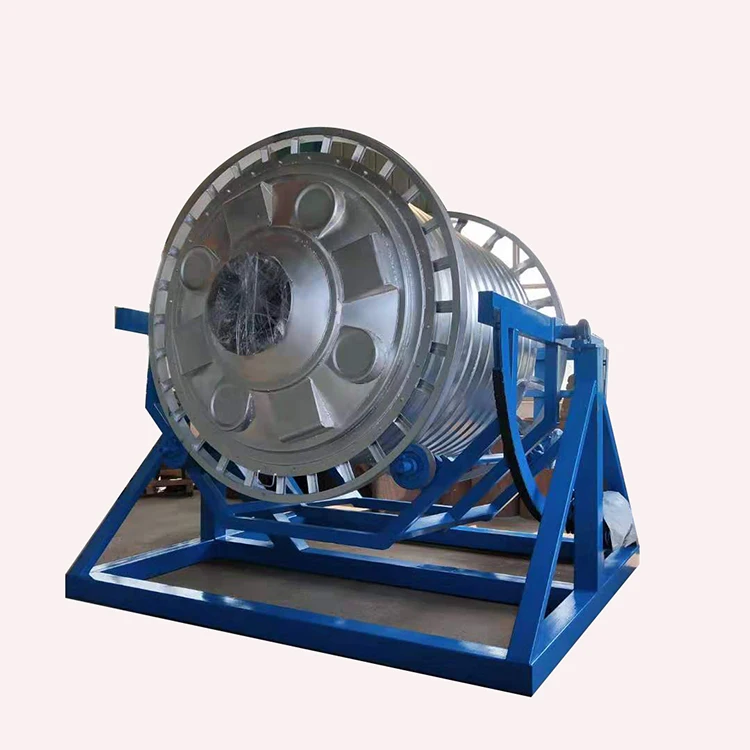

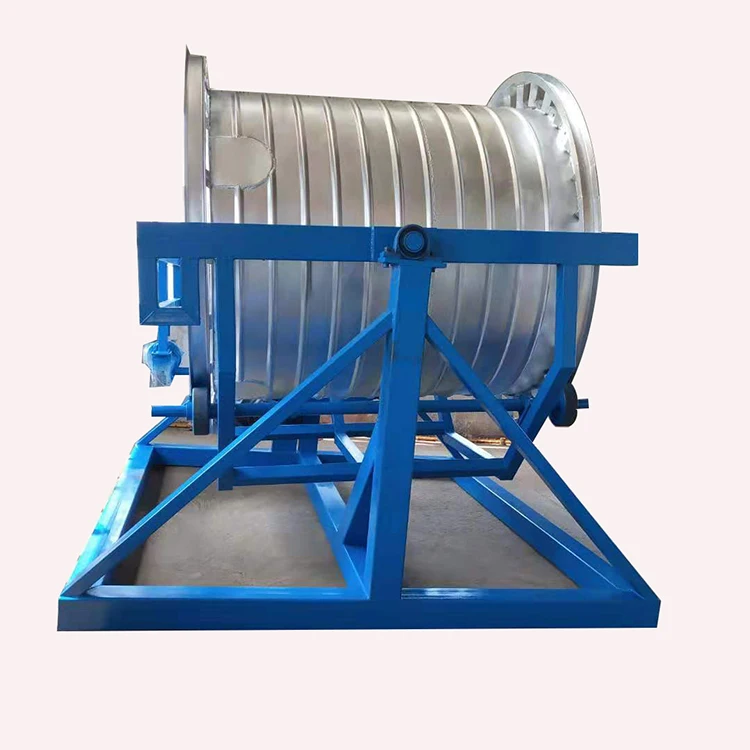

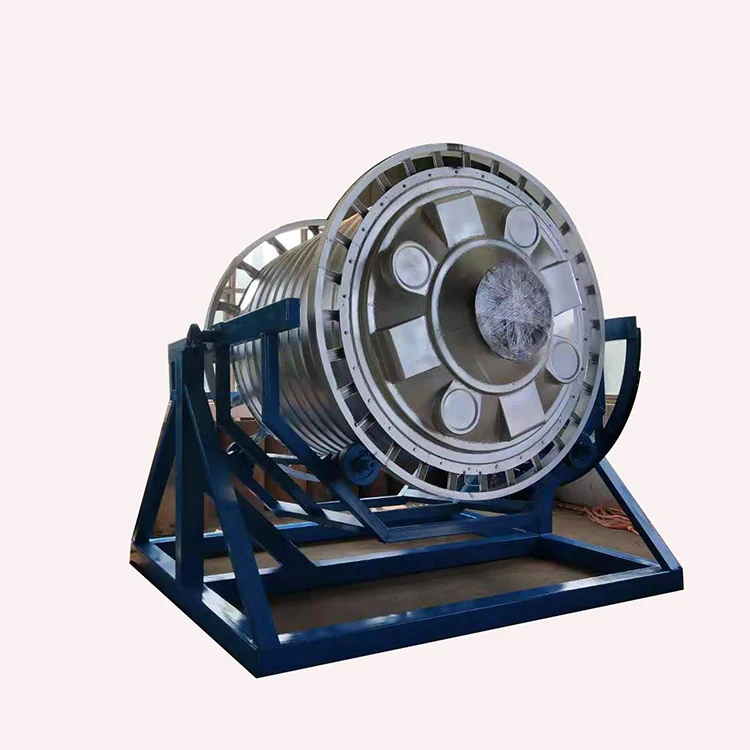

Pit type open fire swing machine
The pit-type open flame swinging machine abandoned the traditional swinging machine to realize swinging by connecting rod motor driving and hydraulic driving. The drive of the connecting rod is unstable, easily damaged, and the maintenance of the hydraulic cylinder is difficult. This machine uses a motor to drive the rack to achieve swing, which has the advantages of freely adjusting the angle, stable transmission and convenient maintenance. Available heat sources are natural gas, liquefied gas, etc.
| Model No | Machining range: min / Max | Installed capacity | control mode | Pit size | ||||
| Rotational power | Swing power | rotate | swing | L(m) | W(m) | H(m) | ||
| RCMY-1000 | Φ660*750/Φ1100*1200 | 1.1kw | 2.2kw | frequency conversion | frequency conversion | 2 | 1.7 | 2 |
| RCMY-3000 | Φ1100*1200/Φ1600*2000 | 1.5kw | 3.0kw | 3 | 2.2 | 2 | ||
| RCMY-5000 | Φ1600*2000/Φ1900*2300 | 3.0kw | 4.0kw | 3.2 | 2.5 | 2.5 | ||
| RCMY-10000 | Φ2000*2400/Φ2500*3000 | 4.0kw | 5.5kw | 3.8 | 3.1 | 2.5 | ||
| RCMY-30000 | Φ2200*2500/Φ3200*4200 | 5.5kw | 7.5kw | 5.5 | 3.8 | 3.5 | ||
| RCMY-50000 | Φ2800*3650/Φ3300*6200 | 7.5kw | 11kw | 7.5 | 4 | 4 | ||

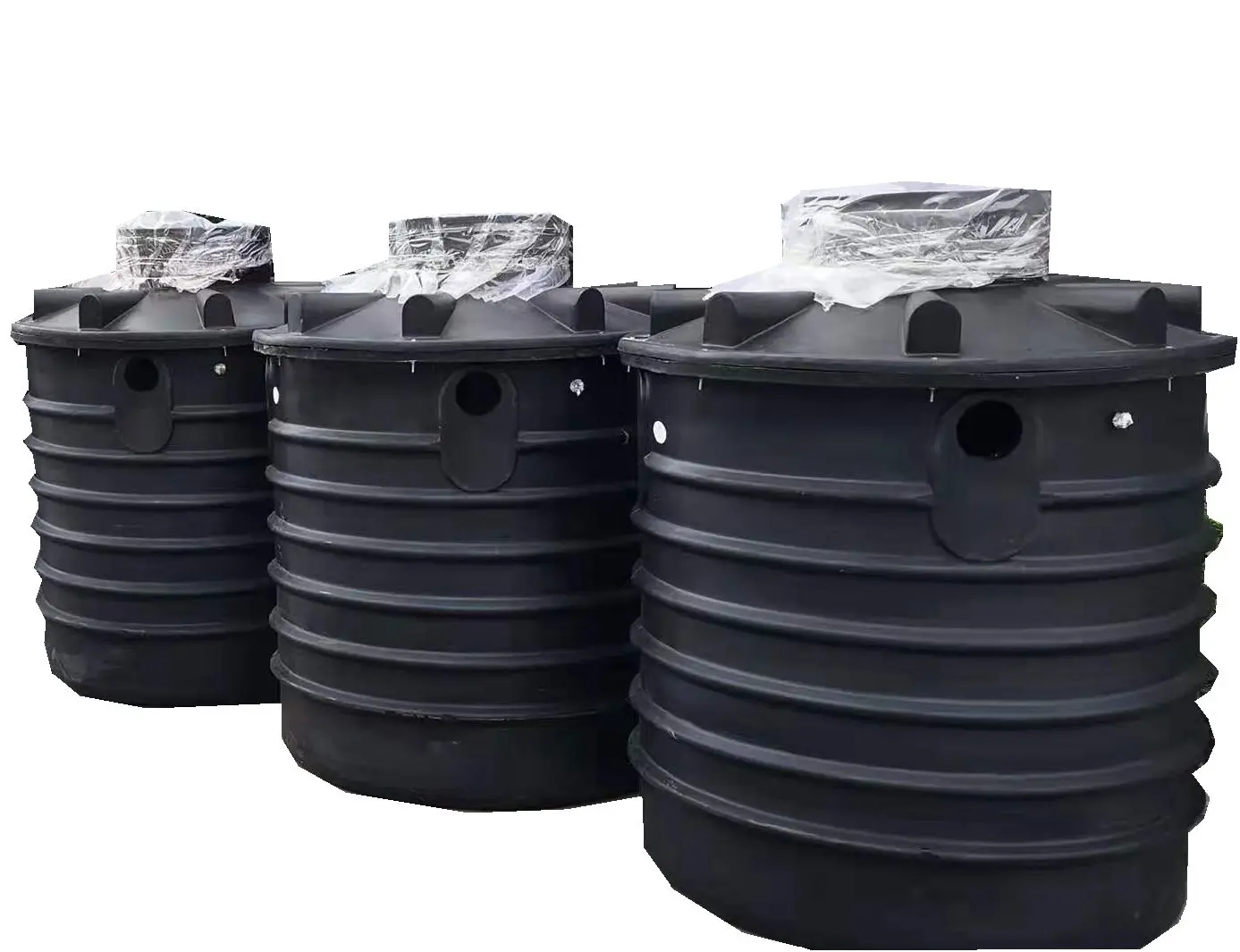

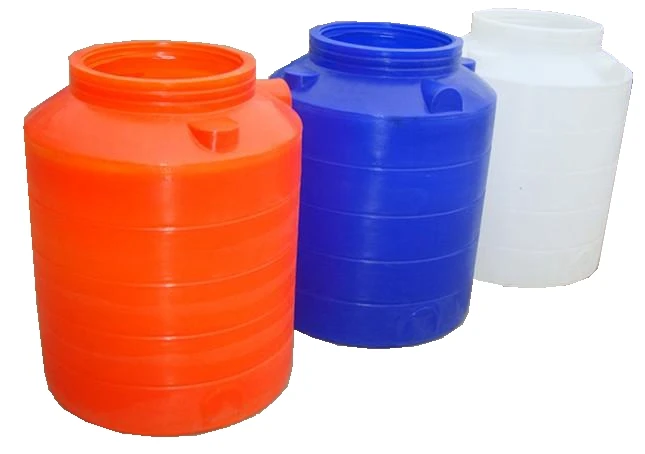

Open fire swing machine is suitable for producing a variety of large and medium hollow products, such as water tanks, water towers, tonnage barrels, medicinal tanks, etc.

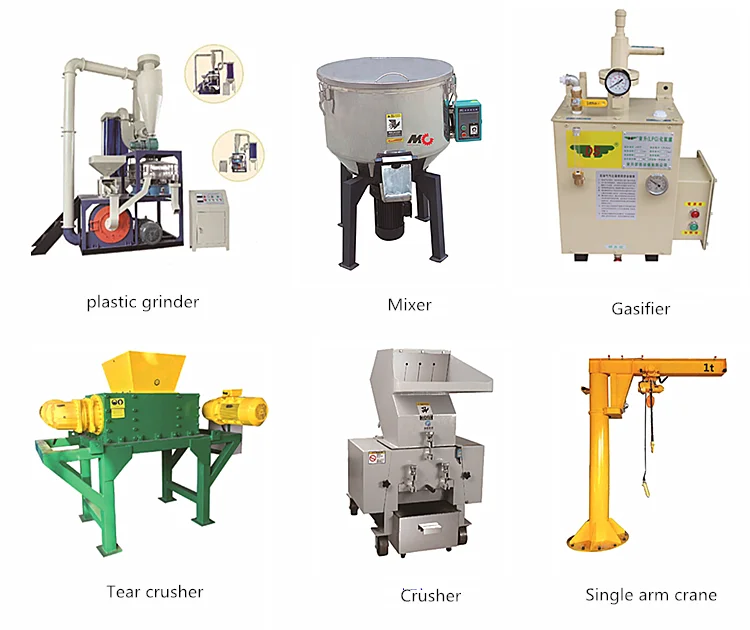

Molding machine auxiliary equipment
| Product name | Manufacturer's Direct Sale Open Fire Swing Molding Machine Water Tower Molding Rotary Molding Equipment |
| Features | Characteristics of Open-flame Swing Plastic Molding Machine Open flame rocking forming machinery and equipment is low cost, small area, suitable for large and medium-sized hollow products, easy to operate, easy to maintain, is the ideal equipment for the introduction of rolling molding. |
| Basic process | 1.a given quantity of plastic material,powder or liquid,islaid in one half of the mould 2.the mould is closed 3.the mould is rotated in the oven revolving on two axes. 4.plastic material melts,forming a coating layer on the mould internal surface. 5.the mould is removed from the oven and cooled off. 6.the mould is opened and the hollow item is extracted |
| Producable products | 1.Military industry 2.Car class 3.Cleaning class 4.Lining 5.Traffic facilities 6.Container class 7.Common environment class 8.Toy pet 9.Water supplies |
| Process advantage | 1.Low cost 6.products are not subject to high stress,little scraps are generated |
