Low Price 10000L 20000Liters LPG Cooking Gas Station, 5tons 15tons LPG Single/ Dual Filling Dispenser Tank Skid Nigeria

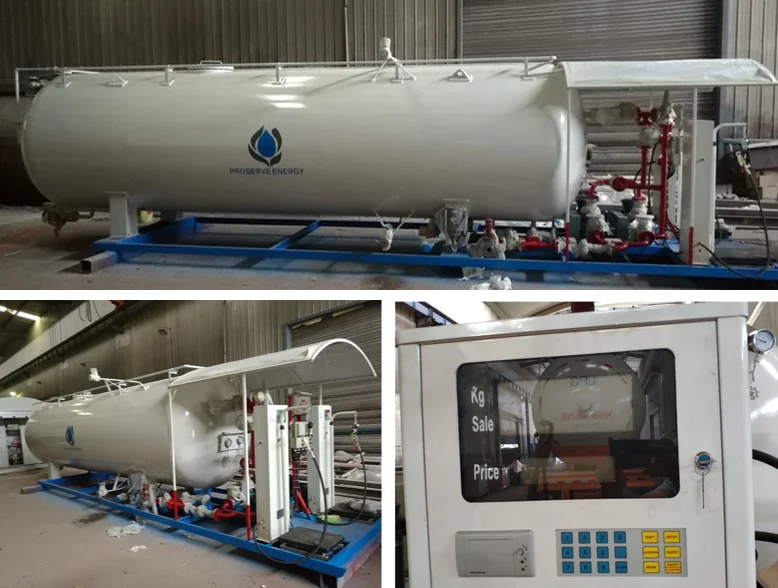

The pictures showed one is 20000Liters one
with two units filling gas scales
Allowed exported to Nigeria market model and volume showing here
LPG skid volume
materail
thickness
pressure
staindard
5000Liters
carbon steel Q345R
10mm
1.77Mpa
ASME ,GB150,GRP
8000Liters
carbon steel Q345R
10mm
1.77Mpa
ASME ,GB150,GRP
10000Liters
carbon steel Q345R
10mm
1.77Mpa
ASME ,GB150,GRP
12000Liters
carbon steel Q345R
10mm
1.77Mpa
ASME ,GB150,GRP
15000Liters
carbon steel Q345R
12mm
1.77Mpa
ASME ,GB150,GRP
20000Liters
carbon steel Q345R
14mm
1.77Mpa
ASME ,GB150,GRP
25000Liters
carbon steel Q345R
14mm
1.77Mpa
ASME ,GB150,GRP
40000Liters
carbon steel Q345R
14mm
1.77Mpa
ASME ,GB150,GRP
45000Liters
carbon steel Q345R
16mm
1.77Mpa
ASME ,GB150,GRP
50000Liters
carbon steel Q345R
16mm
1.77Mpa
ASME ,GB150,GRP
LPG filling station description
A complete LPG filling station should include the following parts: storage tank area (storage tank, residual liquid flushing, overpass, protective wall, etc.), compressor room (compressor and related motor), steam tank loading station (source, source And unloading) sites, transformers and distribution rooms (conversion and distribution equipment), gas islands (gas filling machines, etc.), lightning protection towers, fire protection facilities, office and domestic buildings, etc. ingredient
LPG description
LPG (liquefied petroleum gas) is a mixture of propane and butane, usually accompanied by a small amount of propylene and butene. A strong odor of ethyl mercaptan was added to the liquefied petroleum gas so that leakage of LPG could be easily detected. Liquefied petroleum gas is produced during crude oil extraction or extraction from petroleum or natural gas. Liquefied petroleum gas (LPG) is often mistaken for propane. In fact, LPG is a mixture of petroleum and natural gas under appropriate pressure, and exists as a liquid at room temperature. In the United States and Canada, a mixture of these two substances is generally considered to consist primarily of propane, while in many European countries, the propane content in liquefied petroleum gas is only 50% or less.
LPG is gaseous at normal temperature, can be liquefied under pressure or low temperature, and is non-toxic, but at higher concentrations, it can paralyze the central nervous system of the human body, resulting in asphyxiation and death.
The octane number of liquefied petroleum gas is about 110, and that of gasoline is about 90-95, which is higher than that of gasoline by 5% -10%. Therefore, LPG has higher knock resistance than gasoline.
Product Picture

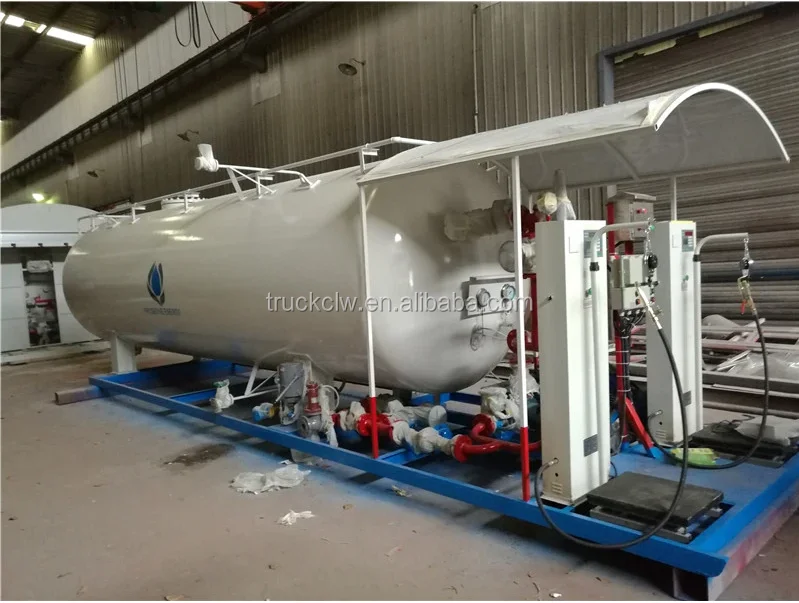

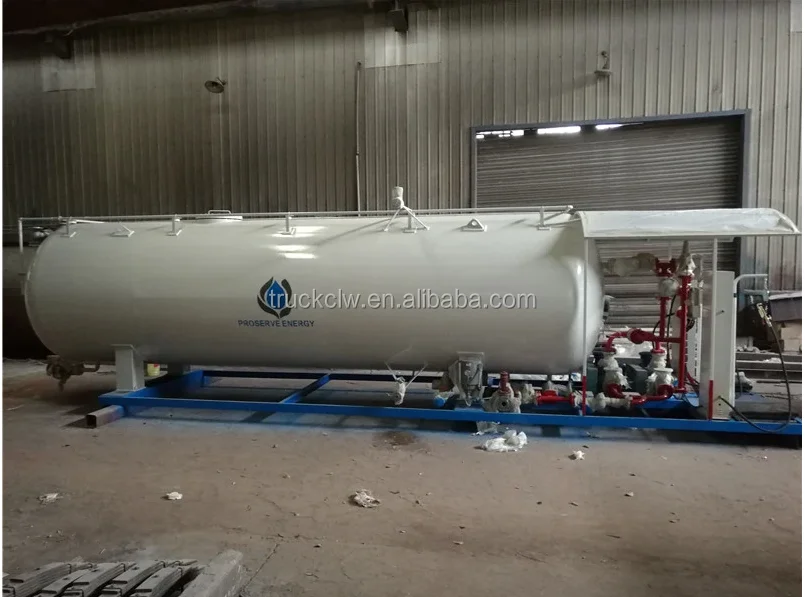

Rear LPG refuller gas tanker skid pictures showing
Installation Instructions

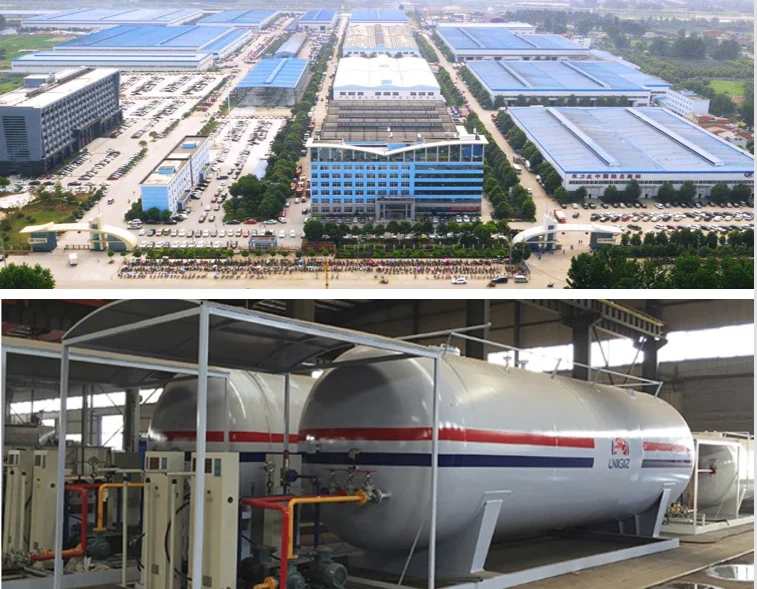

advatage production line
Please you check our work shop tanks , they are finished by advance production line

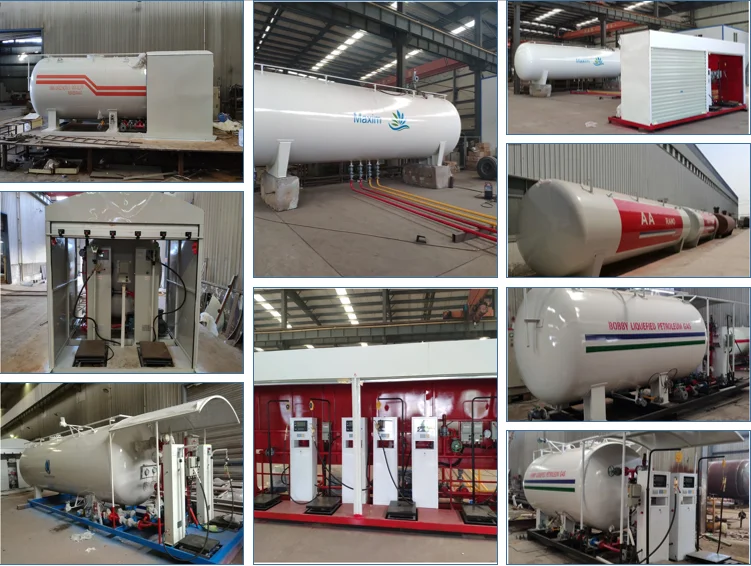

Other size of the LPG sikd pictures showing
We can produce from 5000Liters to 200000Liters LPG skid . Here show some example
Company Profile
We, Chengli Special Automobile Co. Ltd, established in 2004, we are a professional manufacturer and exporter that is concerned with the design, development and production of special truck for virescence, environmental protection, cleanness and petrol. The leading products include the Water Truck, Fecal and Sewage Sucation truck, Garbage Truck, Street Sweeper, Fuel tank truck, Lifting Platform Truck, Truck Mounted Crane, Tipper, Coach Truck, Chemical Liquid Truck, Semi-trailer, Fire Fighting Truck, Van Truck, prime mover, Bulk Cement Truck, Concrete Mixer, Wrecker Truck, LPG Truck/tank and so, more than 300 varieties of truck models. The market share of each product ranked first in China
We are located in Suizhou City, Hubei province, in middle of China. With convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of markets around the world. Covering an area of huge square meters, we now have over 1000 employees and an annual sales figure that exceeds USD 5M USD. We are currently exporting 30%-40% of our products worldwide. Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. Besides, we have received ISO9001-2000 certification. As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching Africa/Southeast Asia/middle-south America/Middle East and other regions. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
FAQ
FAQ
FAQ
1. Are you a factory or a trading company?
Yes, we are the overseas sales department of Chengli Automobile. You are always welcome to visit our factory.
2. Can your company modify standard products according to my requirements?
Yes. The company specializes in the research and design of various special vehicles and spare parts. We can provide any product according to your needs.
3. Can your company fully customize the product for me?
We can provide tailor-made product meetings for any of your needs.
4. Can you provide the proof we need?
We can provide various certifications related to trailers and trucks. Such as DOT, ADR, SASO, etc.
Zh
5. How long can we receive the goods?
It depends on the product you ordered. If the goods are ready, we will deliver your goods as soon as possible.
6. How about after sales service?
We can provide you with technical support to guide you in repairing the product. We will also provide original spare parts by air. If you have special needs, we can let our engineers help you in person
Customer Photos
Contact Information
Contact person
Ms xi chen
Email: chinatrucks @ foxmail.com
Whatsapp:0086-18727992788
Wechat:0086-18727992788
Mobile:0086-18727992788
Warmly welcome you come to china and visit our factory inspect our gas skid .We can produce them according your reqest also .
