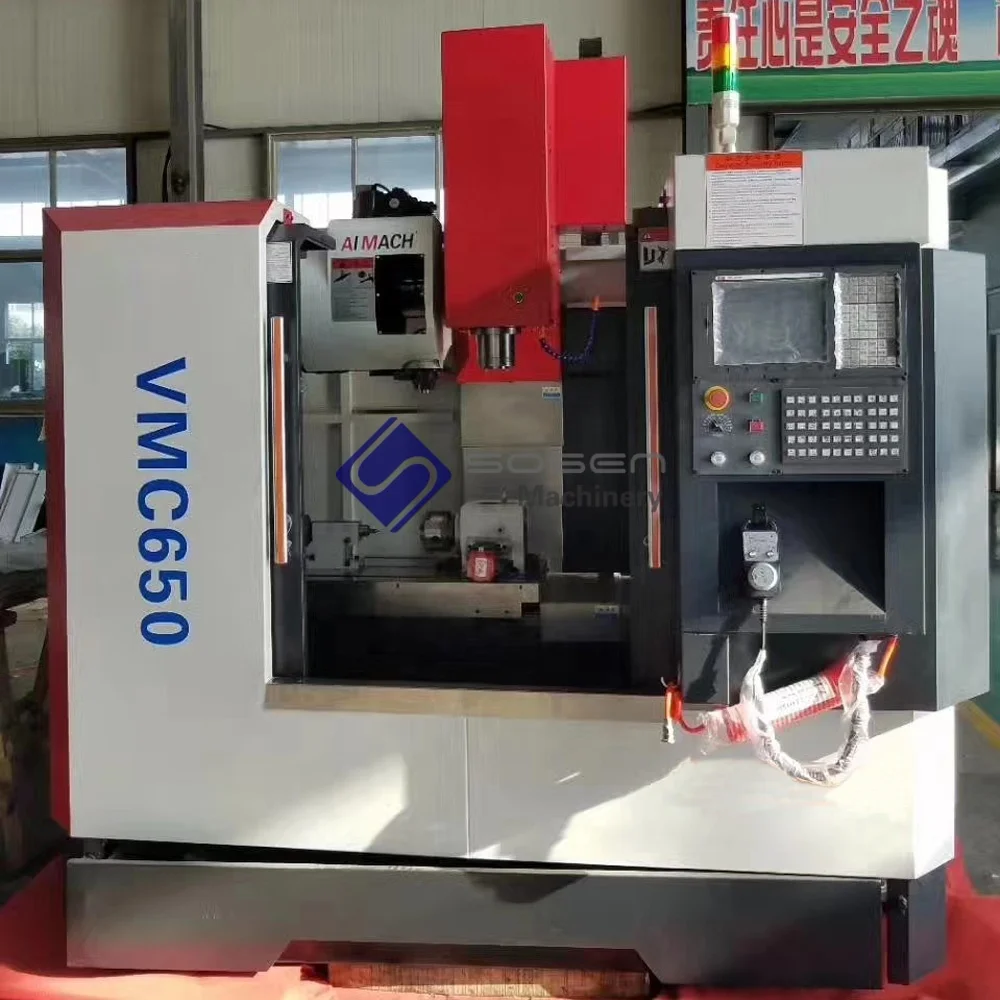

Mitsubishi system 12000rpm VMC CNC vertical machining center
- Category: >>>
- Supplier: Tengzhou Sosen Co. Ltd.
Share on (62501829849):
Product Overview
Description
Recommend Products
Products Description

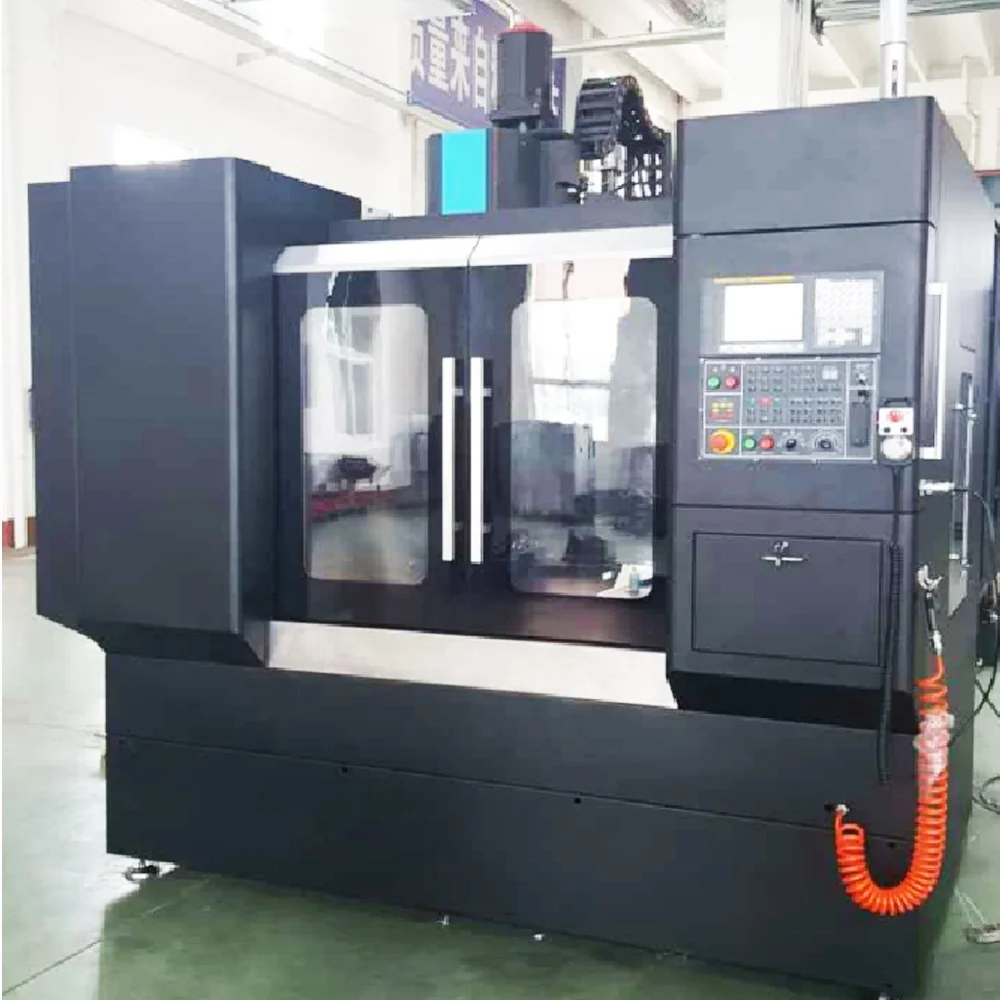

Mitsubishi system high speed 12000rpm VMC CNC vertical machining center
Mitsubishi system high speed 12000rpm VMC CNC vertical machining center | V1000 |
Worktable size | 1200*600mm |
T-slot | 5/18/115 mm |
Max.loading capacity of worktable | 600kg |
Worktable travel X*Y*Z | 1000*600*600mm |
Distance between spindle nose to table | 150-750mm |
Rapid moving speed X/Y/Z | 48m/min |
Cutting feeding speed X/Y/Z | 10m/min |
Spindle taper | BT40 |
Max.spindle speed | 40-10000rpm |
Spindle motor power | 7.5kw |
Position accuracy | 0.005 |
Re-position accuracy | 0.003 |
Automatic Tool magazine pieces | 24 pcs |
Max.tools weight | 8 kgs |
Max.tools size | 80/150 |
Overall size | 3200*2700*3100mm |
Machine weight | 9500 kg |
Standard Accessories:
1.Taiwan direct connect spindle BT40-150-12000rpm, oil cooler
2.X,Y,Z Taiwan linear guide ways
3.Taiwan arm type tool magazine with 24 tools
4.Taiwan high precision ball screws
5.spindle blowing chip removal system, spindle front seal
6.JAPAN NACHI or Germany FAG bearing
7.auto centralized lubrication system
8.water cooling, air cooling
9.electrical hand wheel(MPG)
10.working lamp, alarm light
11.rigid tapping,
12.air gun
13.screw type chip conveyor with flushing.
2.X,Y,Z Taiwan linear guide ways
3.Taiwan arm type tool magazine with 24 tools
4.Taiwan high precision ball screws
5.spindle blowing chip removal system, spindle front seal
6.JAPAN NACHI or Germany FAG bearing
7.auto centralized lubrication system
8.water cooling, air cooling
9.electrical hand wheel(MPG)
10.working lamp, alarm light
11.rigid tapping,
12.air gun
13.screw type chip conveyor with flushing.

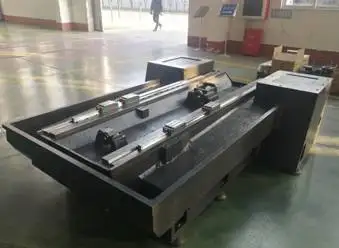

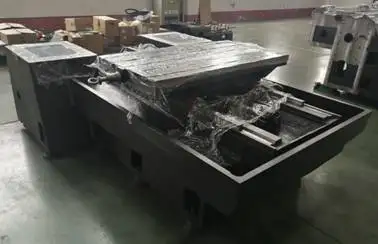

Details Images
Siemens CNC controller
FANUC CNC controller
BT40 spindle unit with 8000rpm speed from Taiwan
Full protection
Taiwan Umbrella-type 16 pcs Automatic Tool Changer
Taiwan Disc-type automatic tool changer

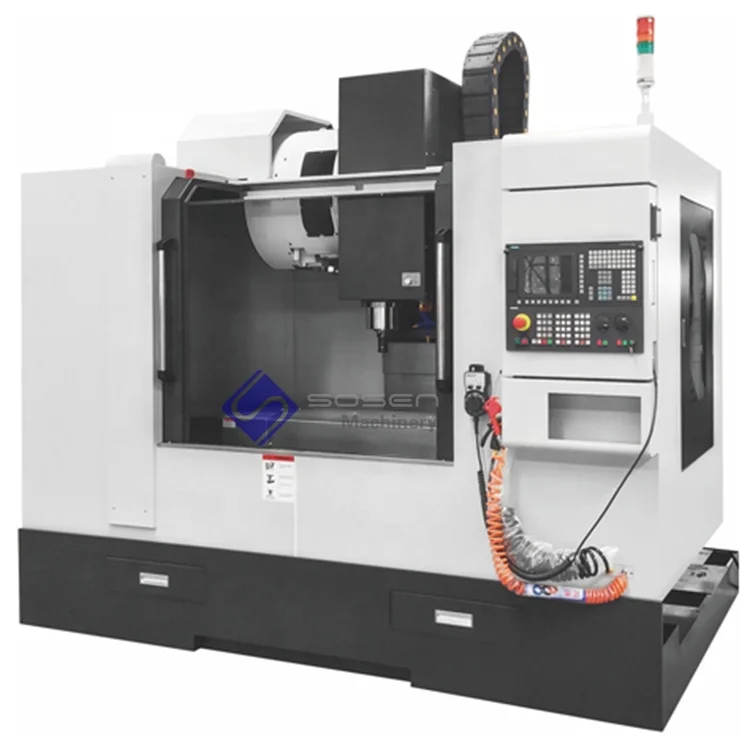

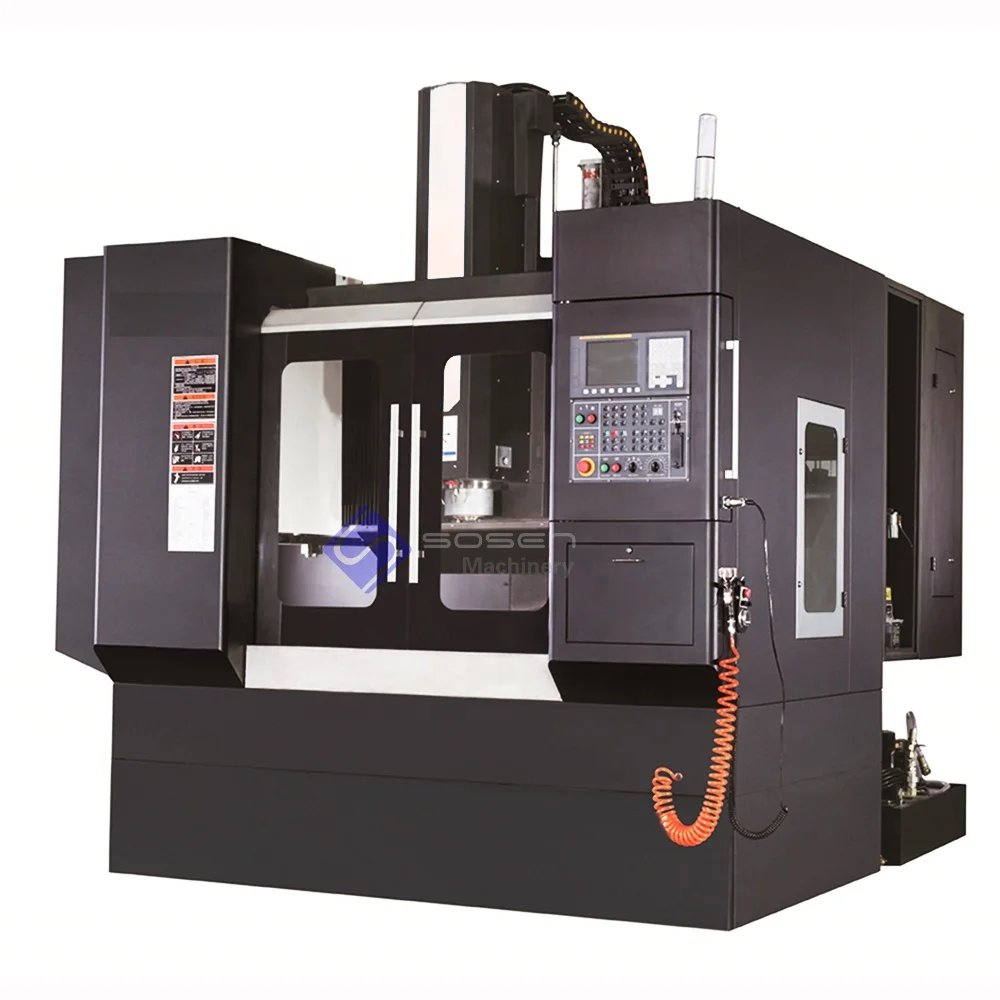

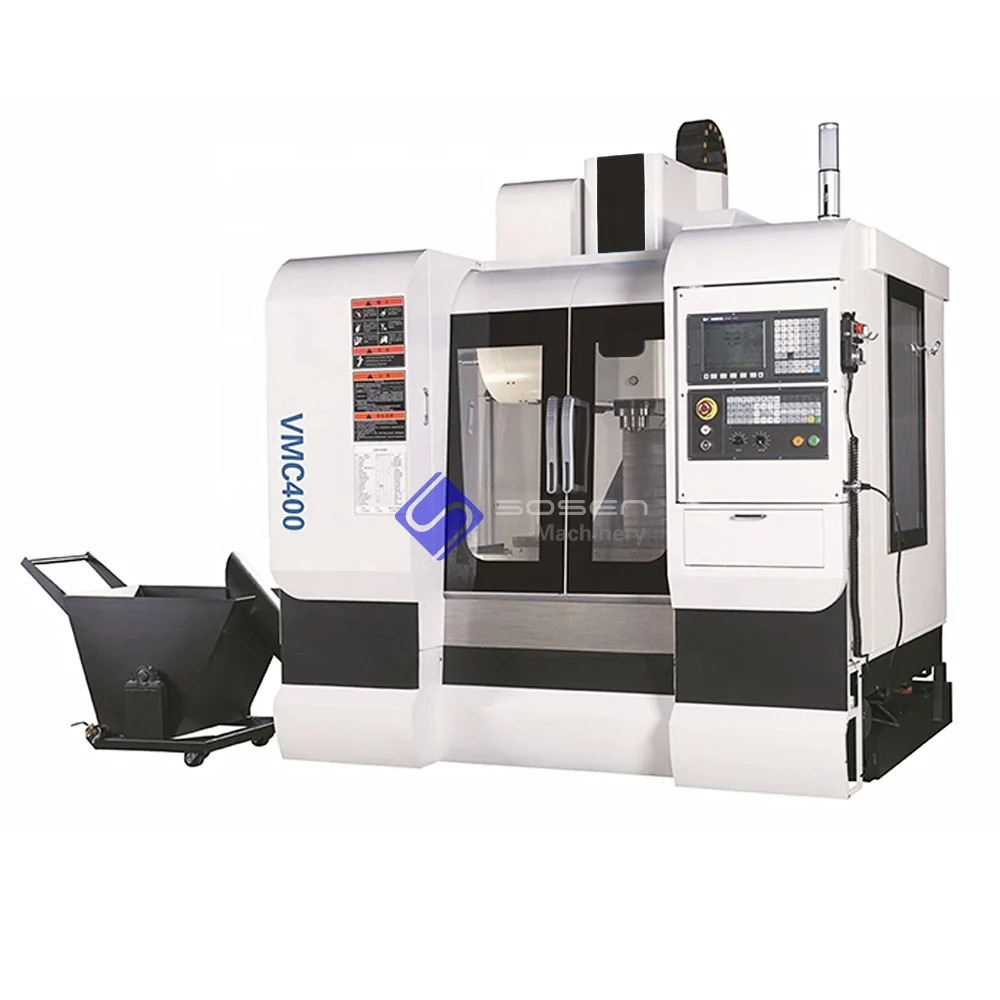

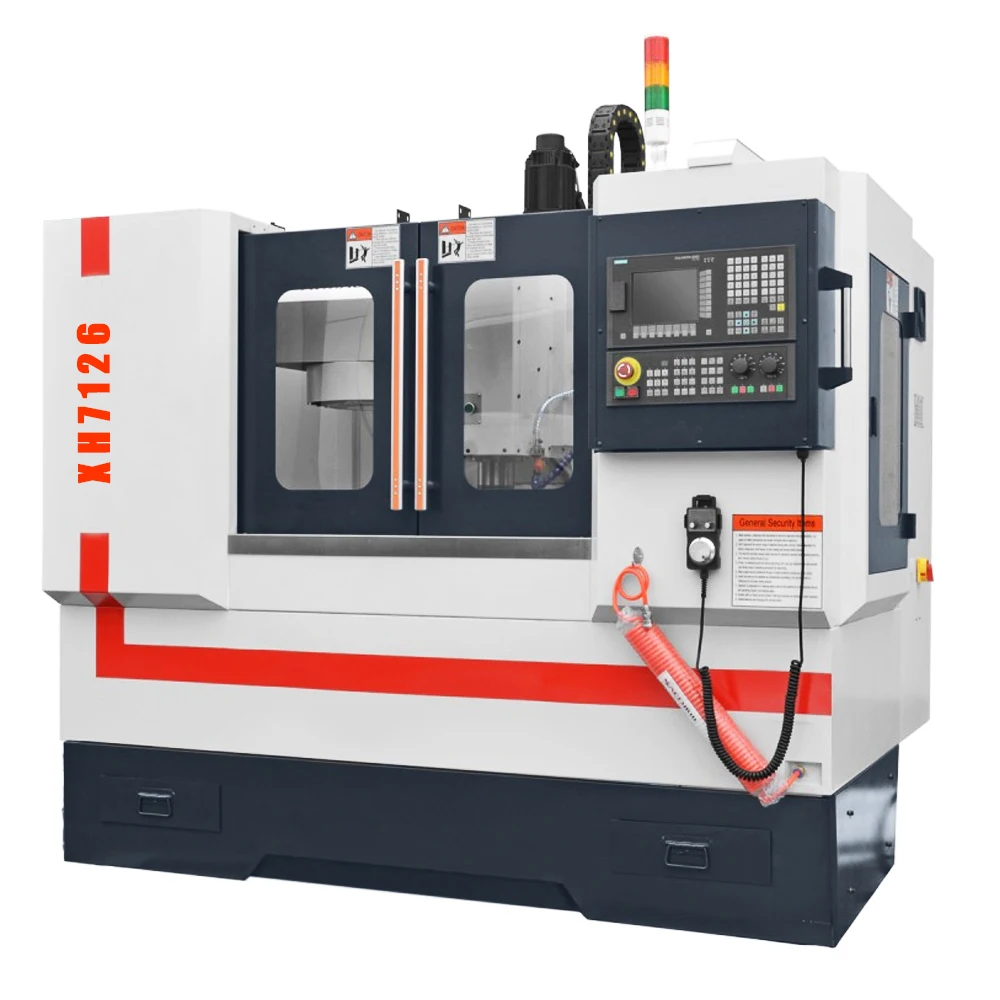

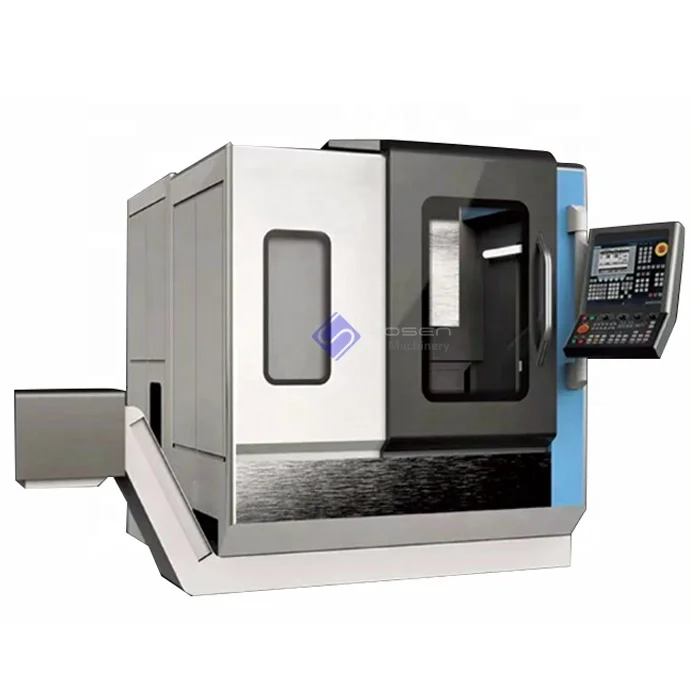

Other different models CNC milling vertical machining centre for your choice:
Company Profile
TENGZHOU SOSEN CO.,LTD located in Tengzhou city, south of Shandong Province. We are specialized in the manufacture of CNC machine center, Lathe machine, CNC Lathe Machine, Milling Machine, CNC Milling Machine, Grinding Machine, Band Saw. Our products are widely used in the auto, mould, construction machinery, military industry, aviation, high speed railway and energy industry.
We have our own share in many markets, and the products have been widely exported to Europe, America, Australia, Middle East, Southeast Asia, and Africa and so on.
Our workers are all have over 10 years working experience with Machine tools, we have professional inspector team, Focusing on addressing customers' needs, we aim at quality machines and perfect after-sales services to the customers.
Our workers are all have over 10 years working experience with Machine tools, we have professional inspector team, Focusing on addressing customers' needs, we aim at quality machines and perfect after-sales services to the customers.
FAQ
Q1.How long can I get feedback after enquiry?
We will reply you within 3 hours in working day.
Q2.Delivery time
Machines order takes 30 days after deposit payment received. Please inquiry sales.
Q3.What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.
Q4.Payment term
30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to inquiry sales.
Q5.Can I trust you?
Sure, we’re Alibaba Gold Suppliers, Alibaba Assessed Supplier, Alibaba Trade Assurance Supplier.
Q6.How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing. Please contact
our SOSEN sales representative for details.
Q7.How about your after-sale service?
Our after sales support and service is second to none and we urgently respond to your queries, if parts are required they would be
sent to you by international courier within 3 days.
Q8.Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
We will reply you within 3 hours in working day.
Q2.Delivery time
Machines order takes 30 days after deposit payment received. Please inquiry sales.
Q3.What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.
Q4.Payment term
30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to inquiry sales.
Q5.Can I trust you?
Sure, we’re Alibaba Gold Suppliers, Alibaba Assessed Supplier, Alibaba Trade Assurance Supplier.
Q6.How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing. Please contact
our SOSEN sales representative for details.
Q7.How about your after-sale service?
Our after sales support and service is second to none and we urgently respond to your queries, if parts are required they would be
sent to you by international courier within 3 days.
Q8.Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
