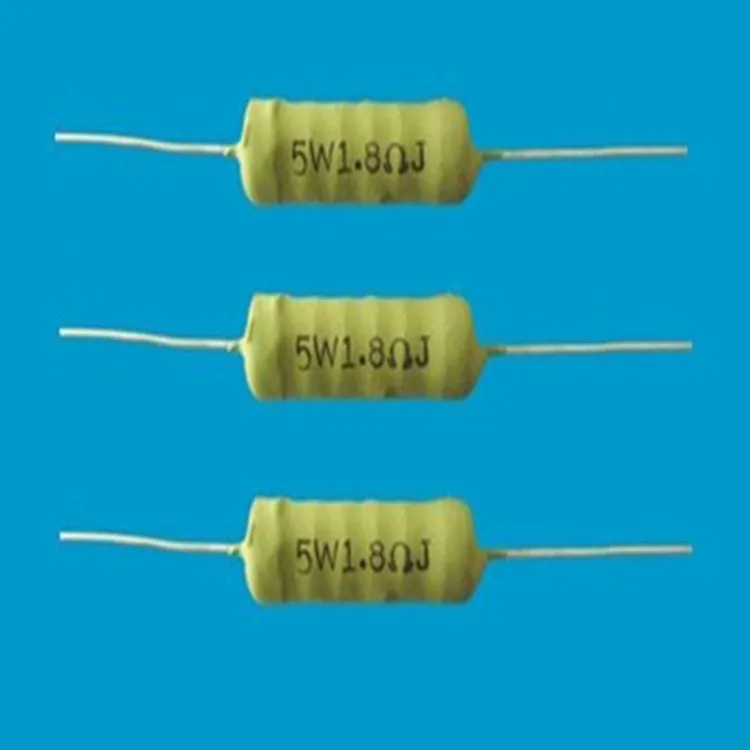

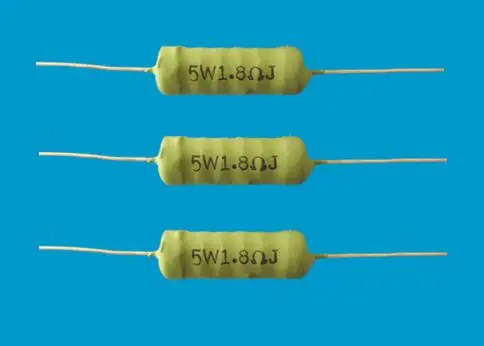

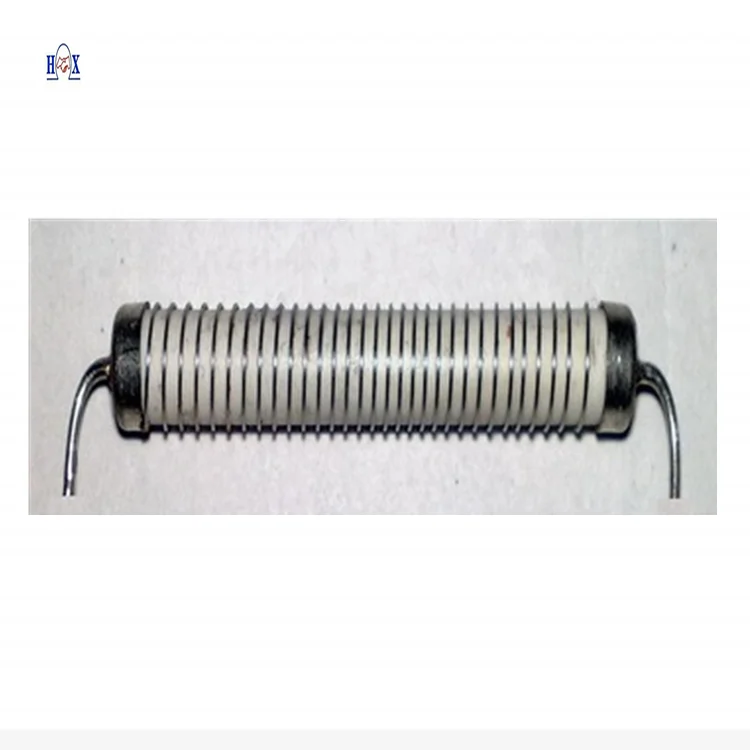

5W 5% Resistance Electronics High Power Wirewound Resistors For Automatic Plug In Fuse resistance surge resistance
- Category: >>>
- Supplier: Dongguan City Hanxiang Electronics Co. Ltd.
Share on (62502019289):
Product Overview
Description
Good Heat Resistance Electronics High Power Wirewound Resistors For Automatic Plug-In
Product Description

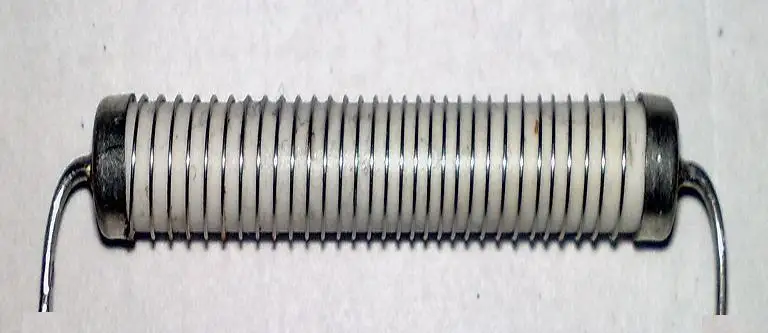

Wound resistor (KNP)

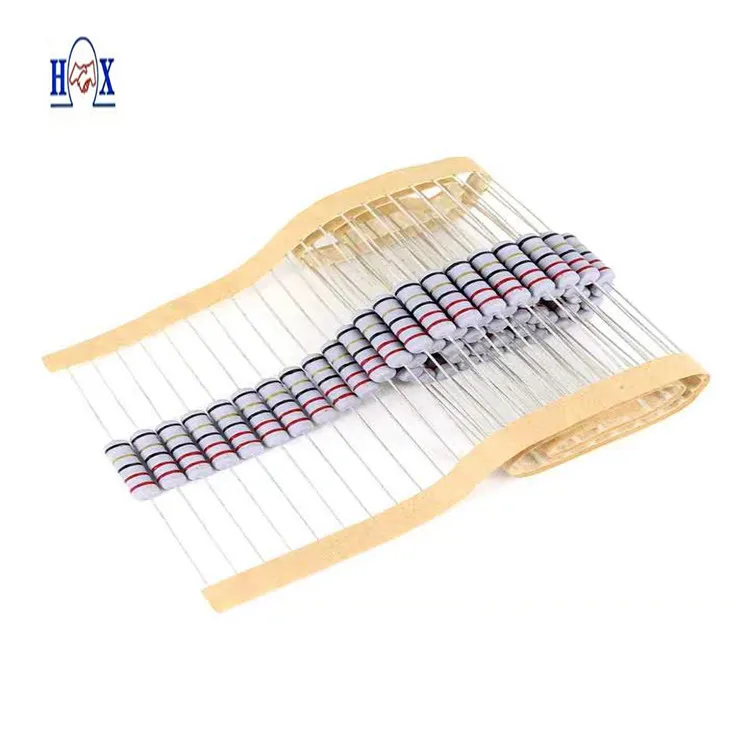

Fixed wound resistor: high reliability, ultra high or ultra low resistance can be specially provided for various molding, flame retardant coating, suitable for automatic plug-in
1, good heat resistance, small temperature coefficient, low noise, large load power
2. The ambient temperature is -55℃ to +275℃

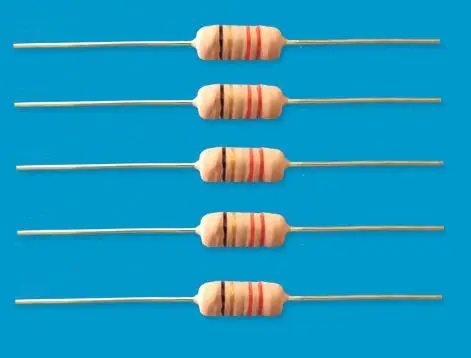

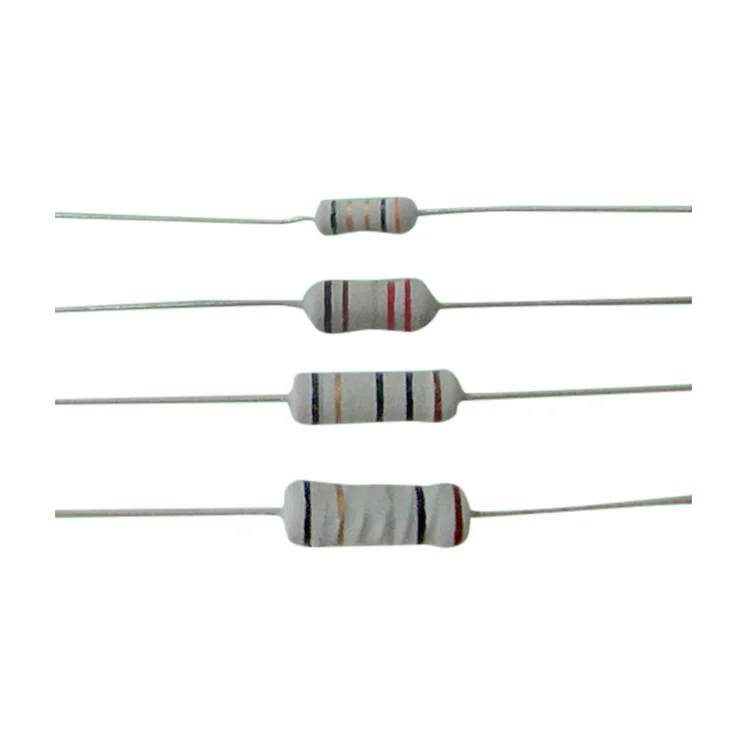

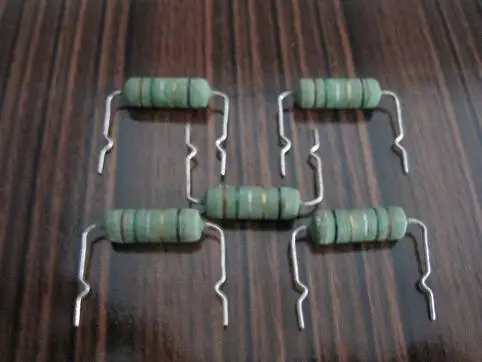

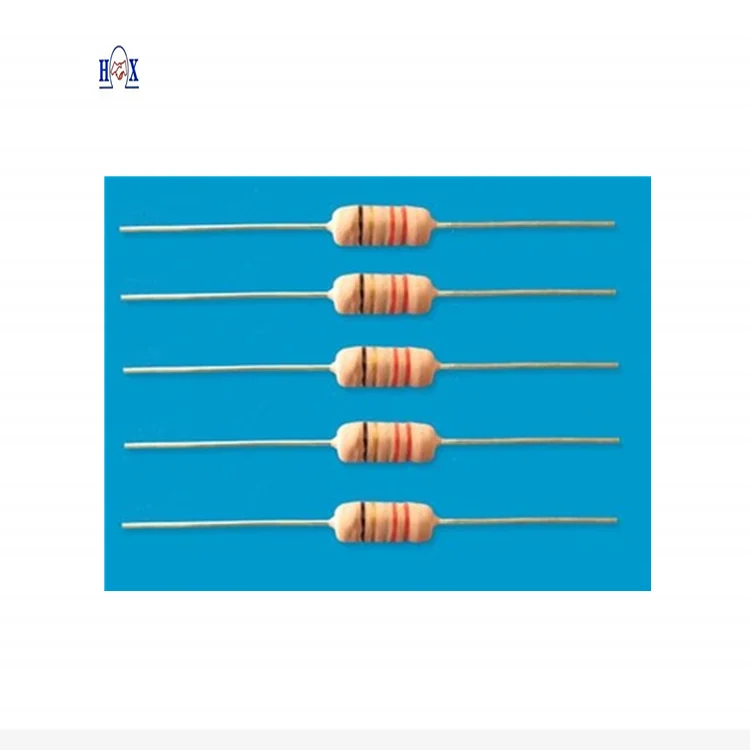

3. The surface shall be coated with non-combustible topcoat. 1/4w-6w shall be marked with color ring to indicate the resistance value. 7W above the mark with a printed word resistance value, paint color for green
4, power: 1/4 w, 1/2 w, 1W, 2W, 3W, 4W, 5W, 6W, 7W, 8W, 10W
Precision: ±1%,±2%,± 5%,±10%
6. Resistance range: 0r01-47k
knp
STYLE | DIMENSIONS(mm) | |||||
Normal | Miniature | a | A | B1-B2 | S(Spacing) | T (Max. deviation of spacing) |
TYPE-25 | TYPE50S | 6±0.5 | 52.5±1.5 | 1.2 | 5 | 1 mm per 10 spacing |
26.0±1.5 | 1.0 | |||||
TYPE-1/2W | TYPE1WS | 6±0.5 | 52.5±1.5 | 1.2 | 5 | |
TYPE-1W | TYPE2WS | 6±0.5 | 63.0±1.5 | 1.5 | 5 | |
TYPE-2W | TYPE3WS | 6±0.5 | 73.0±1.5 | 1.5 | 10 | |
TYPE-3W | TYPE5WS | 6±0.5 | 73.0±1.5 | 1.5 | 10 | |
TYPE-5W |
| 6±0.5 | 73.0±1.5 | 1.5 | 10 | |
