Production Application
Aluminum can line are a set of machines to produce mono block aerosol cans and bottles.

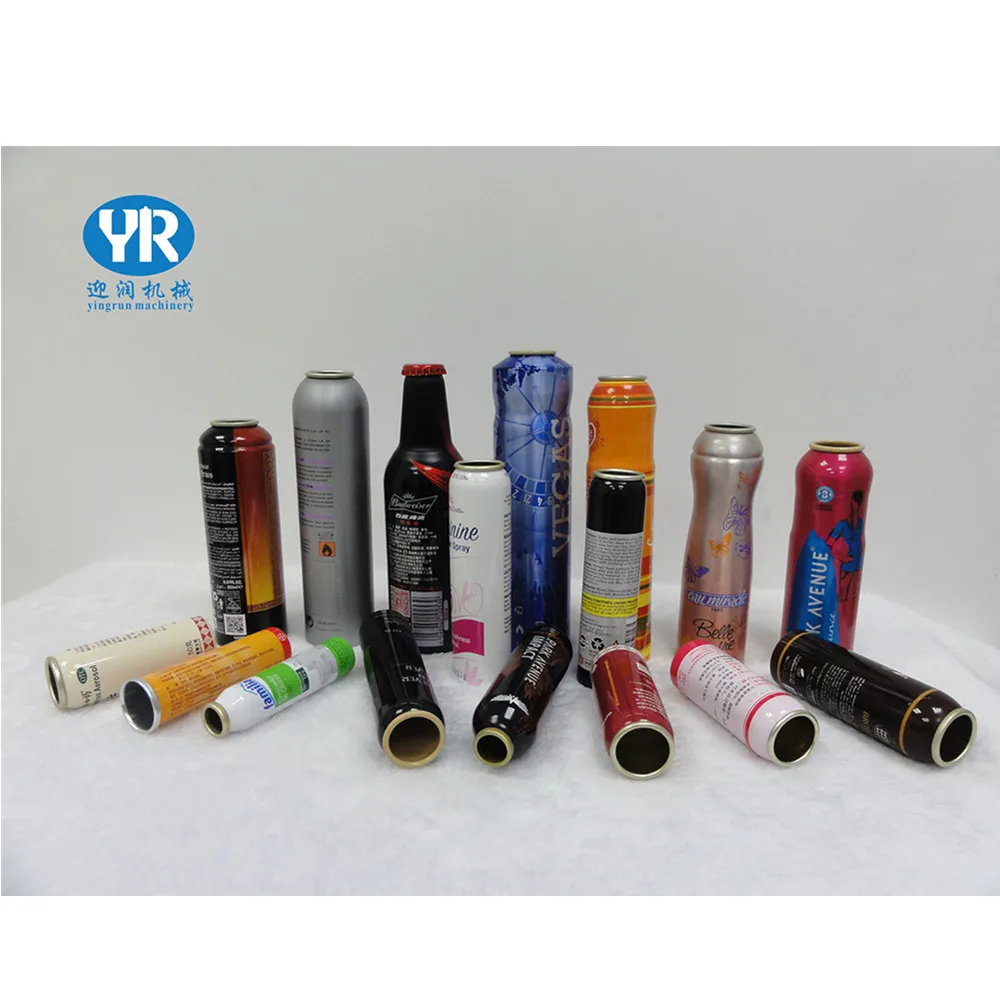

Monoblock cans and bottles are used for perfume, deodorant, hair sprays, shaving creams, pesticide bottles, aluminum tubes, hair sprays, conditioners, medicines, fire extinguishers, oil and paints.

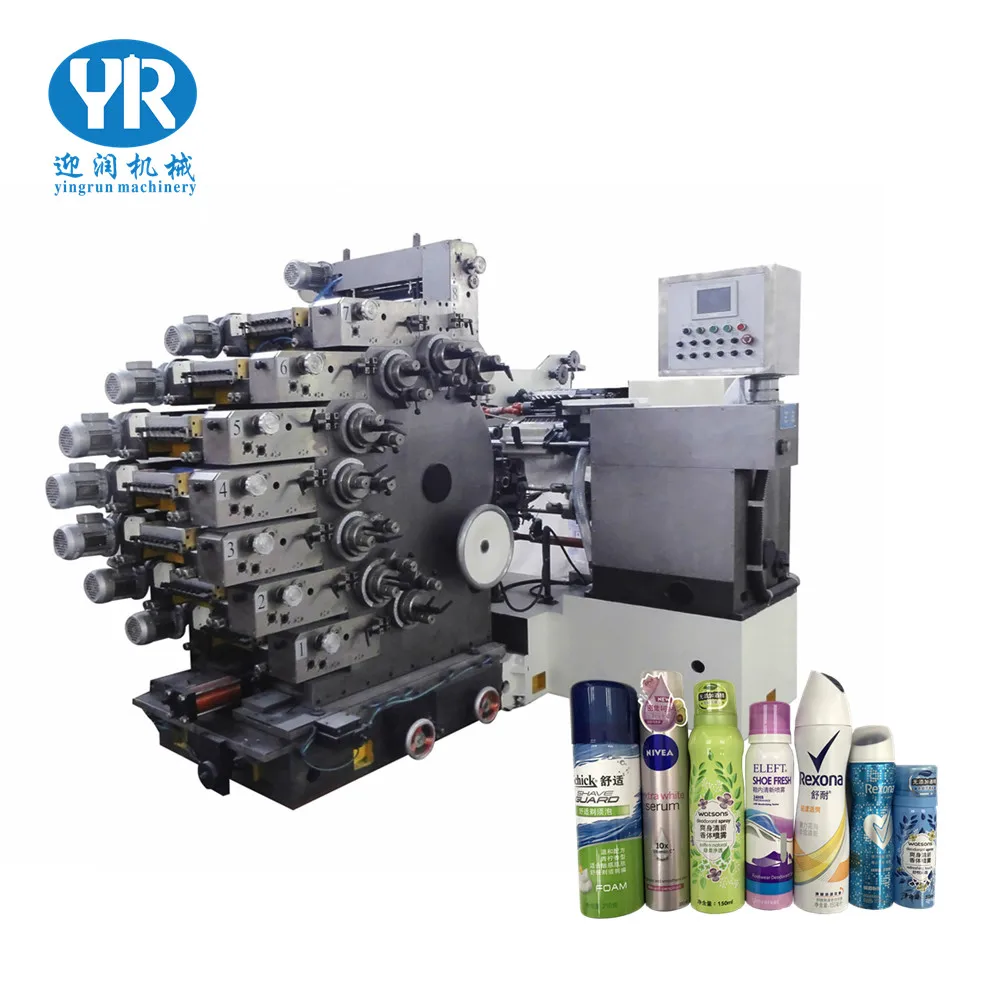

The XR series aluminum can lines produced by us are fully automatic. Each equipment of this series can work alone or form partial production lines according to client's needs. The main machines include LJC01 Extrusion press, XSC01 Trimmer cum brushing, QXC02 can washer or degreasing Spray washing machine,CCC02 Accumulator, PTC01 Internal lacquering machine, GHC01 Lacquer curing oven, DYC01 Base-coating machine, YSC01 6-color or YSC02 8-color printing machine, HXC02 Drying oven, SJC01 and SJC02 Necking machine, etc.
All the equipment of the series are properly aligned in structure, having advance design, highly automated for fast production. All machines are controlled with SIEMENS PLC to ensure stability. To save energy consumption, all lacquer curing machine and drying oven adopt gas heating. Main units and controlling components all adopt branded products to ensure reliable and stable performance. All the products can be passed automatically through the production line. The color touch screen can display the instant information of speed and production, making it convenient for management.
SPECIFICATIONS FOR AlUMINUM AEROSOL CAN PRODUCTION LINE

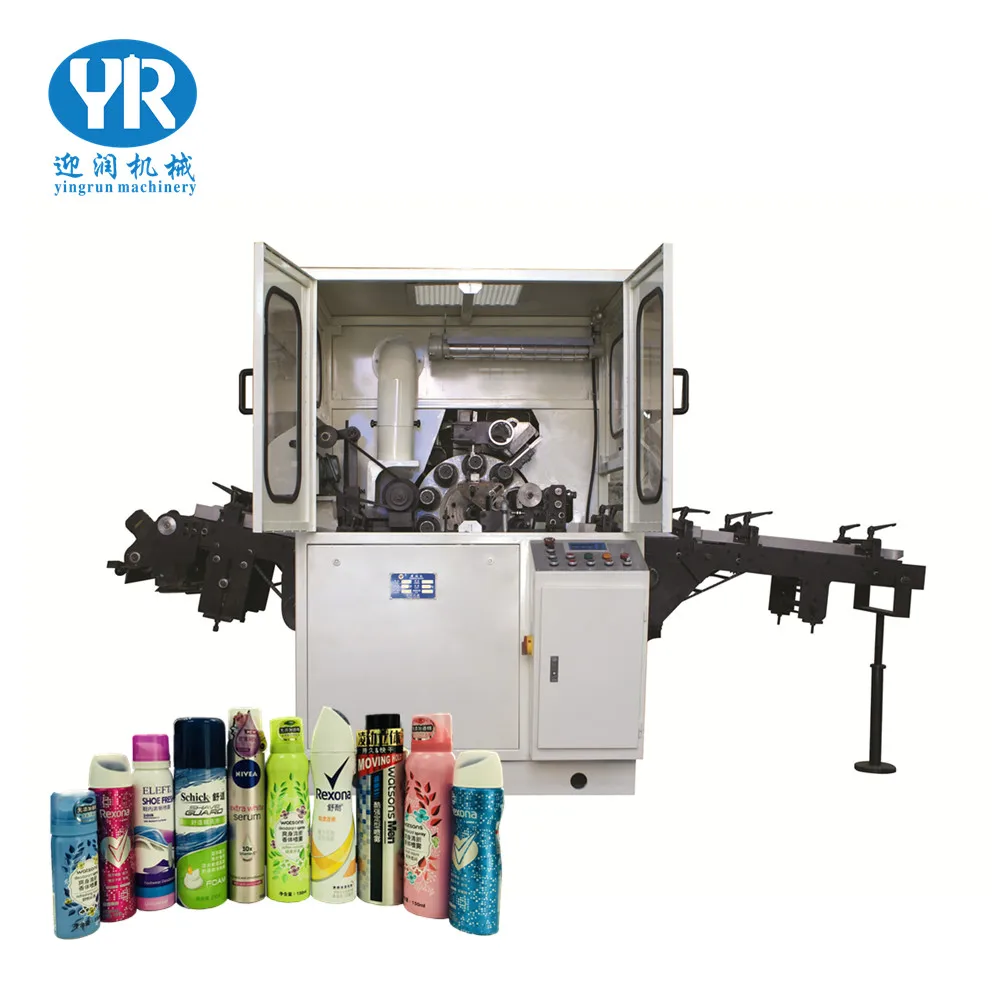

Name: XSC01 Trimming cum brushing machine Main technical parameters A. Can diameter range: φ35mm-φ53mm B. Can length range: ≤250mm C. Production speed: ≤120cans/min D. Main motor power: 4KW, total power:12.85KW E. Intake pressure: P=0.6MPa F. Dimensions: 2940*2600*1820mm G. Weight: about 2800KG
Main Features

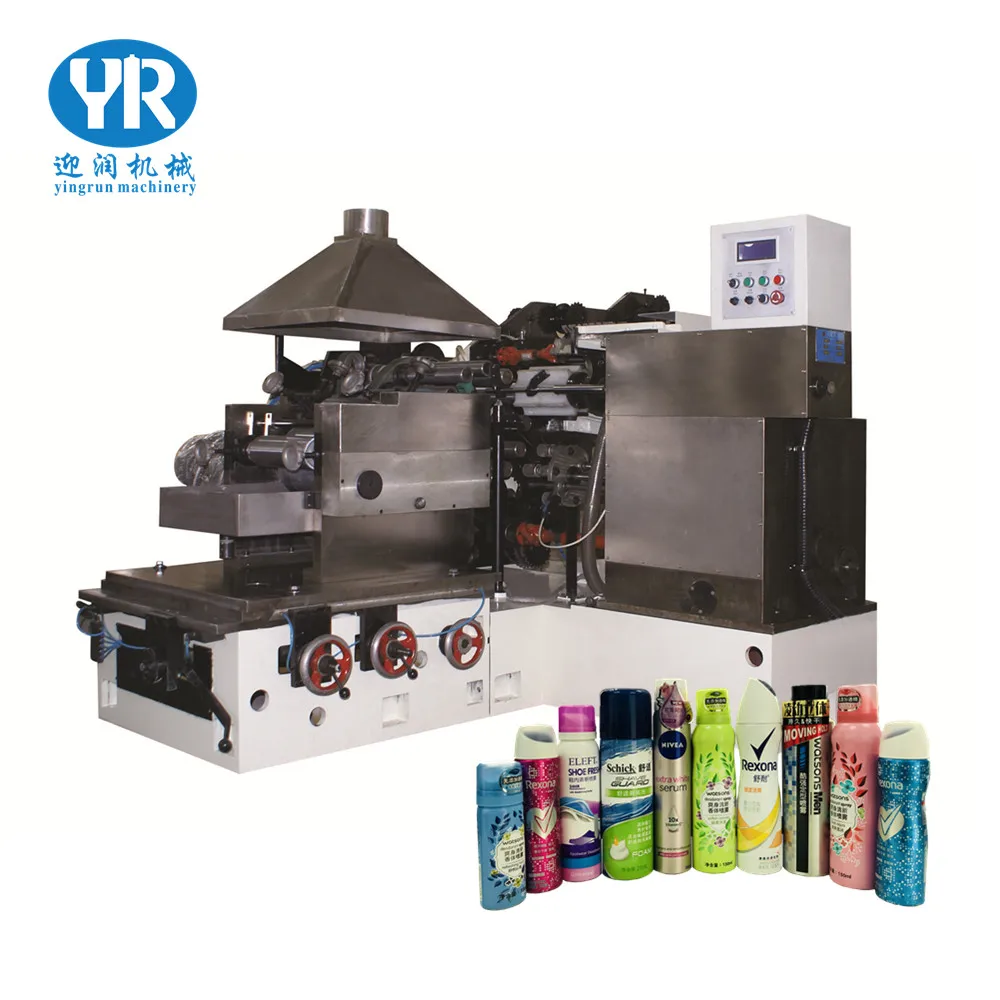

Name: DYC01 Base-coaitng machine Main technical parameters A. Tube diameter range: φ35-φ53mm B. Tube length range: ≤250mm C. Production speed: ≤120cans/min D. Motor power: 5.15KW E. Dimensions: 2750*2330*1760mm F. Net weight: 4500KG G. Intake pressure:≥0.5Mpa
Certifications
Packing&Shipping
PACKAGING IMFORMATION
Size
69 (L) * 4.5 (W) * 6.3 (D)m
Weight
90T
Packaging Details
International Export Standard Wooden Case
After Sales Service
ENGINEERS ONSITE GUIDANCE
Experienced Engineers Team To The Site To Provide Instructions.
Company Introduction
Wuxi Yingrun Machinery Technology Co., Ltd. Is located in beautiful Wuxi, China, only 150 kilometers away from Shanghai.
The company is mainly engaged in the production, sales, consulting and service of aluminum tube production line, aerosol can production line and toothpaste production line. We have more than 20 years of experience. Our products have passed the EU CE certification. Providing customers with better products and services is always our code of conduct. We also provide professional consulting and technical support to our clients.
FAQ
Q: What's the MOQ?
A: 1 set.
Q: Are you trading company or manufacturer?
A: Both. We have our own factory to produce machines and also as the agents of some materials, such as parts, slug, latex...
Q: How long is your delivery time?
A: 1-10 months by negotiation.
Q: What's the warranty time?
A: One year start from installed.
