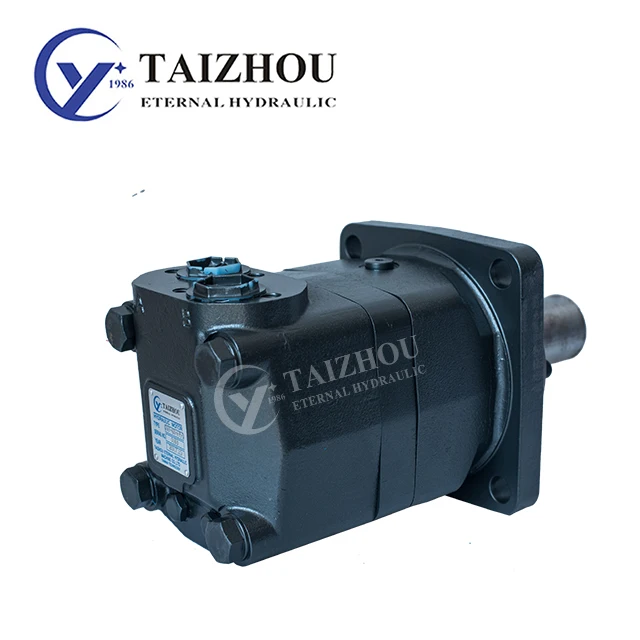

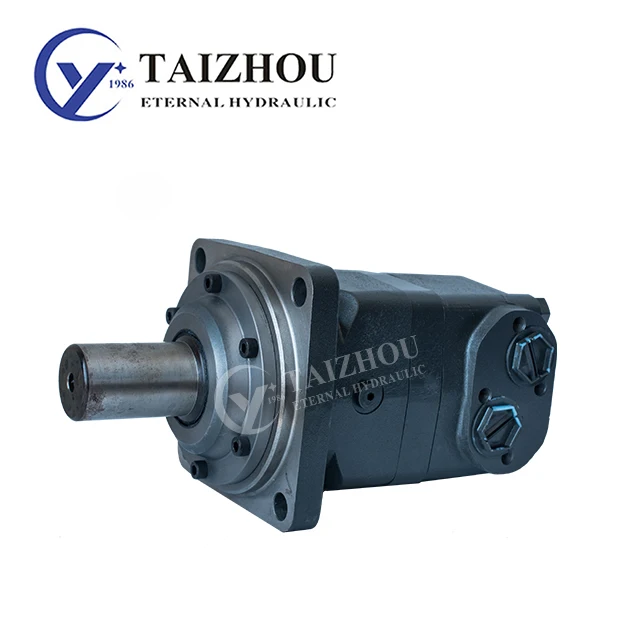

Hydraulic Motor Zihyd High Speed For Agriculture Machinery & Equipment, Omv315 Omv400 Omv500Cc Orbitrol Hydraulic Motor
- Category: >>>
- Supplier: Taizhou Eternal Hydraulic Machine Co. Ltd.
Share on (62502135095):
Product Overview
Description
Products Show

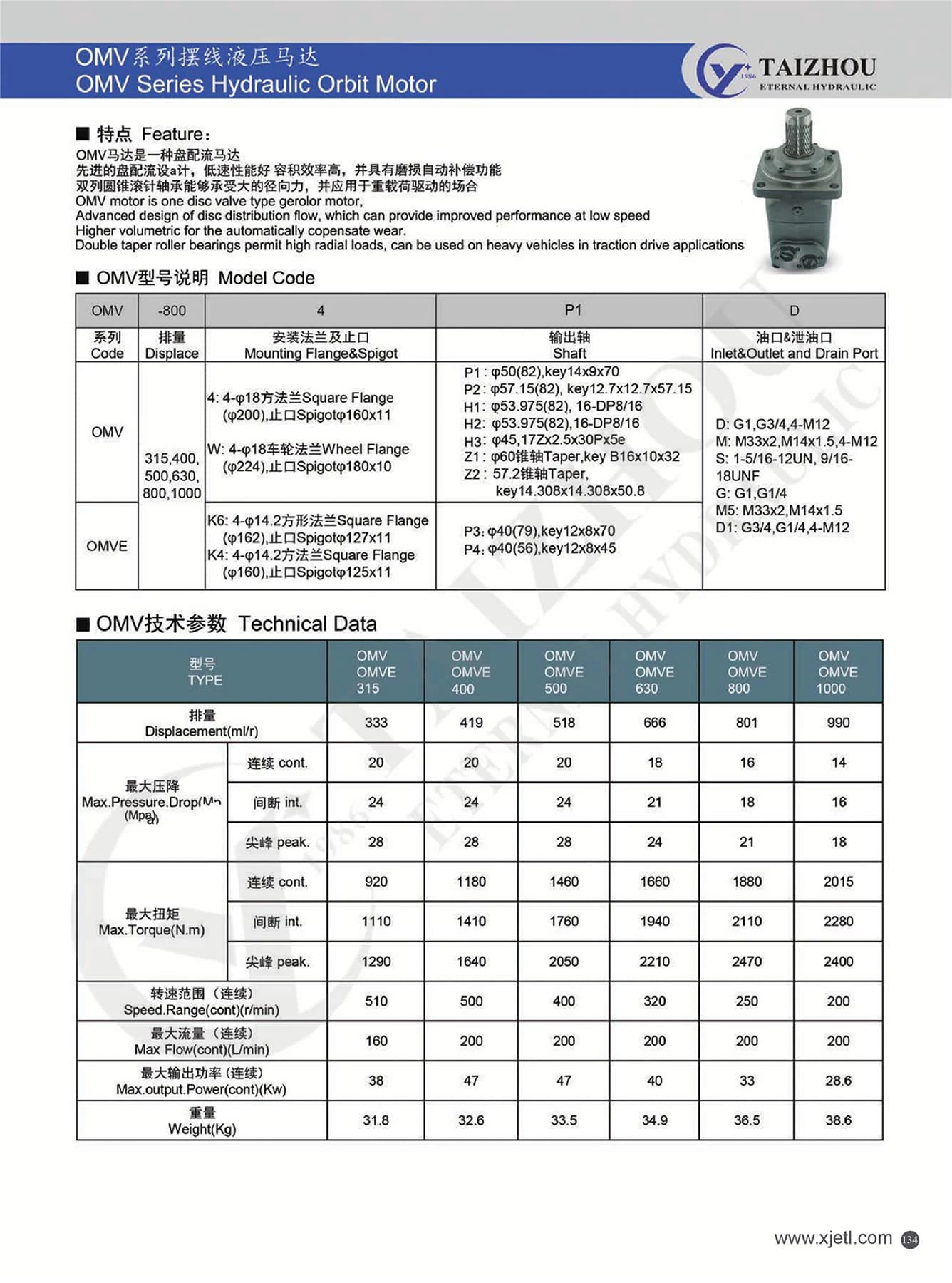

OMV | -800 | 4 | P1 | D |
Code | Displace | Mounting Flange&Spigot | Shaft | Inlet&Outlet and Drain Port |
OMV | 500,630, 800,1000 | 4: 4-Φ18Square Flange (cp200), SpjgotΦ160x11 W: 4-Φ18Wheel Flange (cp224), SpjgotΦ180x10 | P1 : Φ50(82),key14x9x70 P2: Φ57.15(82), key12.7x12.7x57.15 H1: cp53.975(82), 16-DP8/16 H2: Φ53.975(82),16-DP8/16 H3: Φ45,17Zx2.5x30Px5e Z1: Φ60Taper,key B16x10x32 Z2 : 57.2Taper, key14.308x14.308x50.8 | M: M33x2,M14x1.5,4-M12 S: 1-5/16-12UN,9/16-18UNF G: G1,G1/4 M5: M33x2,M14x1.5 D1: G3/4,G1/4,4-M12 |
OMVE | K6: 4-Φ14.2Square Flange (Φ162), SpigotΦ127x11 K4: 4-Φ14.2Square Flange (Φ160), SpigotΦ125x11 | P3: Φ40(79),key 12x8x70 P4; Φ40(56),key12x8x45 |

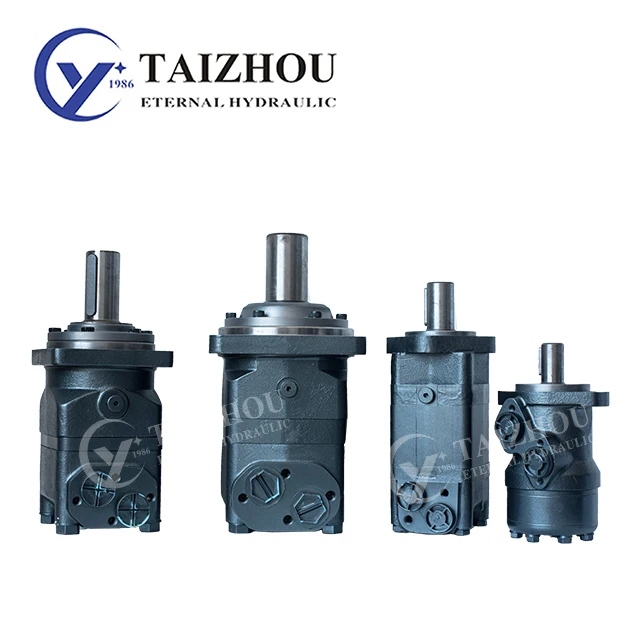

ETERNAL HYDRAULIC OM Series Orbit Motor
Hydraulic orbitl motor is one type of high torque low speed hydraulic motors, with high efficiency and long life. OM series orbitl motor/parts contain maultiple models which used for CharLynn, Eaton , Parker...
Features:
• Smooth running over the entire speed range
• Constant operating torque over a wide speed range
• High starting torque
• High return pressure without the use of drain line (High pressure shaft seal)
• High efficiency
• Long life under extreme operating conditions
• Robust and compact design
• High radial and axial bearing capacity
• For applications in both open and closed loop hydraulic systems
• Suitable for a wide variety of hydraulics fluid
Features:
• Smooth running over the entire speed range
• Constant operating torque over a wide speed range
• High starting torque
• High return pressure without the use of drain line (High pressure shaft seal)
• High efficiency
• Long life under extreme operating conditions
• Robust and compact design
• High radial and axial bearing capacity
• For applications in both open and closed loop hydraulic systems
• Suitable for a wide variety of hydraulics fluid

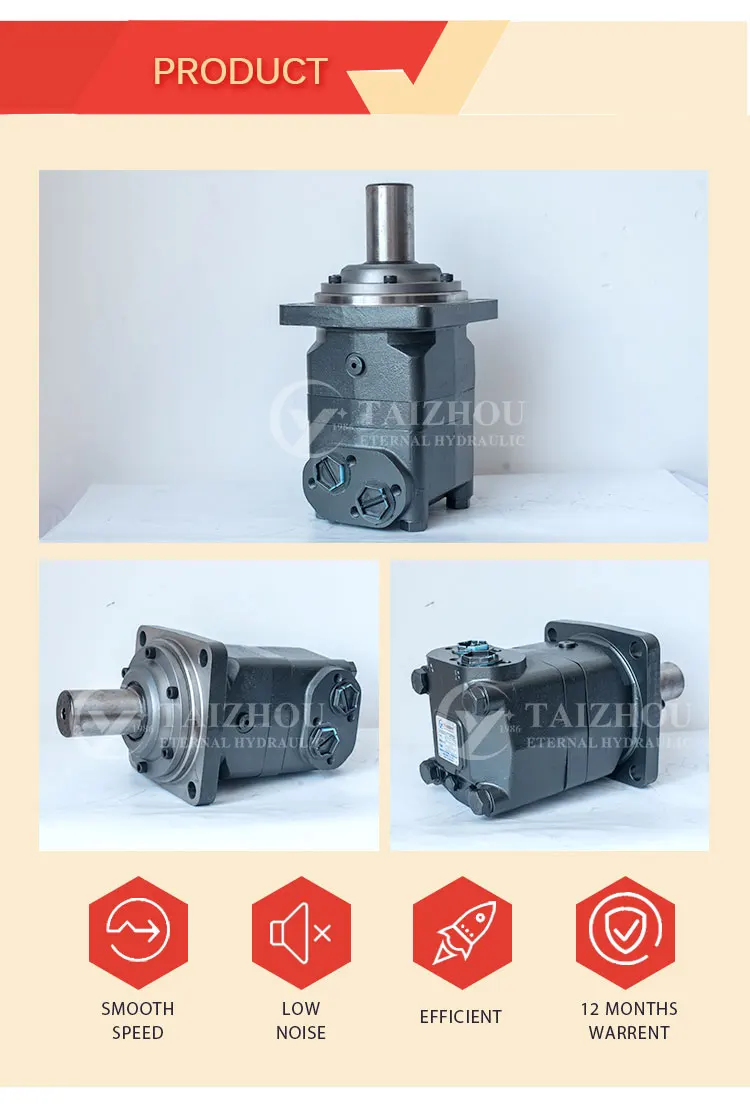

Product Description
Production &packaging
Company Profile
About Eternal Hydraulic
Eternal Hydraulic is a professional Manufacturer of Hydraulic Components with more than 10 years experiences, is also a One-Stop Mall in Hydraulic Filed, with 40+ distributors and 1000+ regular customers , 160+ Suppliers. CE/ISO/SGS/TUV certificate.
Our products including Piston Pump, Vane Pump, Gear Pump, Hydraulic Valve, Hydraulic
Motor, Electric Motor, Oil Cooler, Accumulator, Servo System, Power Pack Unit and other hydraulic accessories etc.
Motor, Electric Motor, Oil Cooler, Accumulator, Servo System, Power Pack Unit and other hydraulic accessories etc.
