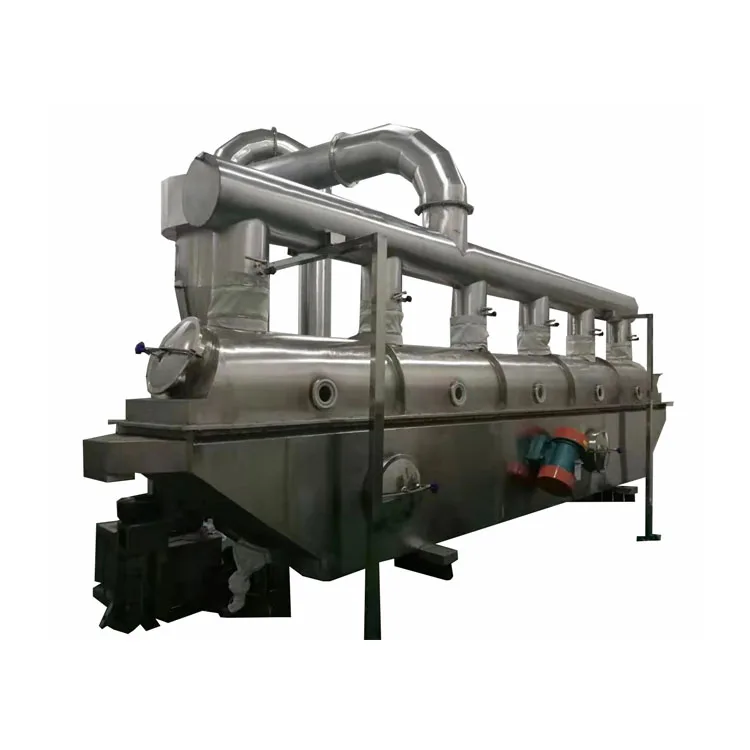

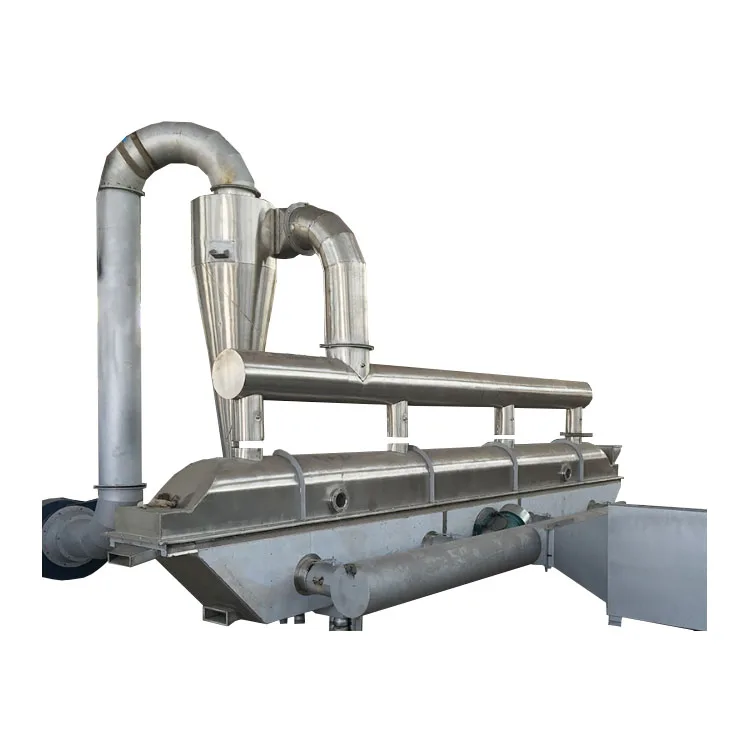

Vegetable hemp bee pollen vibrating fluid bed hot air dryer drier drying machine

Product Detail

 NOTE:  The occupied area is about 35 Square meter

Introduction & working principle

CD series of vibration fluid bed dryer is a continuous drying equipment for non-sticky particles. Its working principle is: cold air is filtered through the filter, and then goes into the heater, and is heated to a certain temperature, then hot air is distributed into the lower bed via multiple inlets and flows up through perforated plate of the bed. Material goes evenly into the bed through feeding conveyor and  feeder, under the action of the vibration force, the material moves up forward continuously along the horizontal direction, while undergoes heat exchange with the hot air coming up from bottom, the moisture of material is evaporated rapidly, and the wet air is discharged from the exhaust fan, and the material is fully dried and discharged from the discharge port.

Application

The fluid bed dryer can do the drying function and cooling function, and it is widely used in particles materials,solid materials etc..., such as coconut powder, bread crumbs, Chicken essence, glass fiber, seeds, spices particles etc...

Please contact me for double confirm if you not sure this type dryer suitable for your products

Advantages

Heat source: biomass, electricity,steam,gas,coal(Option)

1, the equipment drying time is short, the general effective ingredients will not be destroyed.

2, adjustable weir plate is set at the discharge port, by adjusting the height of the weir plate, you can control stayed drying time of the material so as to make sure that final water content of materials meets the requirements.

3, perforated plate adopts back pressure process to ensure flatness of perforated plate, to avoid the deadline in the process of material running.

4, there are multiple wind inlet to the lower bed, so that the hot air through the material layer is more uniform.

5, the whole electric heating treatment is applied to the lower bed after its completion of production, eliminating the welding gravity, improving the strength of the bed, thick-walled seamless tube is applied to the internal to strengthen the evenly vibration force.

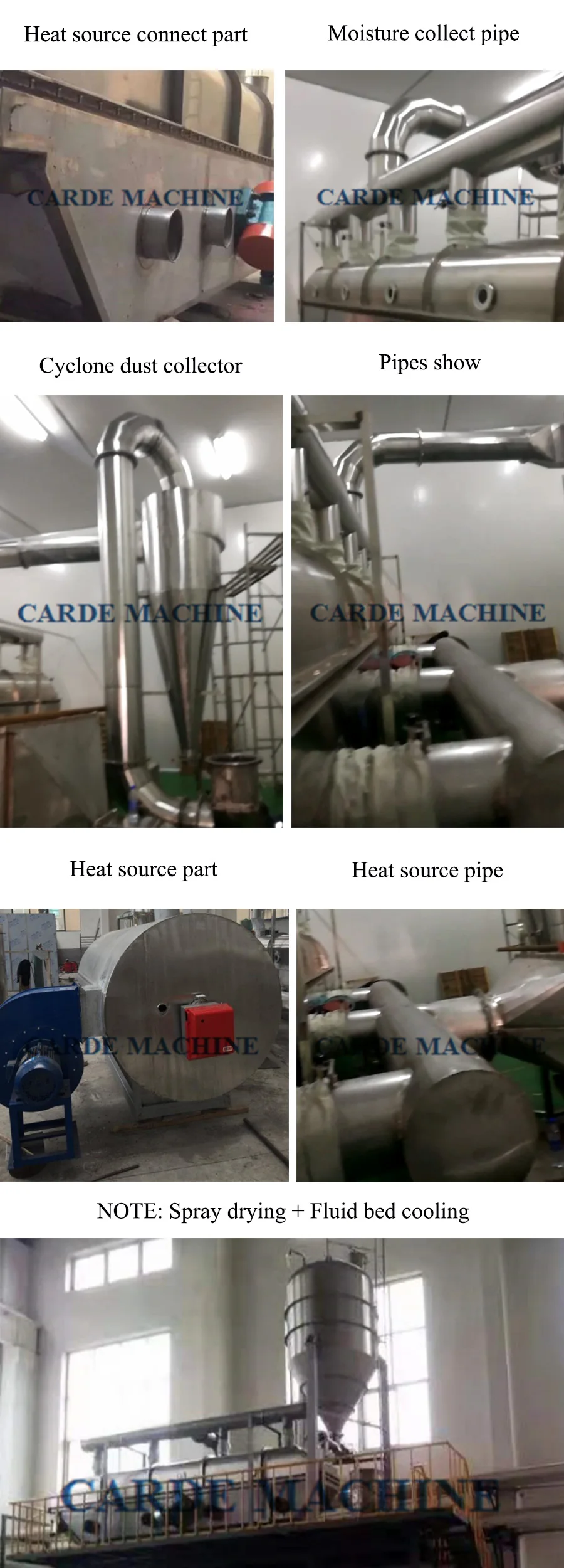

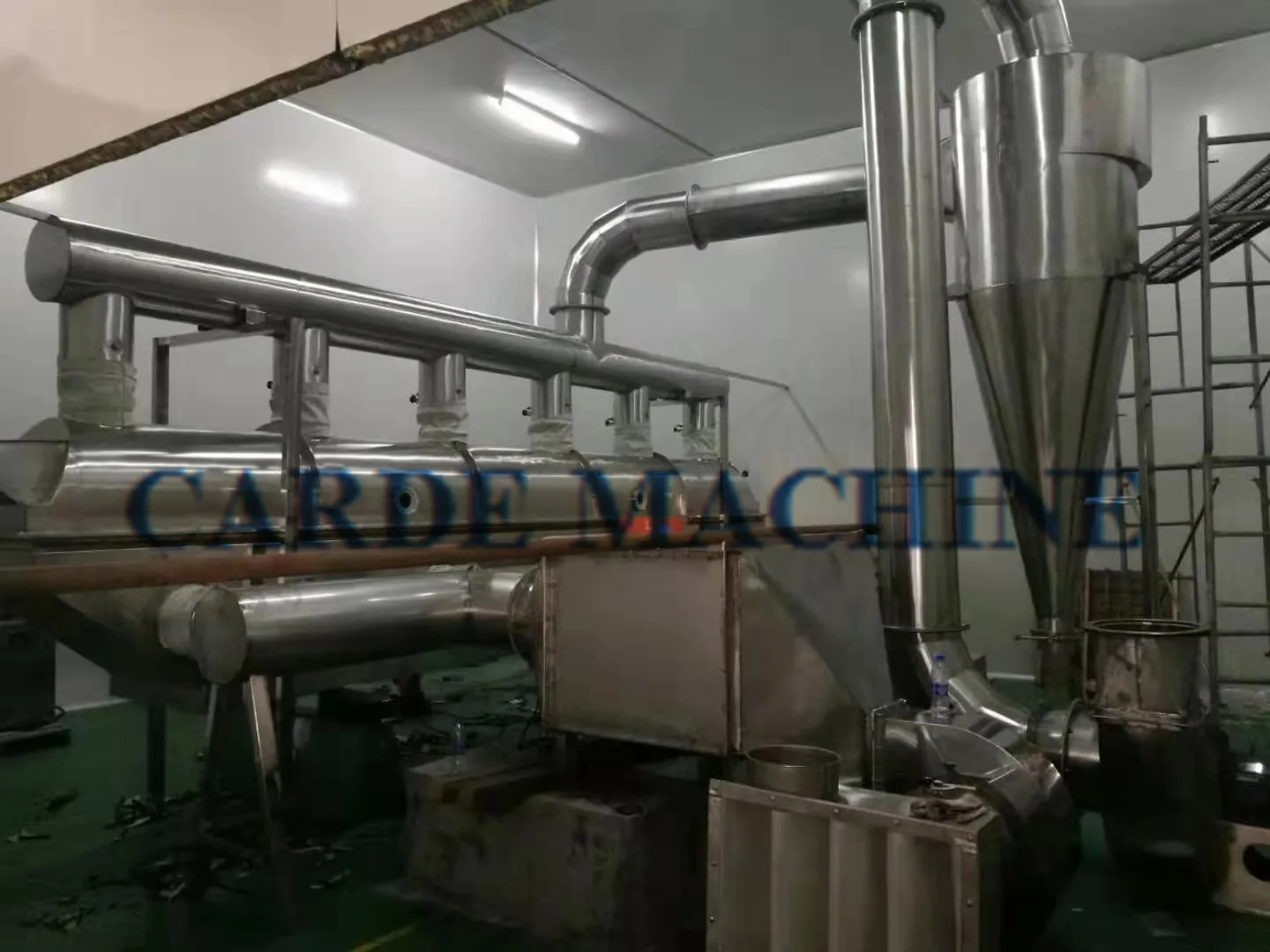

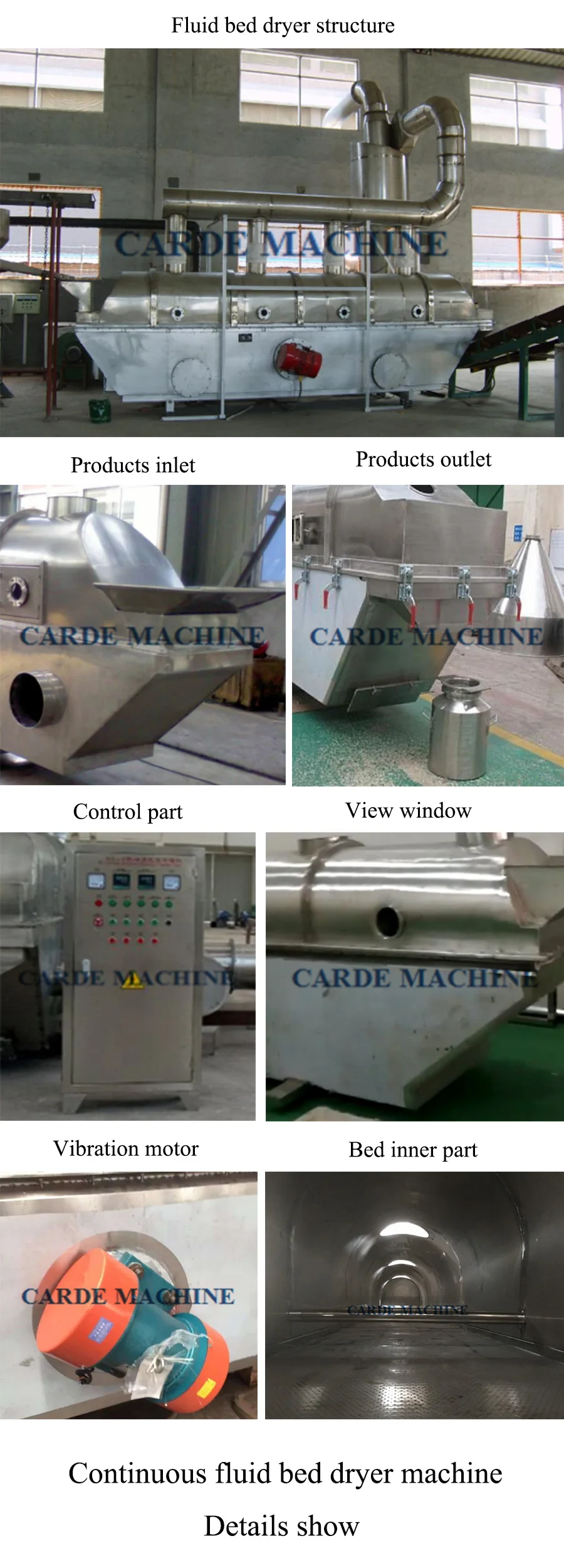

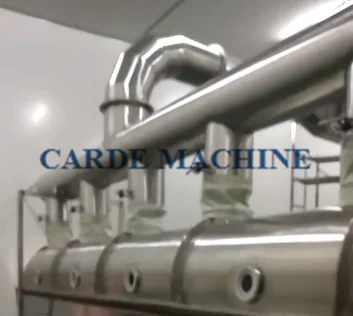

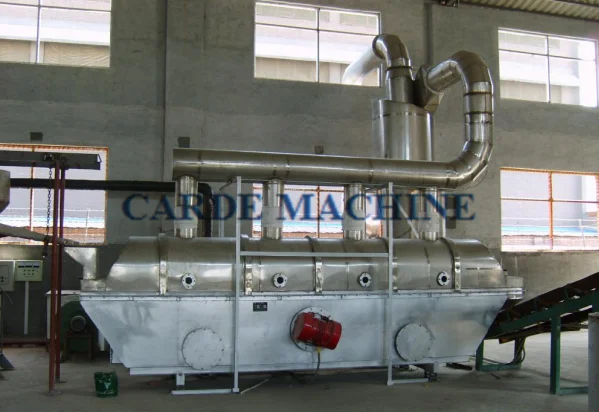

Details Show
