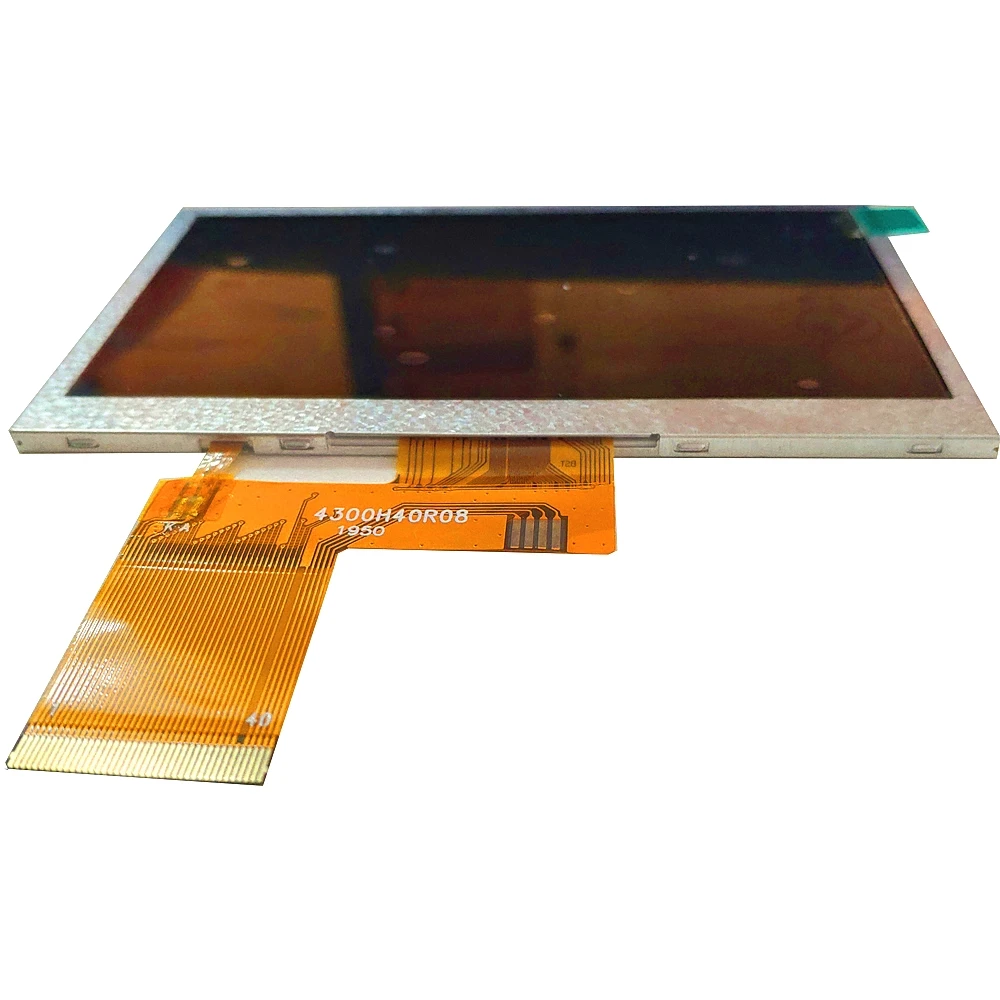

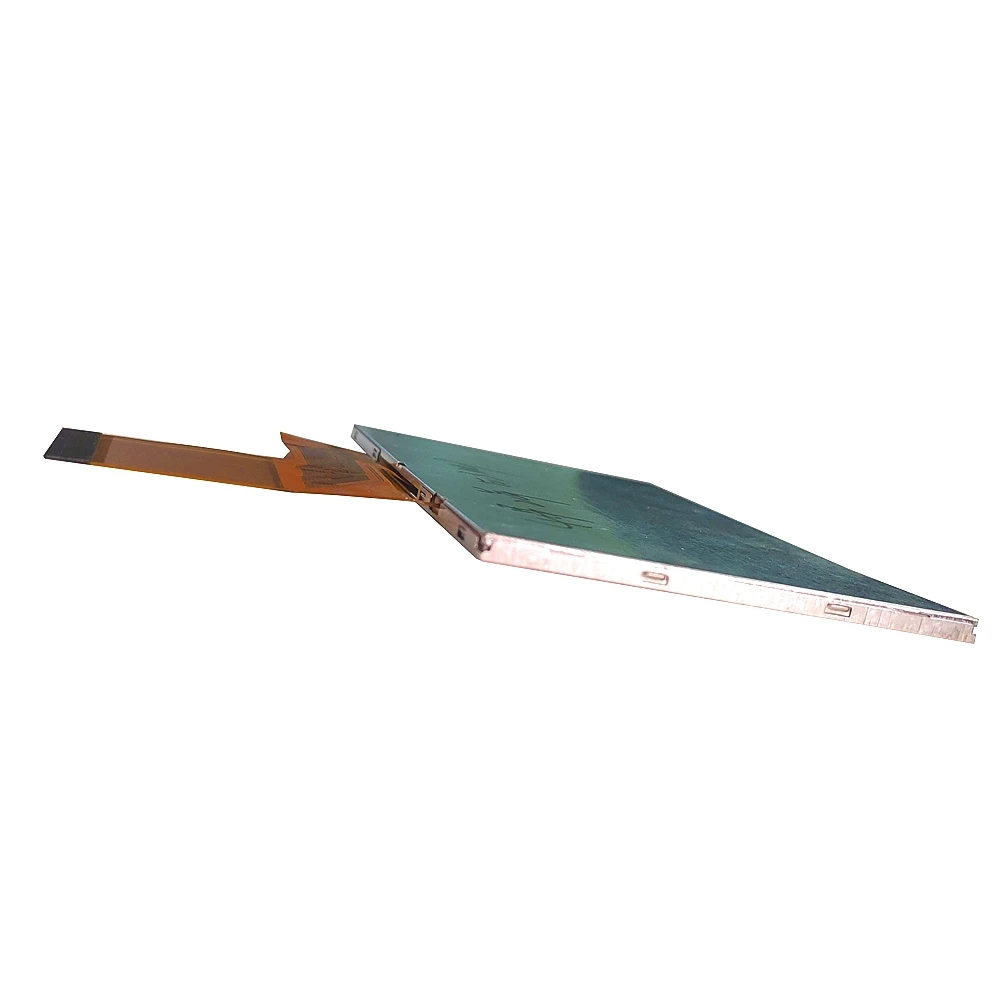

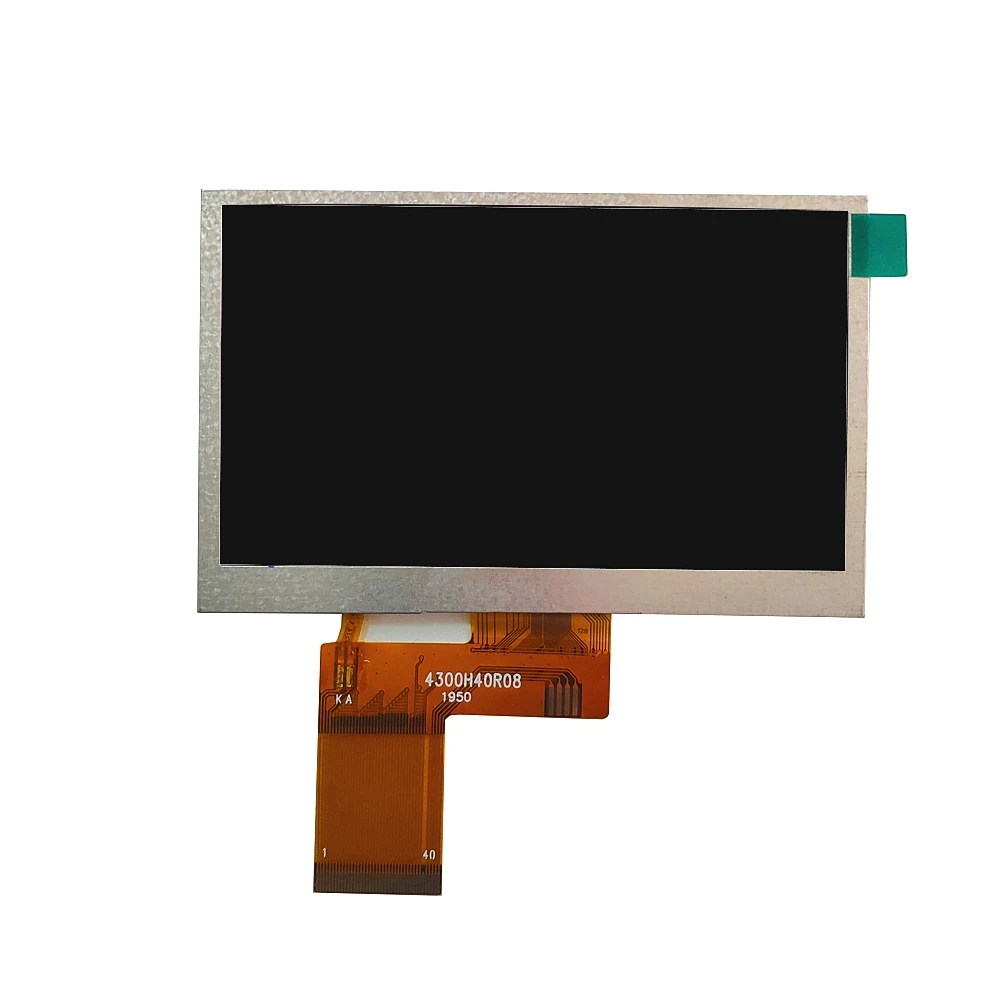

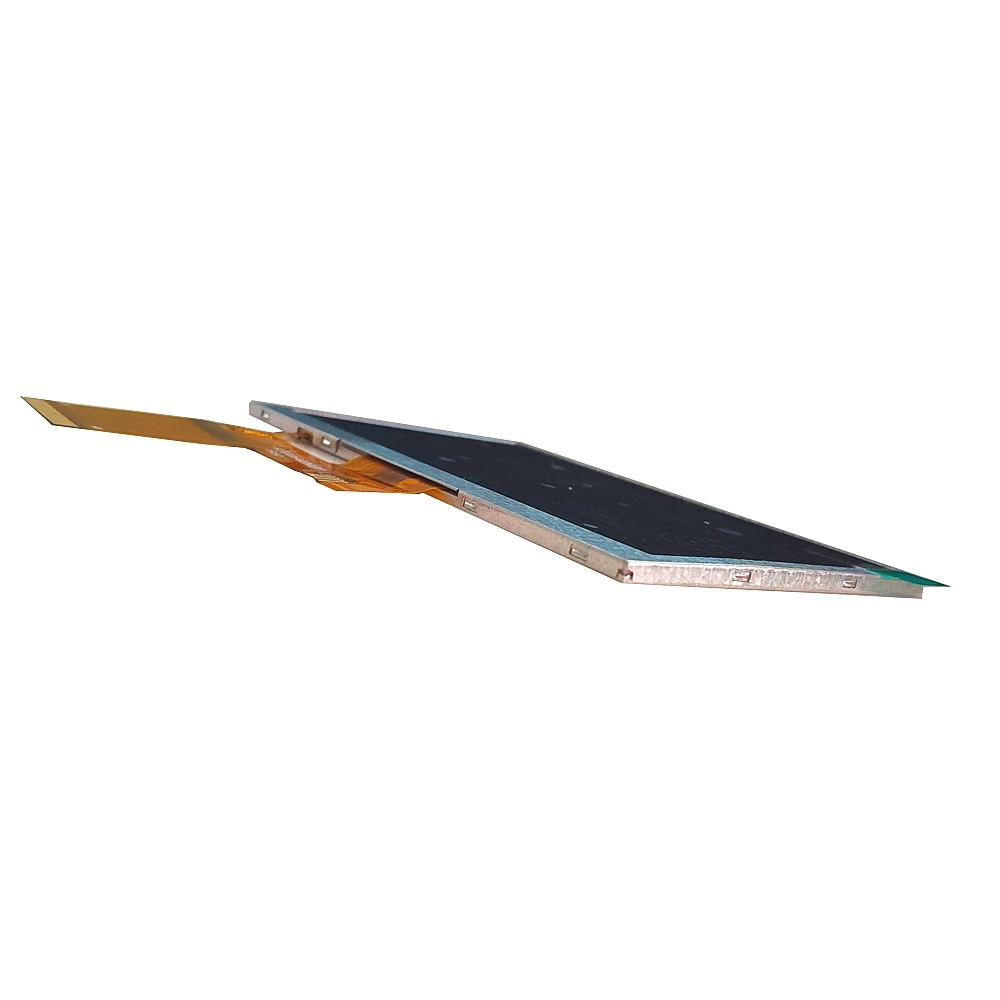

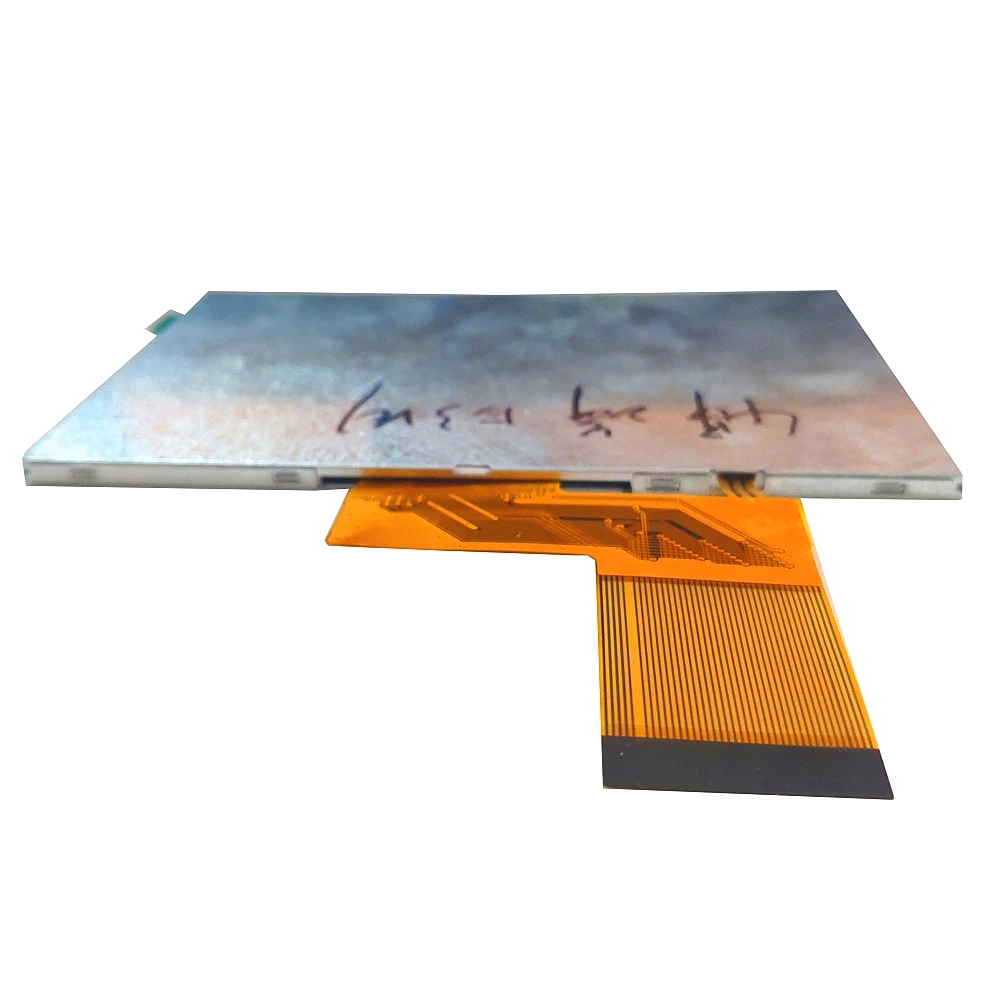

TFT LCD 4.3 inch 480x272 Lcd Display Panels with RGB display module
- Category: >>>
- Supplier: Shenzhen Amelin Electronic Technology Co. Ltd.
Share on (62502252135):
Product Overview
Description
4.3 inch 480*272 RGB interface wholesale tft lcd module
Why Choss Us
Product Description

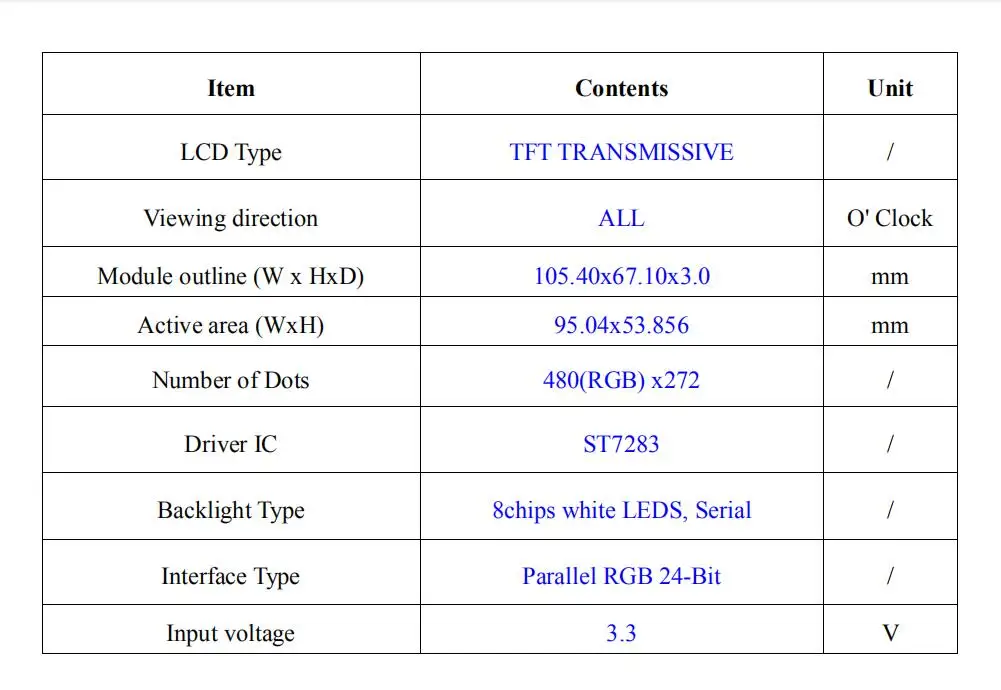

| Item | DisplayPanel | Remark |
| Display Mode | NormallyWhite, Transmissive LCD | |
| ViewingDirection | ALL | |
| Input Signals | RGB | |

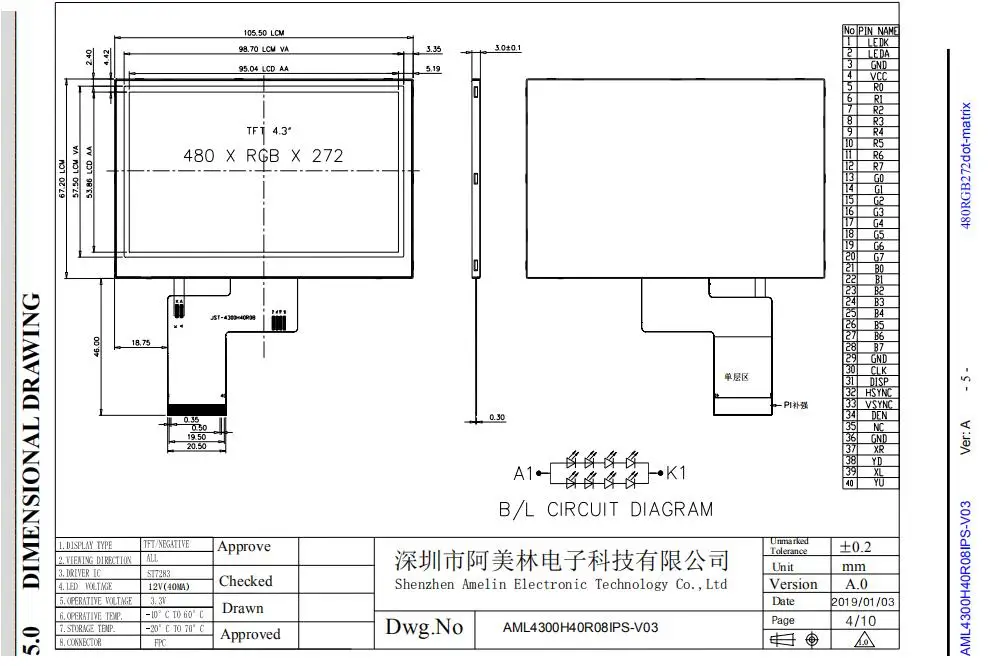

| Outside Dimensions | 105.5mm(W)*67.2mm(H)*3.0mm(T) | |
| EffectiveArea | - | |
| Active Area | 95.04mm(W)×53.856mm(H) | |
| Number of Pixels | 480×RGB×272Pixels | |
| Pixel Pitch | 0.198mm(H)×0.198mm(W) | |
| PixelArrangement | 8chips white LEDS, Serial | |
| Drive IC | ST7283 |
