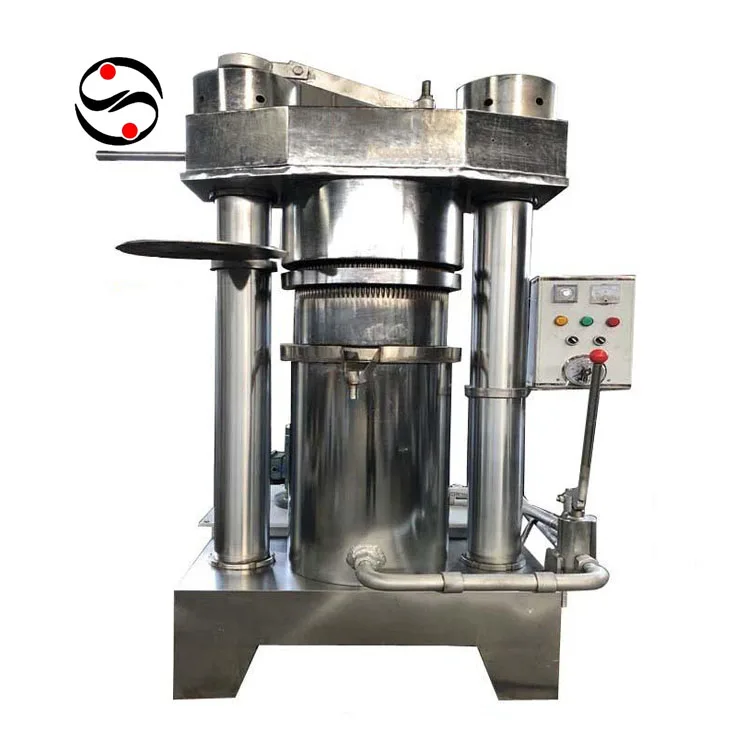

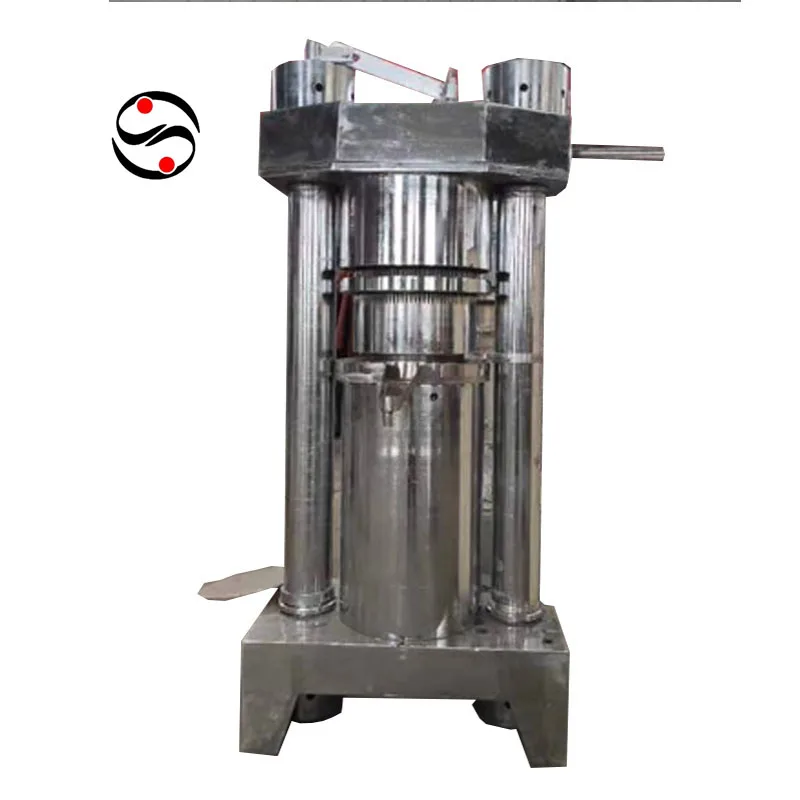

Full automatic palm oil cold press peanut canola marula olive oil expeller hydraulic oil press machine
- Category: >>>
- Supplier: Weifang Shishang Machinery Co. Ltd.
Share on (62502286272):
Product Overview
Description

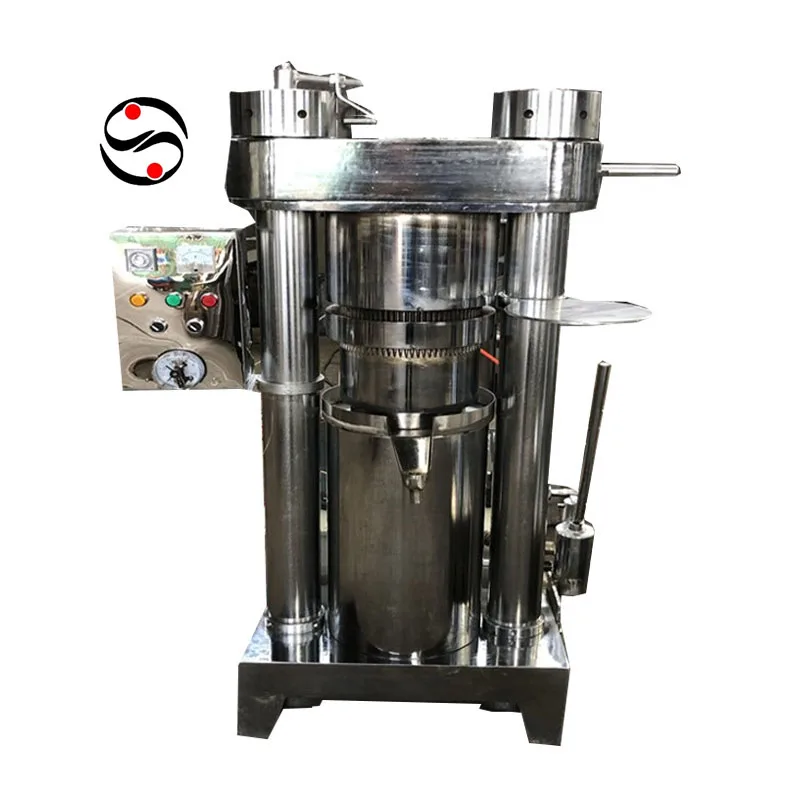

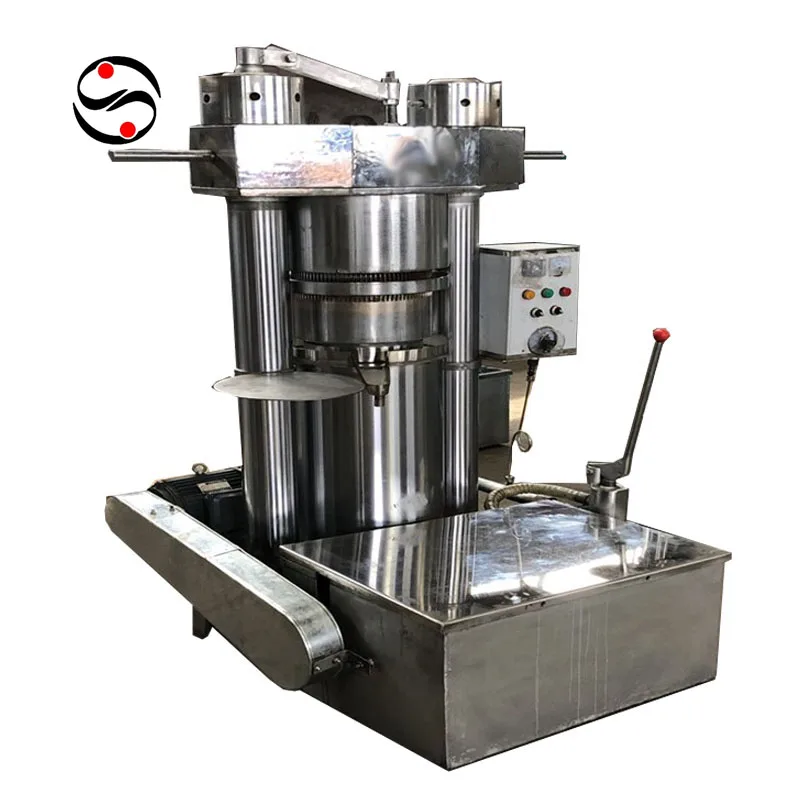

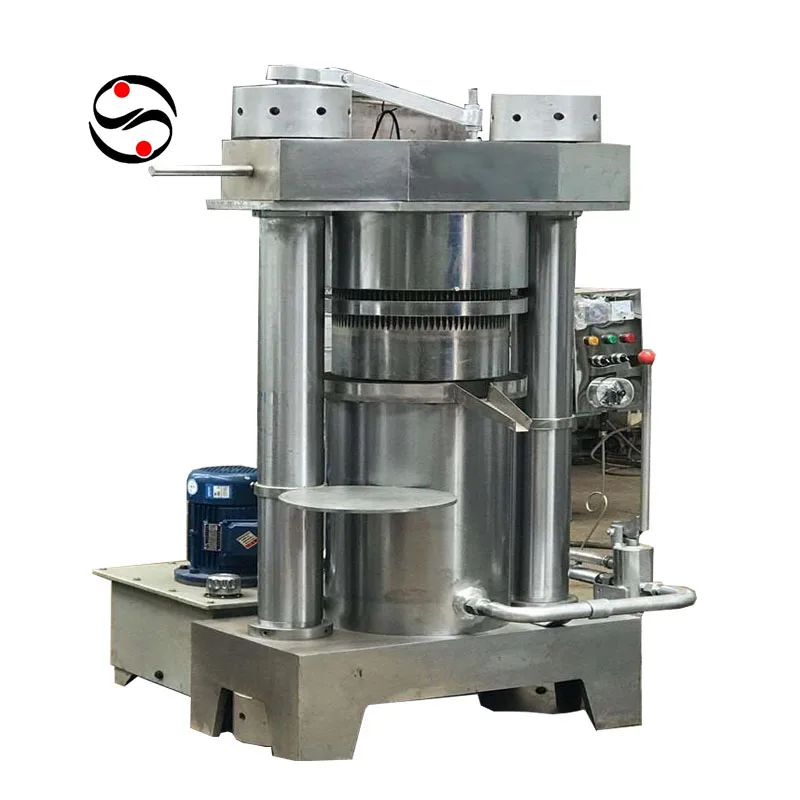

Full automatic palm oil cold press peanut canola marula olive oil expeller hydraulic oil press machine
Product Description
Introduction:
1. The machine is small in size, small in area, easy to learn, easy to understand, easy to operate, and has no requirements for operators.
2. In the process of using this machine, it saves energy and electricity, and saves 50% electricity compared to stone mill.
3. This machine is a hydraulic oil press with high pressure, high oil output rate and oil quality.
4. This machine adopts a full-automatic control system, automatic control of preheating temperature and automatic control of hydraulic system pressure.
5. The main components of the machine are made of silicon-manganese steel. The technology is precision-machined by using a combination of CNC precision lathes and modern high-tech. The machine has good performance and high degree.

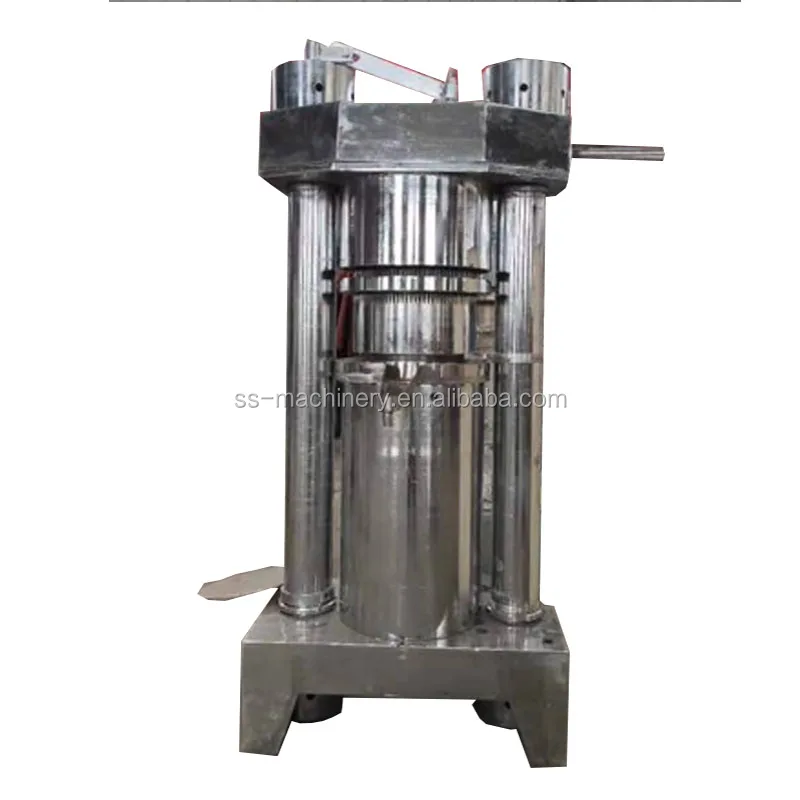

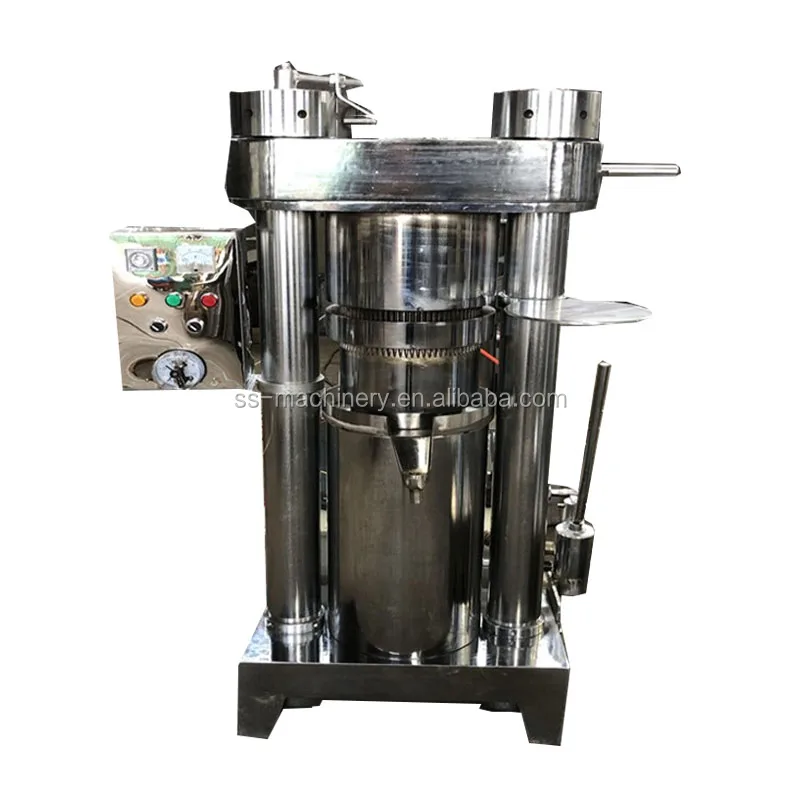

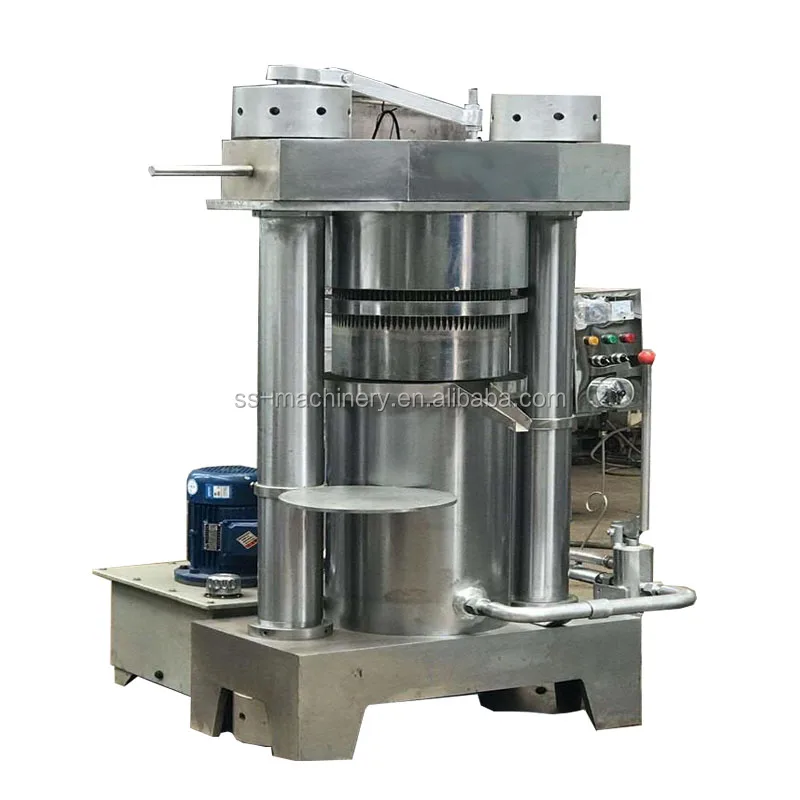

This machine include three part:
1. Host body part:
It is composed of floor, column, upper roof, press chamber assembly, oil receiving pan, nut and other parts. It is one of the main body of the machine. The oil in the press chamber assembly is pushed forward by the force of the cylinder assembly The oil is left in the oil flow gap of the pressurizing chamber and passes through the oil pan to the oil storage barrel.
2. Transmission hydraulic part:
This is the main working power source for this machine to produce high oil rate. It is composed of transmission shaft, turbine, worm, gear pump, high pressure pump, relief valve, manual control valve, cylinder assembly, pipe joint and other parts. The machine uses the world's advanced hydraulic pumping station. South Korea's second injection pump station, high speed, high oil pressure, high temperature resistance, no cooling device at oil temperature above 65 degrees, sustainable work, very low probability of maintenance, low noise, saving 1/3 of electricity costs, automatic unloading , Its own power allocation is small, these things are advanced in this machine.
3. Electrical control part:
It is composed of motor, voltmeter, temperature control adjustment meter, pressure gauge, power supply insurance and other components.
Technical parameters :
Model | CS-180 | CS-230 | CS-320 | CS-400 |
Motor Power | 1.5KW | 2.2KW | 3KW | 3KW |
Voltage | 220v/380v | 220v/380v | 220v/380v | 220v/380v |
Dimension (mm) | 800*650*1100 | 900*850*1550 | 1100*1000*1750 | 1200*1080*1800 |
Weight (kg) | 450 | 880 | 1980 | 2600 |
Work pressure | 55MPA | 55MPA | 55MPA | 55MPA |
Capacity (sesame) | 2-4kg/time | 5-10kg/time | 10-17kg/time | 15-24kg/time |
Electrical heated power | 1kw | 1kw | 2kw | 2kw |

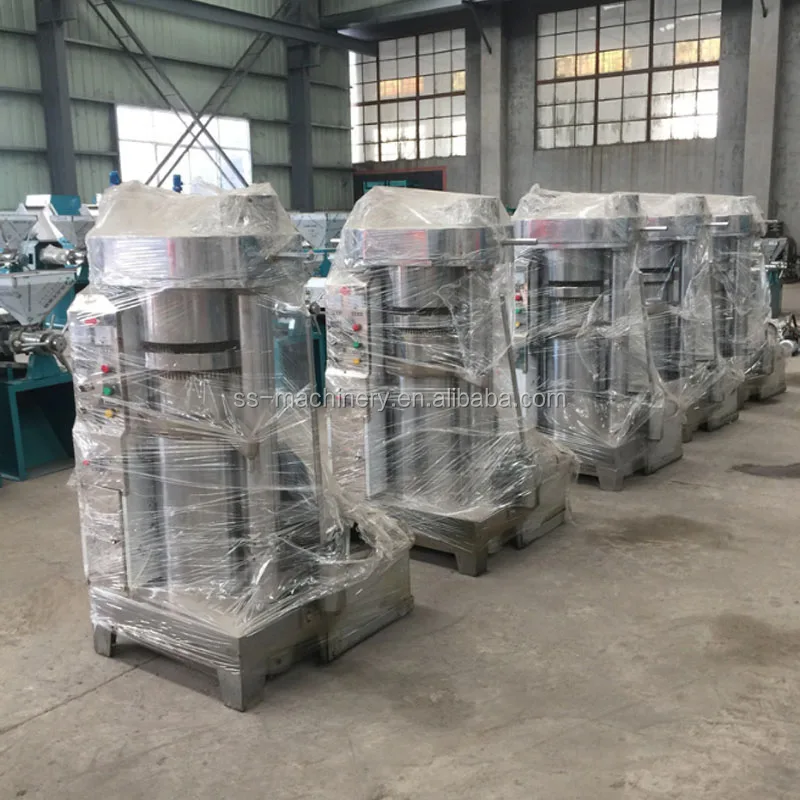

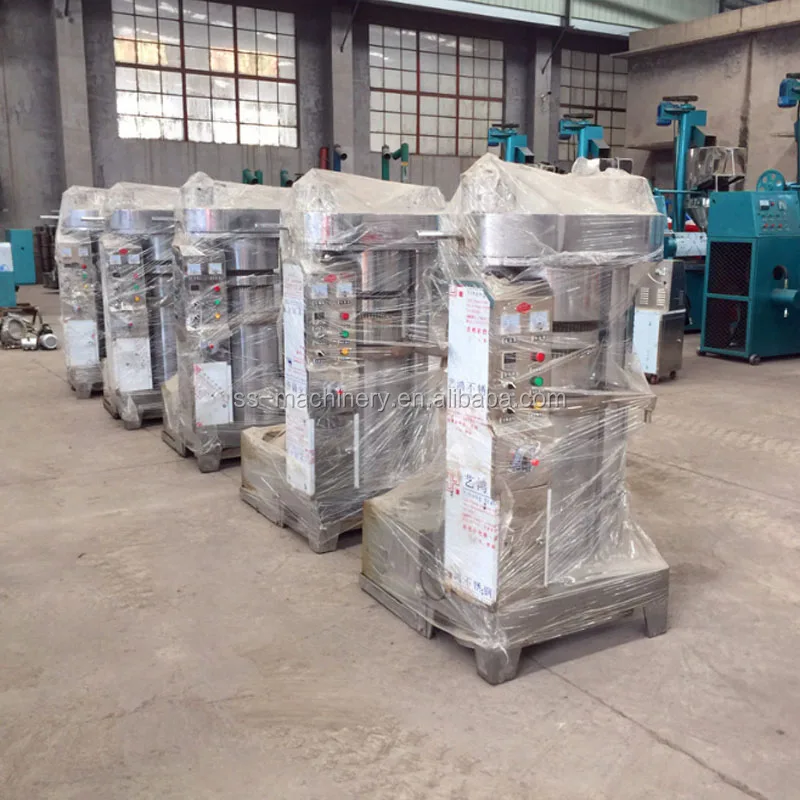

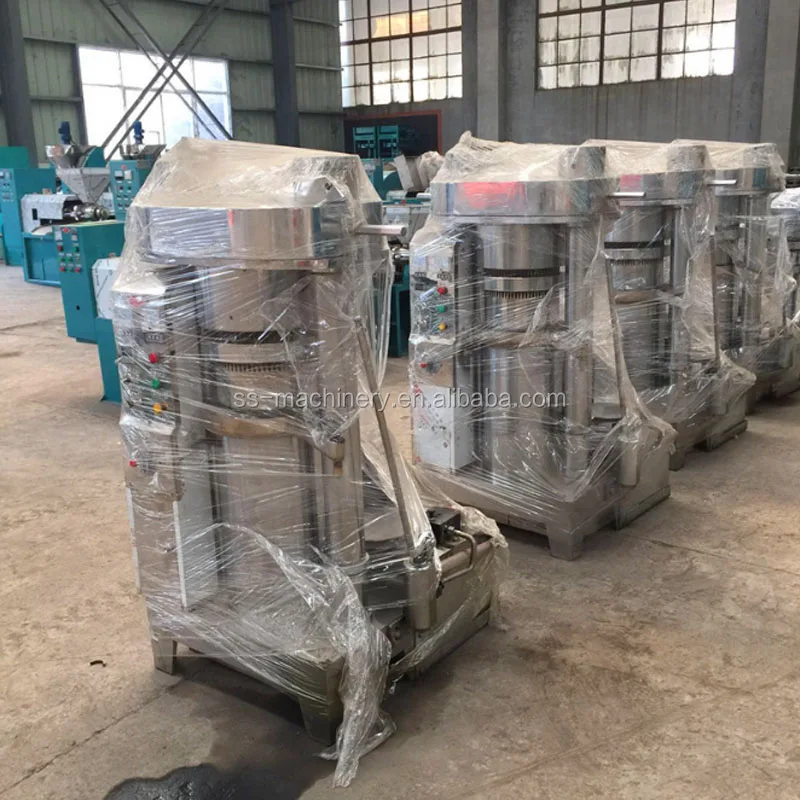

Packaging & Shipping
Our Services
1.Reply all your questions within one hour on workdays.
|
2.We have our own factory,can customize the product according to your needs.
|
3.We have 10 years export experience,can supply the service of production,inspection of goods and transport .
|
4.we test each machine before delivery ,make sure customer get the good quality machine they ordered.
|
5.warranty time is for one year,professional timely advice and spare parts will be offered all the time.
|
Company Information
Weifang shishang Machinery co.,ltd ,which is a set design ,development,production,sales ,into an integrated enterprise,specialized in the production of packing machine,vegetable processing ,meat processing equipment,nuts processing line and so on.
|
FAQ
1.Q:Are you factory or trading company? A: We are the manufacturer. |
2.Q:where is your factory and how can i visit it? A:our factory is located in Shandong province,you can fly to weifang city airport ,we can pick you from there or your hotel. |
3.Q:How can i get the quotation? A:You can leave us message or send us the inquiry with your requirement,we will reply you within one hour on weekdays. |
4.Q:Can I make the customized products? A:Yes,you can contact us with your requirements we can also print your logo on the products. |
5.Q:what’s the delivery time? A:We need about 7-15 days to produce the goods,then make the wooden package and arrange the transport. |
