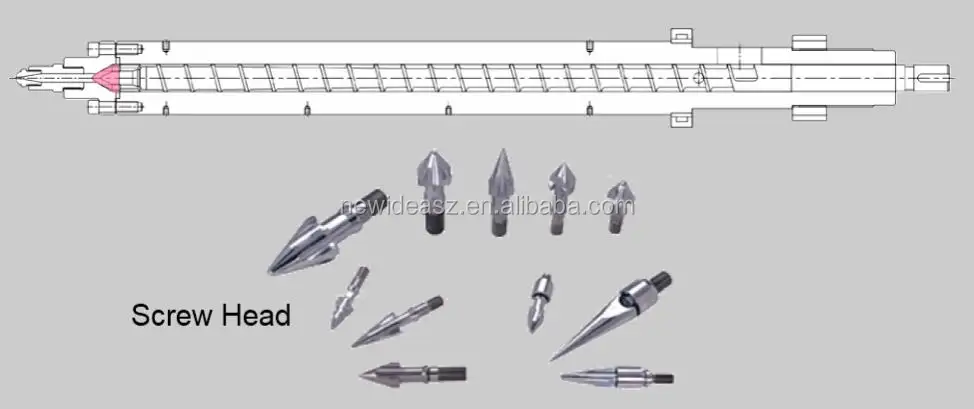

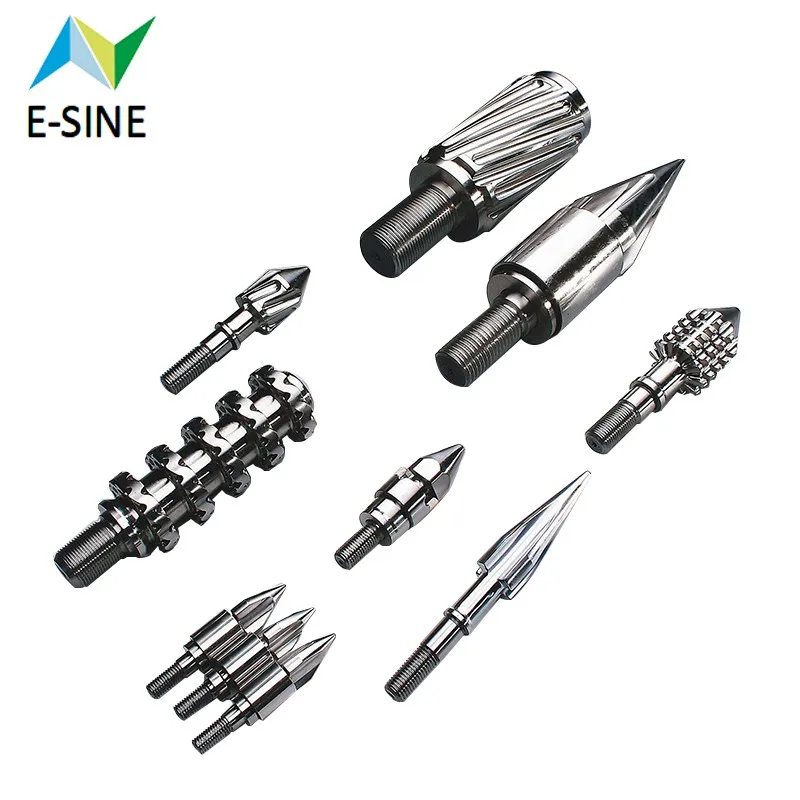

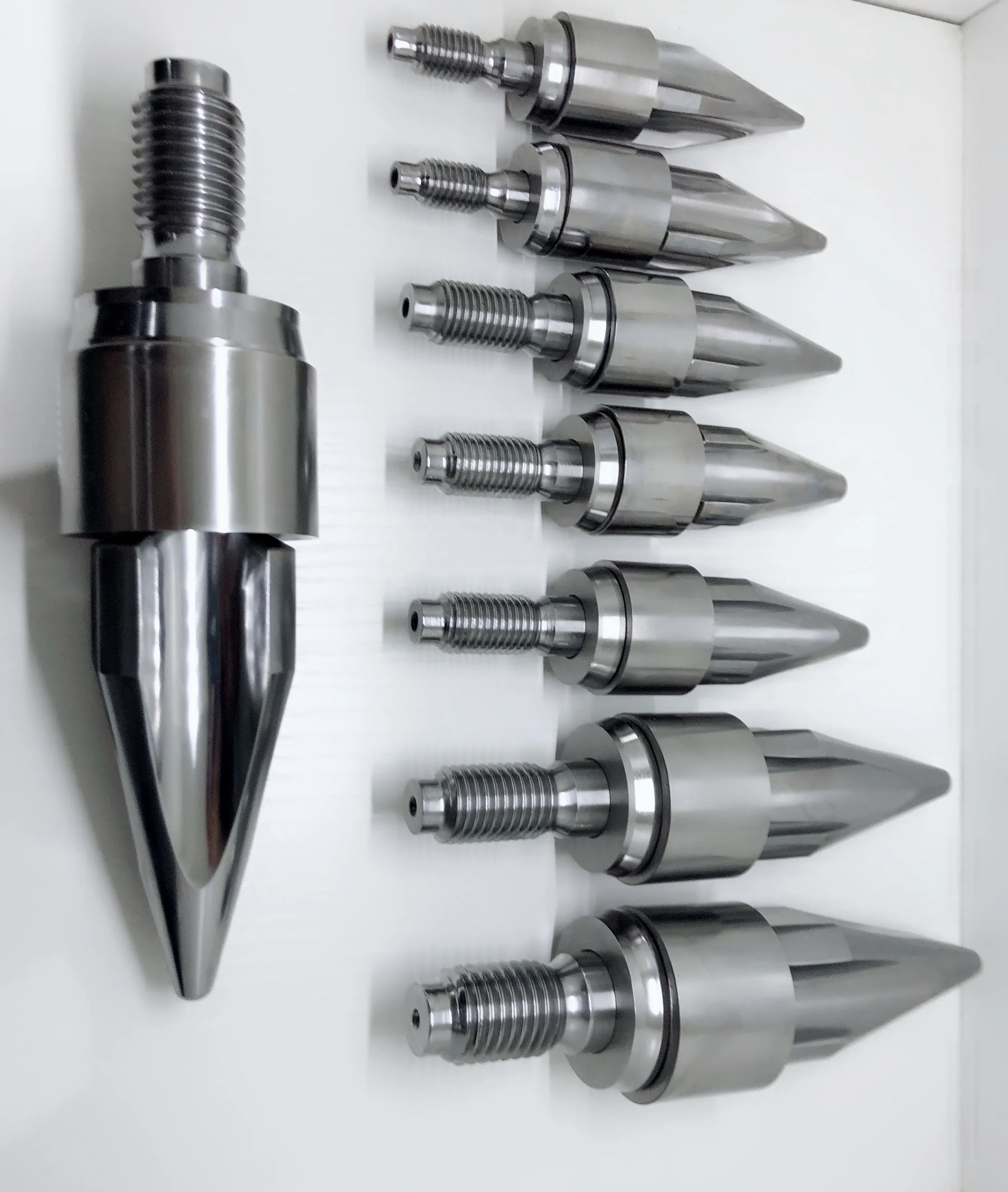

injection molding machine screw tip
- Category: >>>
- Supplier: Shenzhen New Idea Electronic Technology Co. Ltd.
Share on (62502403641):
Product Overview
Description
Product Description
Main Base materials | 1.38CrMoAlA (SACM645) | Main Alloy Materials | 1. Ni-based alloy/Deloro alloy |
2. SKD-61 (Special Tool Steel) | 2. Tungsten carbide/Wolfram carbide | ||
3. 42CrMo (Ultrahigh StrengthSteel) | 3. NiCo-based alloy | ||
4. DC53 (Cold WorkDie Steel) | 4. Fe-based alloy | ||
5. W6Mo5Cr4V2 (High-SpeedToolSteel) | 5. Co-based alloy | ||
Processing Technics | 1. Heat treatment | Technical parameters | Nitriding layer depth:0.5-0.8mm |
2. Quenching | Nitrided hardness:900-1000HV | ||
3. Nitriding treatment | Bimetallic layer depth:3 mm | ||
4. Bimetallic alloy welding for screw | Bimetallic hardness:57~69HRC | ||
5. Bimetallic alloy centrifugal casting for barrel | Hard-chrome plating hardness after nitriding:≥950HV | ||
6. Hard-chrome electroplating | Chrome-plating layer depth:0.03-0.09mm | ||
Linearity of screw:0.015mm | Surface roughness:Ra 0.4 |
Product Application
Plastic materials for injection such as PVC/PF/UF/MF/EP/SI/PU/PS/PE/PP/PA/TPU/PET/PC/PMMA/ABS, RUBBER etc.
Packing & Delivery
1. Be brushed anti-corrosive oil on screw barrel.
2. Packed with film.
3. Packed in the wooden
Delivery Time: Shipped within 30 days after payment
Our Company
Our Service
1. Be brushed anti-corrosive oil on screw barrel.
2. Packed with film.
3. Packed in the wooden.
Delivery Time: Shipped within 25 days after payment.
2. Packed with film.
3. Packed in the wooden.
Delivery Time: Shipped within 25 days after payment.
You can contact us via Wechat or WhatsApp: (86)18988790827
