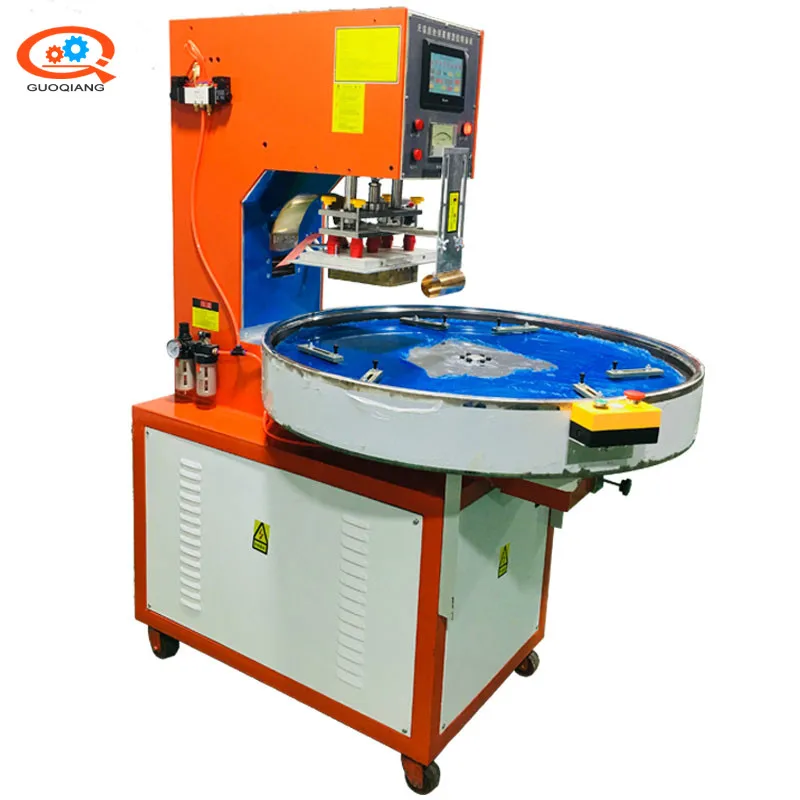

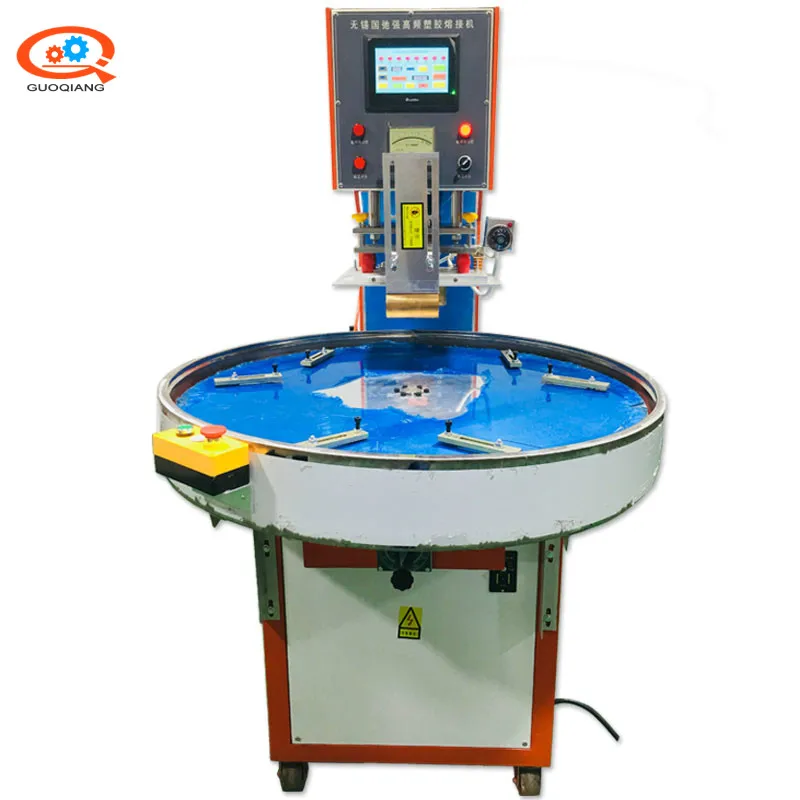

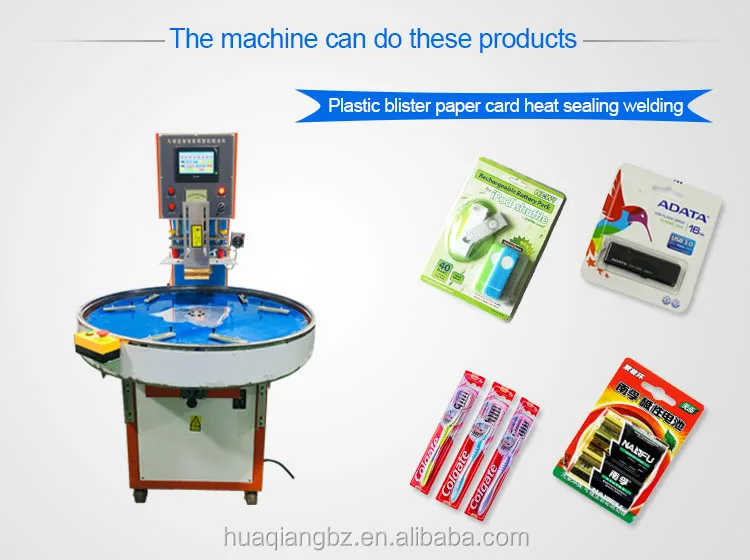

semi automatic high frequency blister clam shell paper card packing machine

Product Overview

Description



Turntable sealing machine series HF Welder is equipped with special high precision rotary indexing gear controlled by frequency inverter. The machine operation is based on step by step technology with possibility of multiple welds in one cycle. with the use of touch screen PLC, operator can easily input multiple weld/seam recipes. machines have production power outputs from 5kW to 20kW for multi-cavity production loads and specialized products.





• Turntable with 2, 4, 6 or 8 workstations


• Pneumatic or hydraulic welding press


• 1, 2, 3 or 4 HF welding heads operation


• Production speed 5-10 cycles/min


• Touch screen control panel with PLC


• High frequency generator integrated with press


• Fully automated HF weld cycles with adjustable rotating speed


• Precision (to 0.1mm) indexing rotary work table


• High pressure sealing with enhanced ram guidance


• Safety light curtains on all work stations





Model No	GCQ-B5KW	GCQ-B8KW	GCQ-B10KW
Voltage	AC220/380/400/415/440V 50/60HZ(Customized)
Output Power	5KW	8KW	10KW
Input Power	8KVA	10KVA	12KVA
HF Frequency	27.12MHZ ±0.6%
Oscillation Tube	8T85RB	8T85RB	8T85RB
Anti-spark Tube	NL-5557	NL-5557	NL-5557
Gap of Electrode	200mm	200mm	200mm
Size of upper electrode	200×300mm	250×350mm	300×400mm

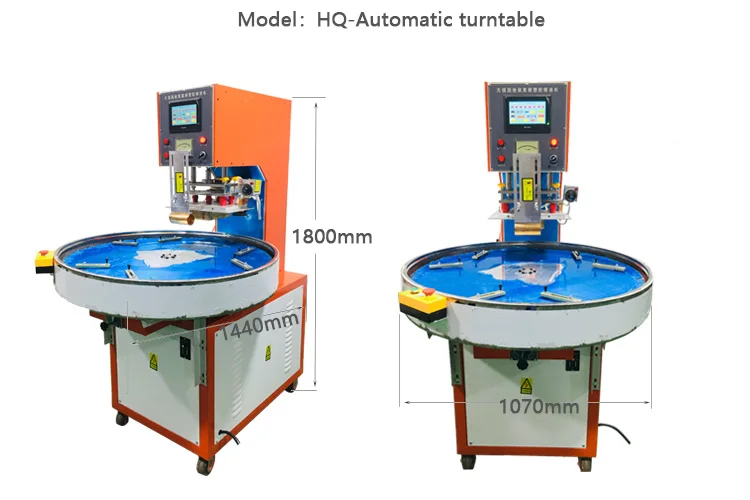

Machine Size	1100×1650×1750	1100×1650×1750	1100×1650×1750
Machine Weight	400KG	420KG	450KG
