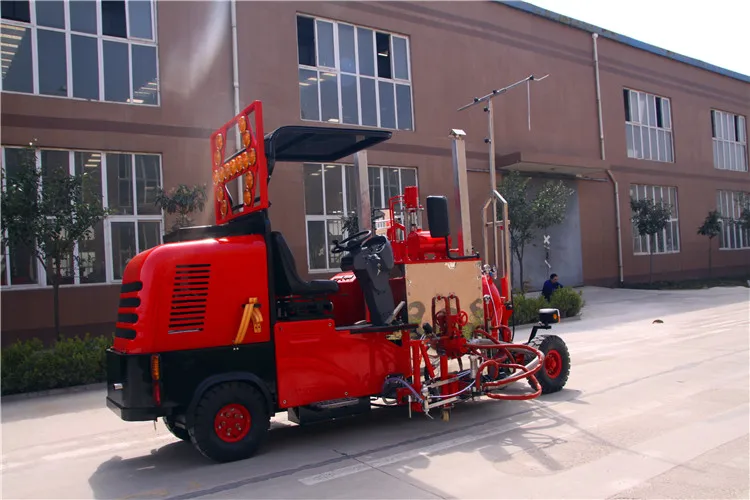

Driving Type Thermoplastic Spraying Road Marking car
- Category: >>>
- Supplier: Tatu Highway Group Co. Ltd.
Share on (62502533503):
Product Overview
Description
Product Description
Products Description

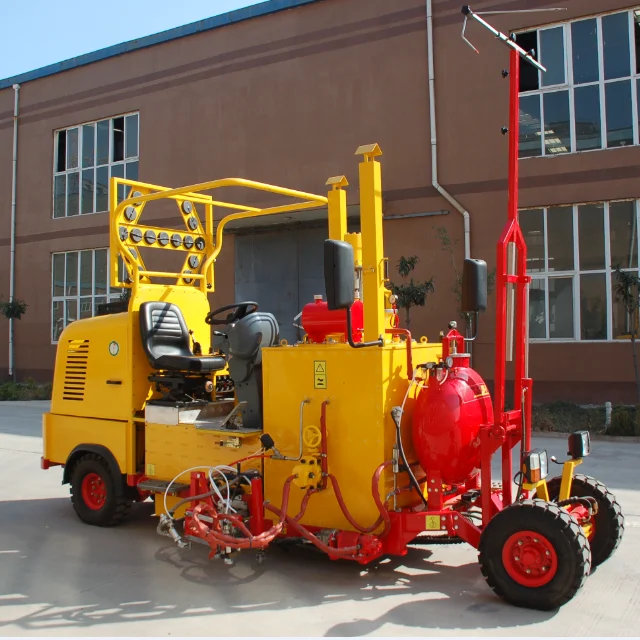

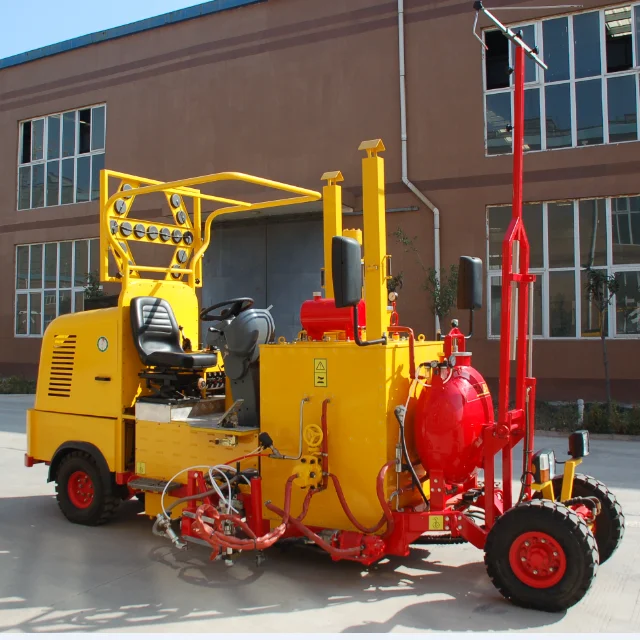

TT-C02-RKJ400 is the new designed road marking machine for thermoplastic/hot melt paint with spraying application way.
It can easy to finish the spraying line, quick marking, and multi-functional. It can hot melt the paint by itself, and use spraying gun to spray the hot melted paints on the ground.
Technical Parameter | ||||
NO | ITEM | TECHNICAL PARAMETER | ||
1 | Engine | 44.6KW four cylinders water-cooled diesel engine | ||
2 | Driver System | hydraulic drive infinitely variable | ||
3 | Driver Speed | forward or backward, 0-22km/h | ||
4 | Max. Hill Climbing Ability | 15° | ||
5 | Marking Method | extrusion, spraying or screeding (change spray gun, extrusion or screeding device) | ||
6 | Material Container Volume | pressurized 400L | ||
7 | Glass Beads Container Volume | 100L | ||
8 | Heating Method | LPG infrared burner or fuel energy efficient burner | ||
9 | Heat preservation method | heat preservation cotton, or heat transfer oil with heat preservation cotton | ||
10 | Air compressor delivery Rate | 1.5m3/min | ||
9 | Directional steering device | Directional steering device for rear wheel | ||
10 | Marking Line Width | Screeding /Extrusion/Spraying 50-300mm, adjustable | ||
11 | Marking Line Thickness | 1.5–3.0 mm (adjustable) | ||
12 | Dimension | 5300mm(L)×2450mm(W)×2300mm(H) | ||
13 | Weight | 3000-3500kg | ||
14 | Optional function | Convex line marking shoe.Gasoline injection burner | ||
Details Images
Why Choose Us
1. About Our Company
TATU highway group was founded in 1998, it is an integrated production service enterprise focusing on special road
product manufacturing and professional road service operation and global development.
product manufacturing and professional road service operation and global development.
The group number of single product, number of exporting countries and comprehensive competitive strength ranks among the forefront of international road specialty product manufacturing industry. Many products fill the gaps in China, Asia and even the world, and the products are exported to more than 100 countries and regions.
TATU is the only brand manufacture who has the ability to produce the big driving types road marking machine series

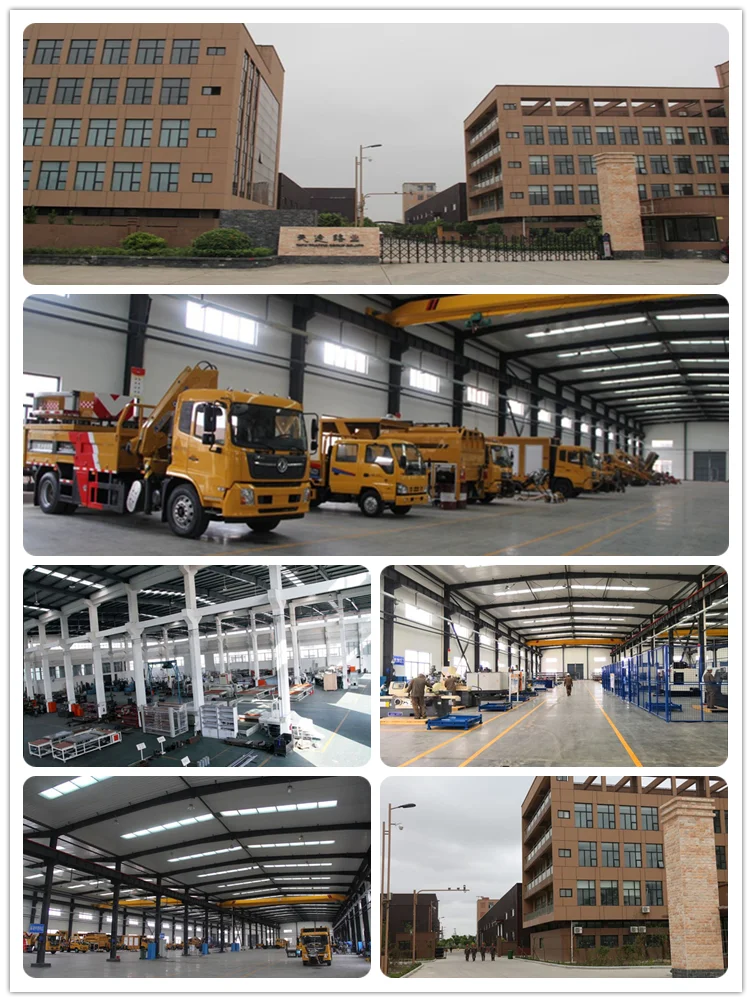

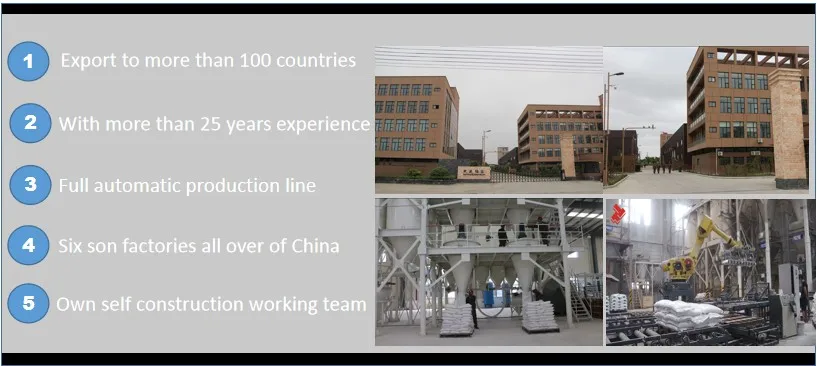

2. Production Department Show
3. Products Special Design Advantages
The original imported variable speed transmission system with automatic brake device, which can be freely operated in forward, back off and stop ( HTS). The back wheels are differential transmission system which makes the steering flexible. Driving
speed: 0-22km/h. Max climbing capability 15o.
speed: 0-22km/h. Max climbing capability 15o.

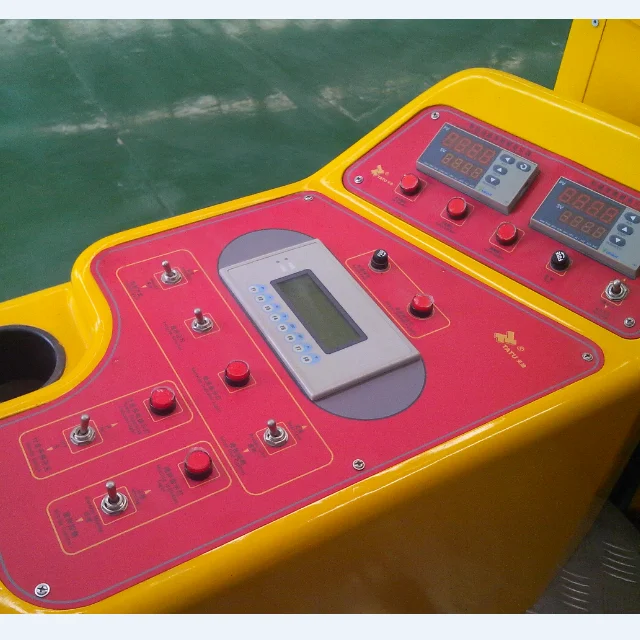

Setting multi-function interface, and when the machine is out of factory, It can set the language standard according to the requirement of the user, and adjust the line type, and line length according to the project
requirement to finalize full automatic intelligent control.
requirement to finalize full automatic intelligent control.

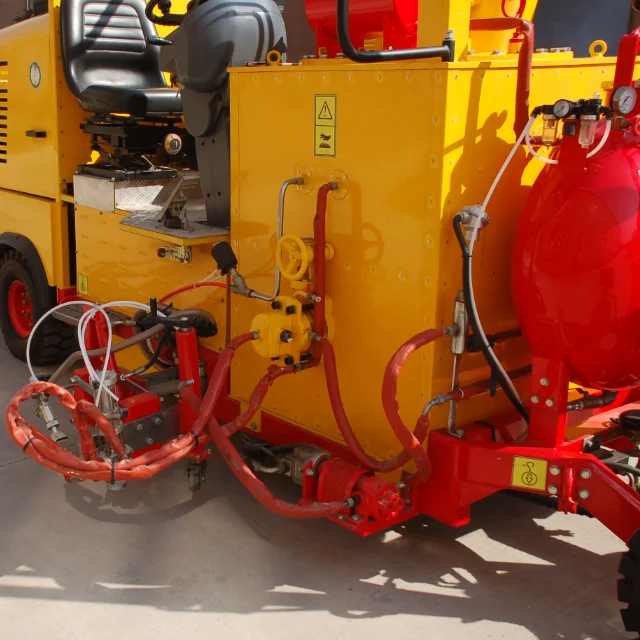

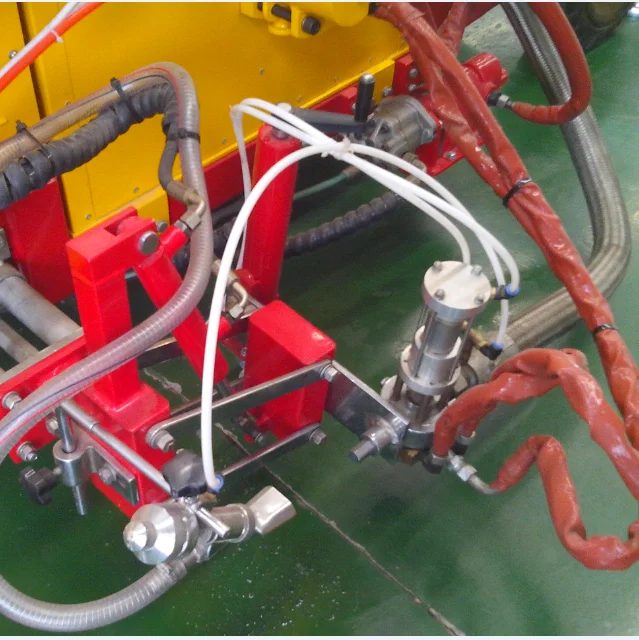

Spray gun: Left ( or right) side equiped with low pressure air spray gun. The spraying gun can move freely on the track.
Paint tank: made by cold rolling, anti corrosion steel with conduction oil heating system and hydraulic horizontal blade
stirring system. Capacity 400L. When clean the paint tank, remove it. The safety valve at the discharging port closes
automatically when the pressure in the tank is down.
stirring system. Capacity 400L. When clean the paint tank, remove it. The safety valve at the discharging port closes
automatically when the pressure in the tank is down.

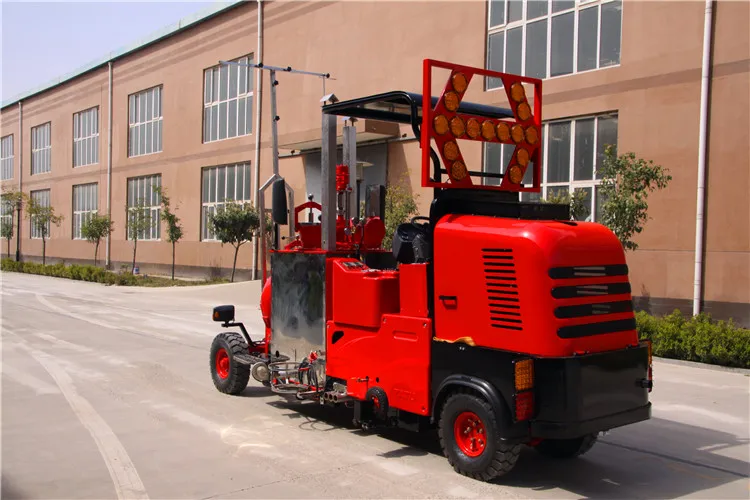

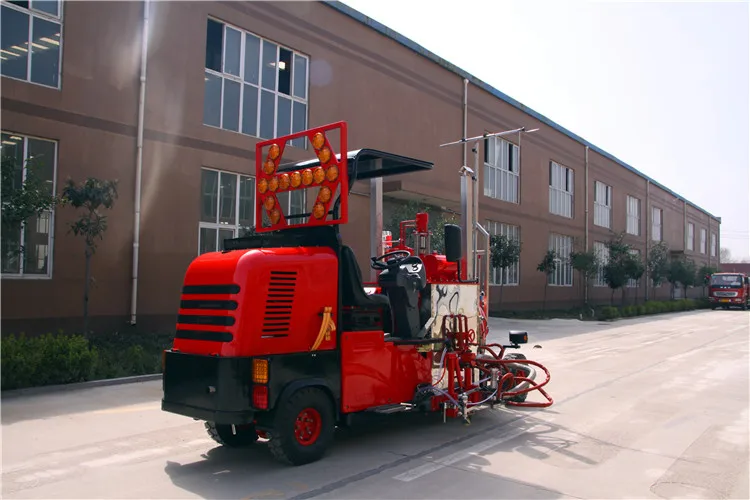

With double frequency adjustable warning lights. The electric warning arrow at the back
can adjust the direction freely.
can adjust the direction freely.
Equip with 120L pressurized glass beads container with window, which realize uninterruped
spray glass beads. The pressure, flow, and width is adjustable.
spray glass beads. The pressure, flow, and width is adjustable.
Recommend Products
Exhibition
FAQ
1.Q:Are you a factory or trading company?
A:We are factory which is dedicated in developing road traffic field more than 20 years.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Nantong City, Cangzhou City and Zhengzhou City. All our clients are warmly welcome to visit us!
3.Q:What’s the marking area for one ton of thermoplastic paint?
A: 200-250 square meters for flat lines, about 150 square meters for convex lines, it depends on two factors: line thickness and road surface flatness.
4.Q:How many glass beads drop on type for one ton of thermopalstic paint?
A: About 100KG for one ton thermoplastic paint.
6.Q:How many worker is necessary for one marking team?
A: 6-8 worker
A:We are factory which is dedicated in developing road traffic field more than 20 years.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Nantong City, Cangzhou City and Zhengzhou City. All our clients are warmly welcome to visit us!
3.Q:What’s the marking area for one ton of thermoplastic paint?
A: 200-250 square meters for flat lines, about 150 square meters for convex lines, it depends on two factors: line thickness and road surface flatness.
4.Q:How many glass beads drop on type for one ton of thermopalstic paint?
A: About 100KG for one ton thermoplastic paint.
6.Q:How many worker is necessary for one marking team?
A: 6-8 worker
