Flex Cable Repair Fpc Led Tv Ribbon Screen Panel Price Tab Cof Acf Lcd Bonding Machine

Product Overview

Description

Flex Cable Repair Fpc Led Tv Ribbon Screen Panel Price Tab Cof Acf Lcd Bonding Machine

China's leading LCD TV Panel repair machine manufacturer, please contact  whatsApp :+8618025368481

Thermocouple Type

K type  OMEGA wire

Model:	OL-1285DH

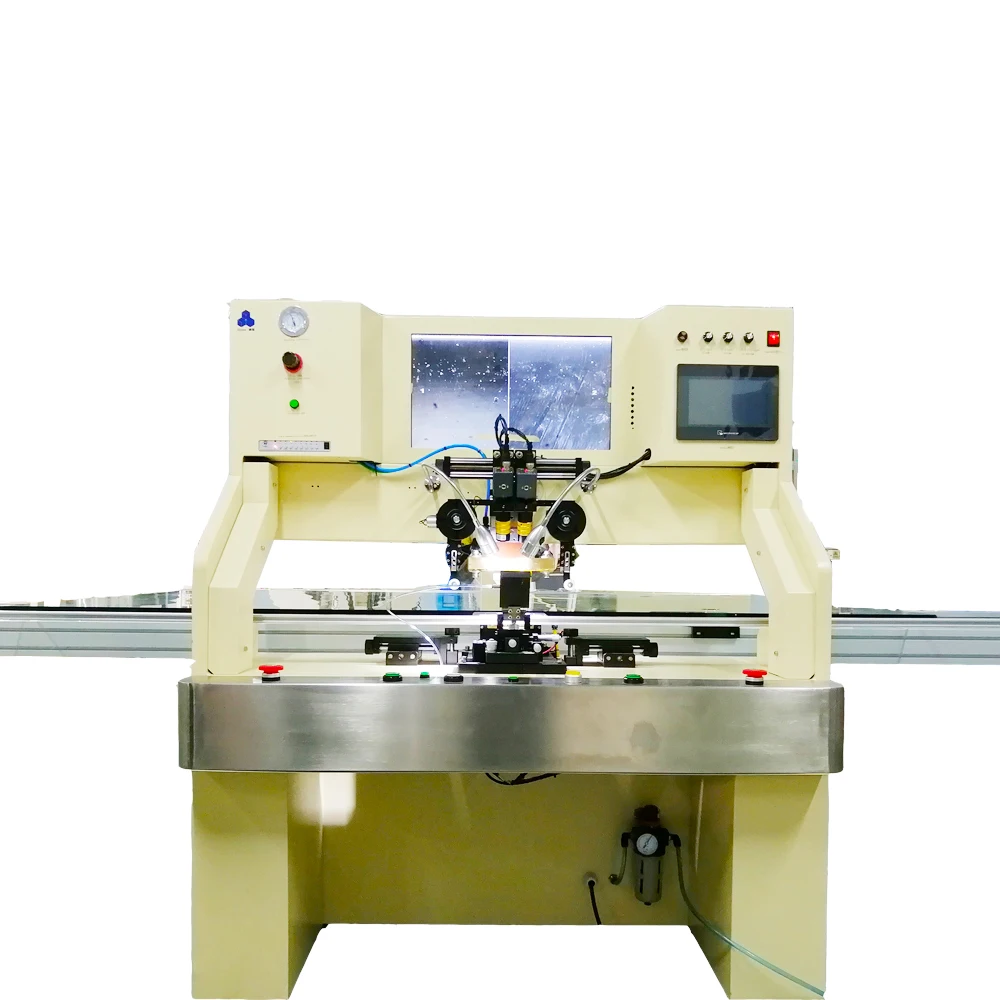

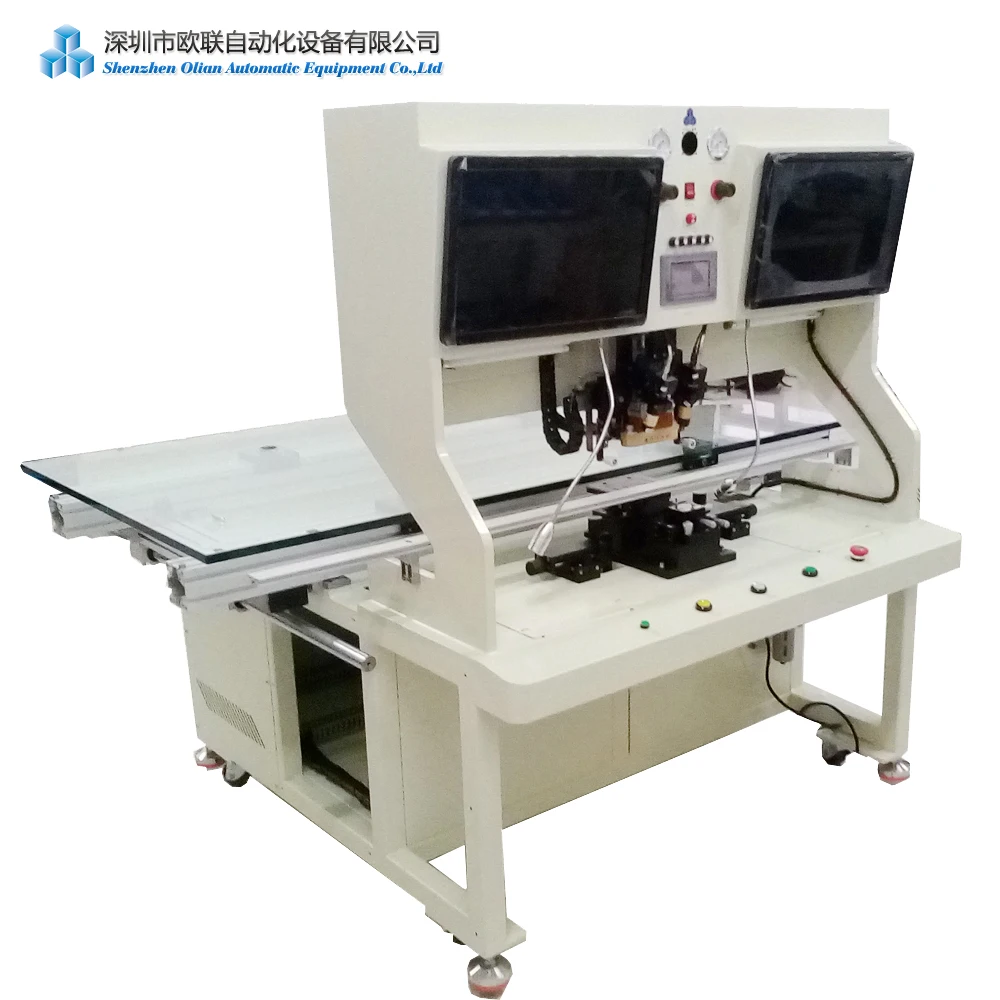

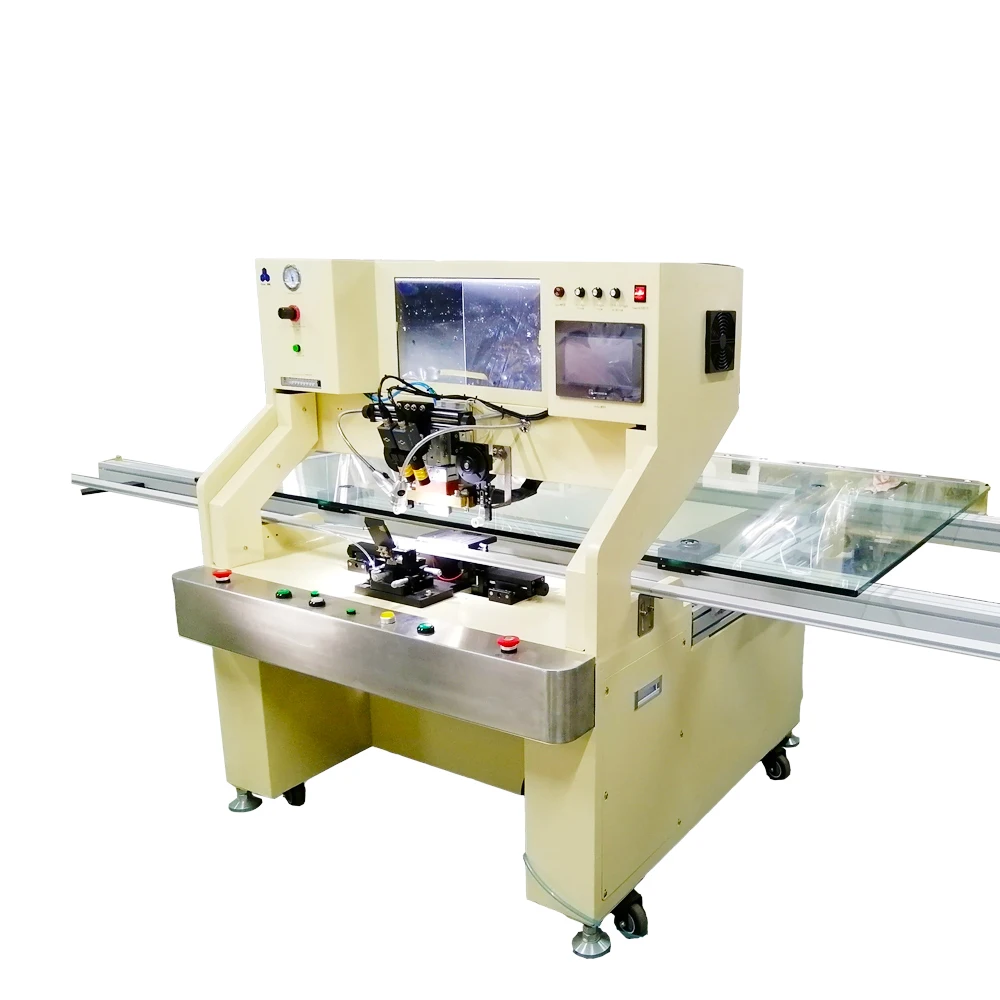

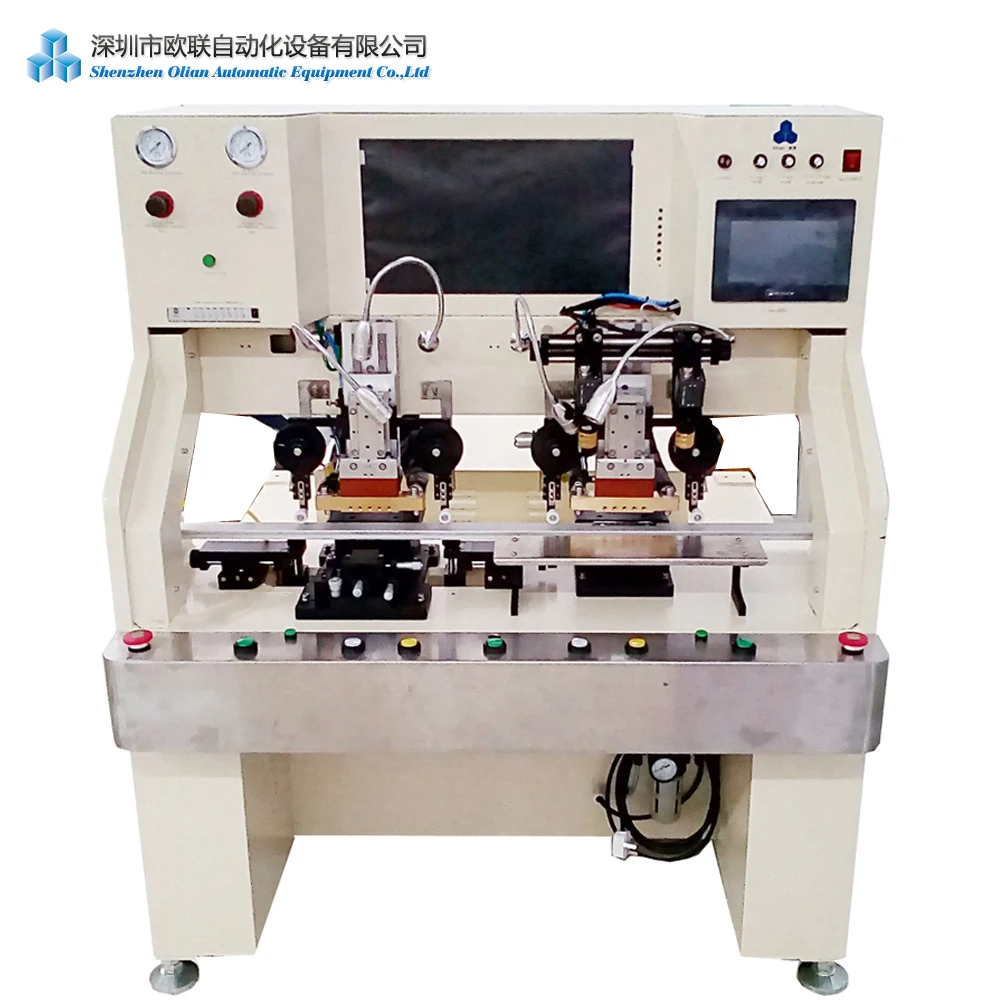

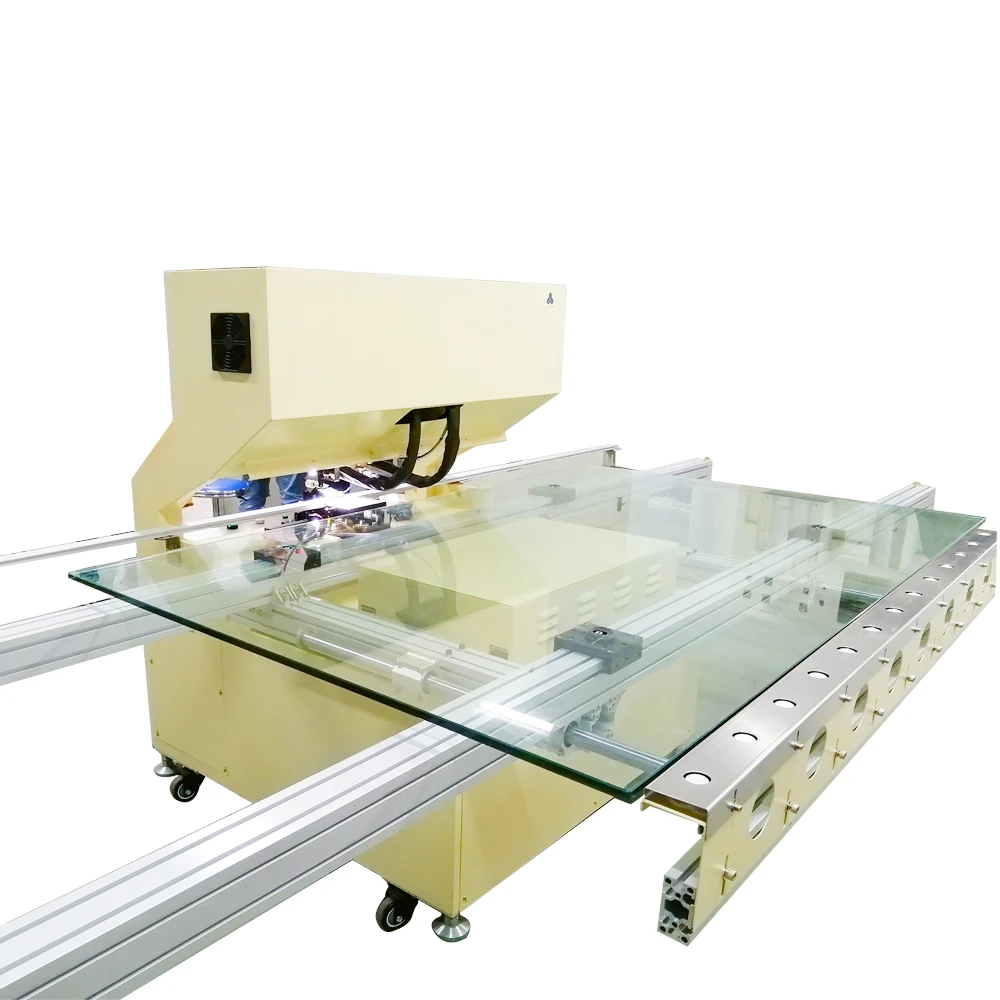

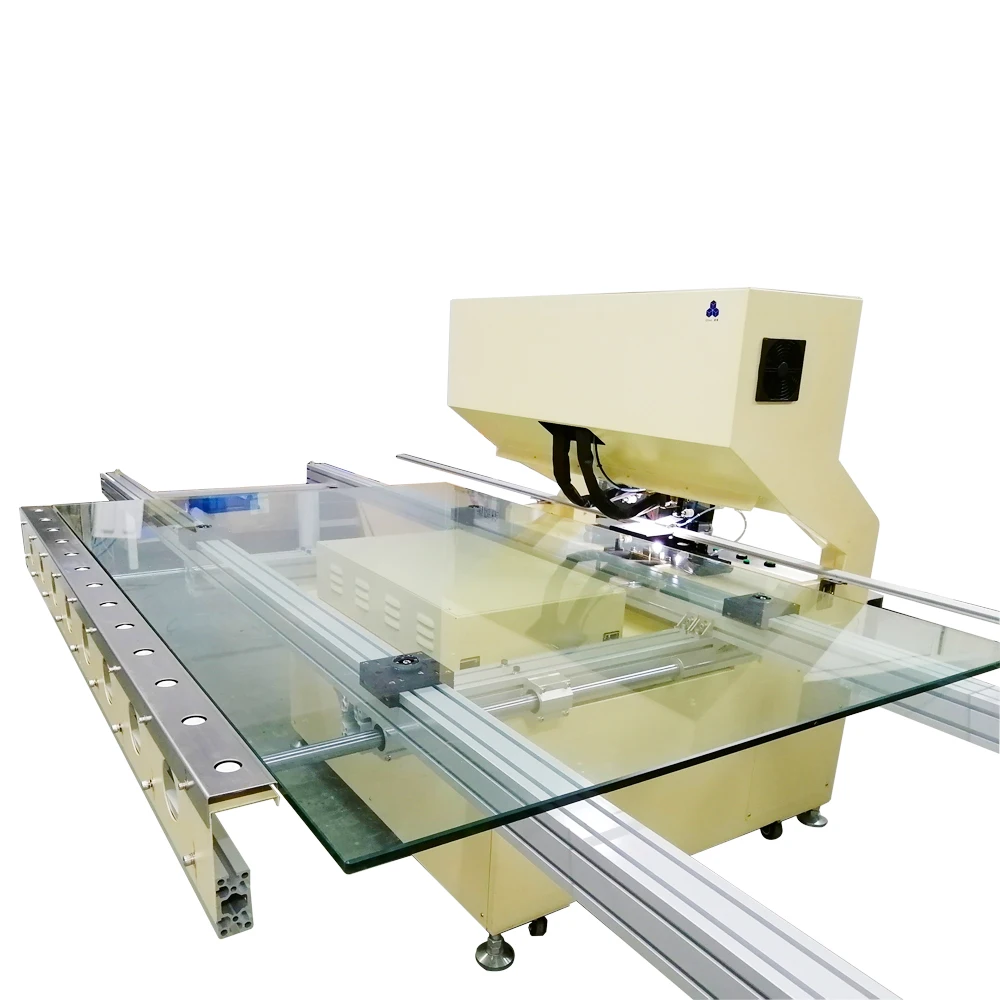

Product Name:	FOF single station Pulse Heating Bonding machine
Suitable For:	Suitable for FPC/COF Contraposition bonded to LCD which attached ACF,Used for COF repair
Size Range:	12-85inch
Bonding Precision:	X±0.01MM ,Y±0.01MM
Machine Capacity:	12S/Pcs,2500pcs/day
Indenter Qty:	1PCS
Power Supply:	220V±10%,50HZ,1200W
Air Supply:	0.4~0.7MPa,dry air
FPC size:	Max:L80*W60MM Min:L10*W15MM
Platform Precision:	±0.01MM
Pressure Head Size:	80*1MM (customizable)
Temp Range:	RT~400℃
Time Range:	1~99.9sec
Product Size:	W1200*1200*H1380MM
N.W:	About 550kg
Packing Size:
G.W:	About 550kg 6CBM



• This equipment Simi-automatic Pre-bonding machine, is position and pre-bonding IC on well attached ACF, Panel taking is manuel, position and pre- bonding is automatic. Applied for 1"-8" panel.
• Adopt high-granularity visual control system and positioning system (panasonic and FAST are optional)
• More user-friendly interface design, so that the learning staff more easy to use
• Adopt modular design and variety function, shorten product switching time and new product debugging time
• IC suction nozzle and prepress head separate design, greatly improve the machine capacity
