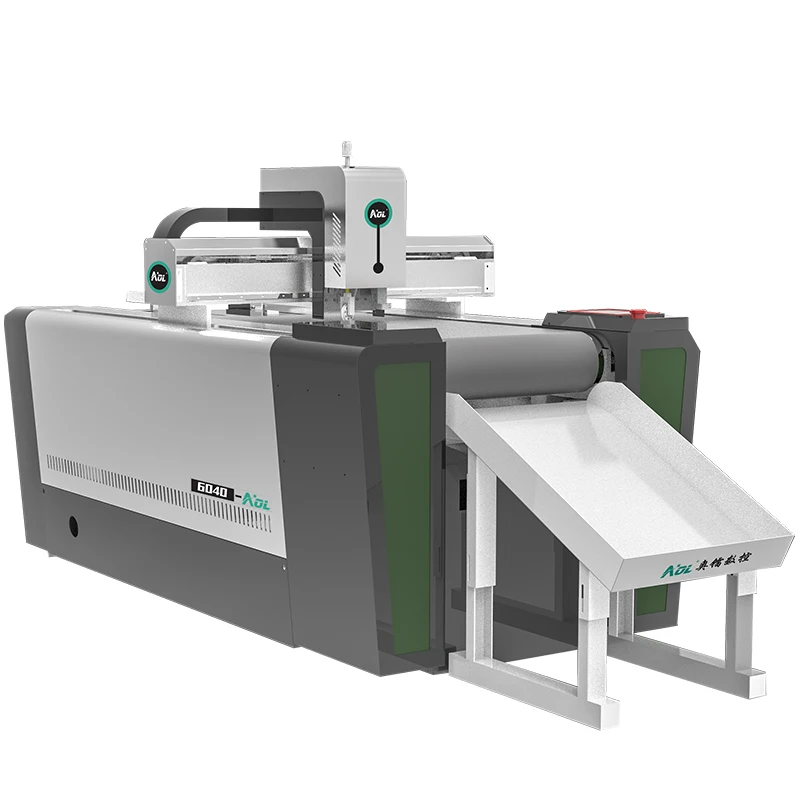

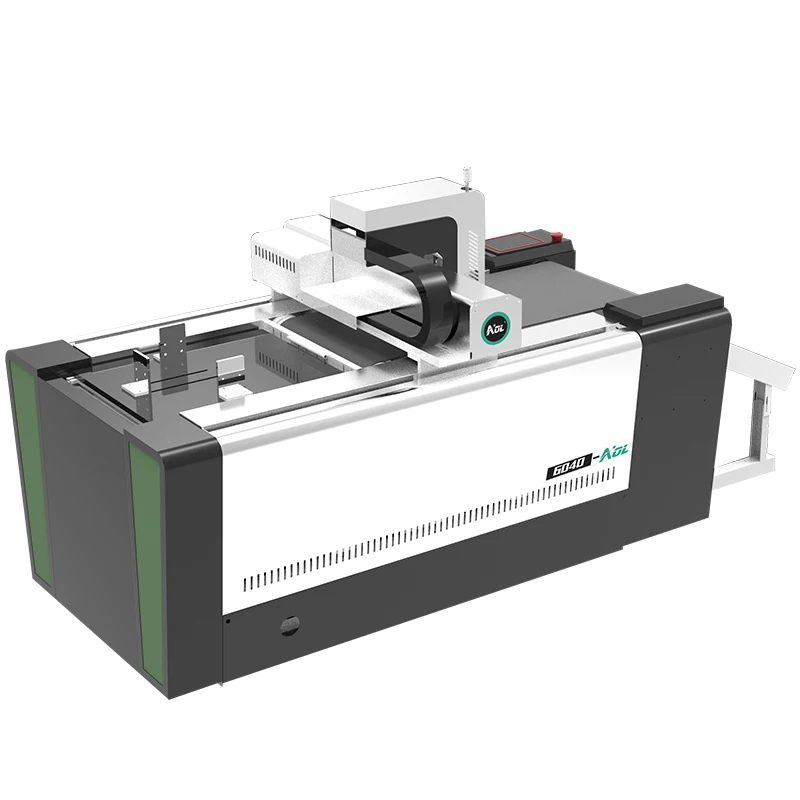

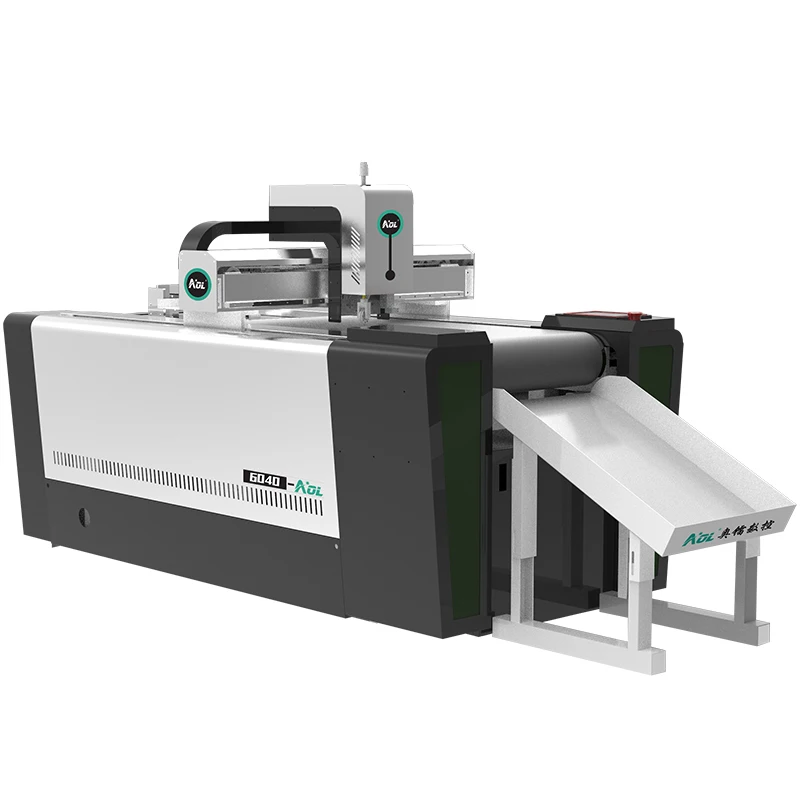

flatbed machine for a4 paper cutting and packaging
- Category: >>>
- Supplier: Jinan Aol Cnc Equipment Co. Ltd.
Share on (62502876237):
Product Overview
Description
flatbed machine for a4 paper cutting and packaging
Product Description
What is CNC oscillating knife cutter?
CNC Oscillating Knife Cutter is a type of CNC cutting machine which is used for high-precision cutting of heavier flexible and semi-rigid materials.

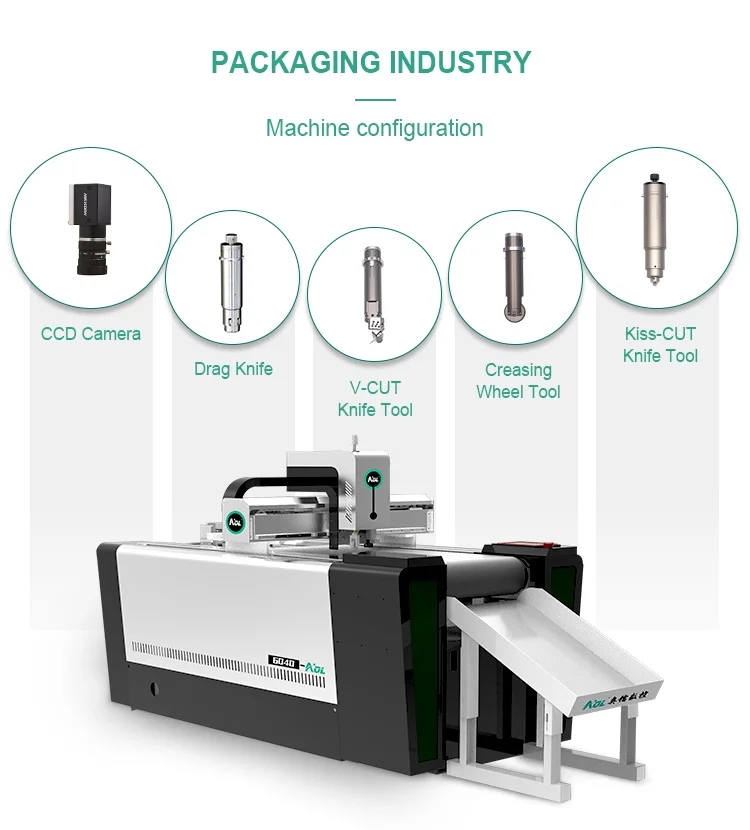

CNC oscillating knife cutting machine is carried on the multi-tool cutting head–Vibration knife, Oblique knife, Circular knife, Punching knife,

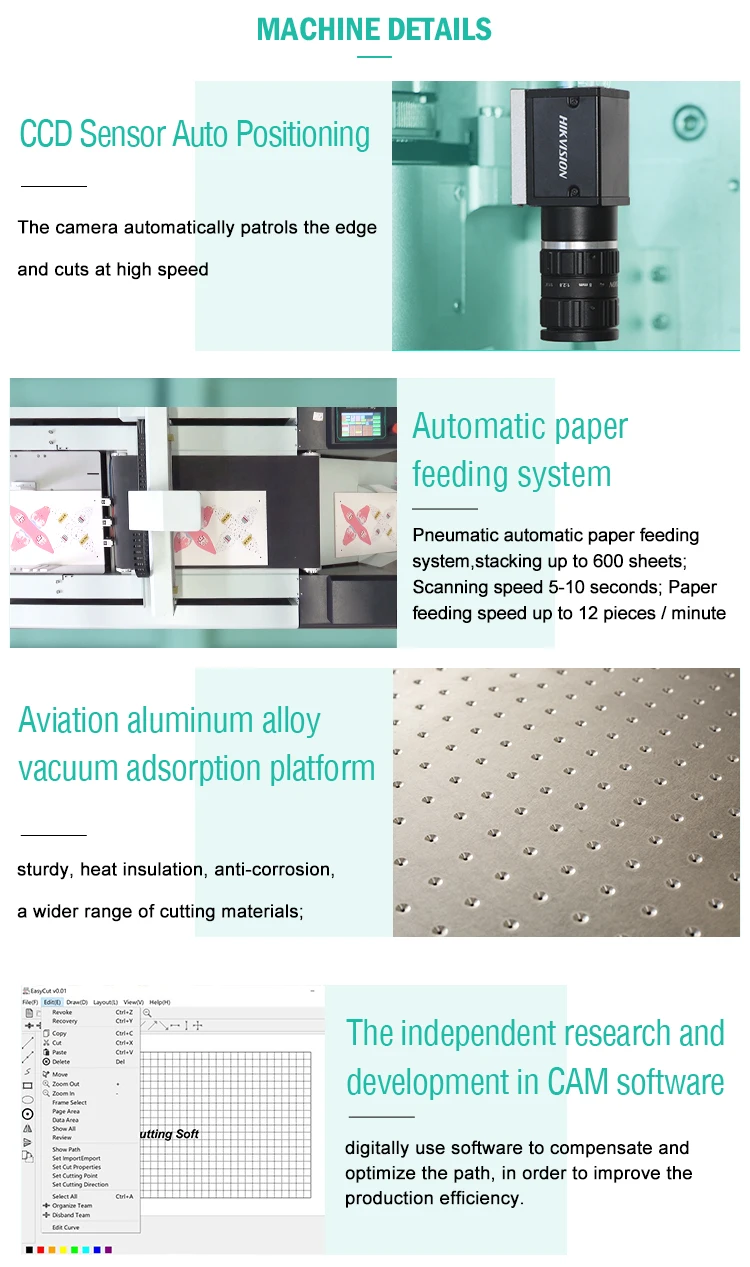

Milling knife, Punch roller and Marking pen. CCD camera and Projector are optional for more precise cutting.
CNC Oscillating Knife Cutter is also called CNC Oscillating Knife Cutting Machine, Oscillating Knife Cutting Machine.CNC Oscillating Knife
Cutter is used for cutting Leather, Gasket, PP, PE, EVA, PTFE, ETFE, Carpet, Carton, Wood, MDF, PVC, Acrylic, Carboard, Rubber,
Corrugated box, Foam, Leather strip, Composites, Cardboard, Corrugated board, Honeycomb paper, Plastic film, Fiber paper, Plastic box,
Rebound rubber, Rubber cloth, etc.
CNC Oscillating Knife Cutter is widely used in Sign and Graphics, Digital Printing, Packaging, Automotive, Recreational boat, Exhibits
and Fixtures, Sign Making, Gasket Materials, Arts and Crafts and other industries.
Why Choose CNC Oscillating Knife Cutter?
1.High speed with high quality, its cutting speed is 5-8 times faster than laser cutting machine.
2. Advanced computerized CNC system, which is easy to operate with Ethernet port.
3. The cutting without air pollution, no burnt edge, uniform in color.
4. Oscillating knife cutting machine can cut soft materials with perfect edges and corner.
5. Oscillating knife cutting machine adopts Japan YASKAWA servo motor and drive,fast cutting speed with high precision.
6. Oscillating knife cutting machine can be equipped with different tools to meet a variety of needs.
7. Special safety sensing device meets the European standard.

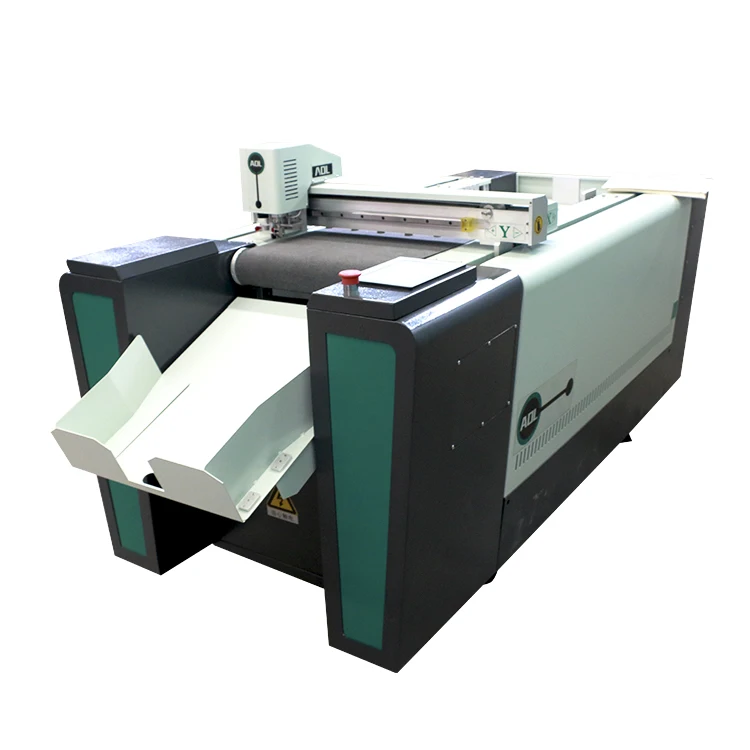

Paper sticker oscillating knife cutting machine
Cutting Samples
Parameters:
Model | Flat table / Auto feeding table |
Rated power | 9KW |
Working area | (length x width ):600*400mm |
Multi functional head (optional) | Oscillating/Vibration knife Circular knife Punching knife V cutter Pen Milling knife Projector and camera cross positioning laser |
Tool configuration | Multiple cutting knives |
| Using infrared sensors, responsive, safe and reliable. |
| 800-1500mm/s |
Cutting speed | 200-1000mm/s(according to different cutting materials) |
Cutting thickness | ≤22mm(according to different cutting materials) |
Cutting materials | Cardboard, Leather, all kinds of clothing flexible material, Spongecomposite leather, PVC, soft glass, Silicon, rubber |
Buffer Capacity | 2GB |
Transmission system | Imported(Digital servo motor, linear guide, synchronous belt) |
| HP-GL compatible format |
Voltage | 380V±10% |
Other configuration | Yaskawa servo motor,Germany imported conveyor belt, vacuum table, Taiwan Hiwin rail, 9kw vacuum pump |
Material fixing method | High power vacuum absorption and intellectual partition |
Repeated positioning accuracy | Maximum 0.01mm |
Mechanical Precision | Maximum 0.02mm |
Drive system | Belt transmission, AC servo motor, linear guide rail |
Operating mode | Operation platform + data output control software (operation platform can be divided into connected and separated parts) |
Display mode | Chinese and English liquid crystal screen |
Data transmission method | Ethernet |
Our Services
1) Machine has been adjusted before delivery.
2) English software, user manual and detailed installation & training Videos DVD
3) Warranty period: one year on parts from date of shipping date,Life-time technical support.
4) Machine spare parts and repair service is offered in lifetime.
5) Free training is offered in the plant and free samples are available.
6) 24 hours technical support by e-mail, calling or door-to-door service.
7) Professional cncknife cutting machine supplier with 8 years experiences.
8) International quality certificate: CE, ISO9001

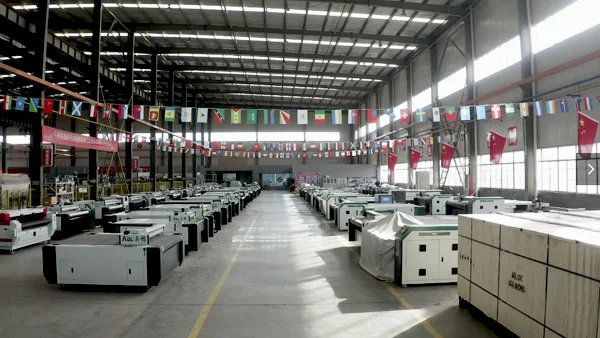

Company Information
Jinan AOL CNC Equipment Co.,Ltd was founded in 2005. For over 10 years, AOL laser machines and Intelligent
CNC knife cutting machine cover all Chinese market and also very popular in America, West Europe, South Asian,
East Asian etc. More than 80 countries. AOL team will try our best to serve for you with suitable laser solutions.
AOL CNC knife cutting machine is more popular for cutting market, without smoke and noise, but with high precise
and fast cutting! Welcome you to join AOL,share top laser&cnc knife cutter products and services together with
word-wide customers. Continuously create long-time value for customers.
If any questions about machine, pls feel free to contact me. And welcome to visit to AOL factory !!!
