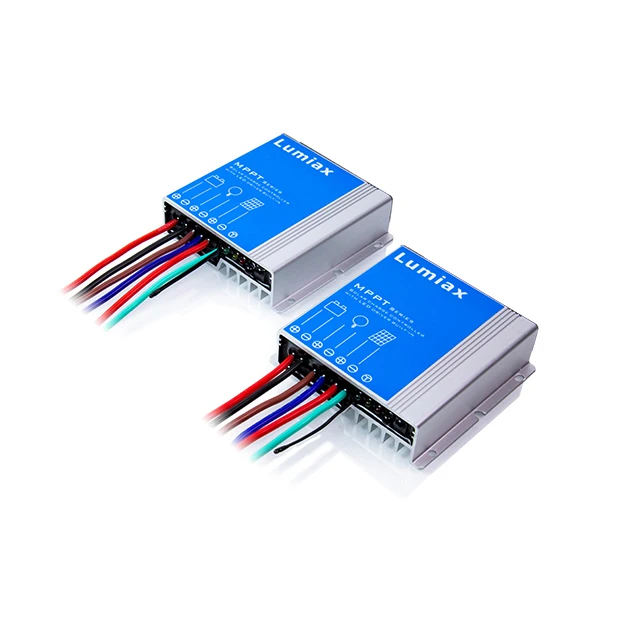

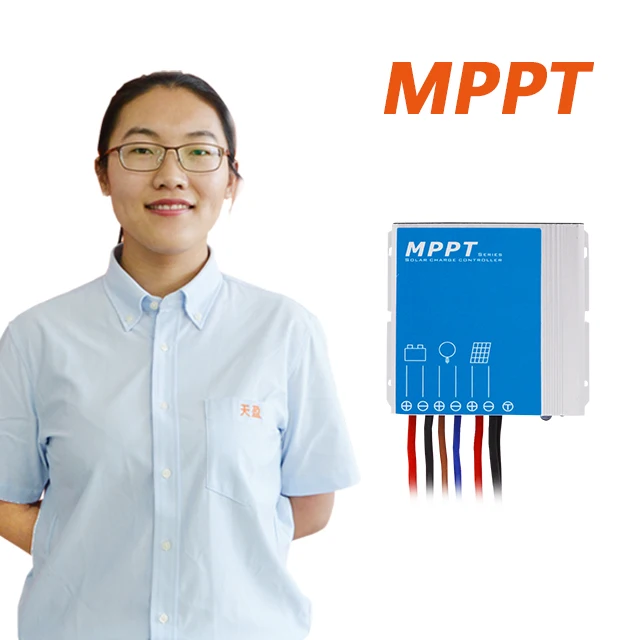

Europe and the United States exclusive high end Lumiax 8A solar street light charge controller 12V
- Category: >>>
- Supplier: Qingdao Skywise Technology Co. Ltd.
Share on (62502934347):
Product Overview
Description
Product Description
8A/10A/15A,12V MPPT Solar Street Light Controller with LED driver,Dimming function
For Lead Acid Battery and Lithium battery
For Lead Acid Battery and Lithium battery
Innovative Max Power Point Tracking(MPPT) technology, tracking efficiency >99.9%
High charge conversion efficiency up to 97.5%, discharge efficiency up to 96.5%
Constant current output, voltage boost type (output current can be set).

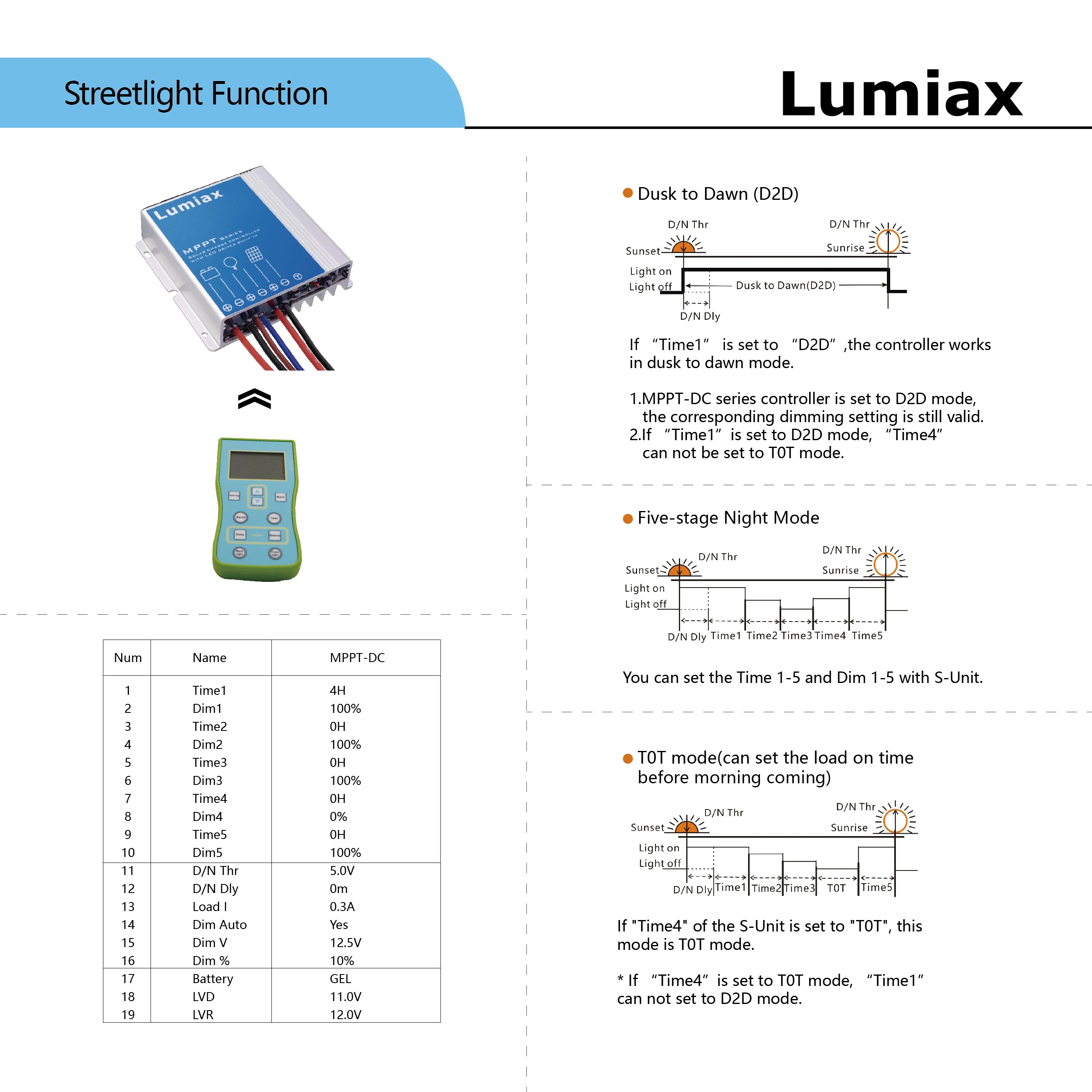

Five stages timer and dimming setting
External temperature sensor, automatic temperature compensation
LCD type remote control, can read and set parameters by infrared
Current-limiting charging protection while the PV power exceeds the range.
Aluminium case, IP67
Protection:
PV Over Voltage · PV Short Circuit · PV Reverse Polarity · Reverse Current
Battery Reverse Polarity · Battery Over voltage ·Battery Short Circuit · Battery Over discharge
Load Over Current Protection · Load Short Circuit Protection · Load Reverse Polarity · Load Low Voltage Protection
Over Temperature Protection
Battery Reverse Polarity · Battery Over voltage ·Battery Short Circuit · Battery Over discharge
Load Over Current Protection · Load Short Circuit Protection · Load Reverse Polarity · Load Low Voltage Protection
Over Temperature Protection

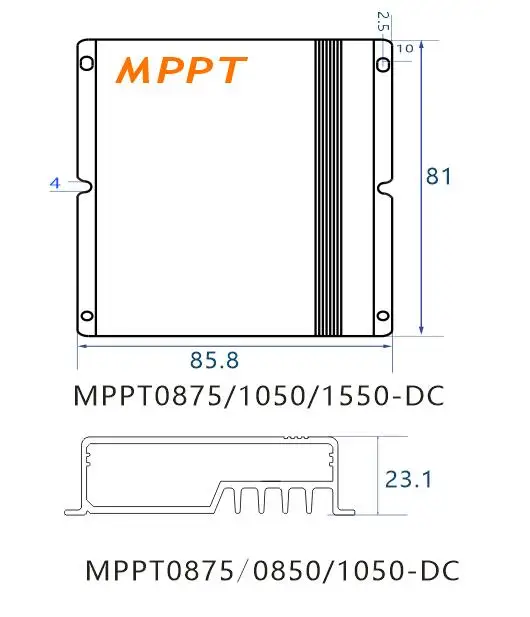

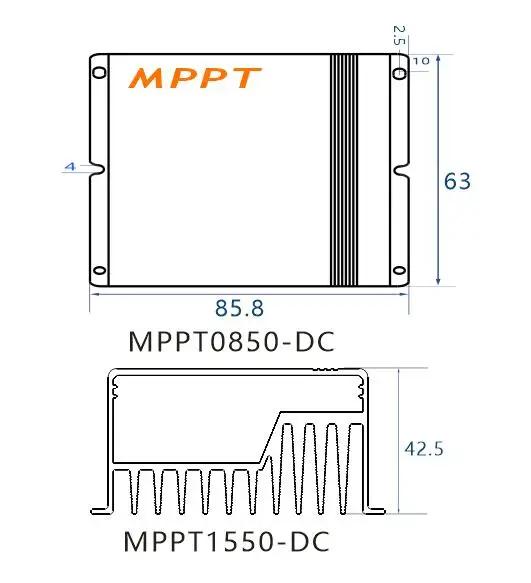

Size Information
Secification/Parameters
MPPT0850-DCLI | MPPT0875-DCLI | MPPT1050-DCLI | MPPT1550-DCLI | ||||
Ampere | 8A | 8A | 10A | 15A | |||
System voltage | 12V | 12V | 12V | 12V | |||
Mppt Charging Voltage | < 14.5 @25℃ | < 14.5 @25℃ | |||||
Boost Voltage | 14.5 @25℃ | 14.5 @25℃ | |||||
Equal Voltage | 14.8 @25℃（Liquid, AGM） | 14.8 @25℃（Liquid, AGM） | |||||
Float Voltage | 13.7 @25℃ | 13.7 @25℃ | |||||
Battery Type | Liquid,AGM,GEL,Lithium battery | Liquid,AGM,GEL,Lithium battery | |||||
Max PV input voltage | 35V | 60V | 45V | 35V | |||
Max PV input Power | 100W ~120W | 120W~150W | 180W~225W | ||||
Dusk/Dawn detect volt | 3.0~8.0V (Programmable) | ||||||
LED Power | 1~50W | 1~60W | 1~60W | 1~60W | |||
LED Voltage | 20V~45V | 20~58V | 20~45V | 20~35V | |||
LED Current | 0.15A~3A | ||||||
Min current | 100mA（Dimming） | ||||||
Max Tracking Efficiency | >99.9% | ||||||
Max Charge Conversion | 96.5% | ||||||
Max LED driver efficiency | 96% | ||||||
Dimensions | 85.8 * 63 * 23.1mm/ 85.8*81*23.1mm 85.8*81*42.5mm | ||||||
Weight | 230g /260g | ||||||
Self Consumption | 6mA | ||||||
Protection degree | IP67 | ||||||

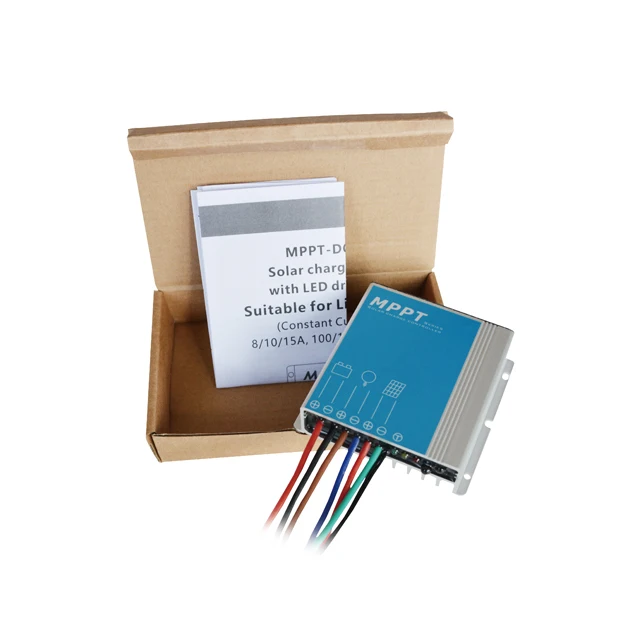

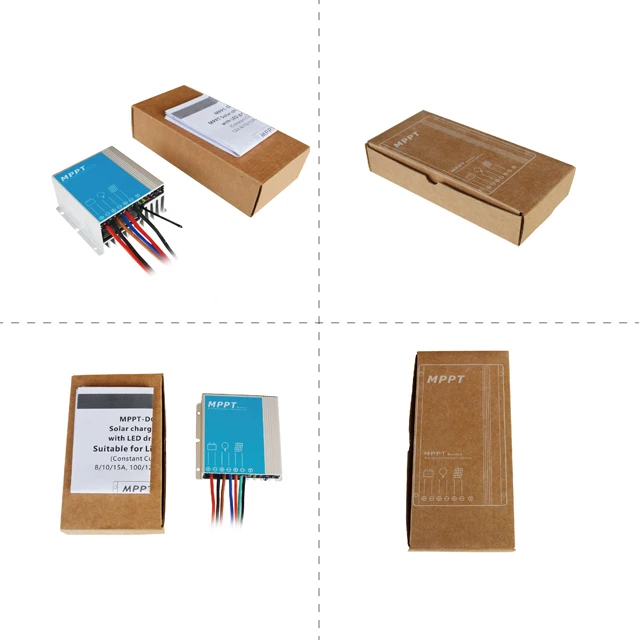

Packing&Shipping
Pacakging: carton
Contain: 30pcs/carton
Weight: 7kg/carton
Dimmension: 44*31*18 cm
Shipping:
Air transport & Sea transport
International Express：DHL, FEDEX, TNT, UPS
If choose international express, we recommend to place order > 20kg, will get discount
Company Introduction
Registered as “Lumiax”, Qingdao Skywise Technology Co., Ltd. was established in 2007, and located in Qingdao Hi-tech park area. Due to many years devoted to researching and developing, now we have been the world-leading solar charge controller manufacturer with over 1.5 million controllers exported to 100 countries. Certificates that we have possessed of ISO9001 Quality Management System, ISO14001Environmental Management System, CQC Golden Sun Certificate, CE and ROHS. Also with IEC61000, IEC62509,FCC,SASO,CISPR certificates for some models.
Products major including two parts: solar 24 hours universal system controller and solar street light controller. Weclome to visit and inquiry.
Our Services & Strength
1.All Lumiax products PCB are designed very well, no need for labor soldering, all are welded by machine automatically, which decrease the damage risk, like cold welding\\welding slag\\high temperature harm to components around.
2.Most of Lumiax MOSFET are from IR, ST MOSFETs, very famous brand in the world.
3.Most of Lumiax controllers MCU are from Atmel/ST/Microchip, very famous brands in the world.
4.Lumiax uses TVS from Littelfus, No.1 brand in the world, 1200W; while others use 600W unfamous brand TVS, even some use varistors, which sensitivity are not good sometimes.
5.We have another sister company, selling the electrical components, so we have the advantages to get components with good quality and low price.
6. CE certificate approved by TUV.
2.Most of Lumiax MOSFET are from IR, ST MOSFETs, very famous brand in the world.
3.Most of Lumiax controllers MCU are from Atmel/ST/Microchip, very famous brands in the world.
4.Lumiax uses TVS from Littelfus, No.1 brand in the world, 1200W; while others use 600W unfamous brand TVS, even some use varistors, which sensitivity are not good sometimes.
5.We have another sister company, selling the electrical components, so we have the advantages to get components with good quality and low price.
6. CE certificate approved by TUV.
